Control Module: Locations
Fuse & Relay Information

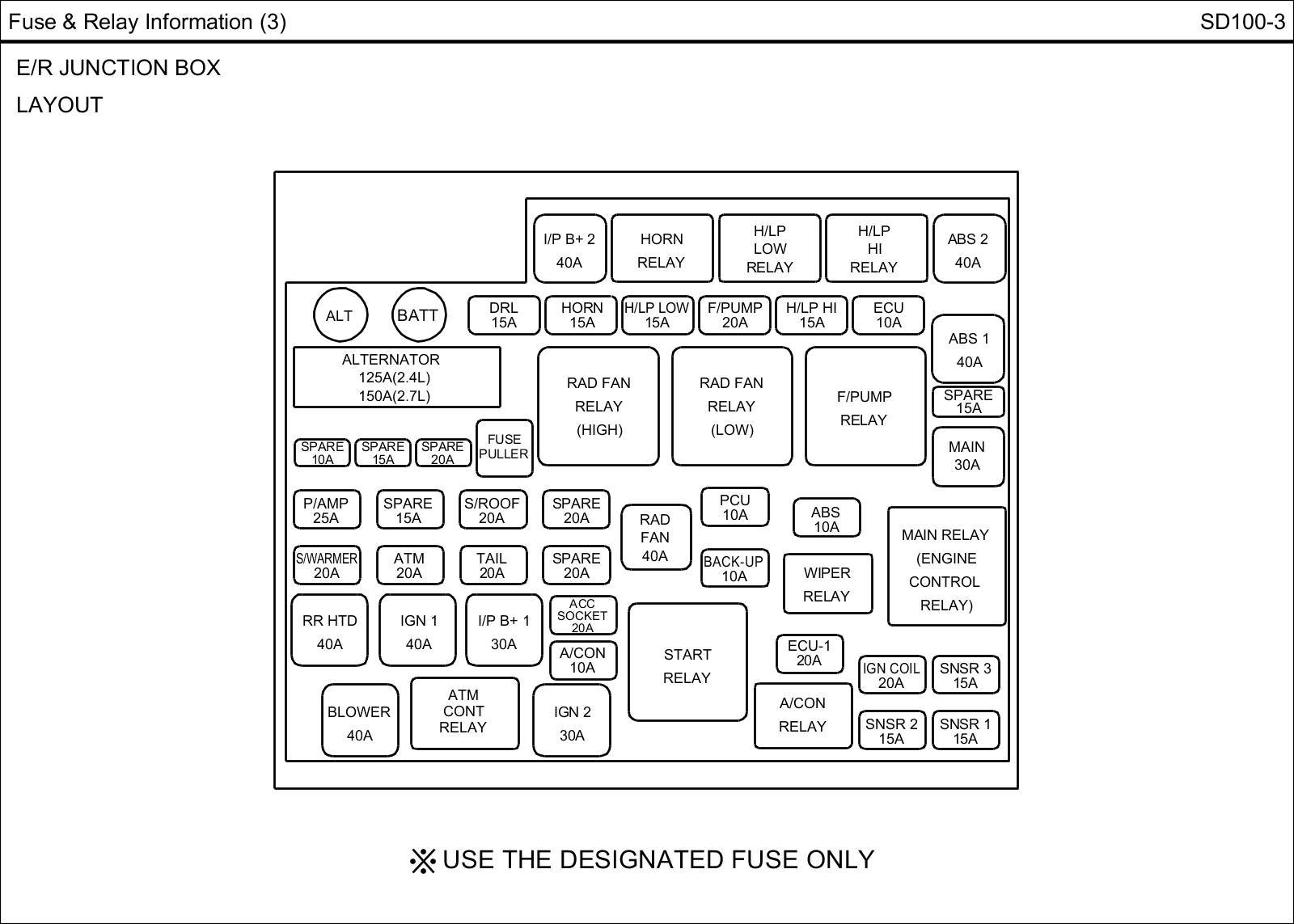

E/R Junction Box View:

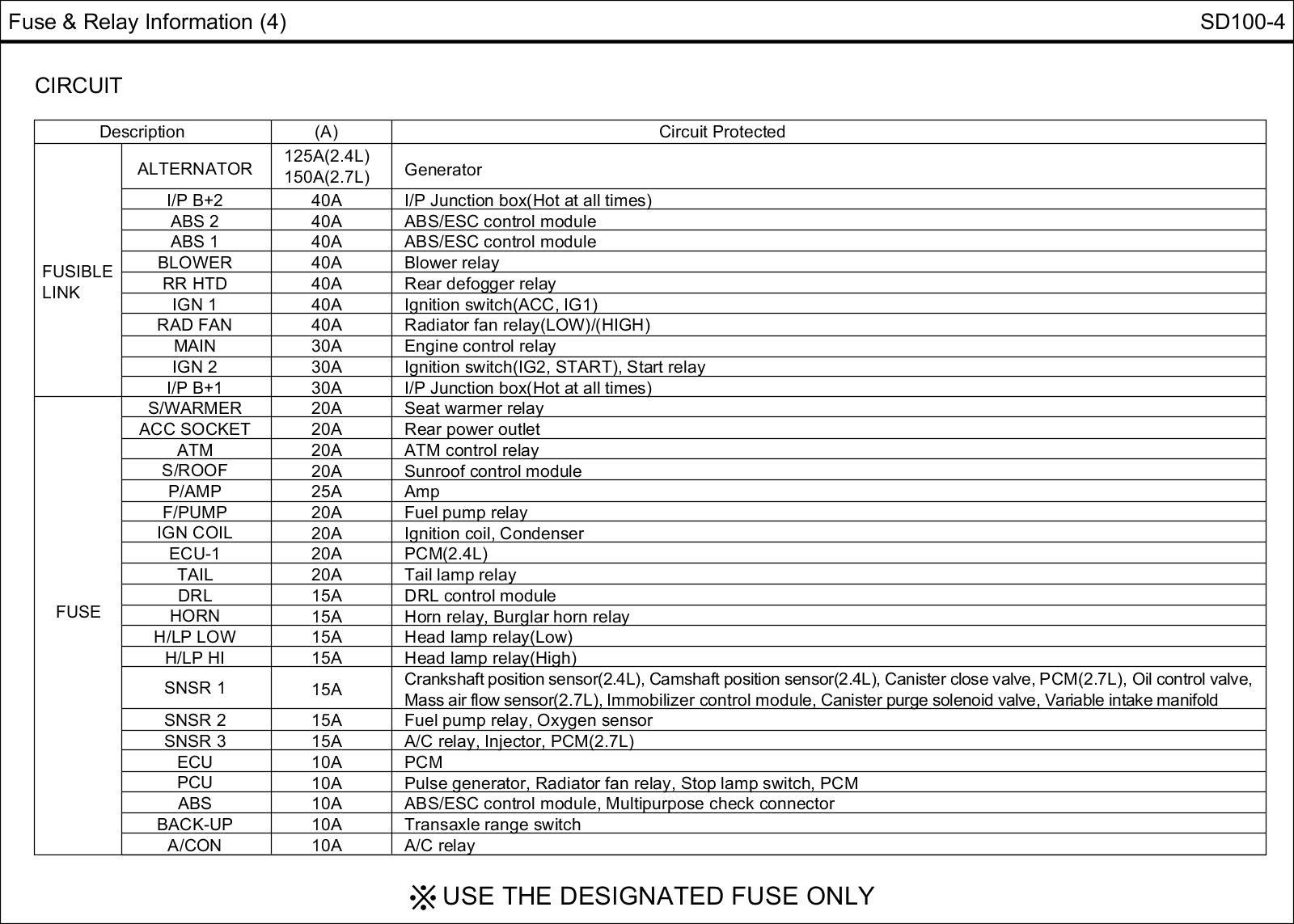

E/R Junction Box Circuit Details:
