lemon-mirror
:
Home
>>
Kia
>>
2012
>>
Rio L4-1.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
Connector Views
Connector Views

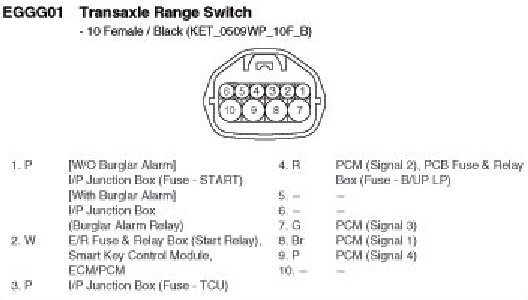

EGGG01 Transaxle Range Switch:
