Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse

Fuse

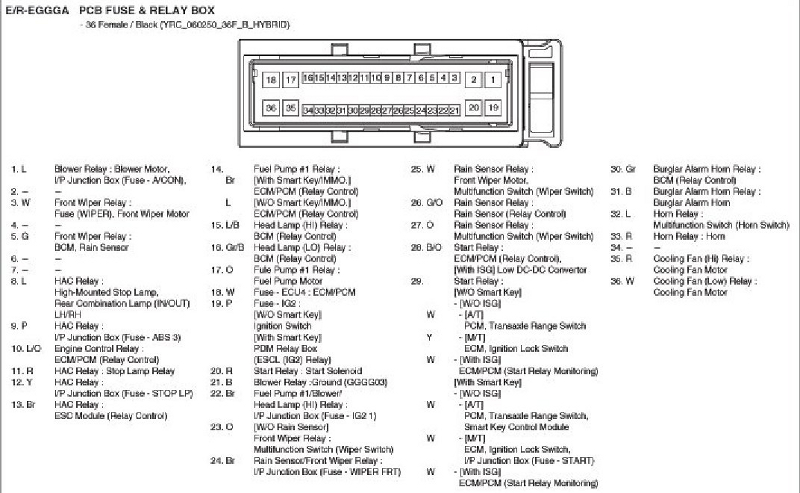

E/R-EGGGA PCB FUSE & RELAY BOX:

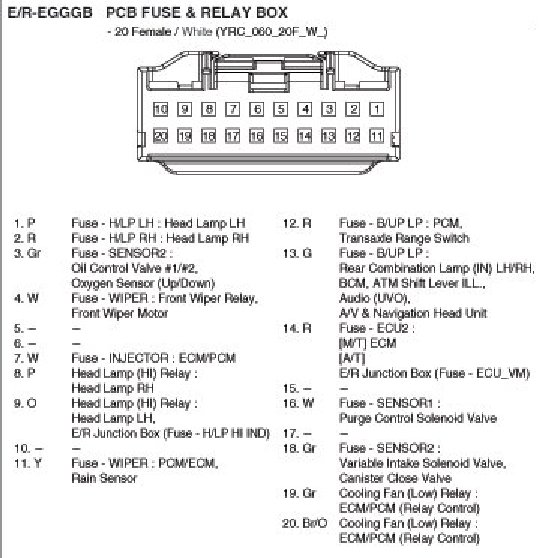

E/R-EGGGB PCB FUSE & RELAY BOX:
