Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Entertainment System Control Module

Entertainment System Control Module

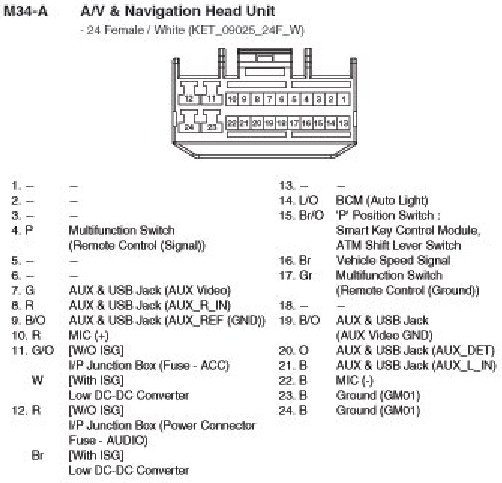

M34-A A/V & Navigation Head Unit:

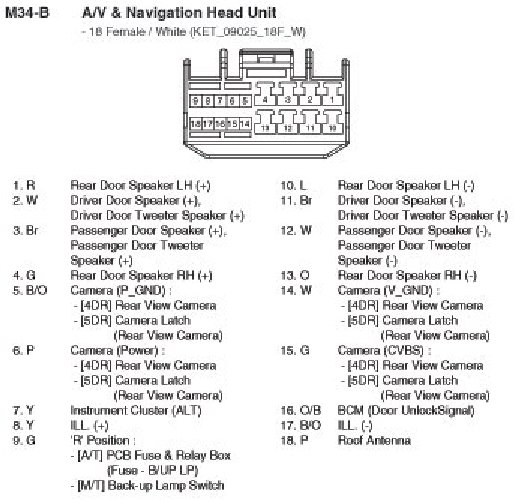

M34-B A/V & Navigation Head Unit:
