Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> PCM (A/T)

PCM (A/T)

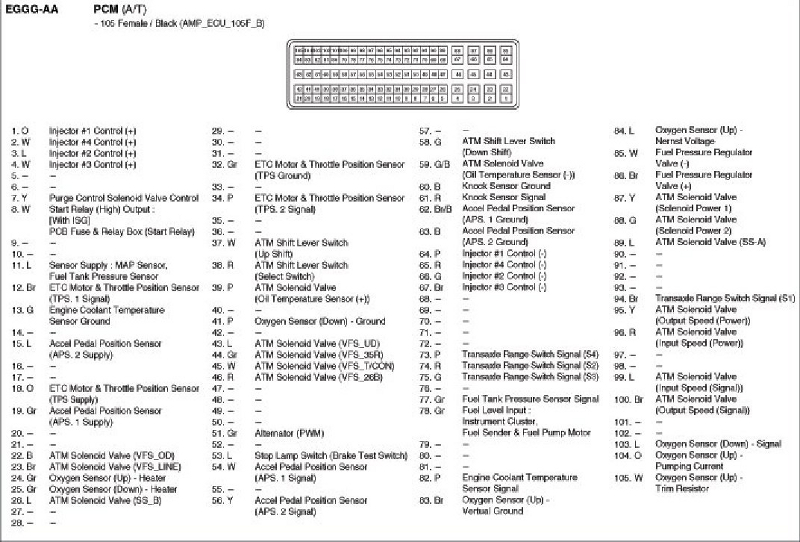

EGGG-AA PCM (A/T):

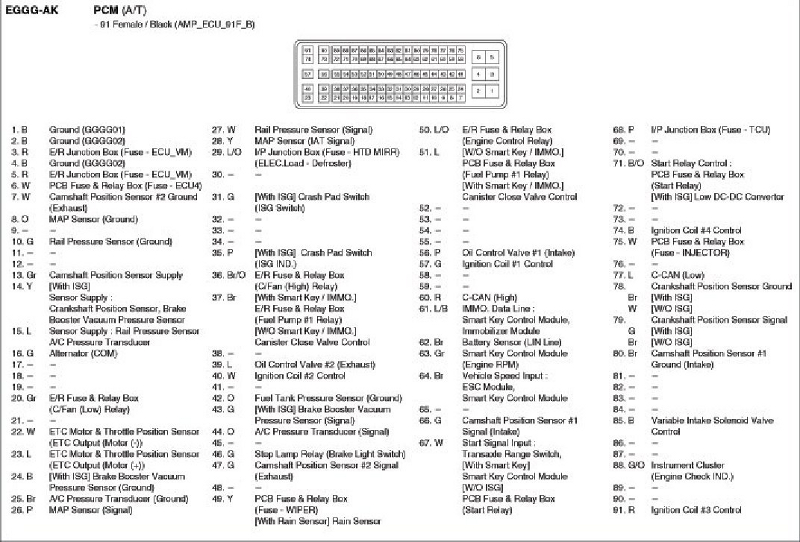

EGGG-AK PCM (A/T):
