A/C Control Module (Manual A/C)

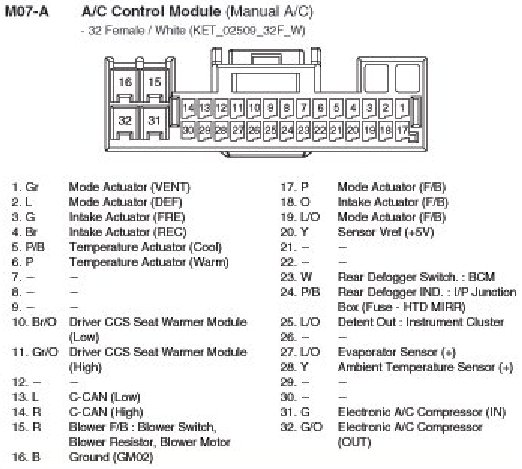

M07-A A/C Control Module (Manual A/C):

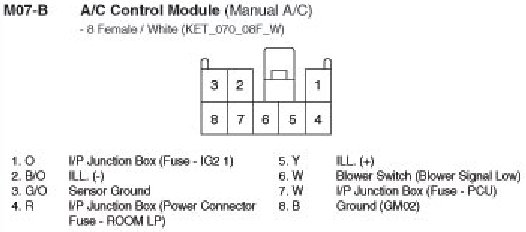

M07-B A/C Control Module (Manual A/C):
