Connector Views

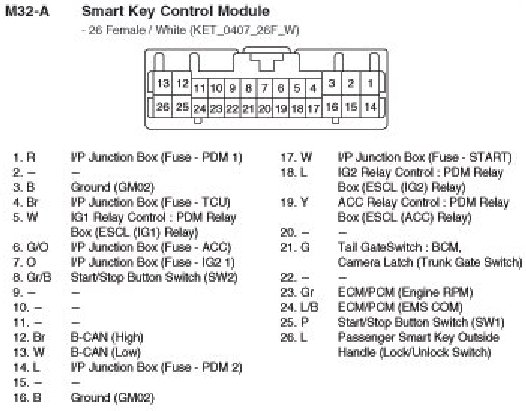

M32-A Smart Key Control Module:

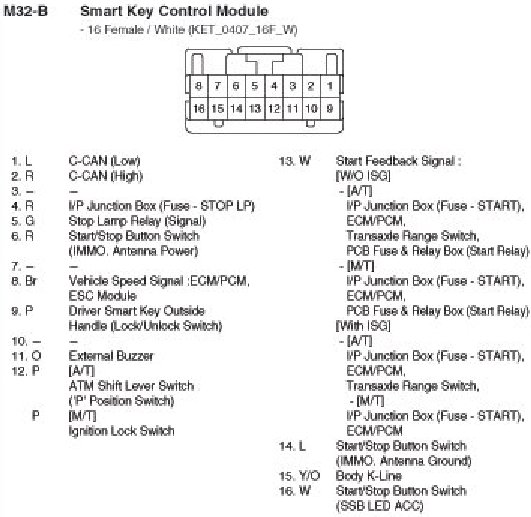

M32-B Smart Key Control Module:

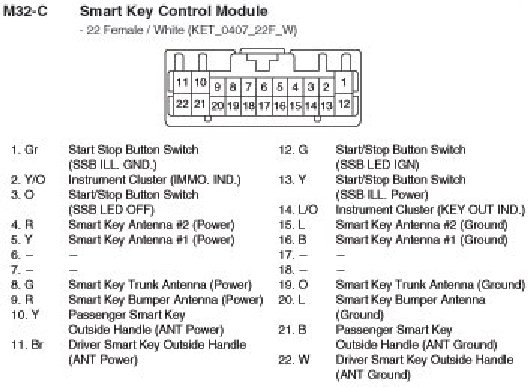

M32-C Smart Key Control Module:
