Home >> Kia >> 2012 >> Optima L4-2.4L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Relay >> Locations

Power Window Relay: Locations

Fuse & Relay Information

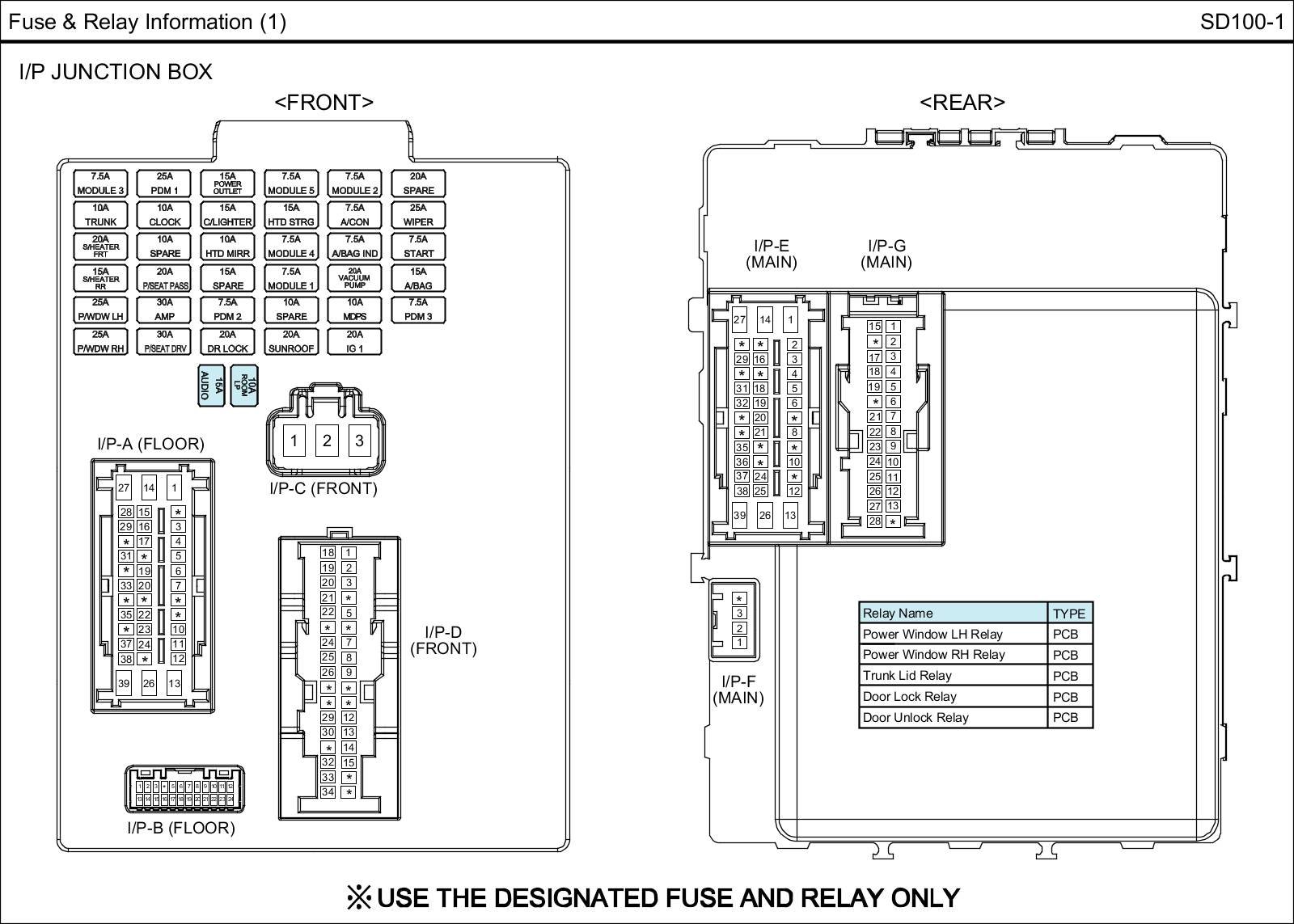

I/P Junction Box View:

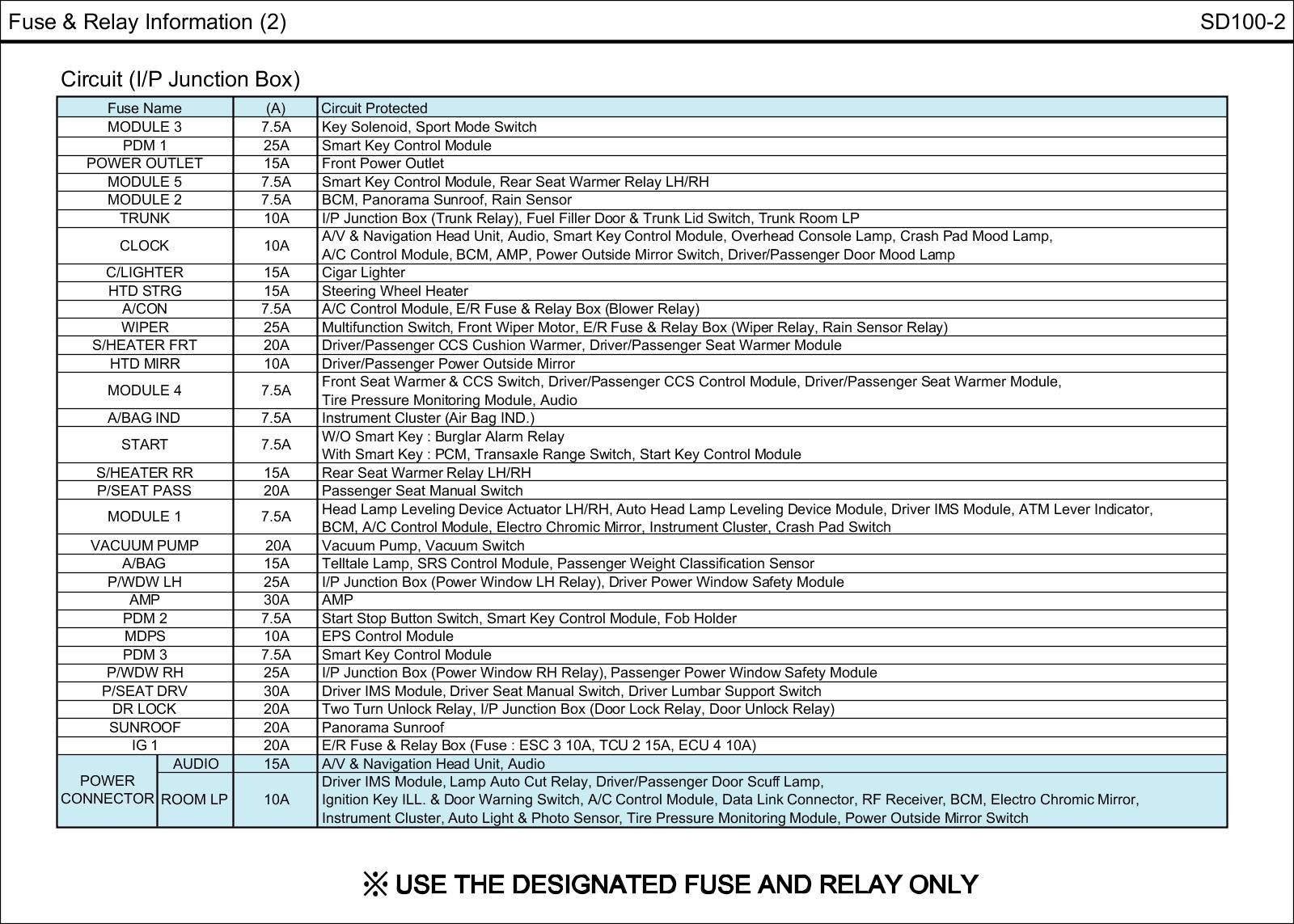

I/P Junction Box Circuit Details:
