Home >> Kia >> 2012 >> Optima L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Actuator >> Specifications

Electronic Throttle Actuator: Specifications





Specification

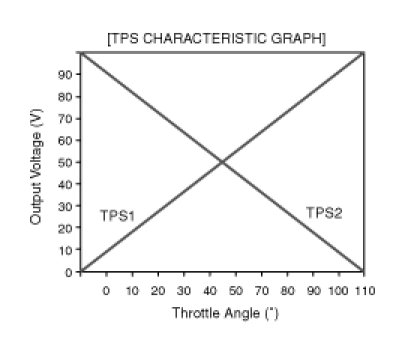

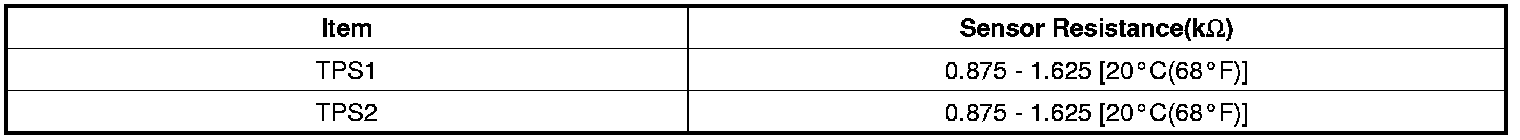

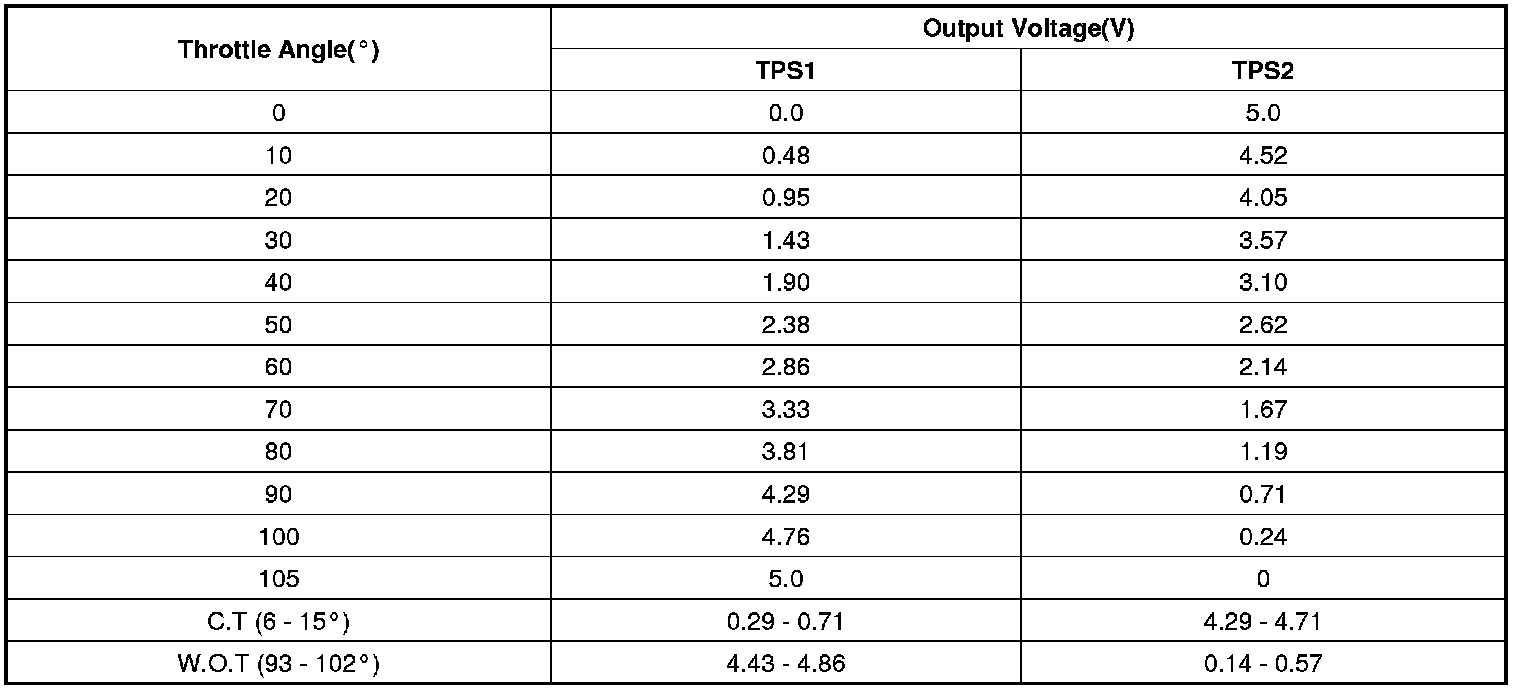

[Throttle Position Sensor (TPS)]














[ETC Motor]
