Home >> Kia >> 2012 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Drive Motor Rotor Position Sensor >> Specifications

Drive Motor Rotor Position Sensor: Specifications





Specification

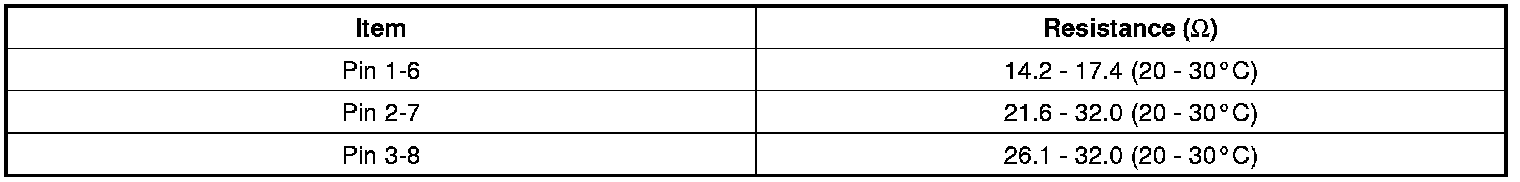

[Hybrid Drive Motor]

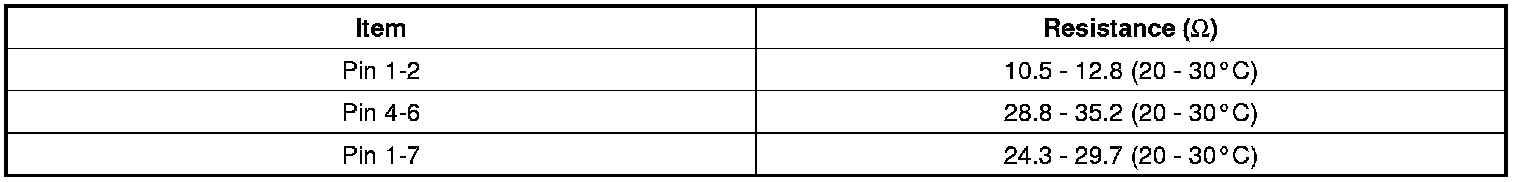

[HSG]
