Kia
>>
2012
>>
Optima L4-2.4L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC

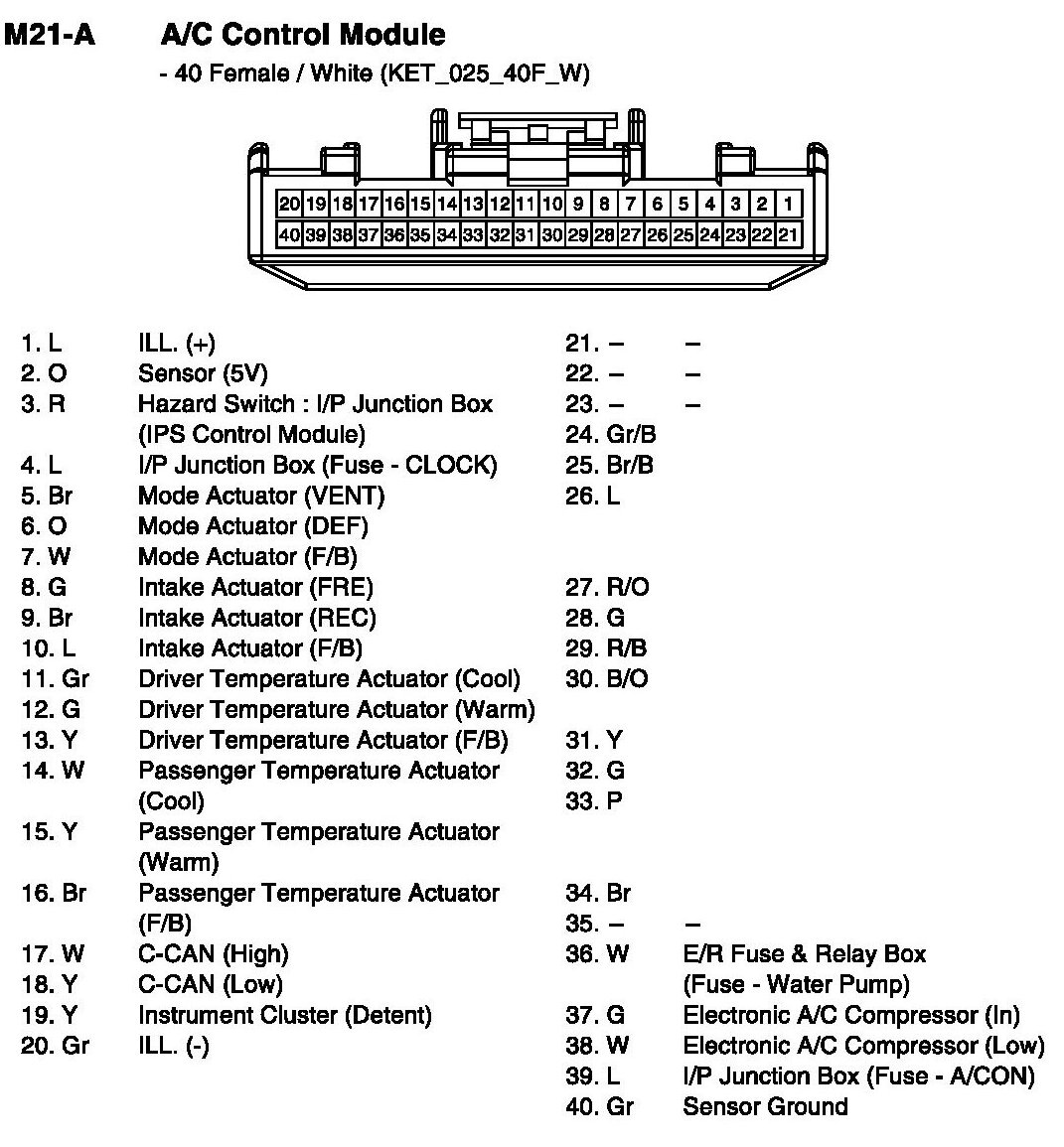

M21-A A/C Control Module:

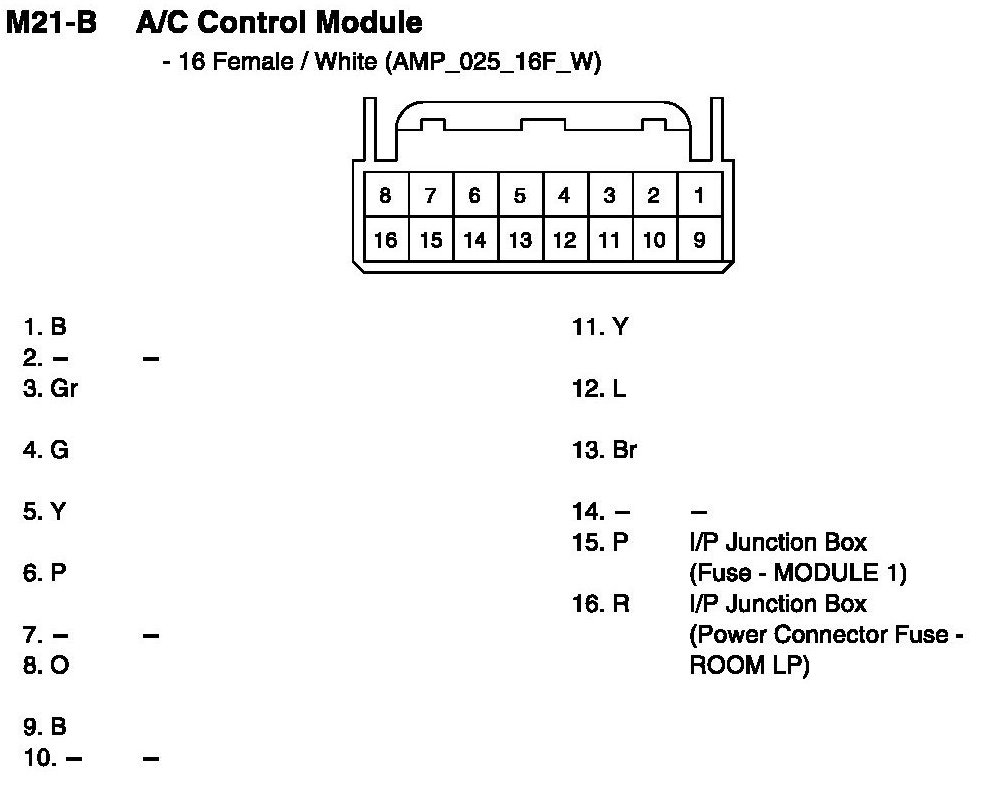

M21-B A/C Control Module:
