M28-A Blower Motor Control Module
M28-A Blower Motor Control Module

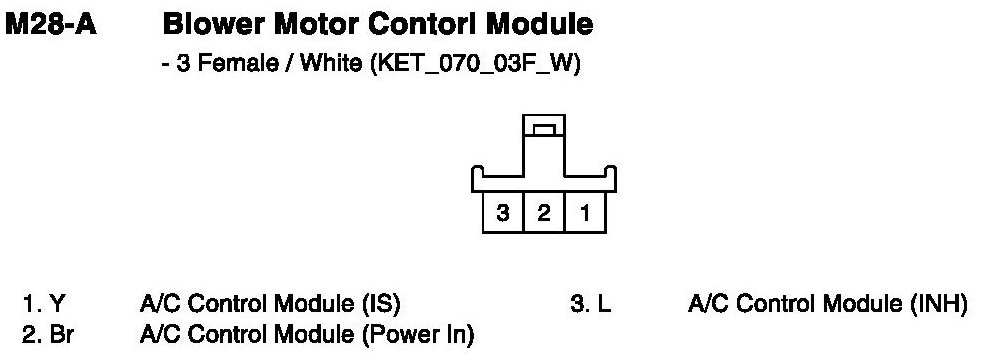

M28-A Blower Motor Control Module:
