Kia
>>
2012
>>
Optima L4-2.4L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Component Connectors
>>

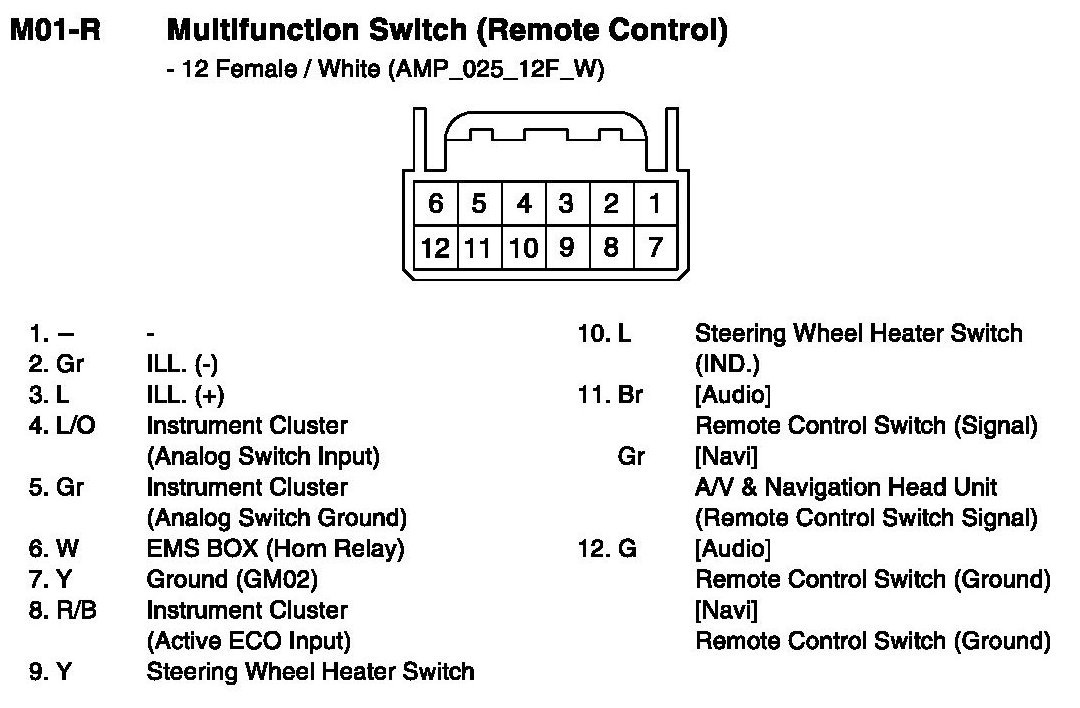

M01-R Multifunction Switch (Remote Control)
M01-R Multifunction Switch (Remote Control)
M01-R Multifunction Switch (Remote Control):
