Engine Control Module





ECM Terminal And Input/Output signal

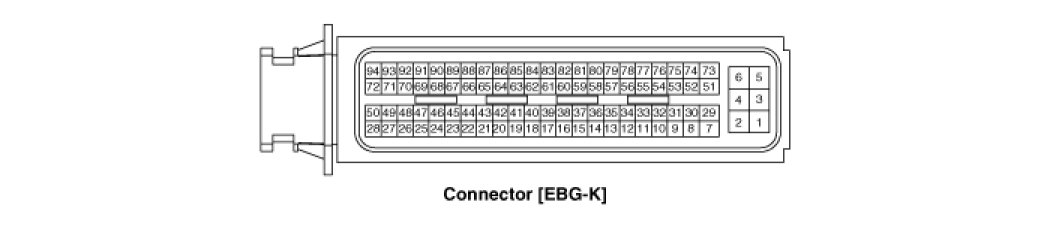

ECM Harness Connector

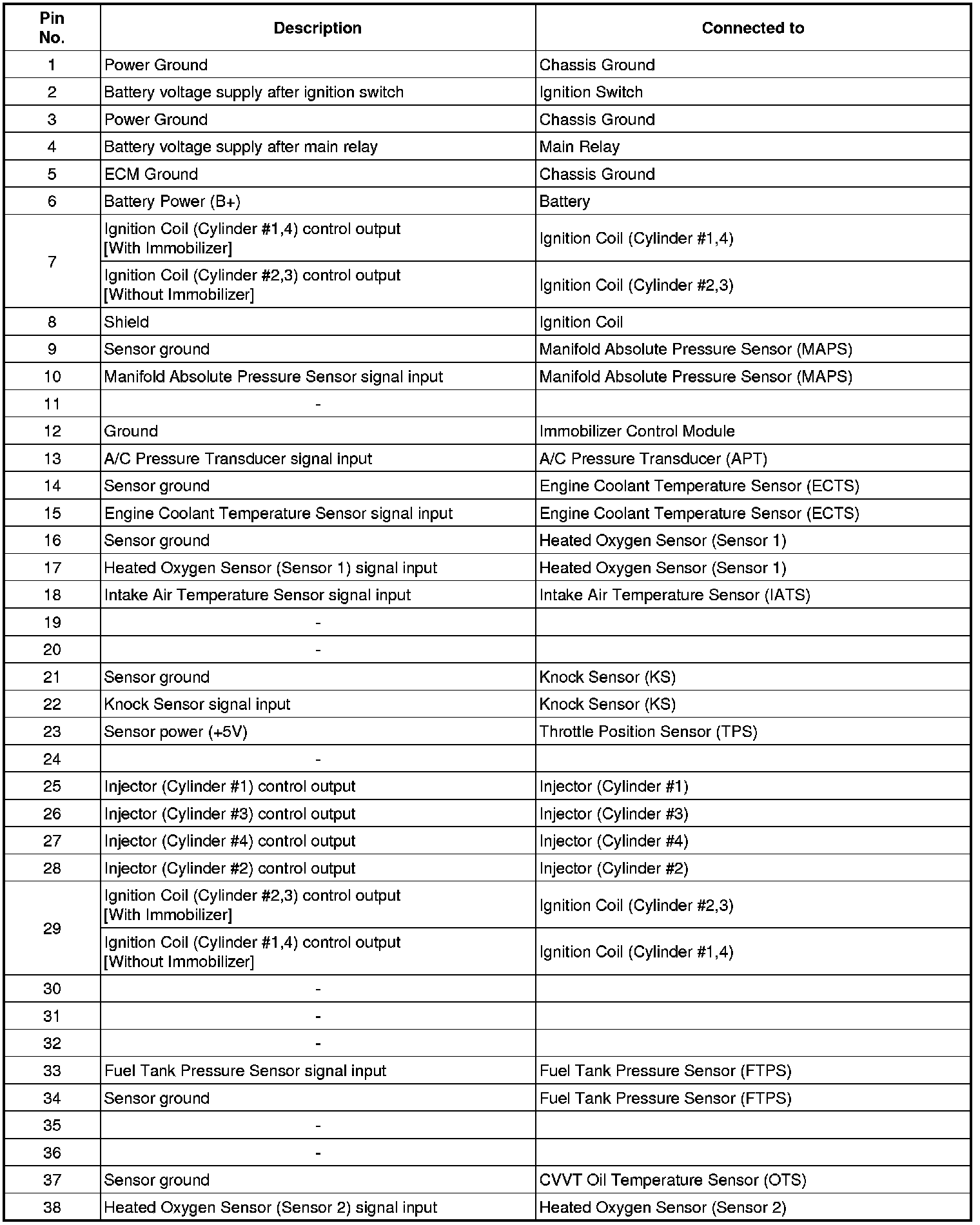

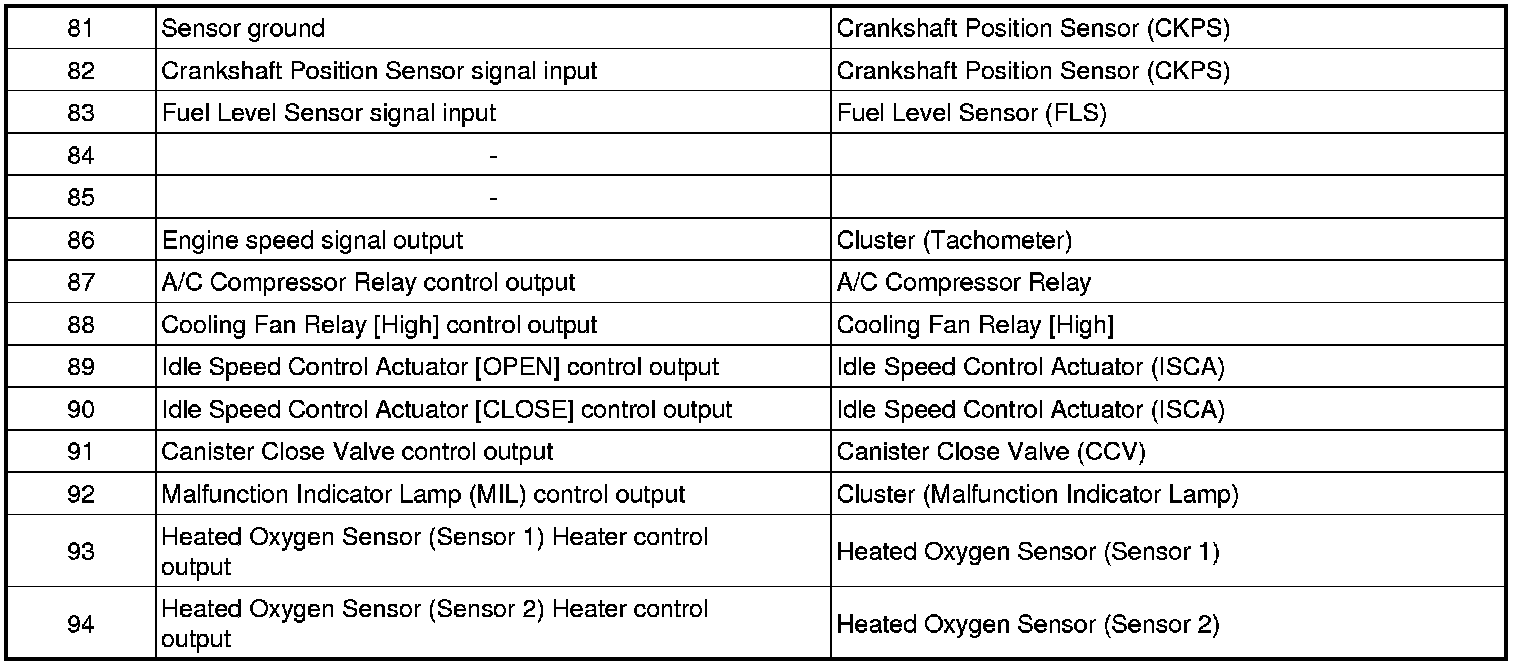

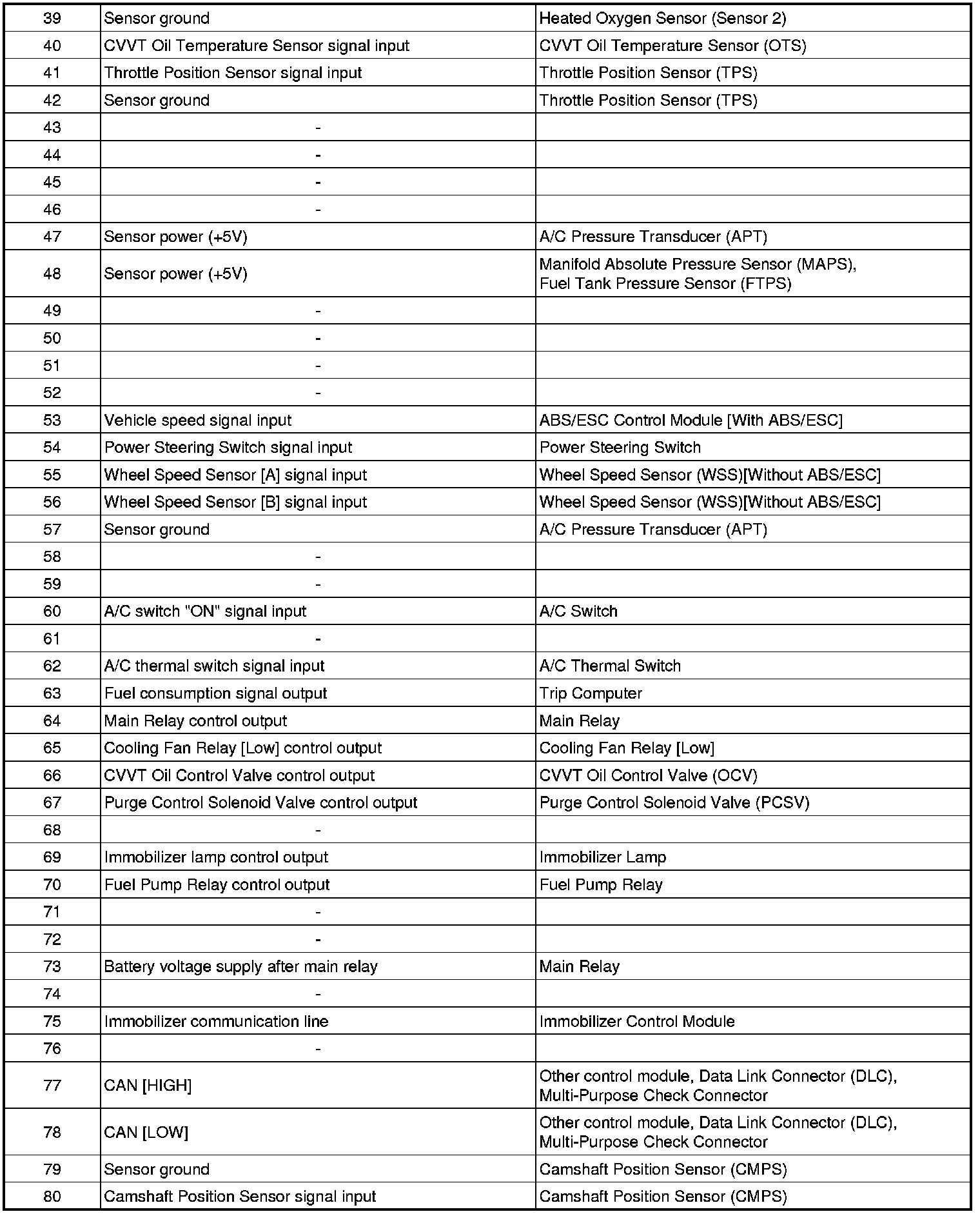

ECM Terminal Function
Connector [EBG-K]

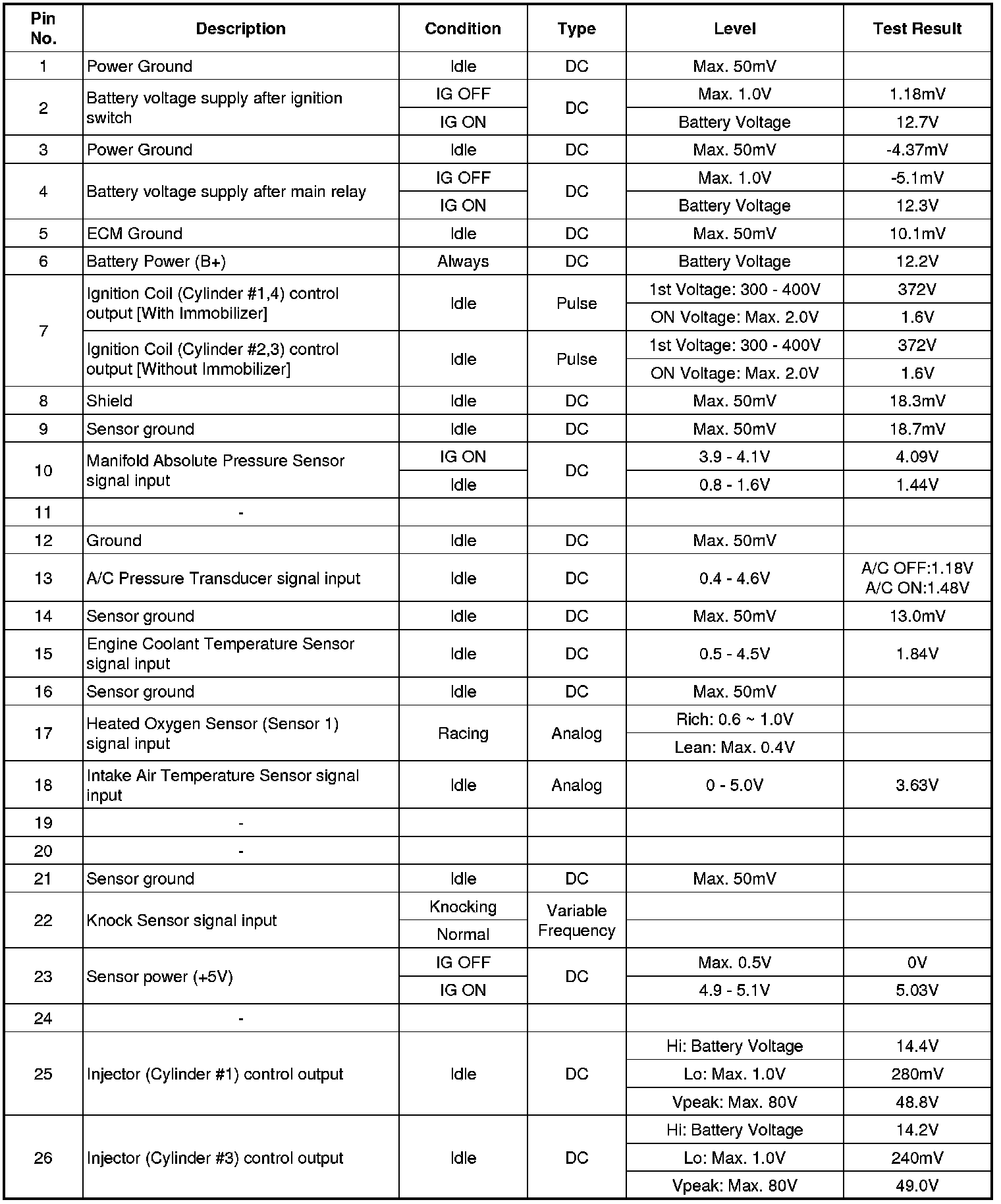

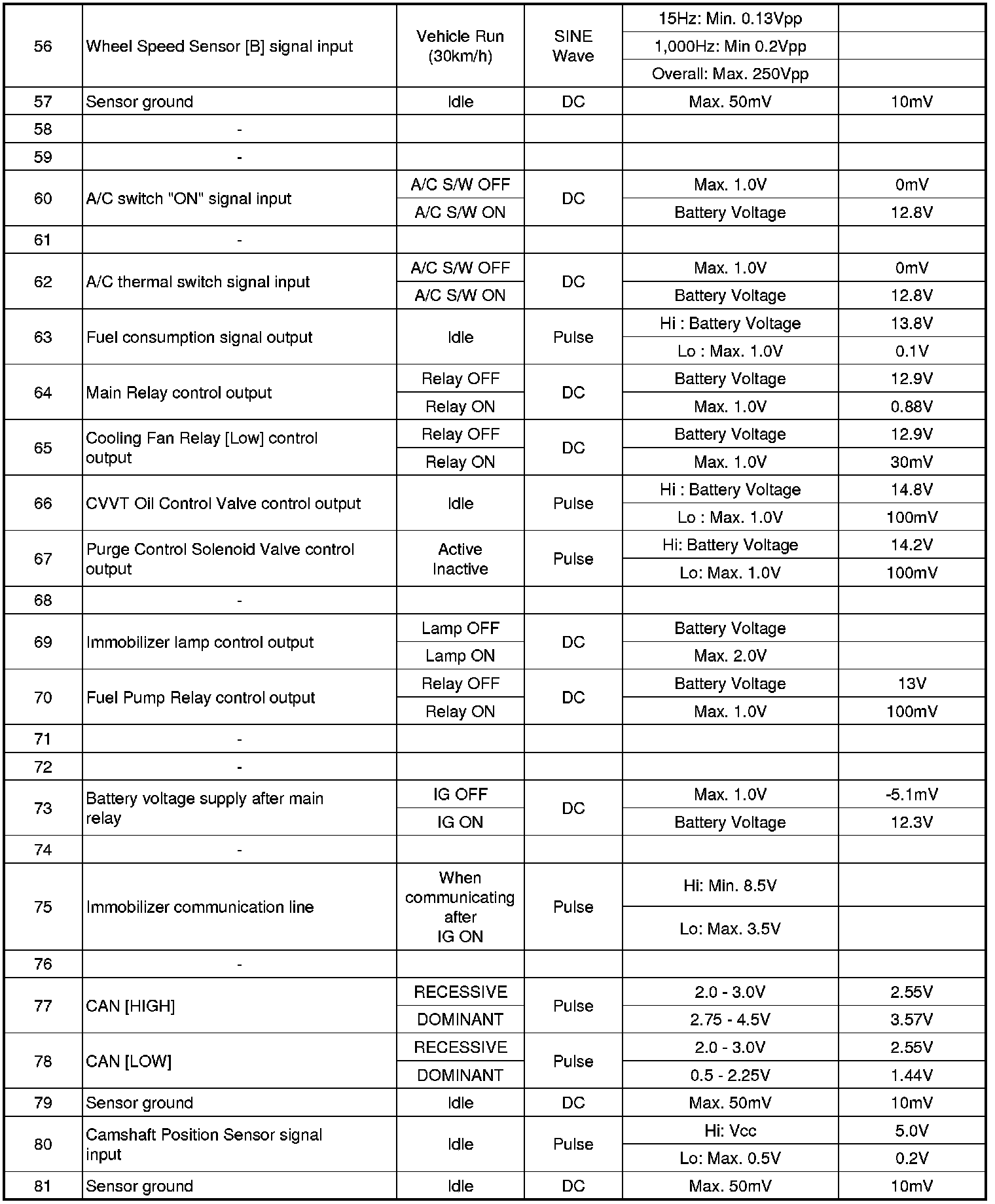

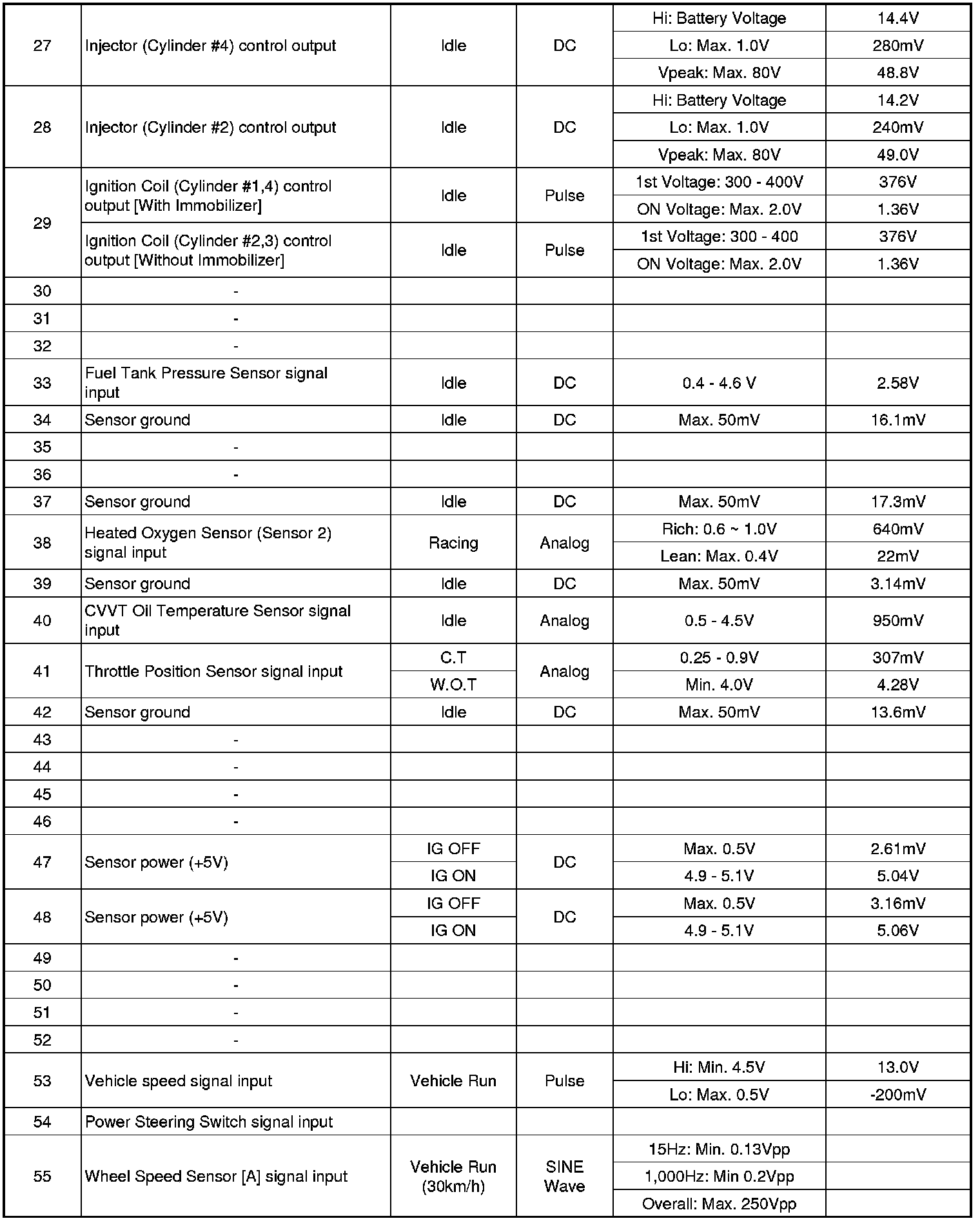

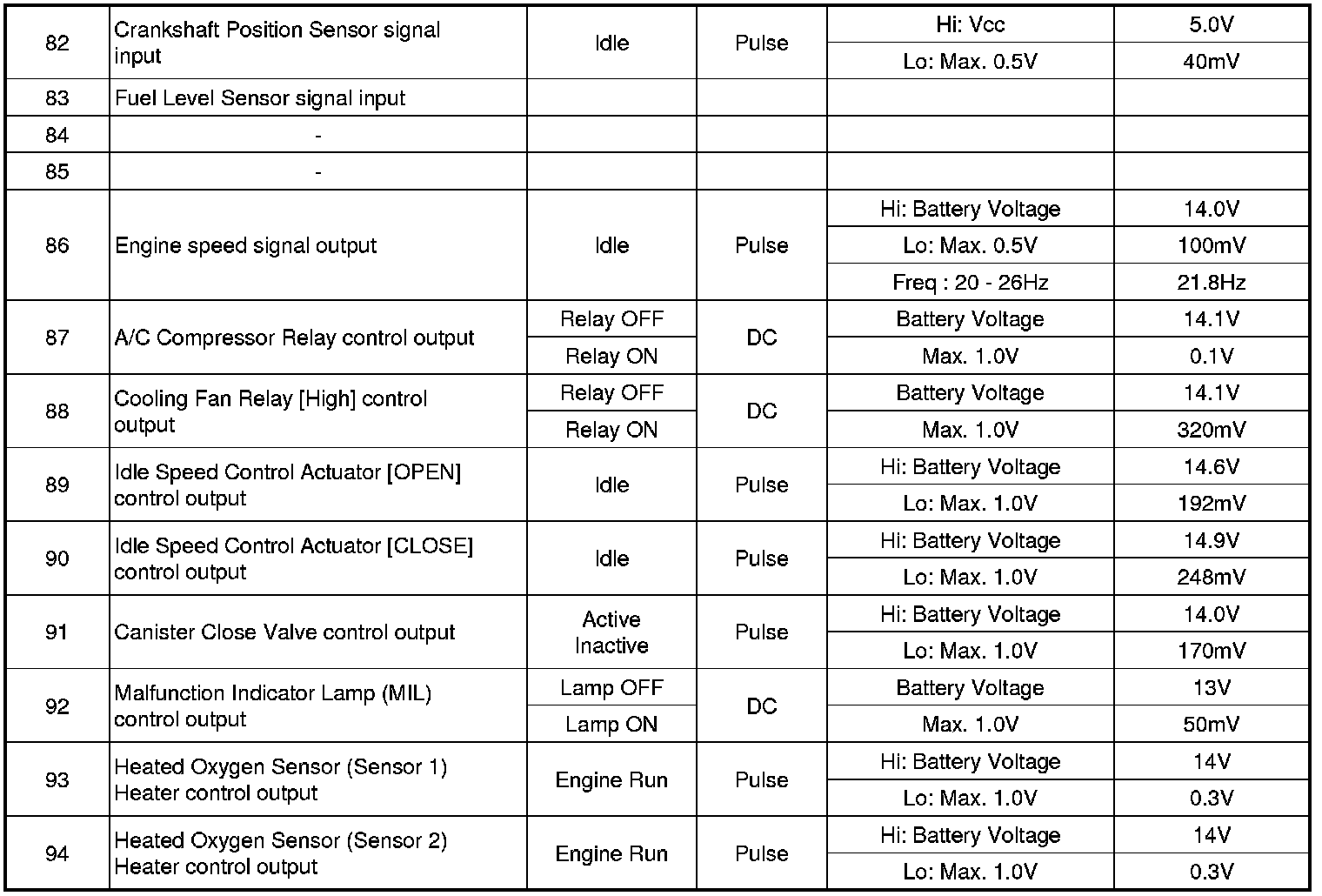

ECM Terminal Input/Output Signal
Connector [EBG-K]
