Home >> Kia >> 2011 >> Soul L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations





Components Location

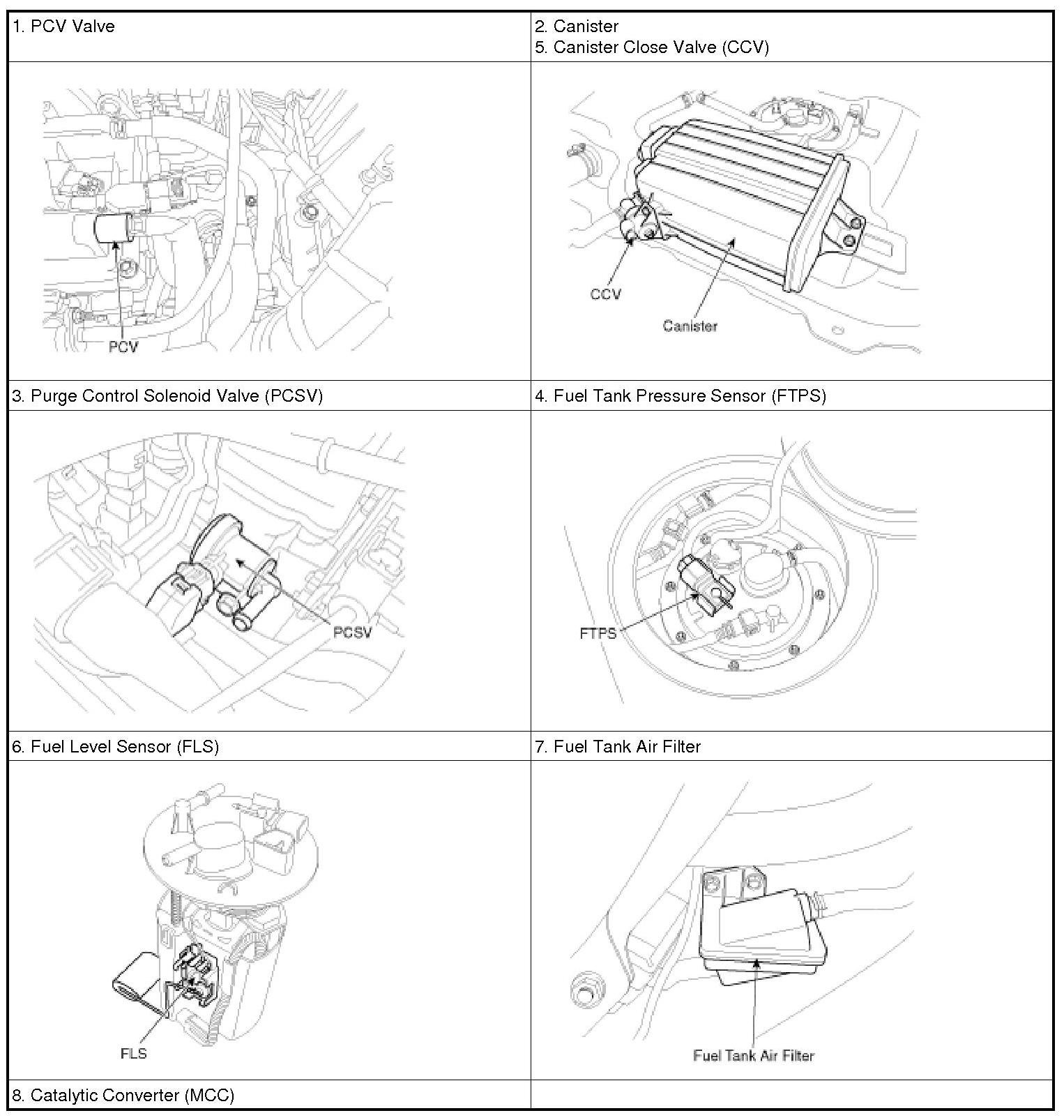

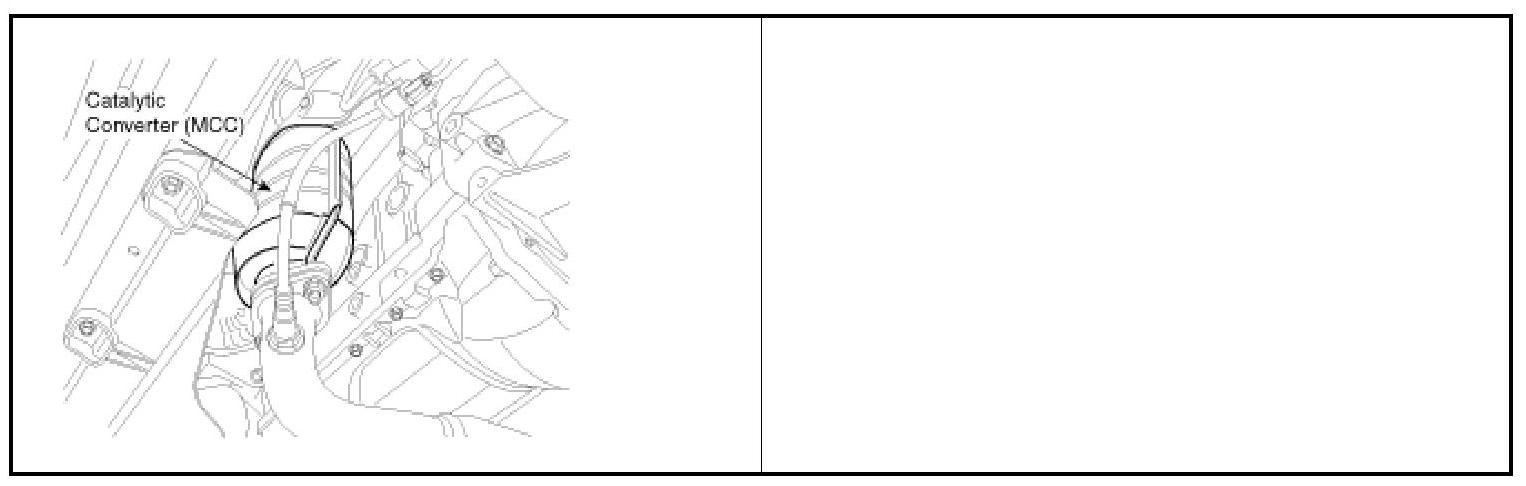

[1.6 DOHC]

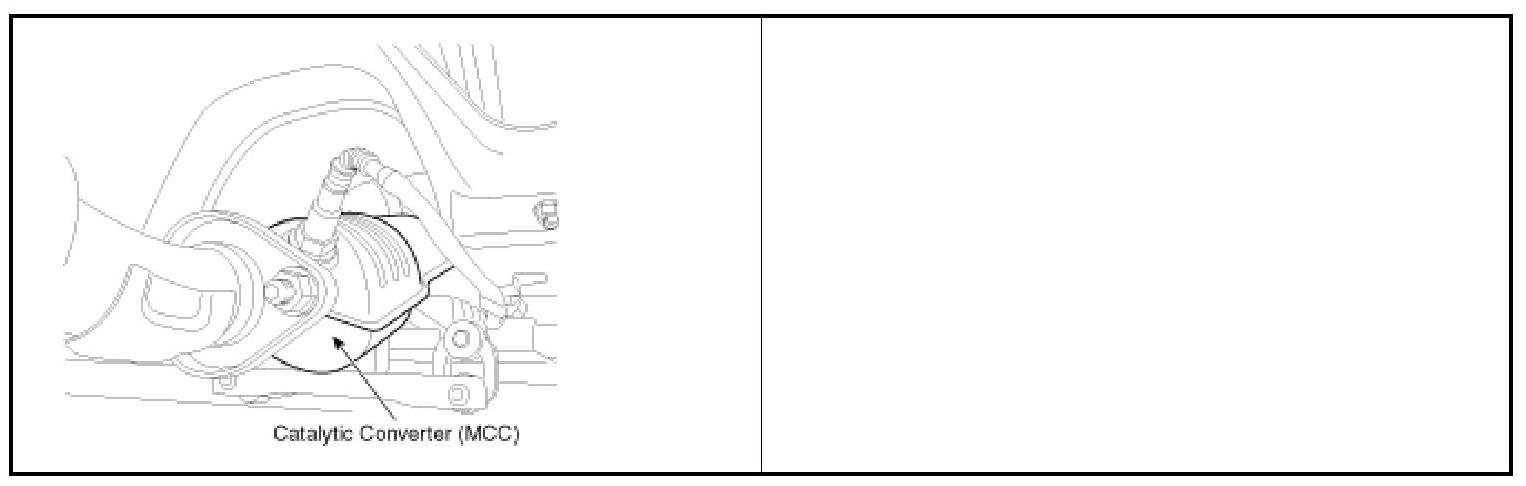

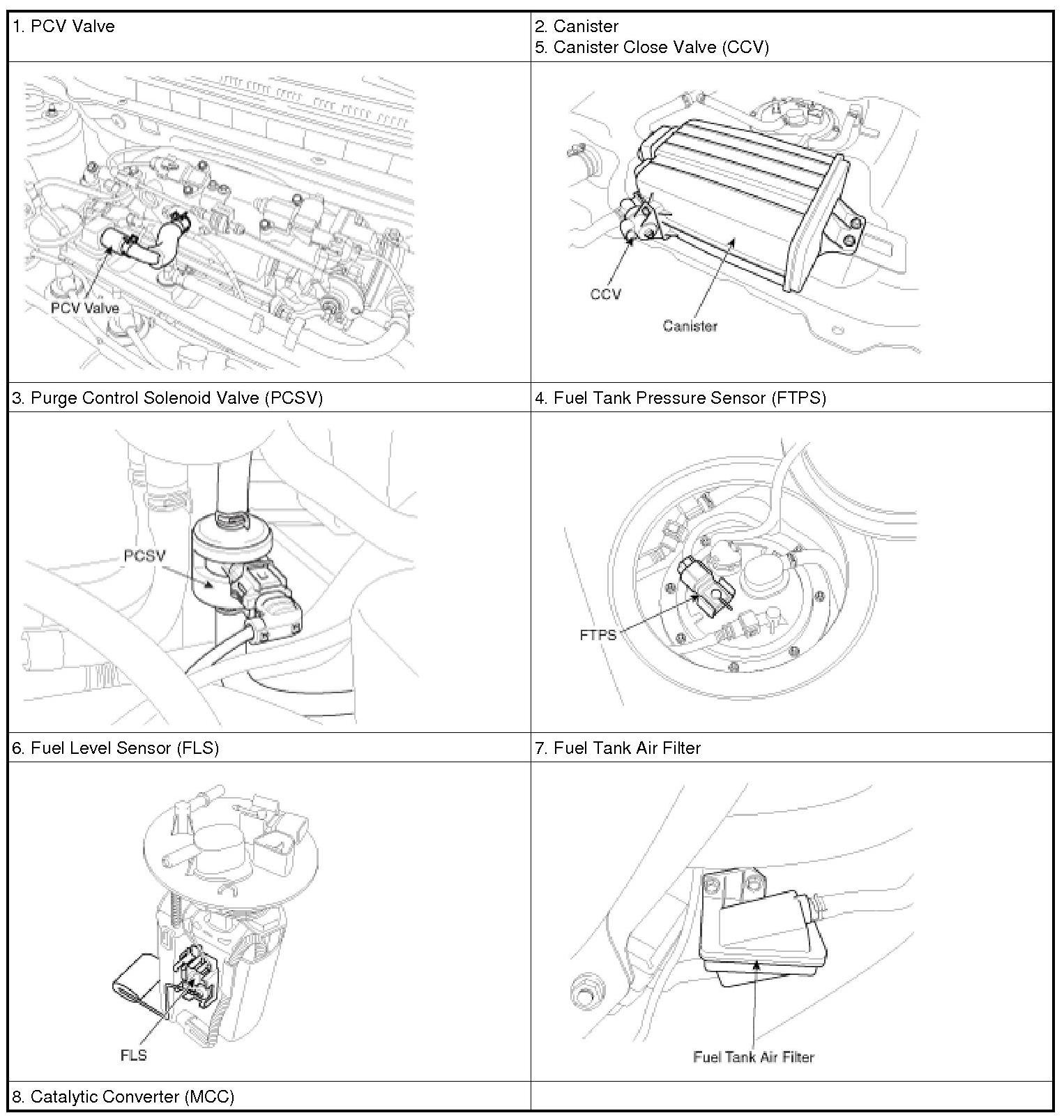

[2.0 DOHC]
