Home >> Kia >> 2011 >> Sorento 2WD L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations >> Photo


E/R Fuse And Relay Box View:




E/R Fuse And Relay Box Circuit Details:

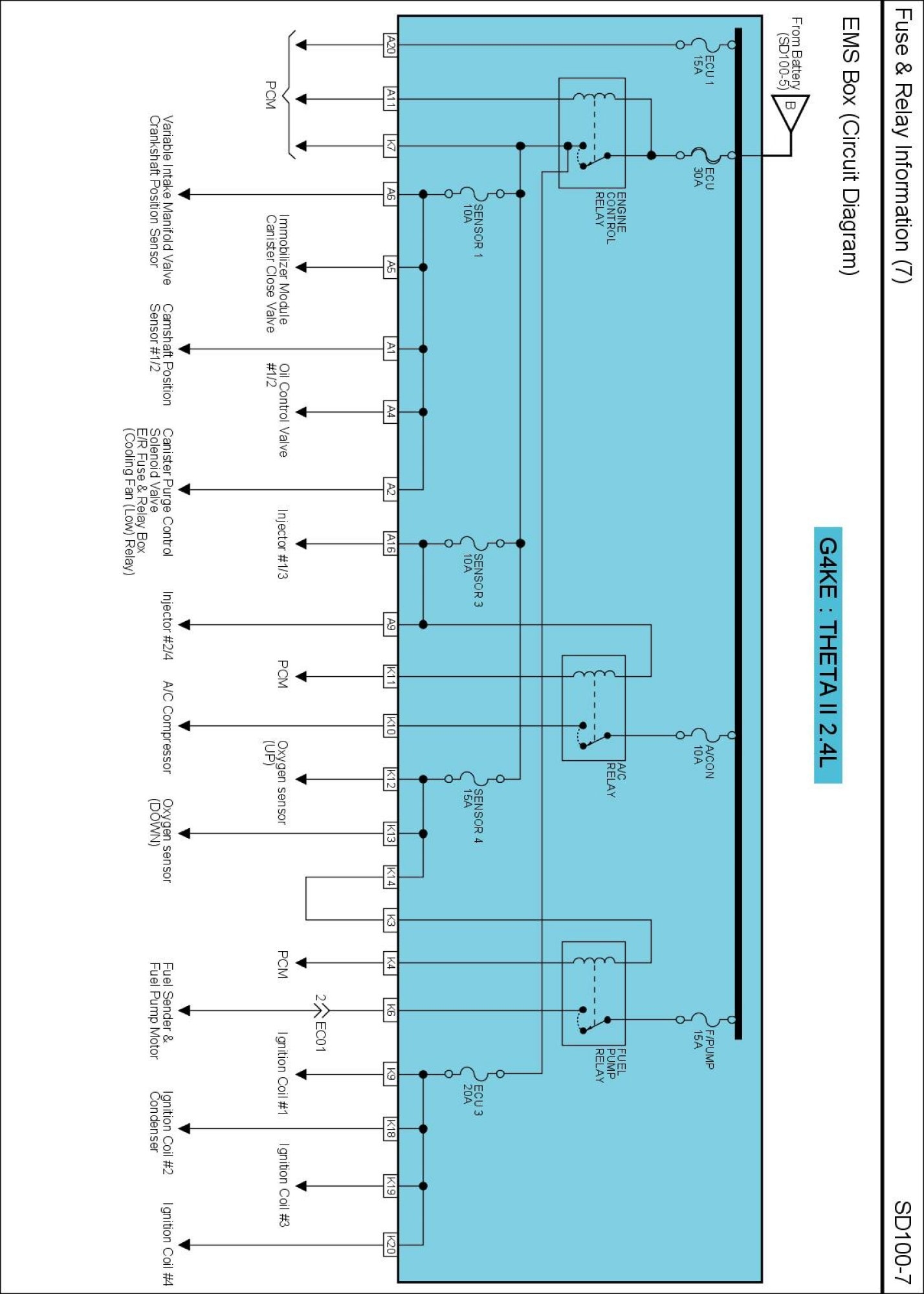

EMS Box Circuit Diagram:
