Kia
>>
2011
>>
Sedona V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Locations
>>

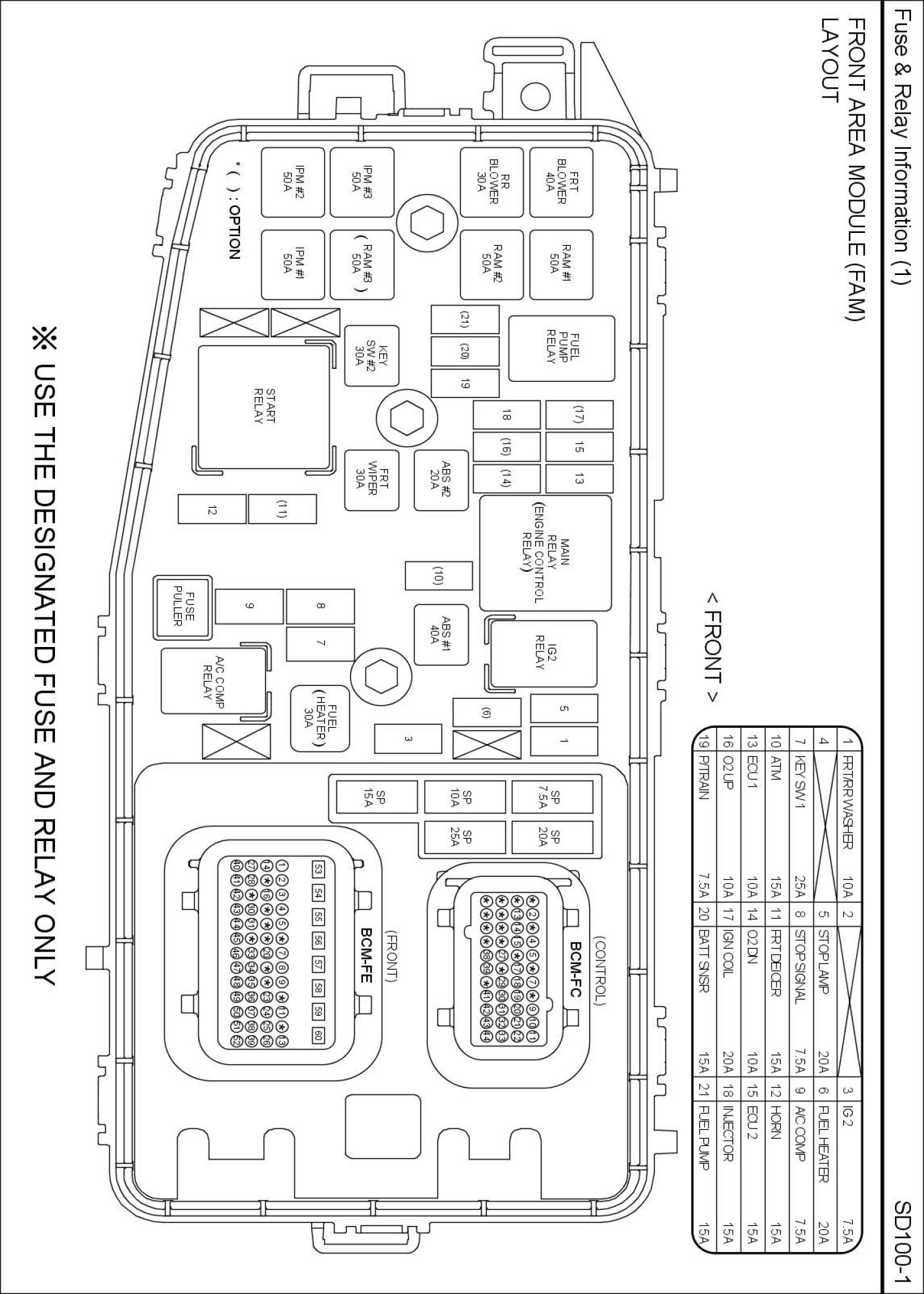

Front Area Module (FAM) View:

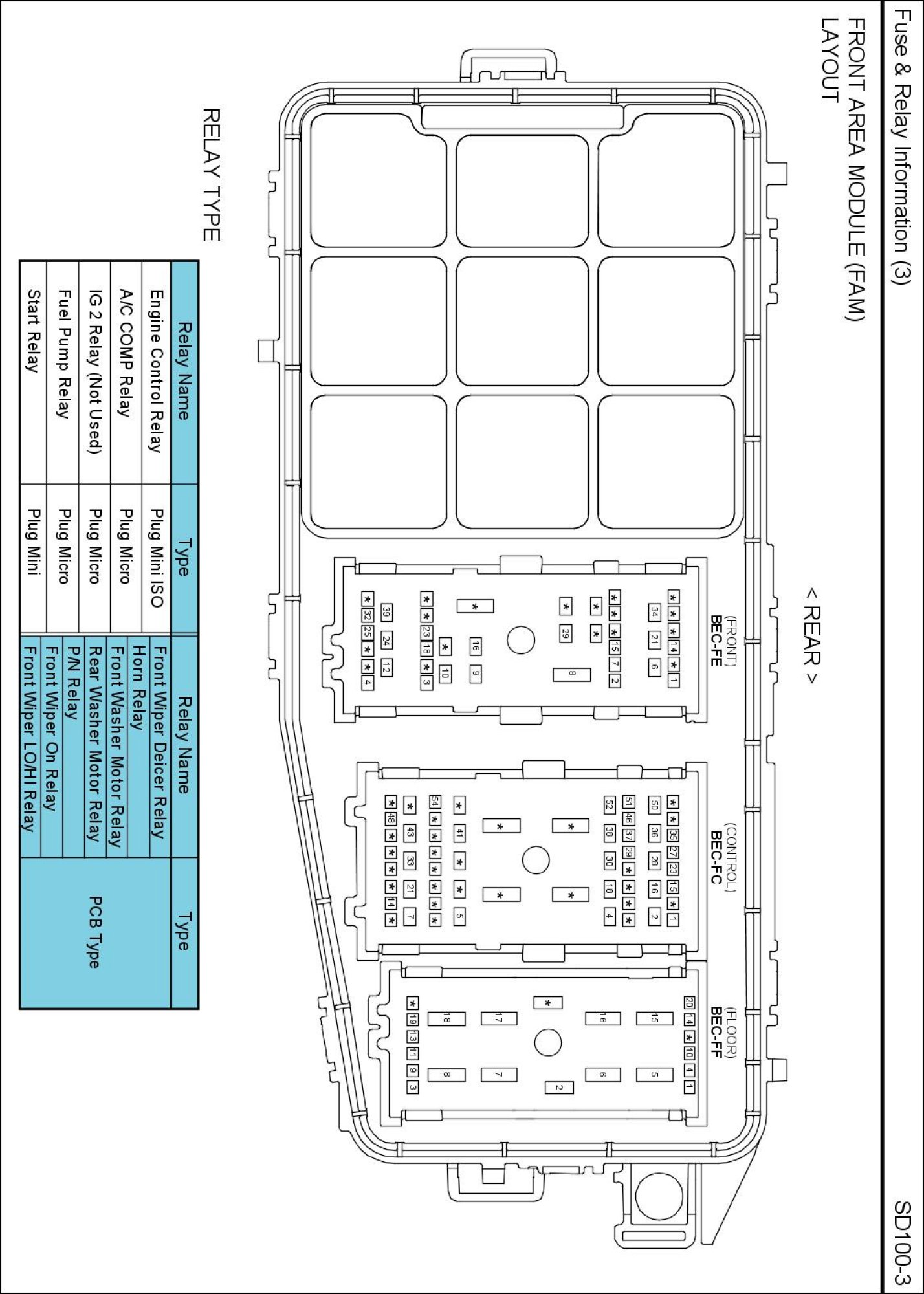

Front Area Module (FAM) View:
