Home >> Kia >> 2011 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> Blower Motor Control Module

Blower Motor Control Module

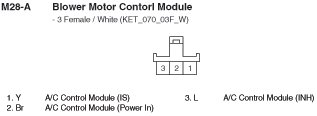

M28-A Blower Motor Control Module:

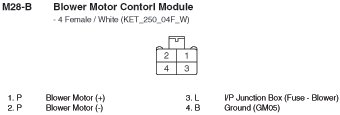

M28-B Blower Motor Control Module:
