Home >> Kia >> 2011 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Compressor HVAC

Compressor HVAC

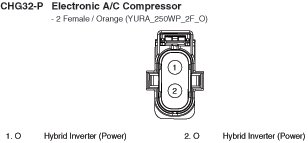

CHG32-P Electronic A/C Compressor:

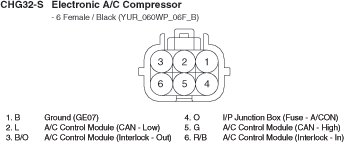

CHG32-S Electronic A/C Compressor:
