Power Window Switch
Power Window Switch
COMPONENTS

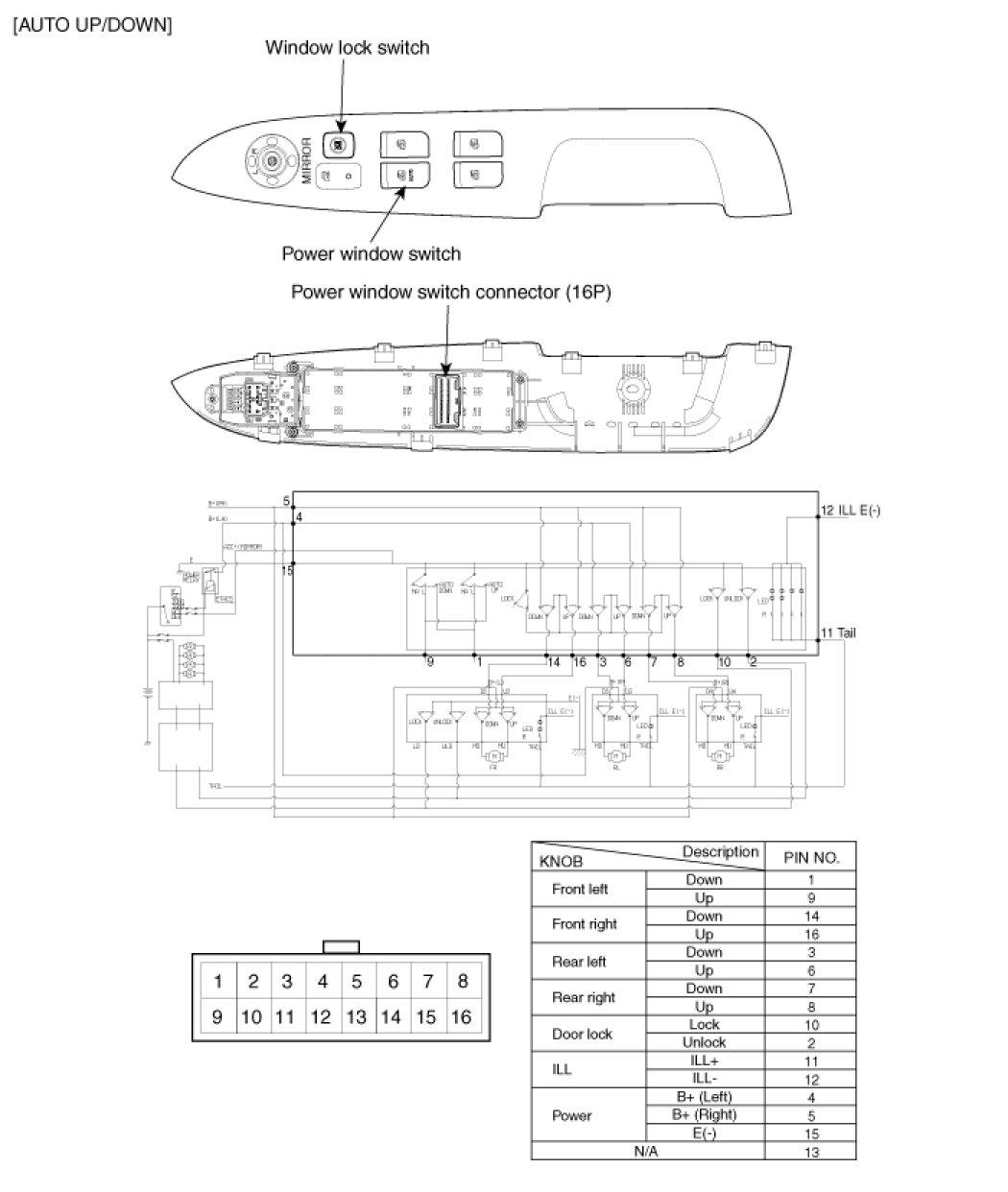

POWER WINDOW MAIN SWITCH

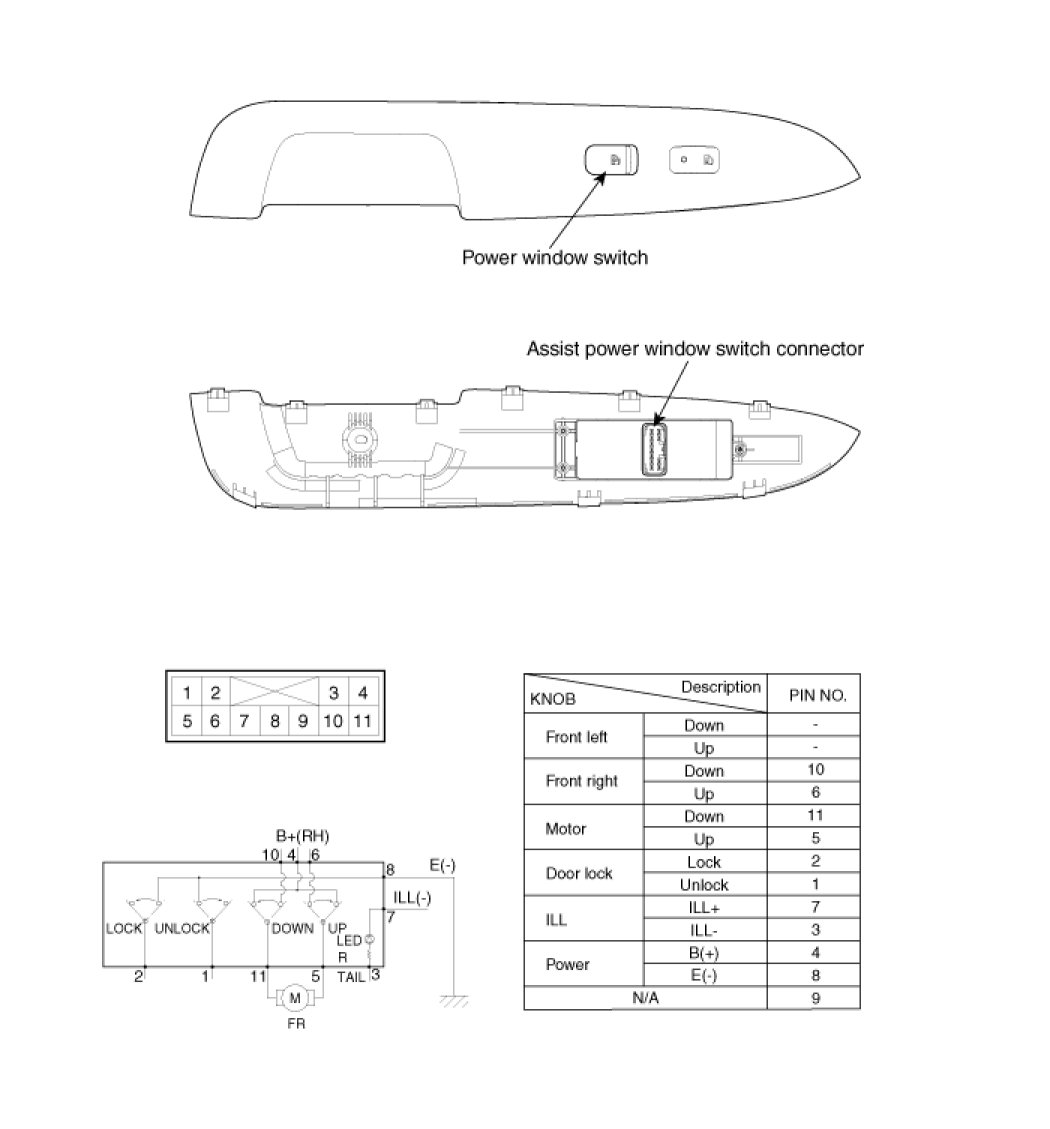

ASSIST
POWER WINDOW SWITCH

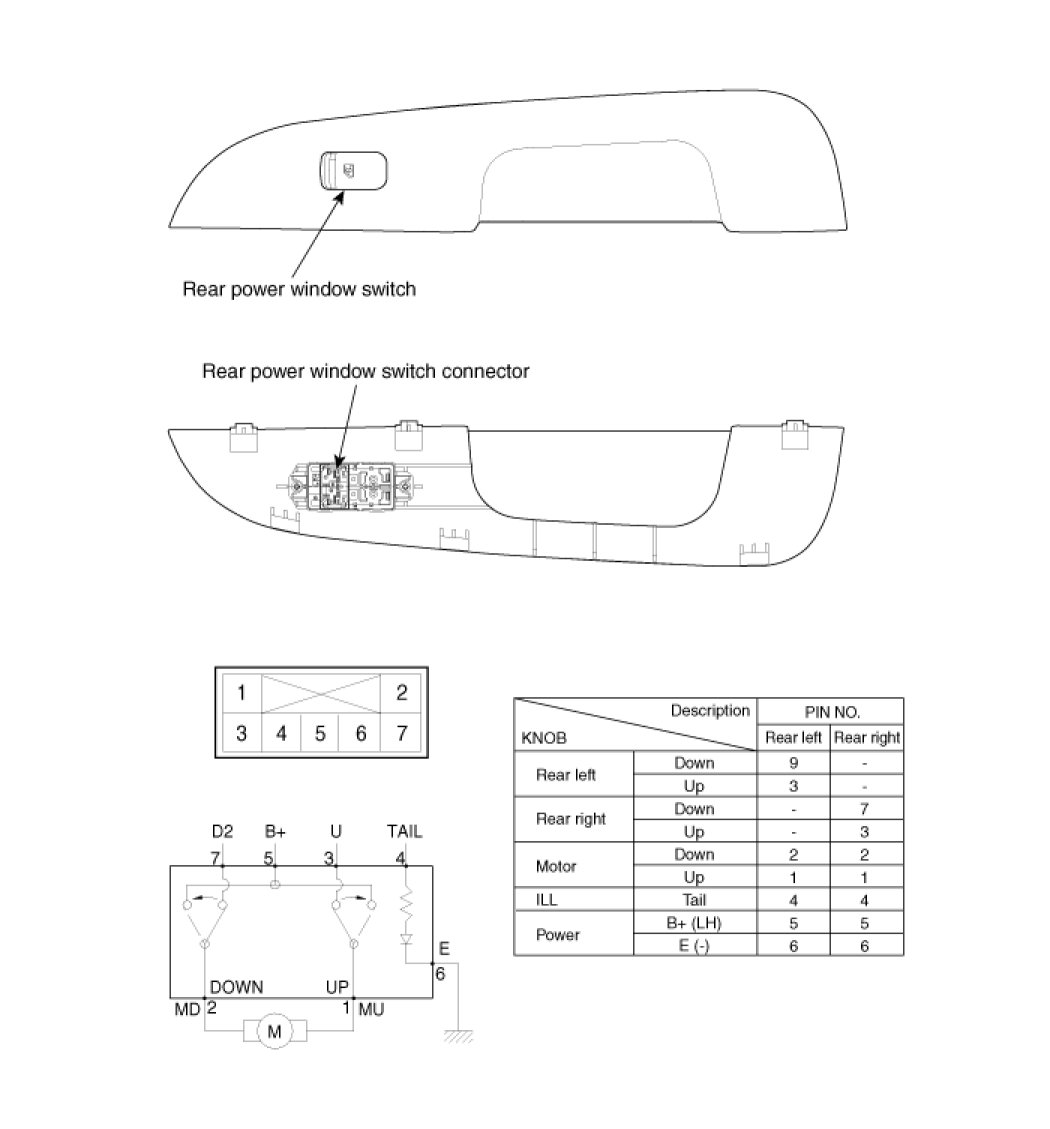

REAR
POWER WINDOW SWITCH
