Fuse: Locations
FUSE & RELAY INFORMATION

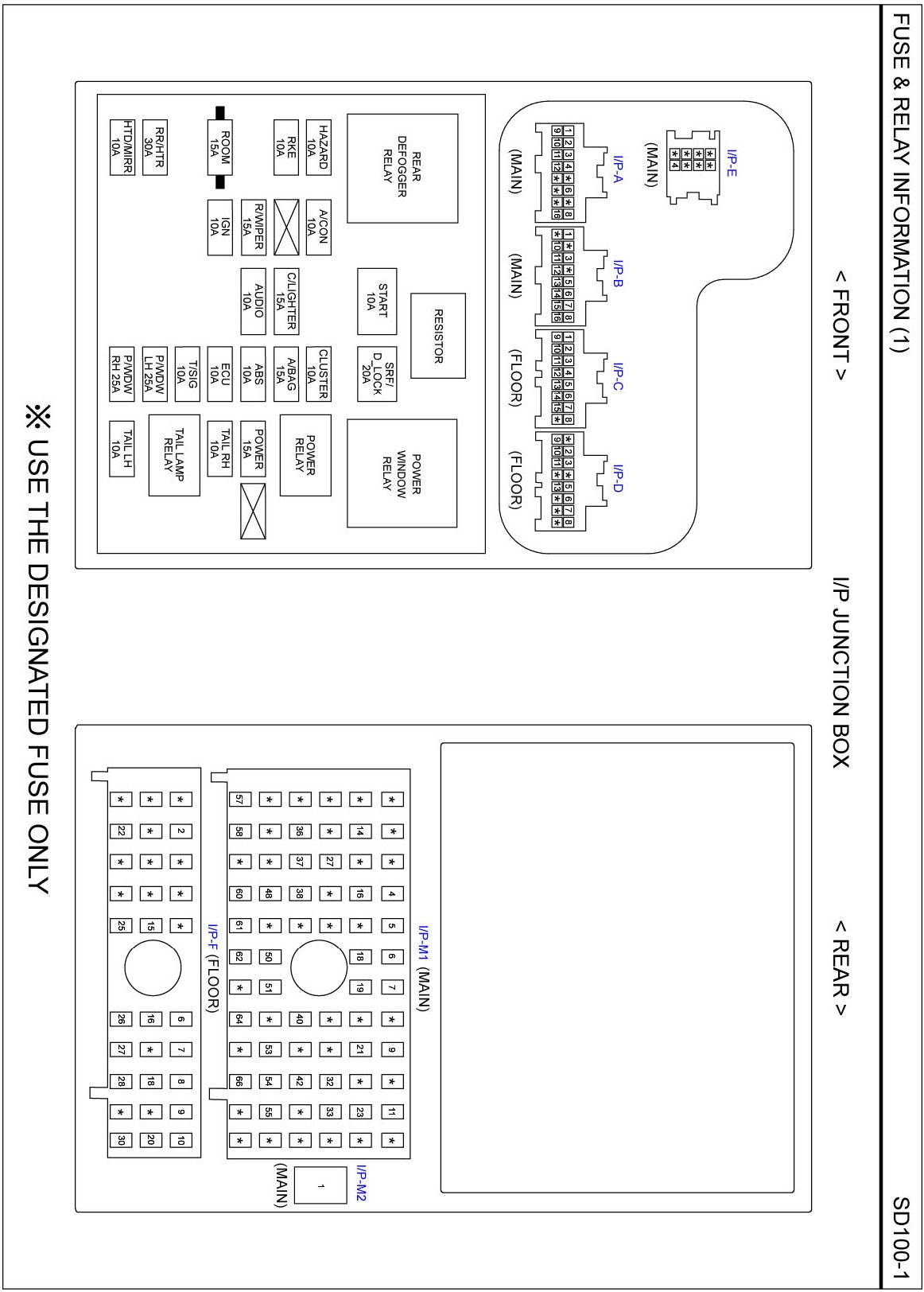

I/P Junction Box View:

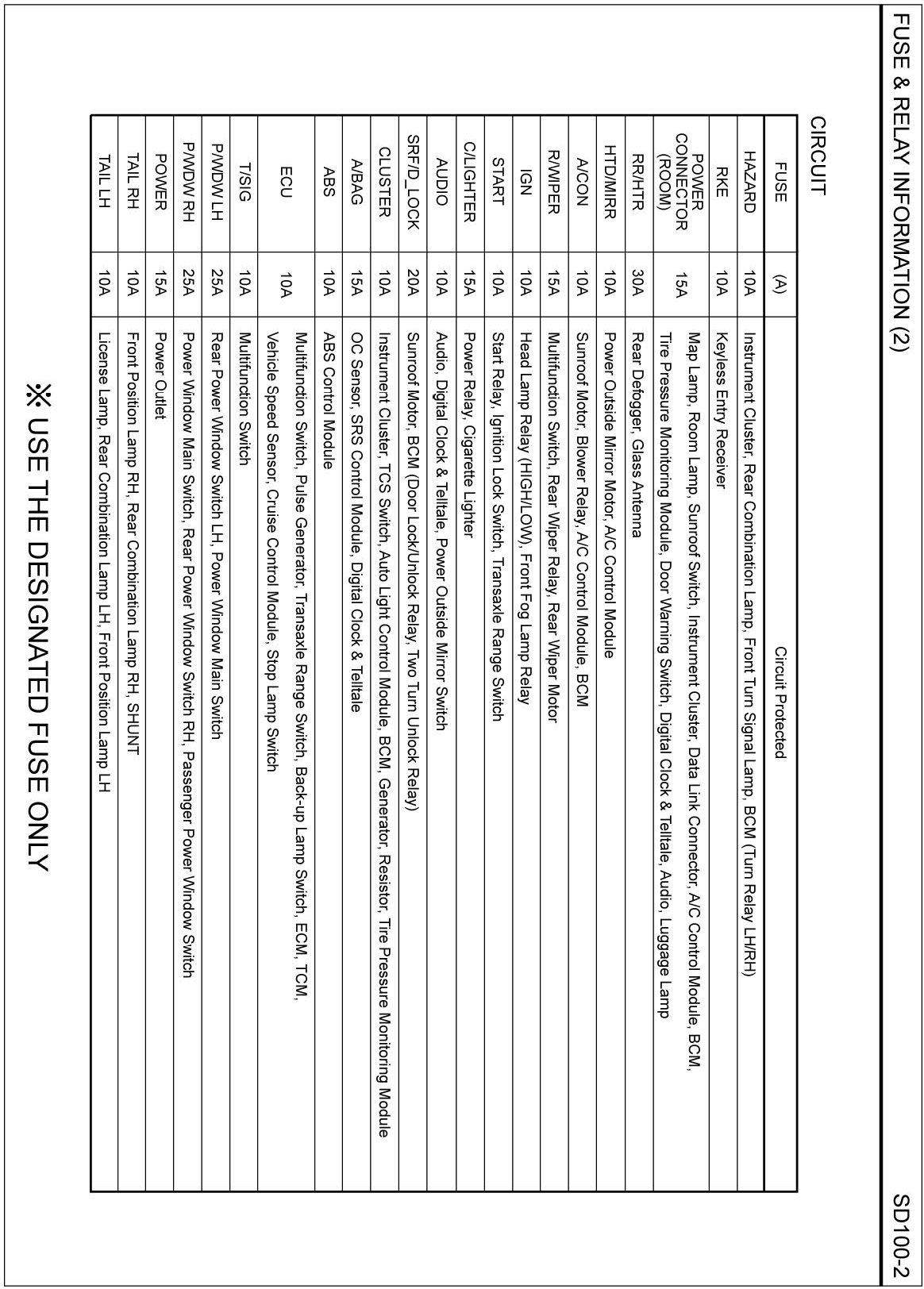

I/P Junction Box Circuit Details:

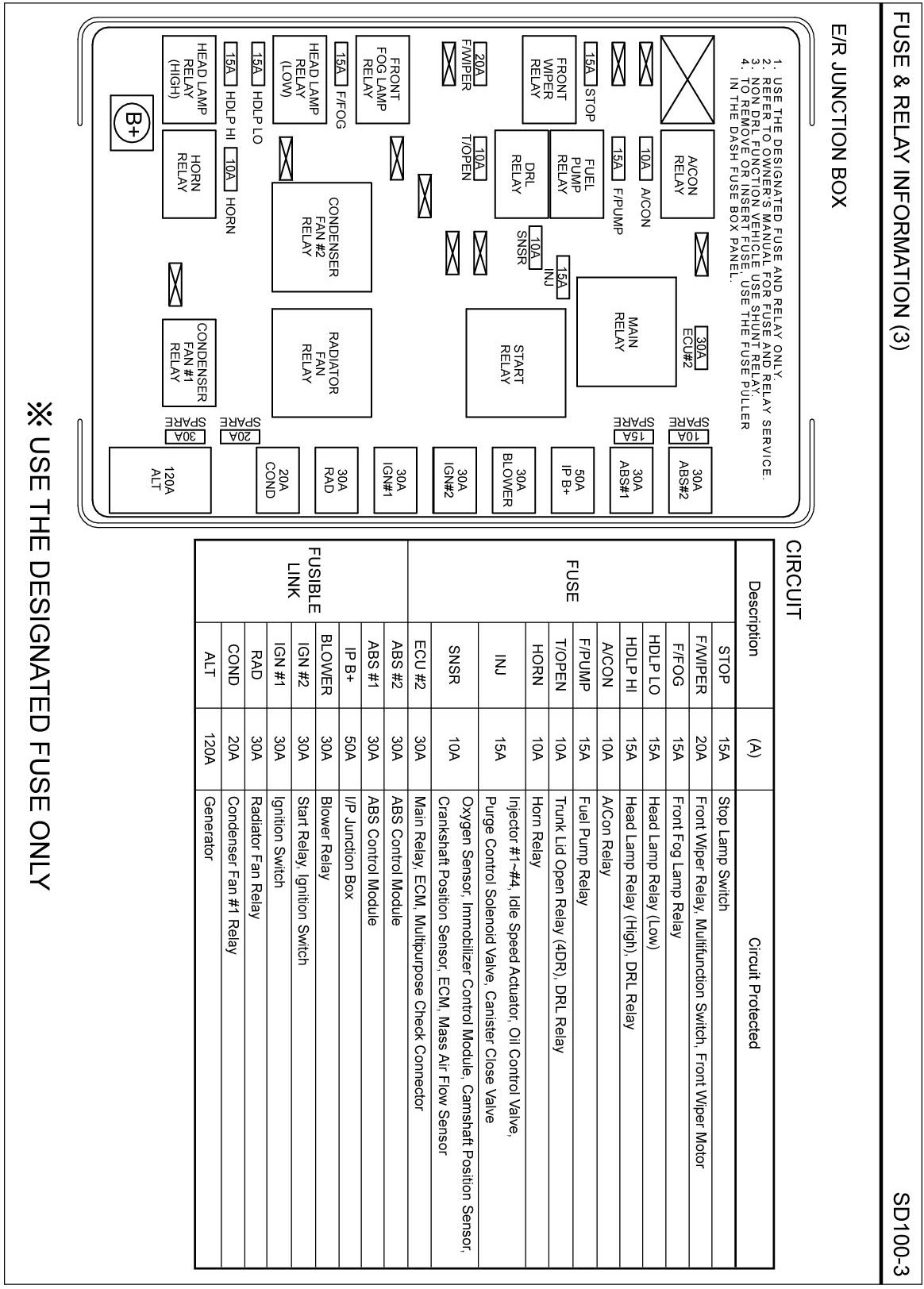

E/R Junction Box:
