Pinout Values and Diagnostic Parameters





ENGINE CONTROL MODULE (ECM)

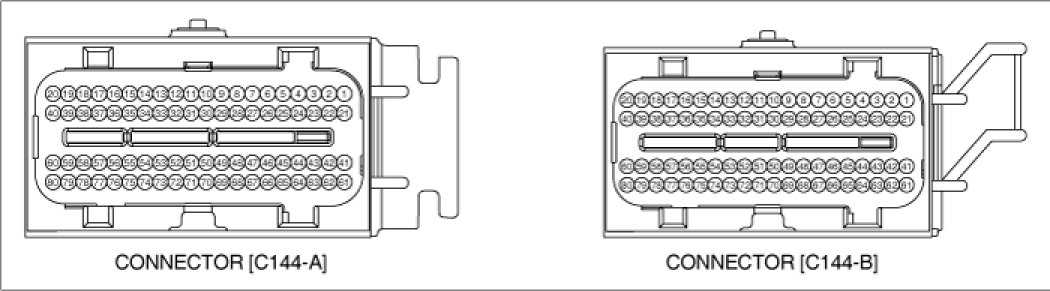

1. ECM HARNESS CONNECTOR




2. ECM TERMINAL FUNCTION

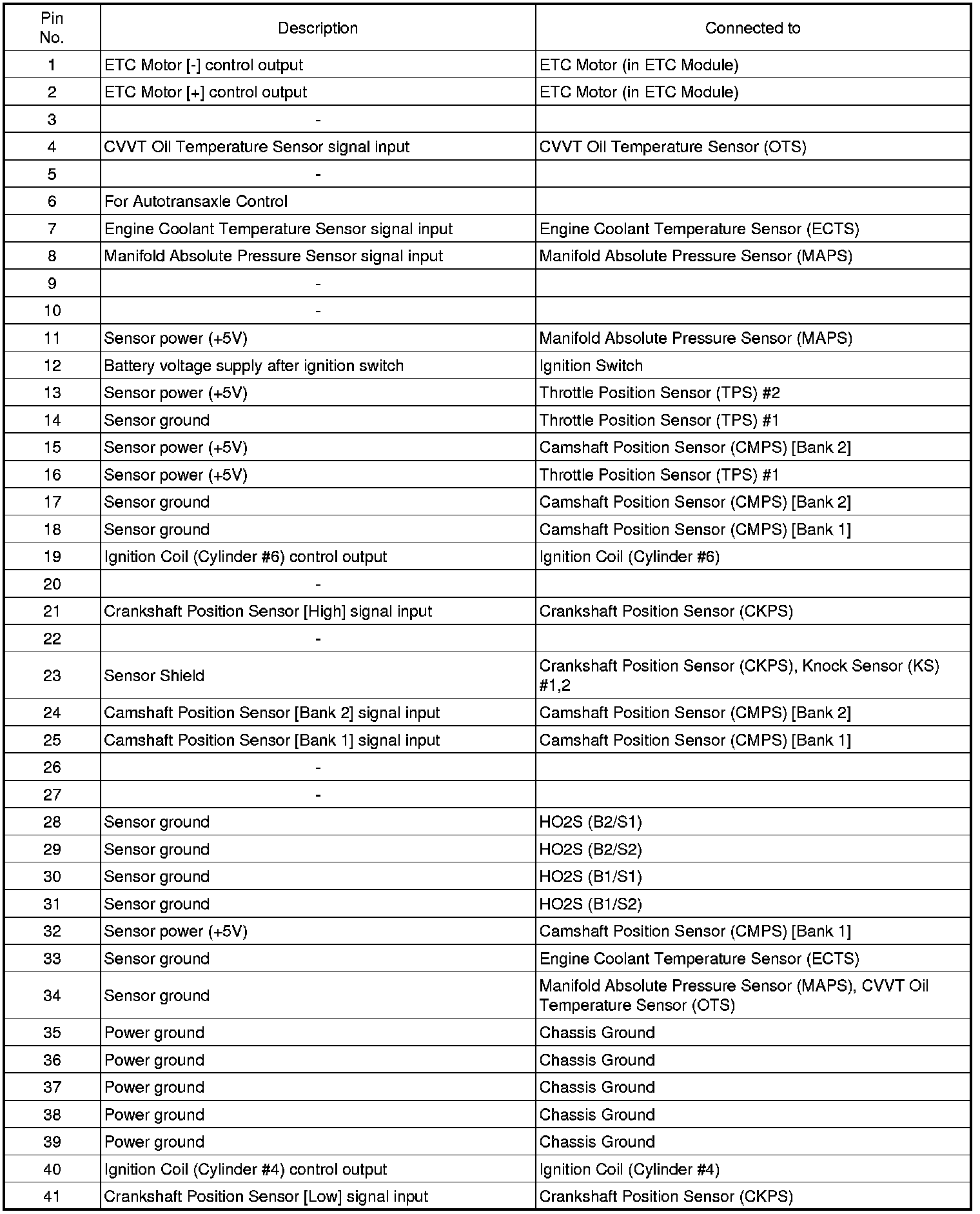

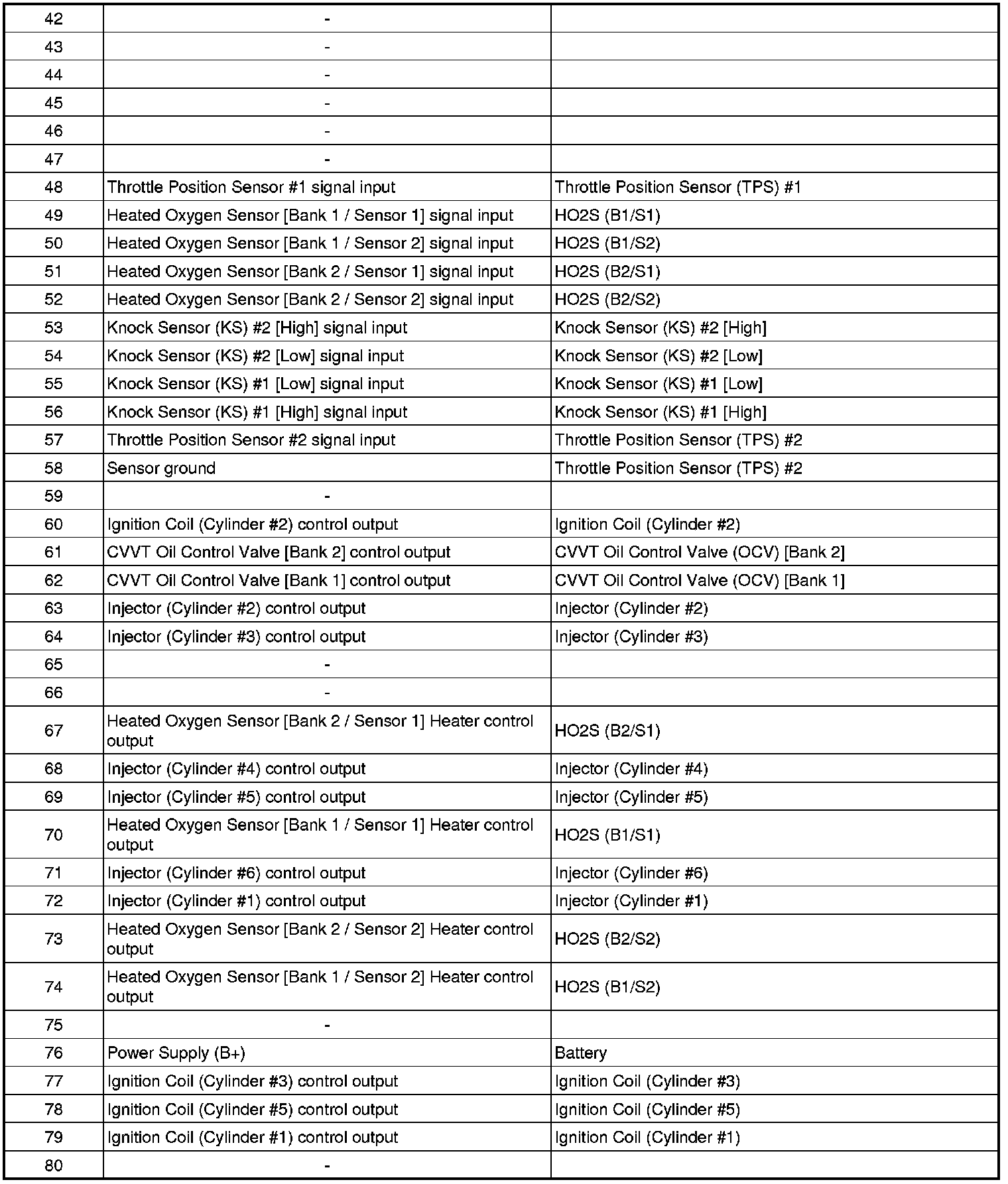

CONNECTOR [C144-A]

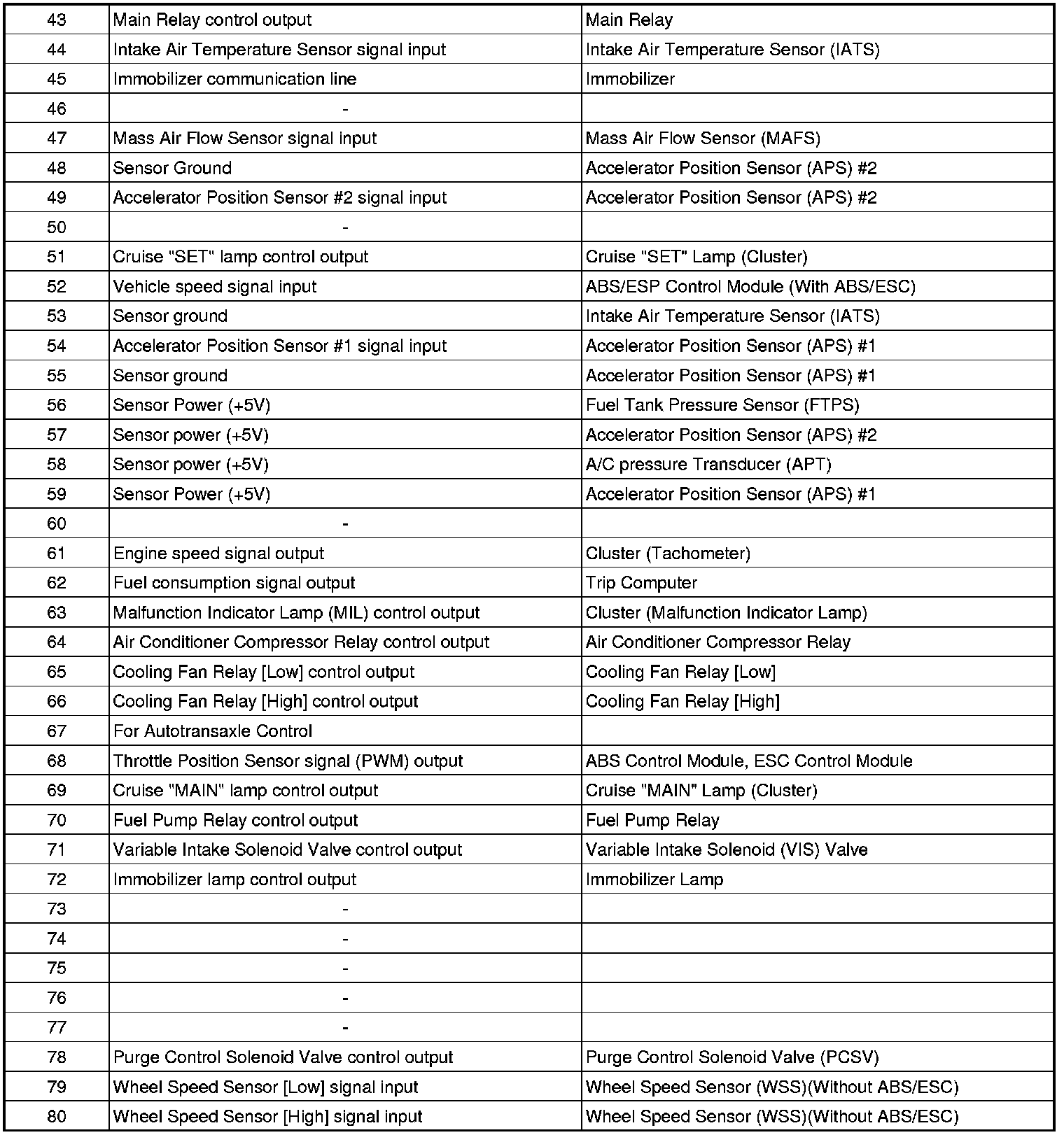

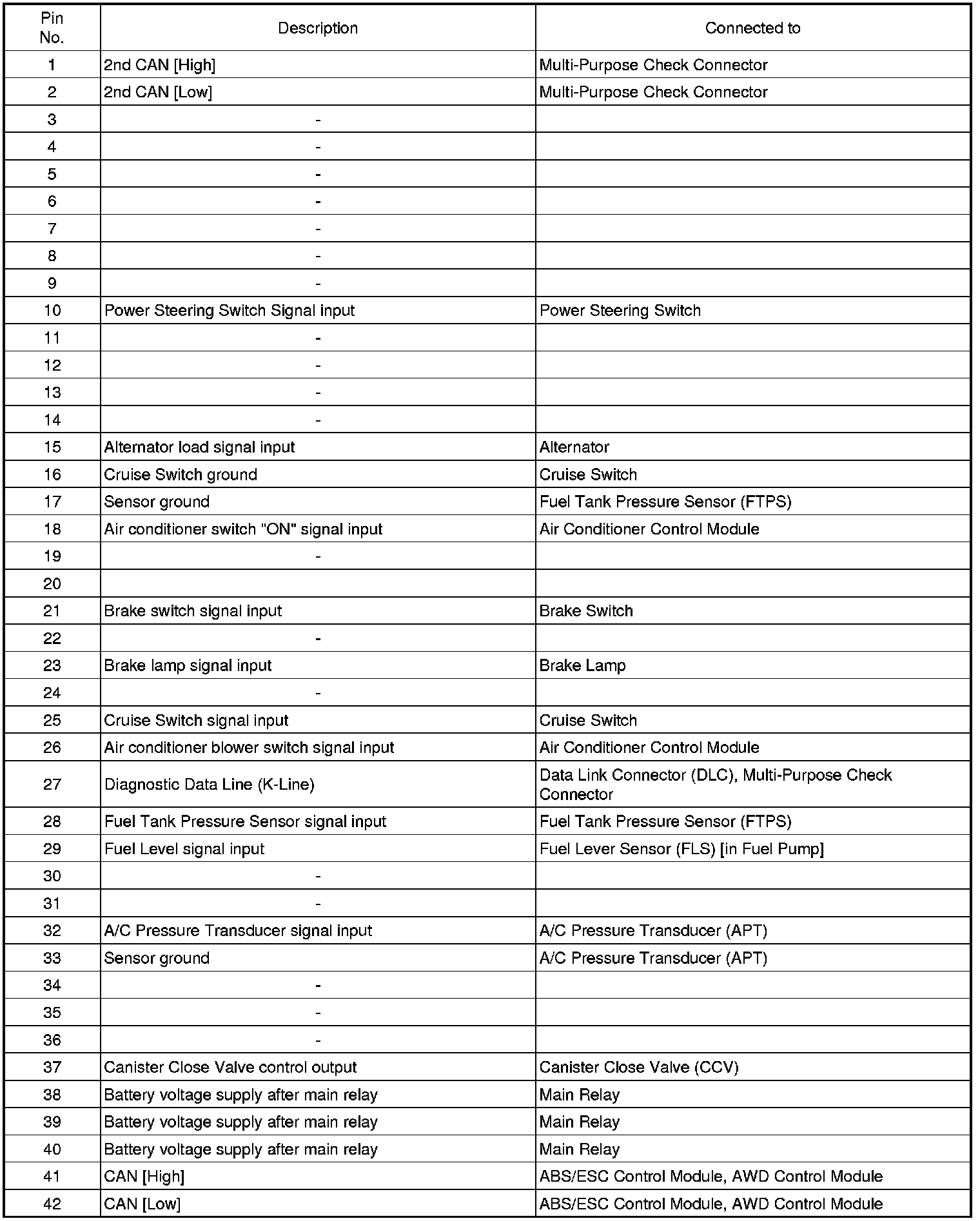

CONNECTOR [C144-B]

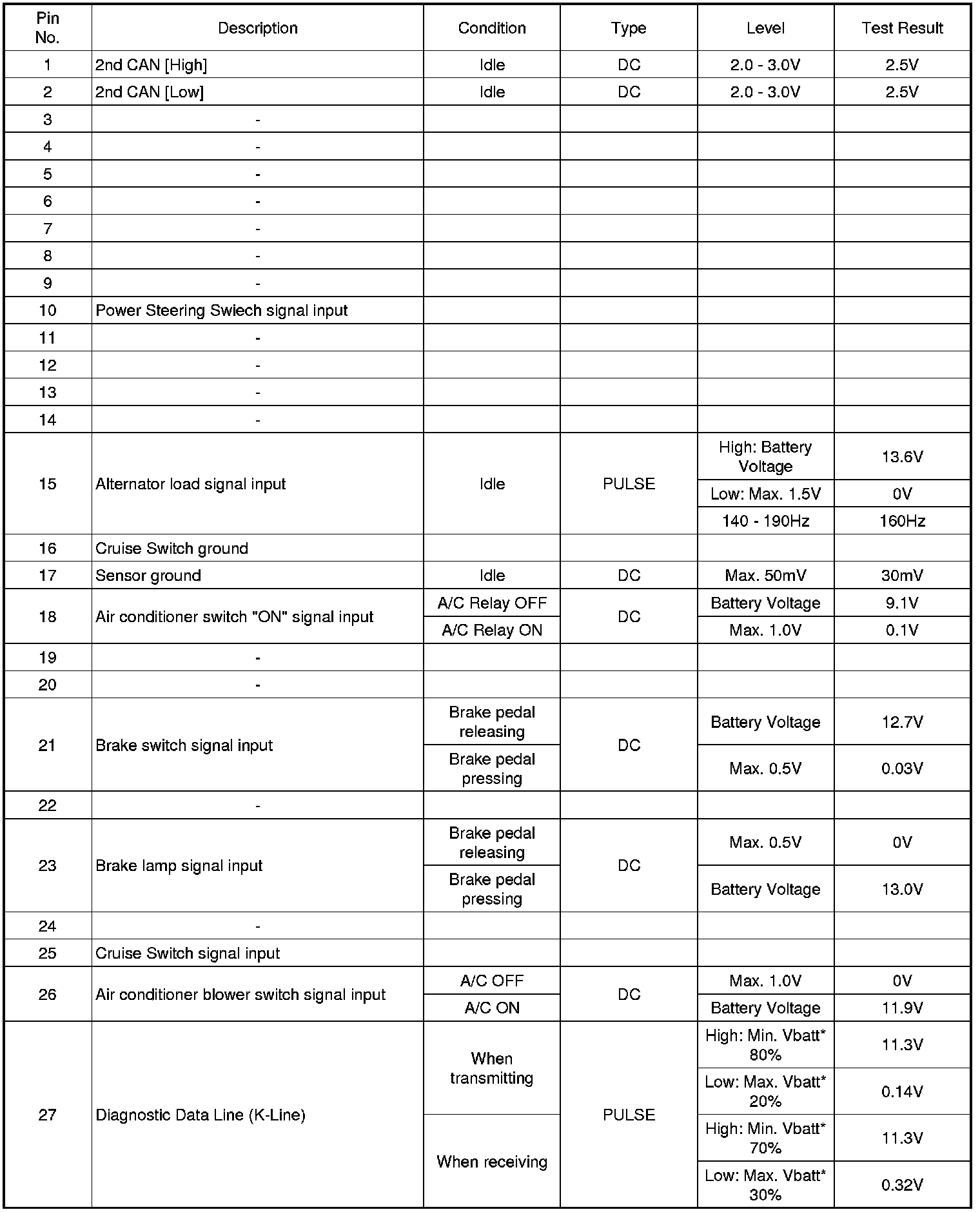

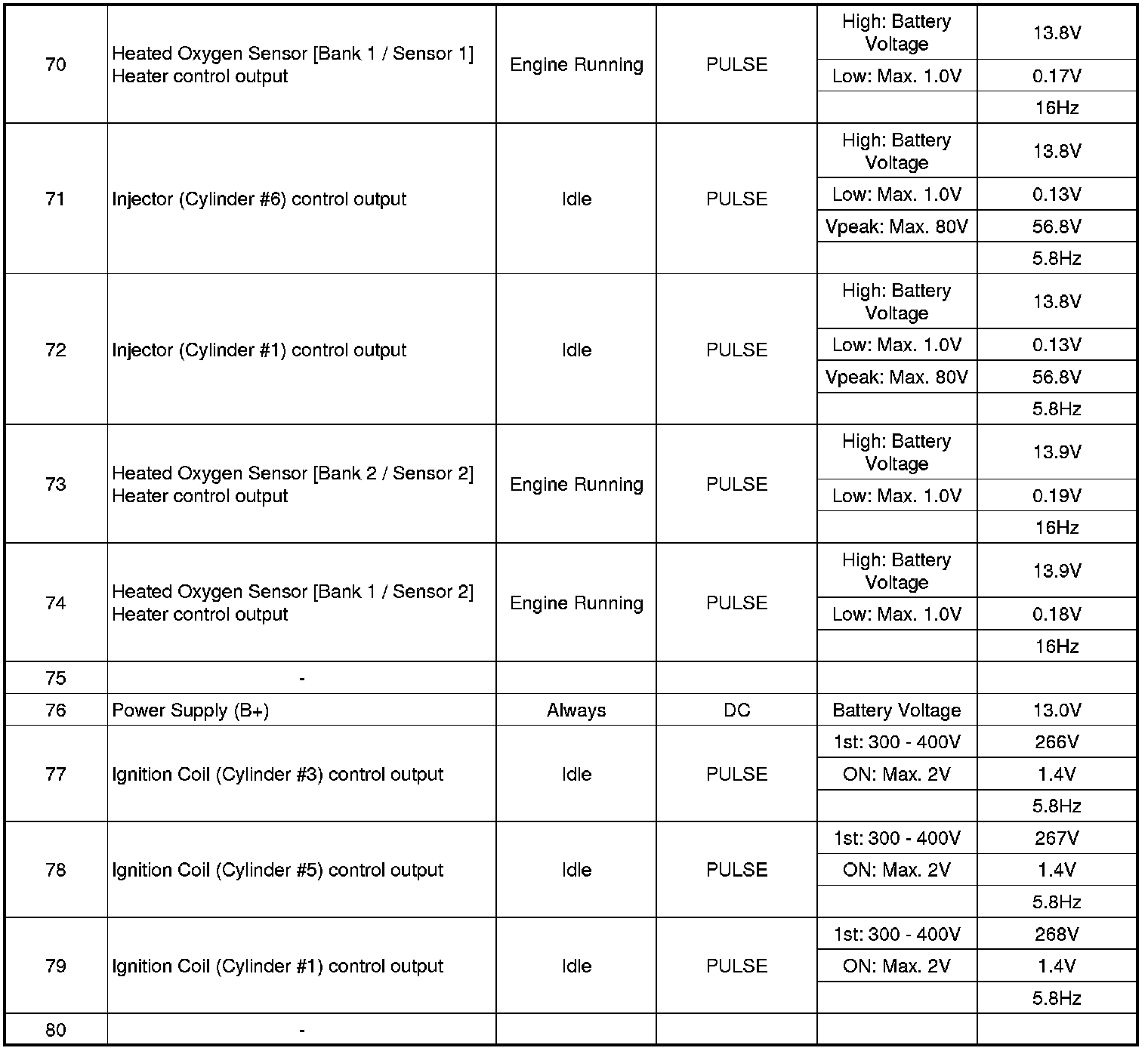

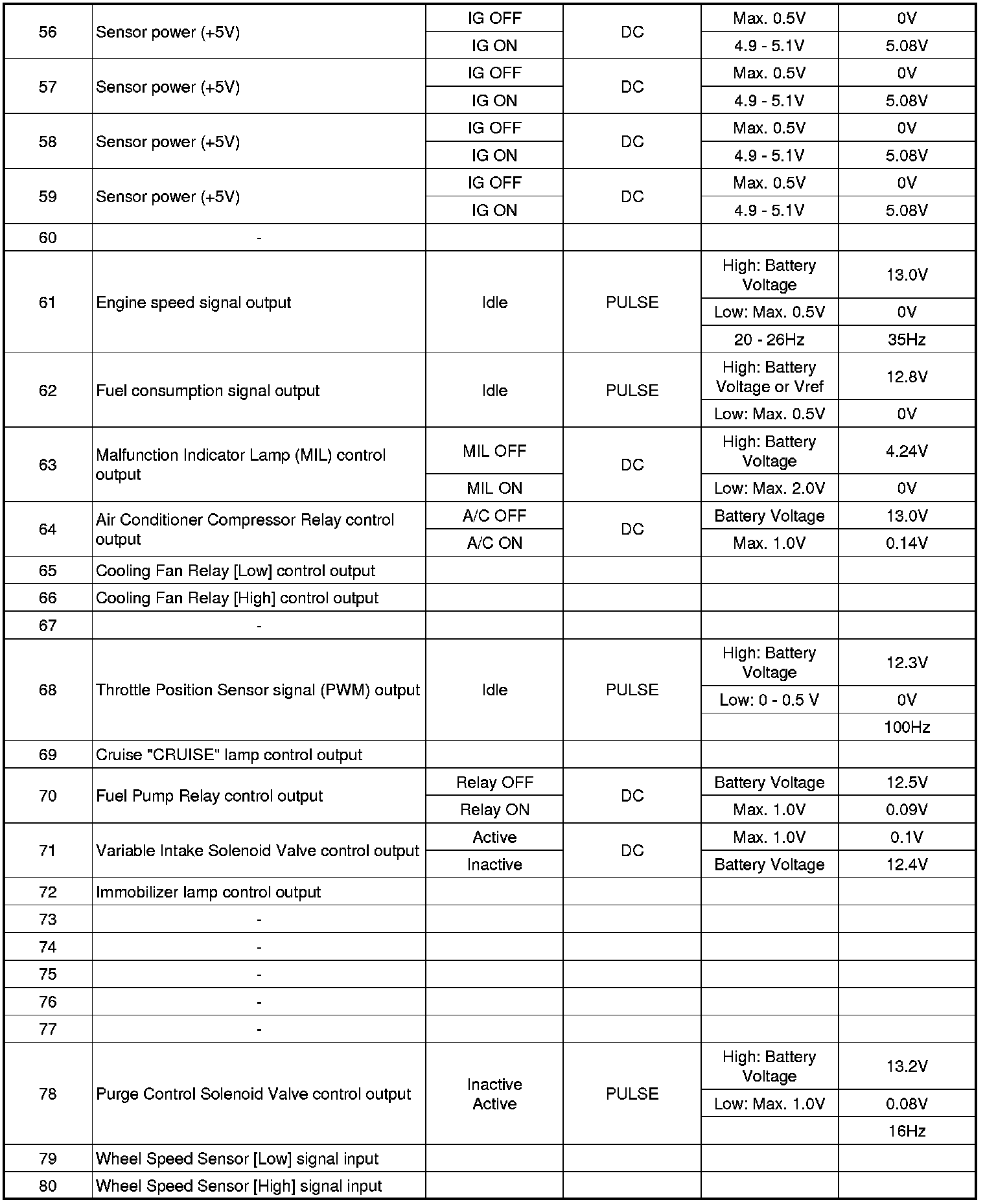

3. ECM TERMINAL INPUT/OUTPUT SIGNAL

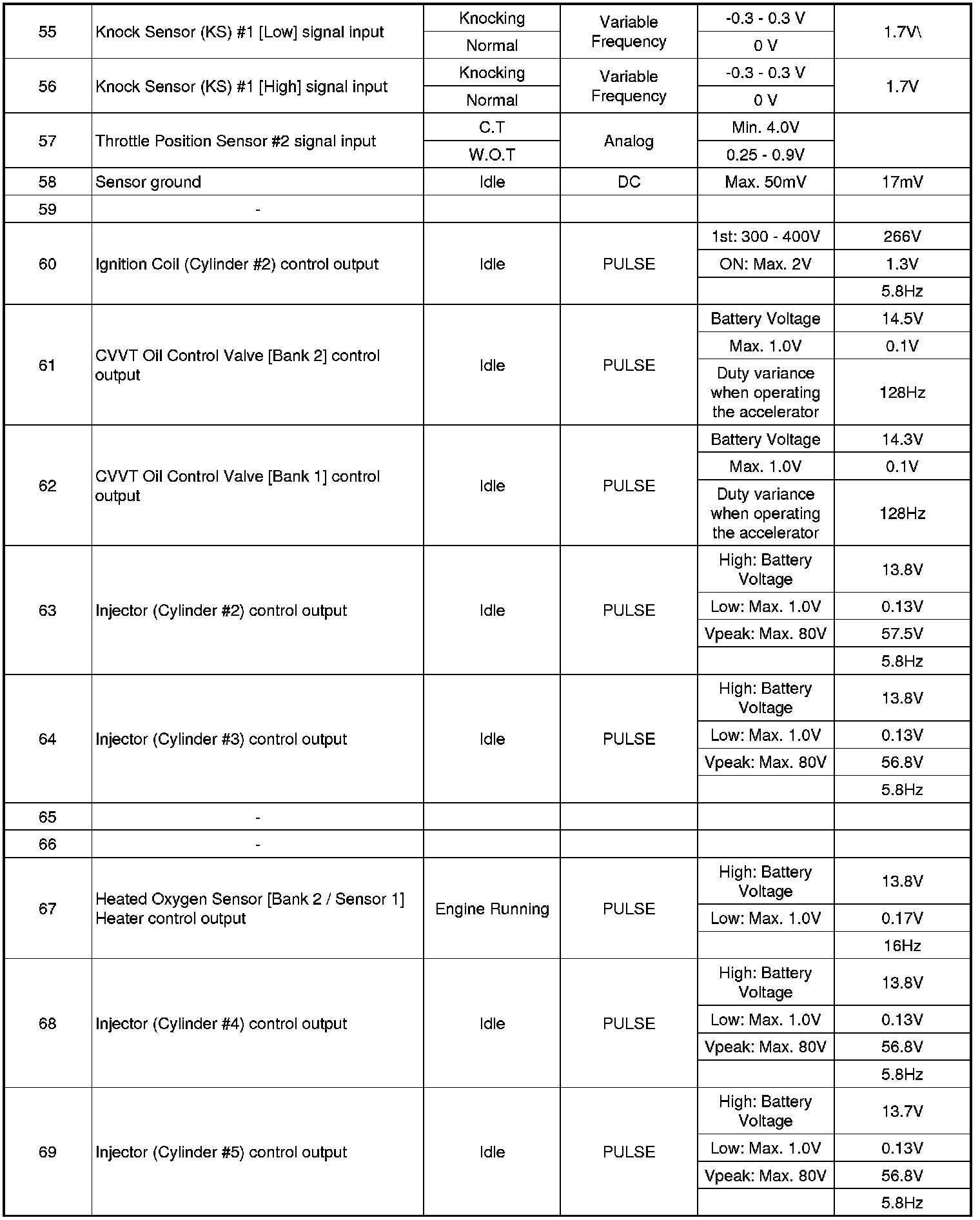

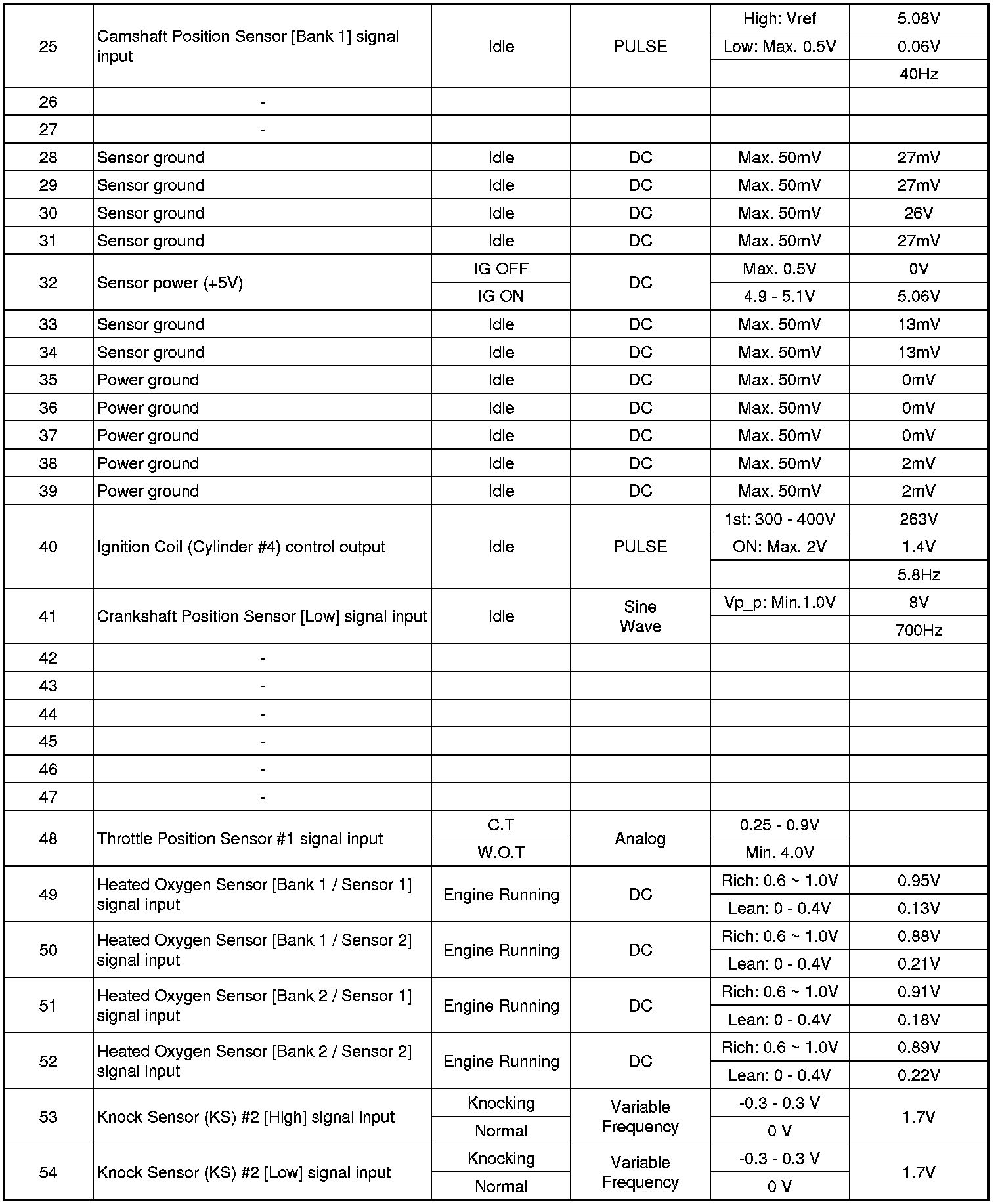

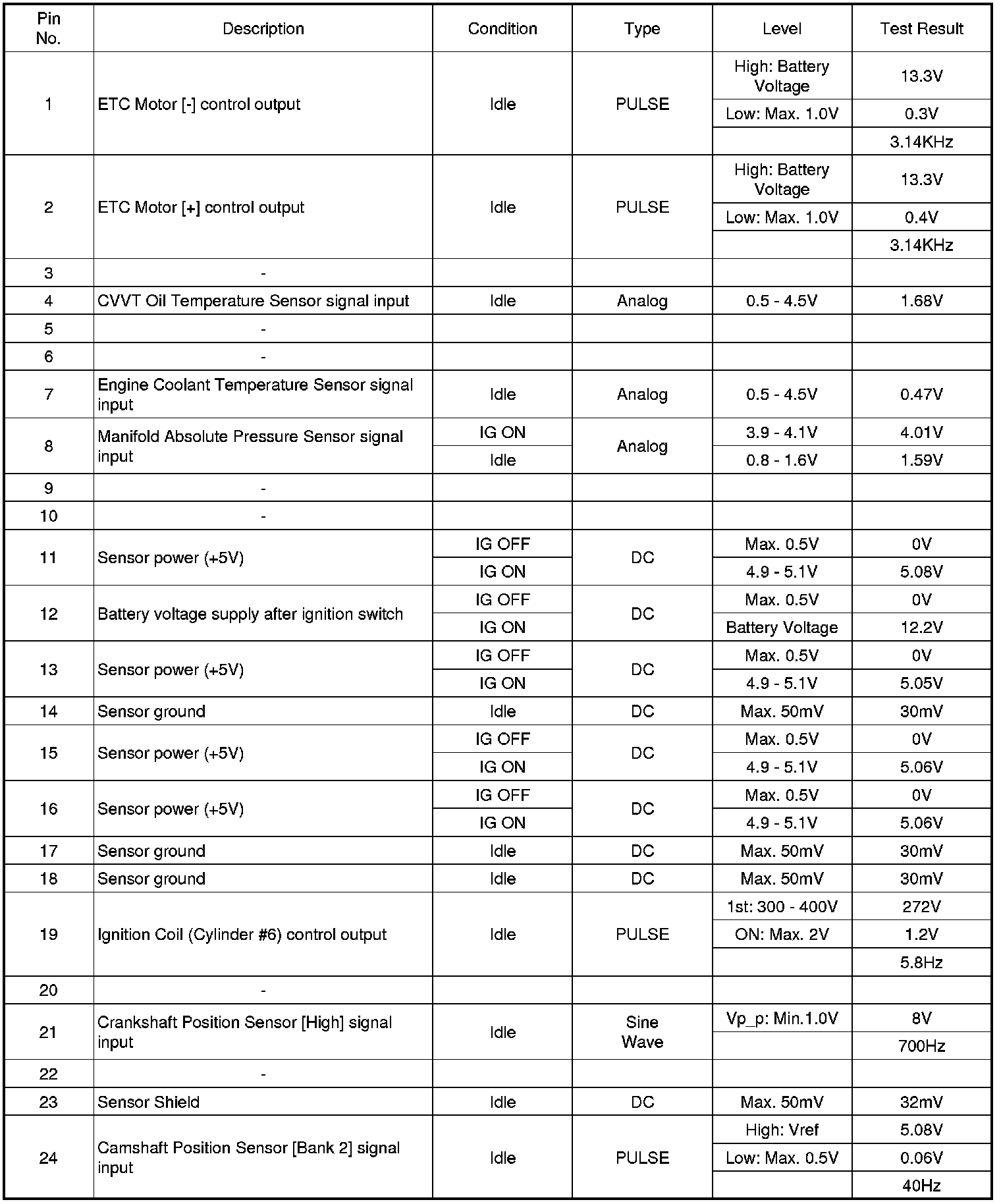

CONNECTOR [C144-A]

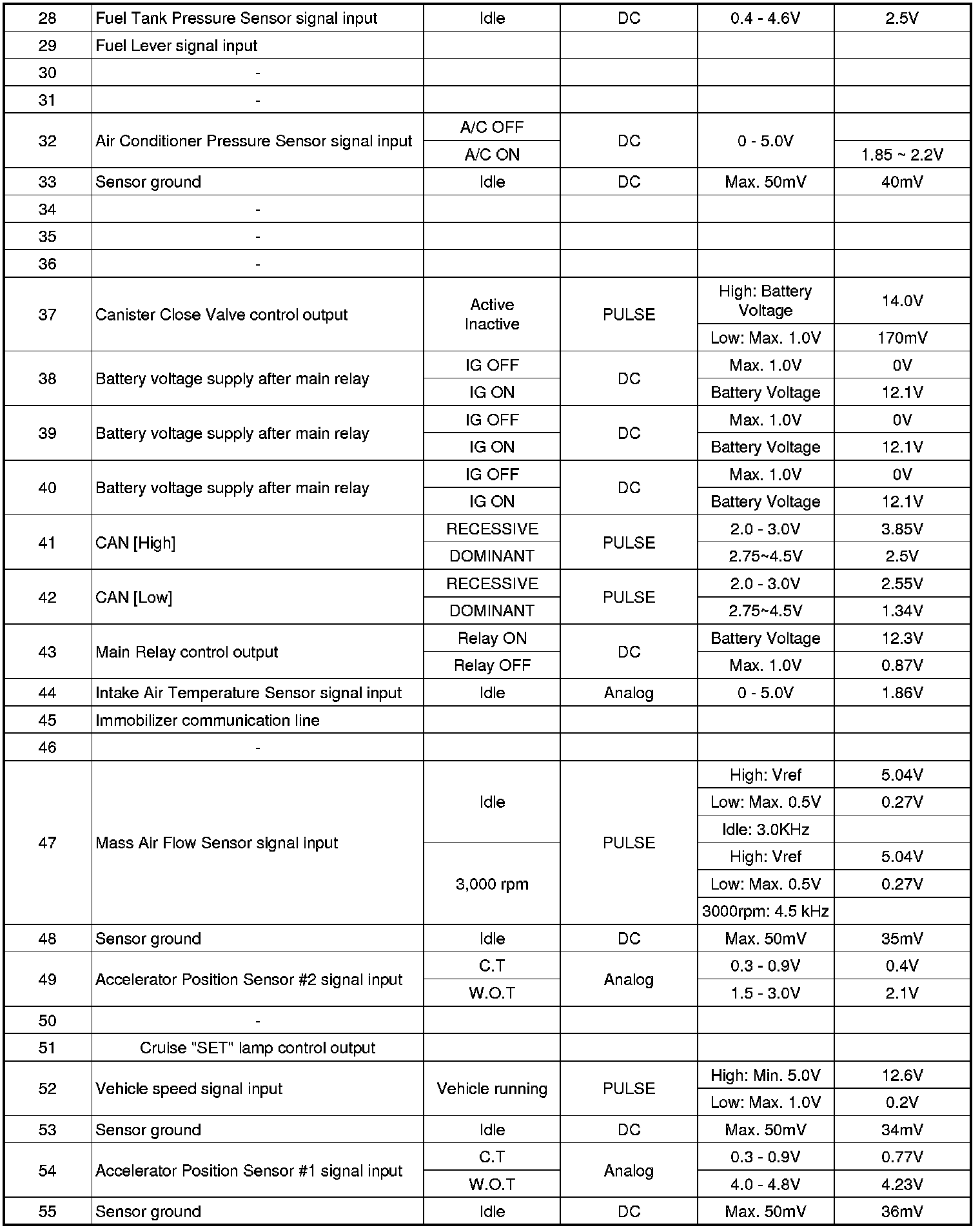

CONNECTOR [C144-B]
