Pinout Values and Diagnostic Parameters





ECM Terminal And Input/Output signal

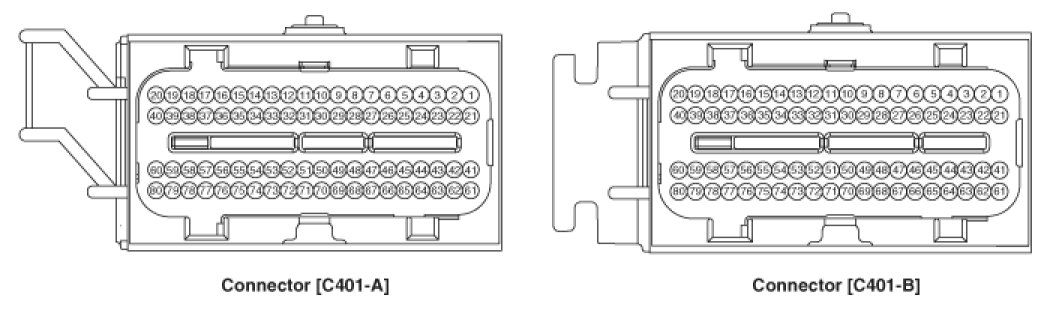

ECM Harness Connector

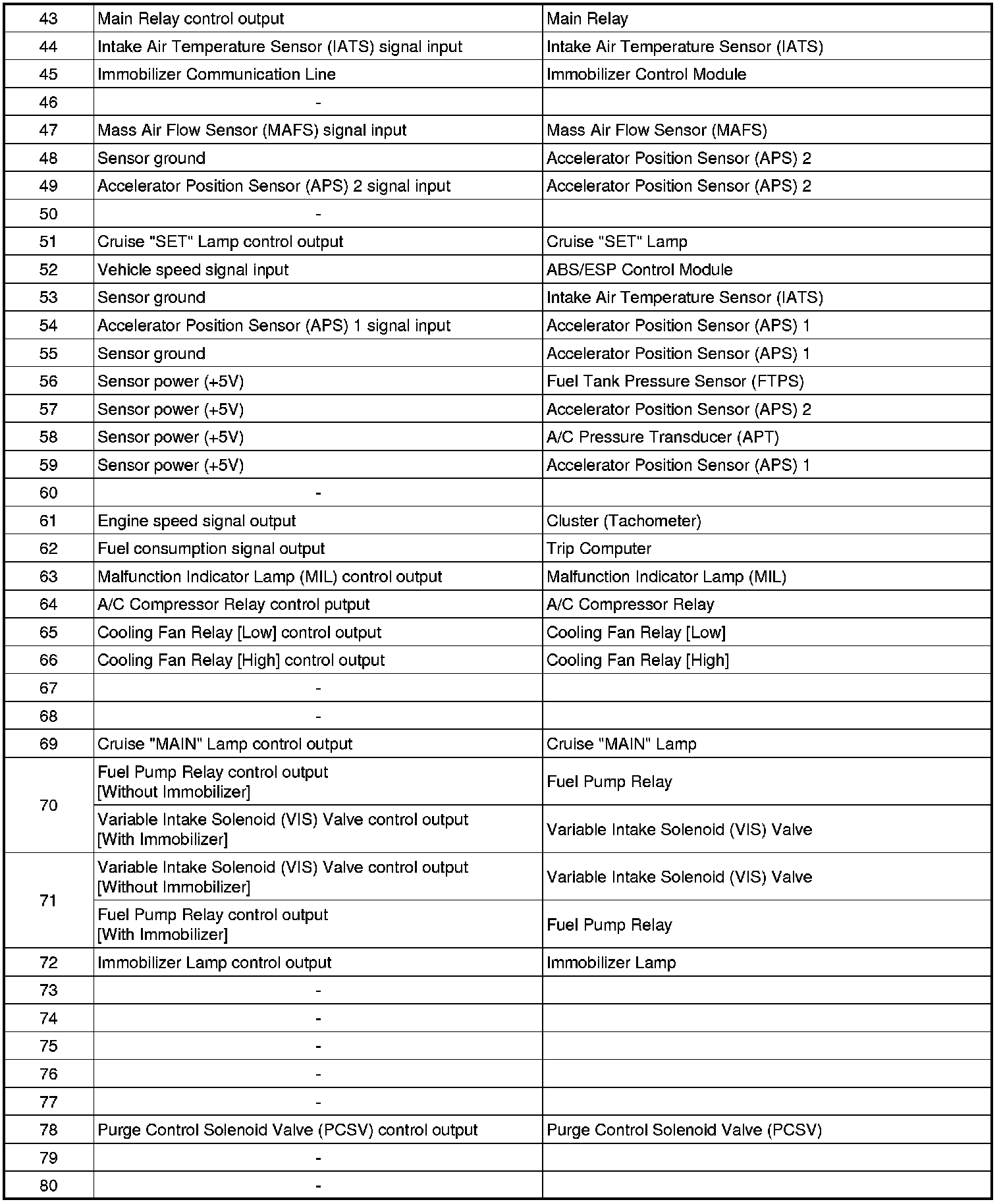

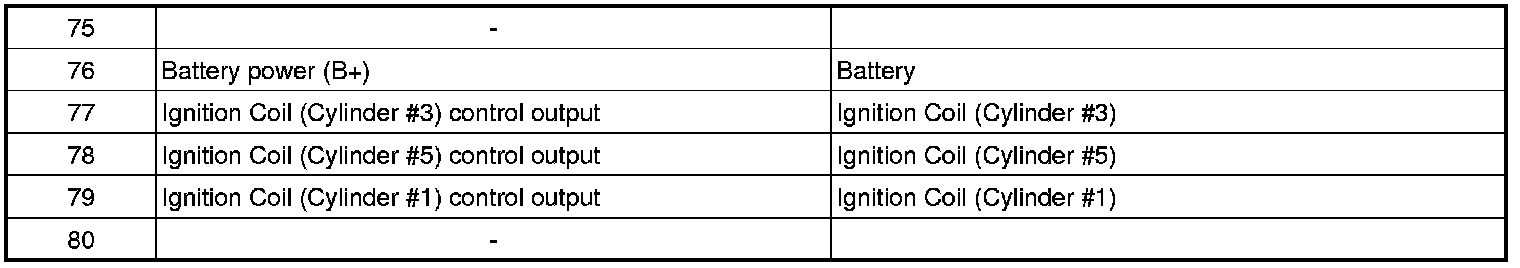

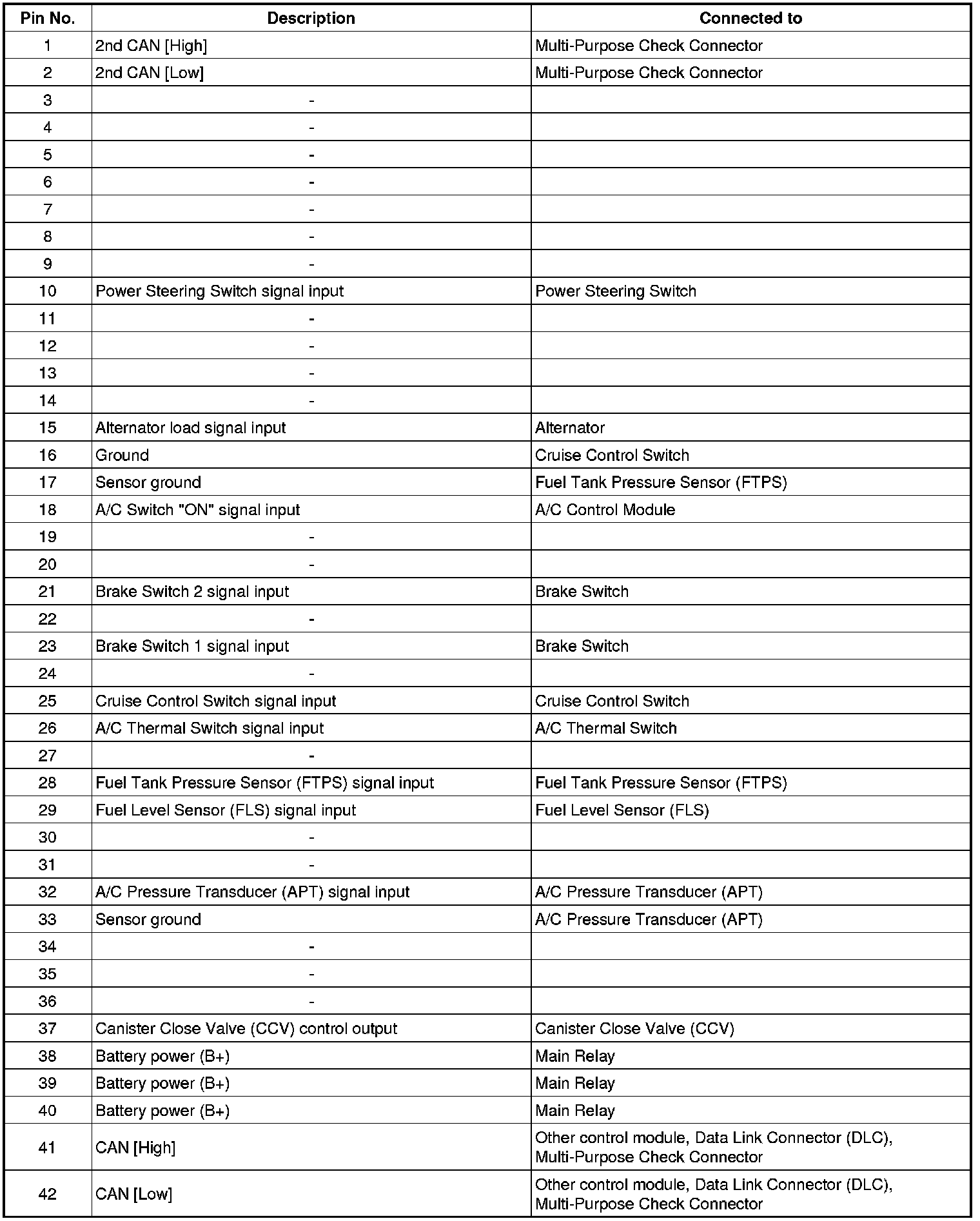

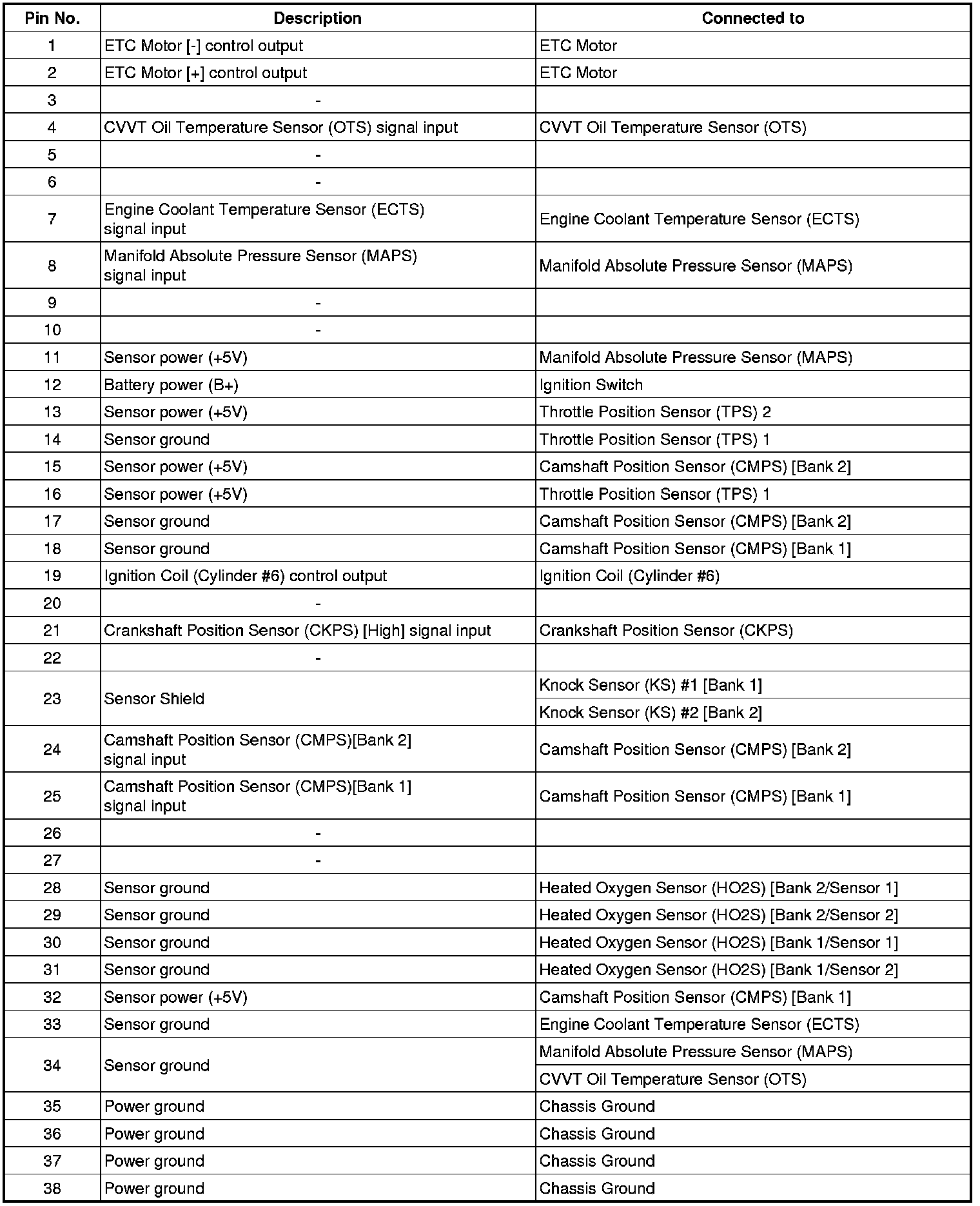

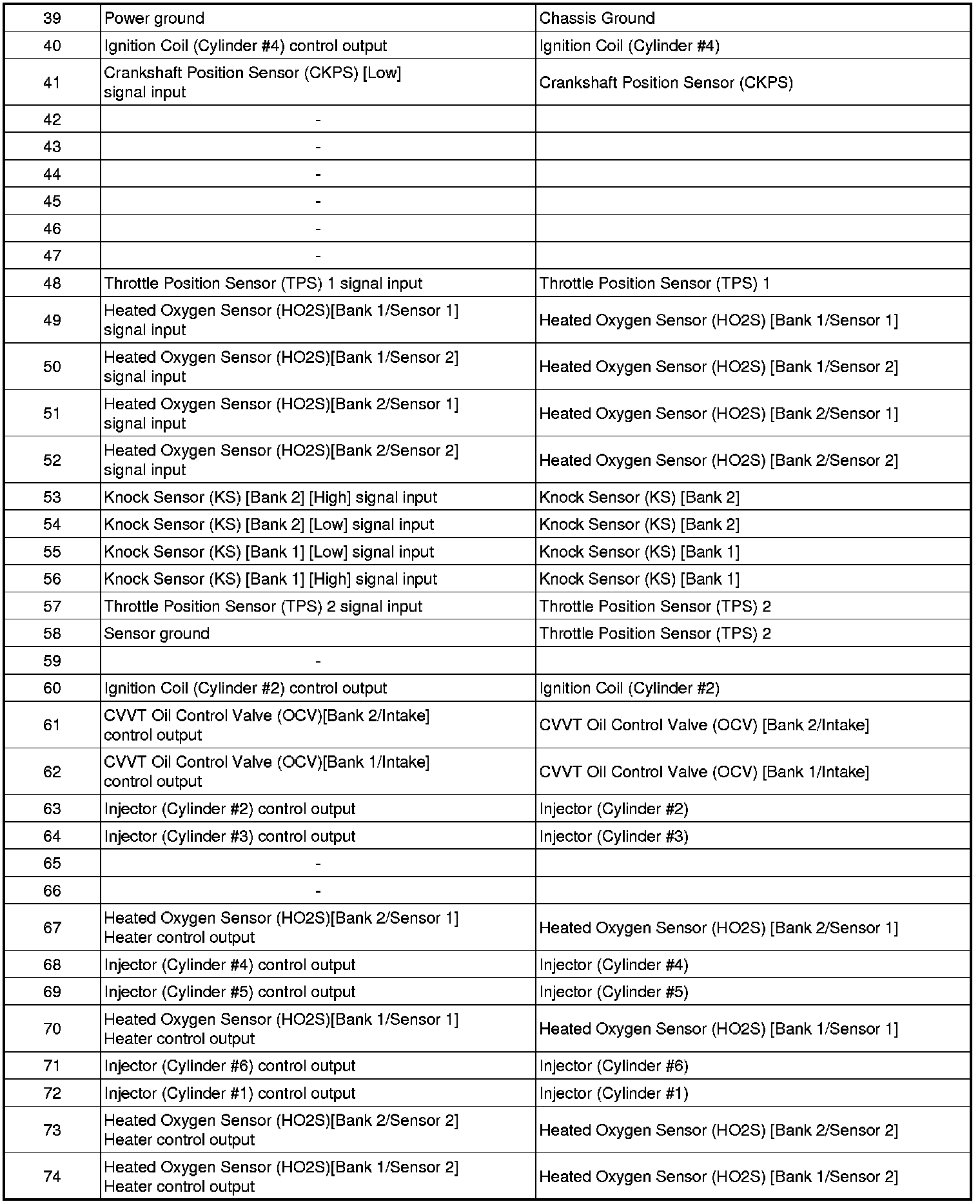

ECM Terminal Function
Connector [C401-A]









Connector [C401-B]

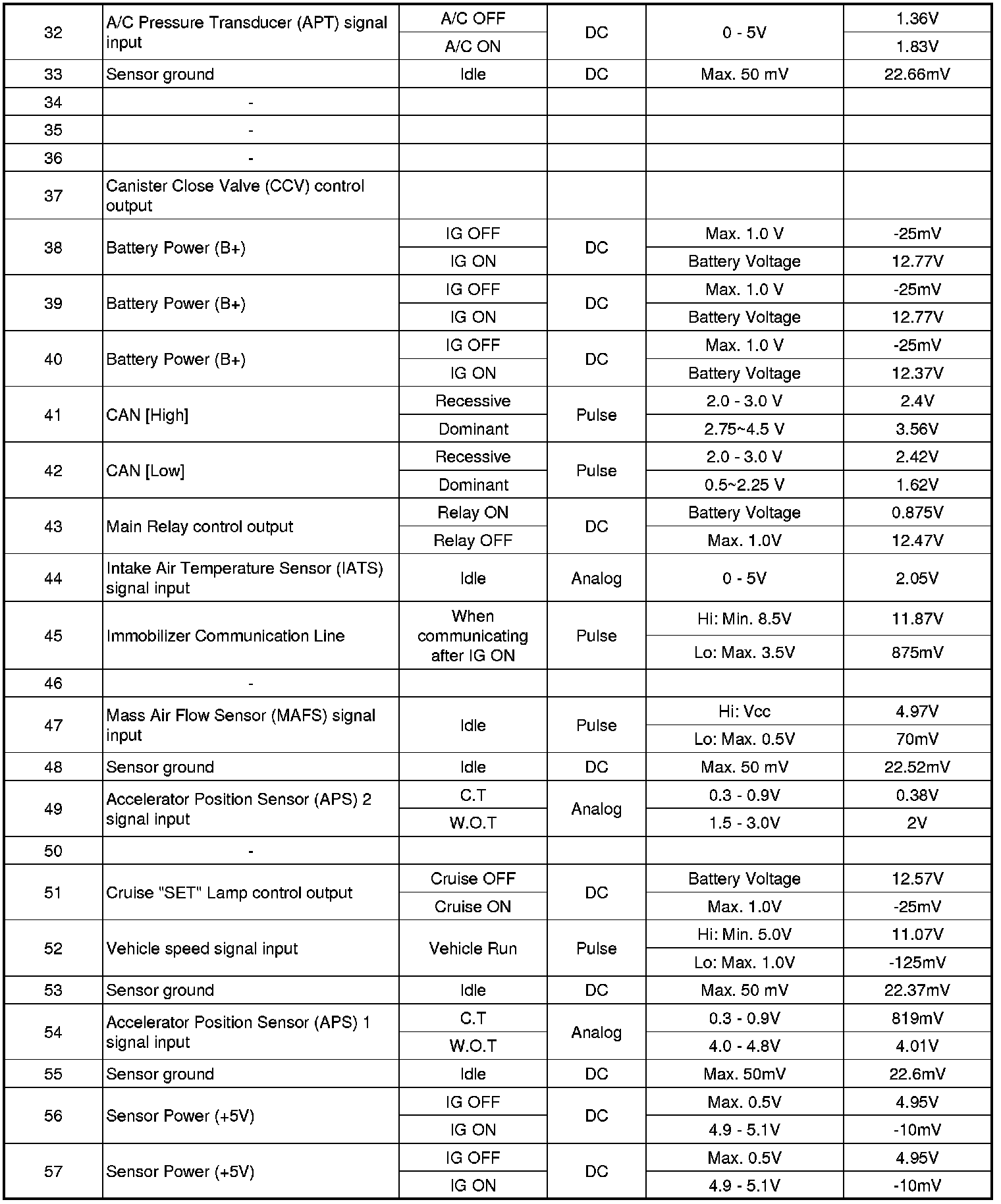

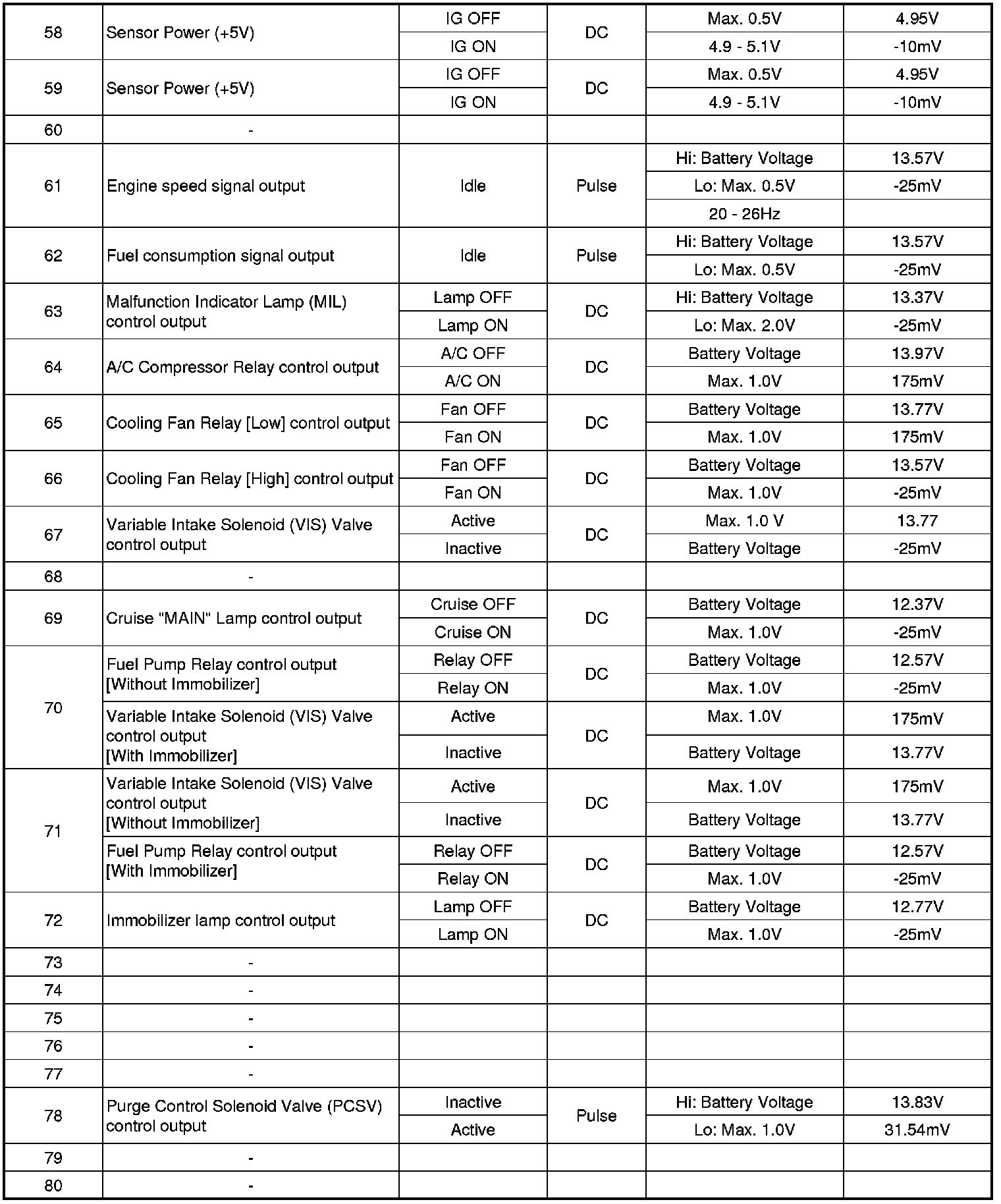

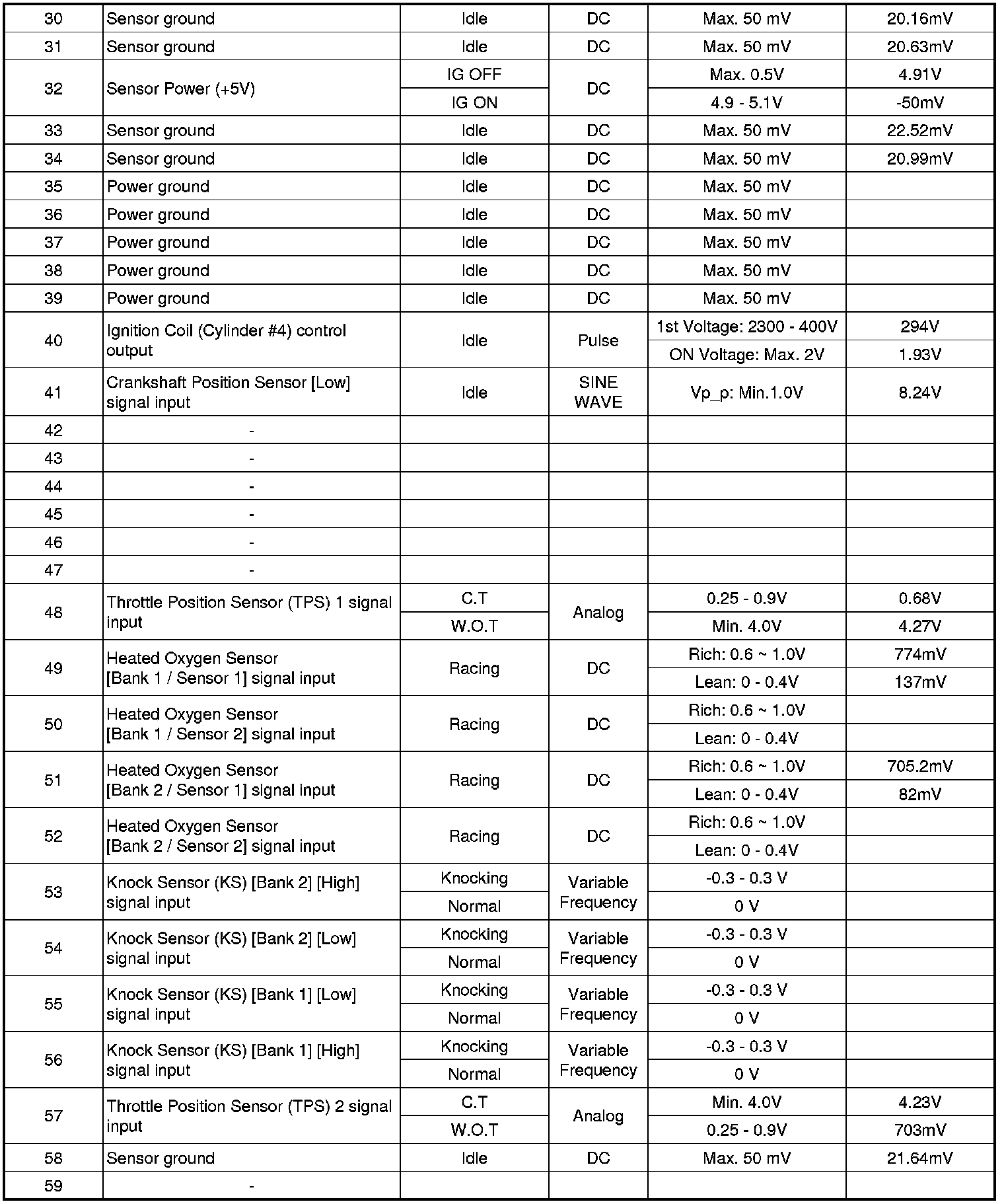

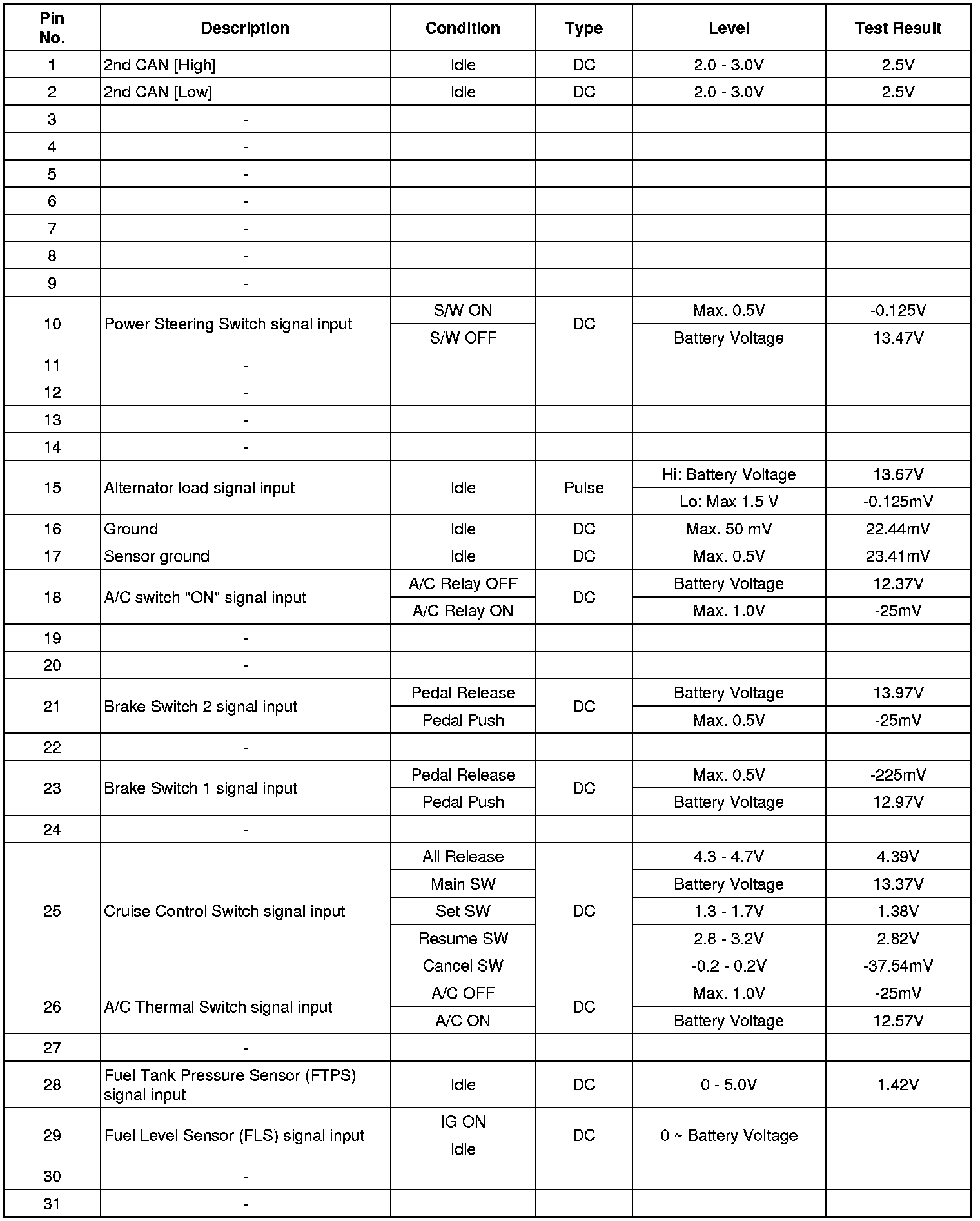

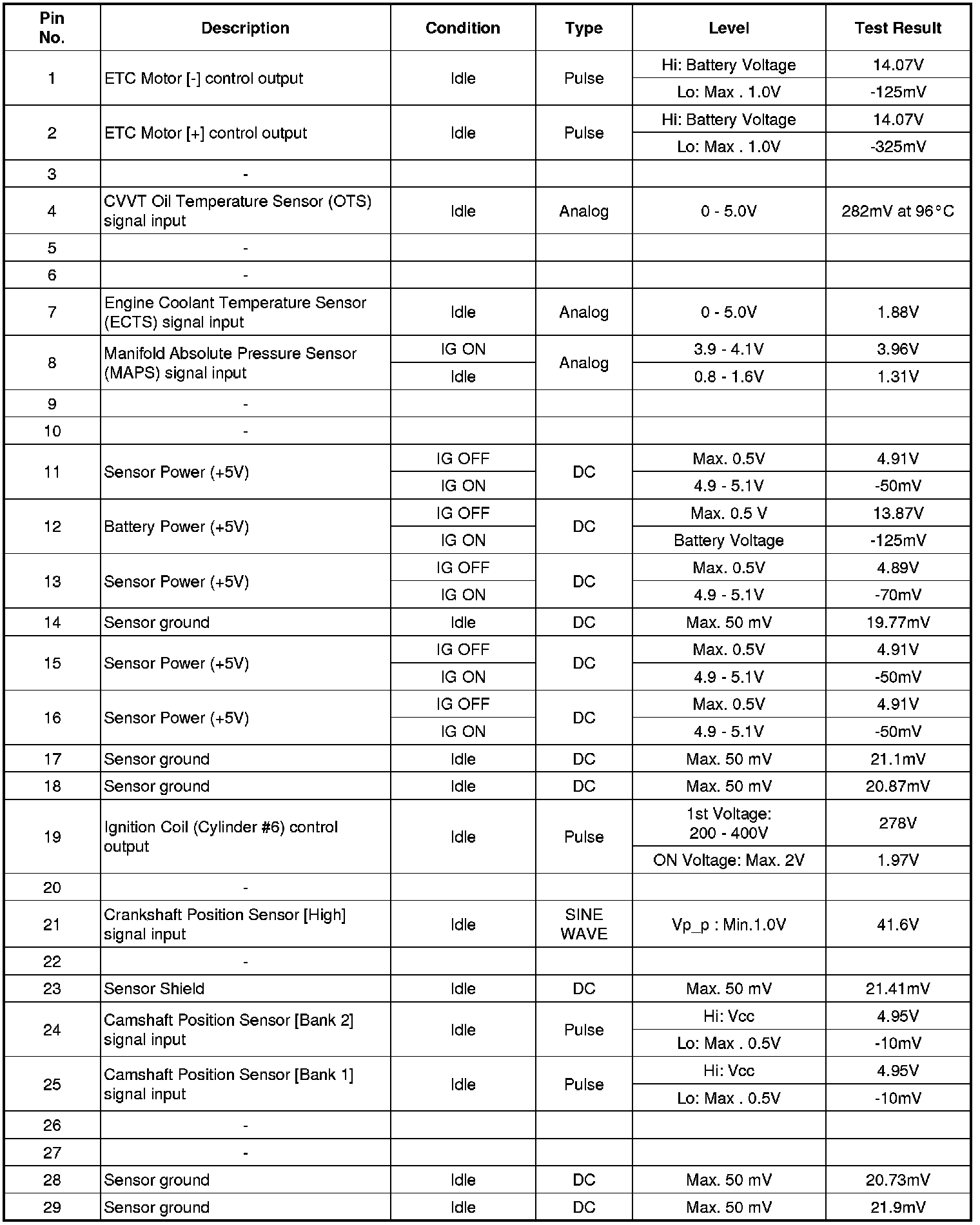

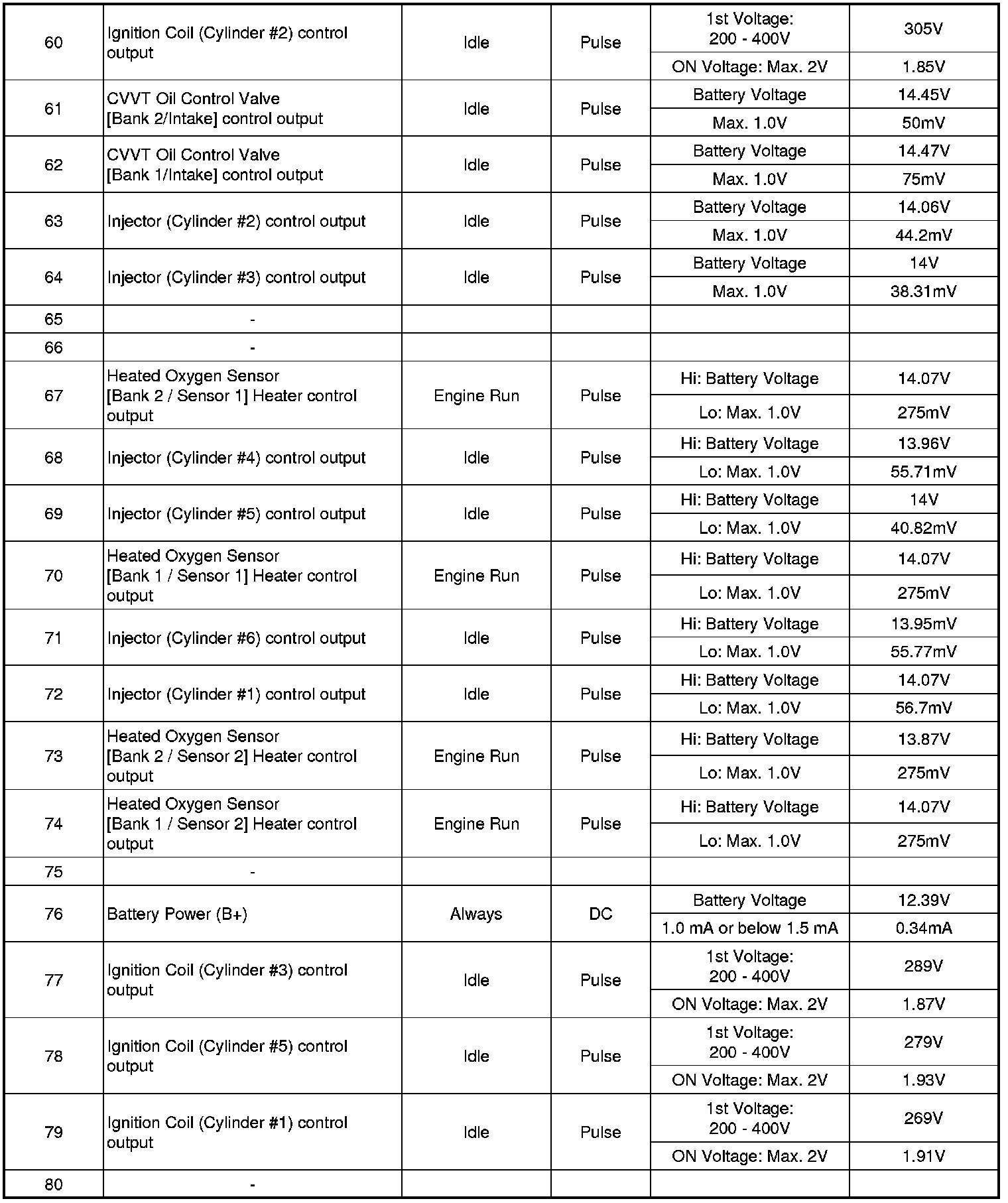

ECM Terminal Input/Output Signal
Connector [C401-A]













Connector [C401-B]
