Home >> Kia >> 2009 >> Rondo L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

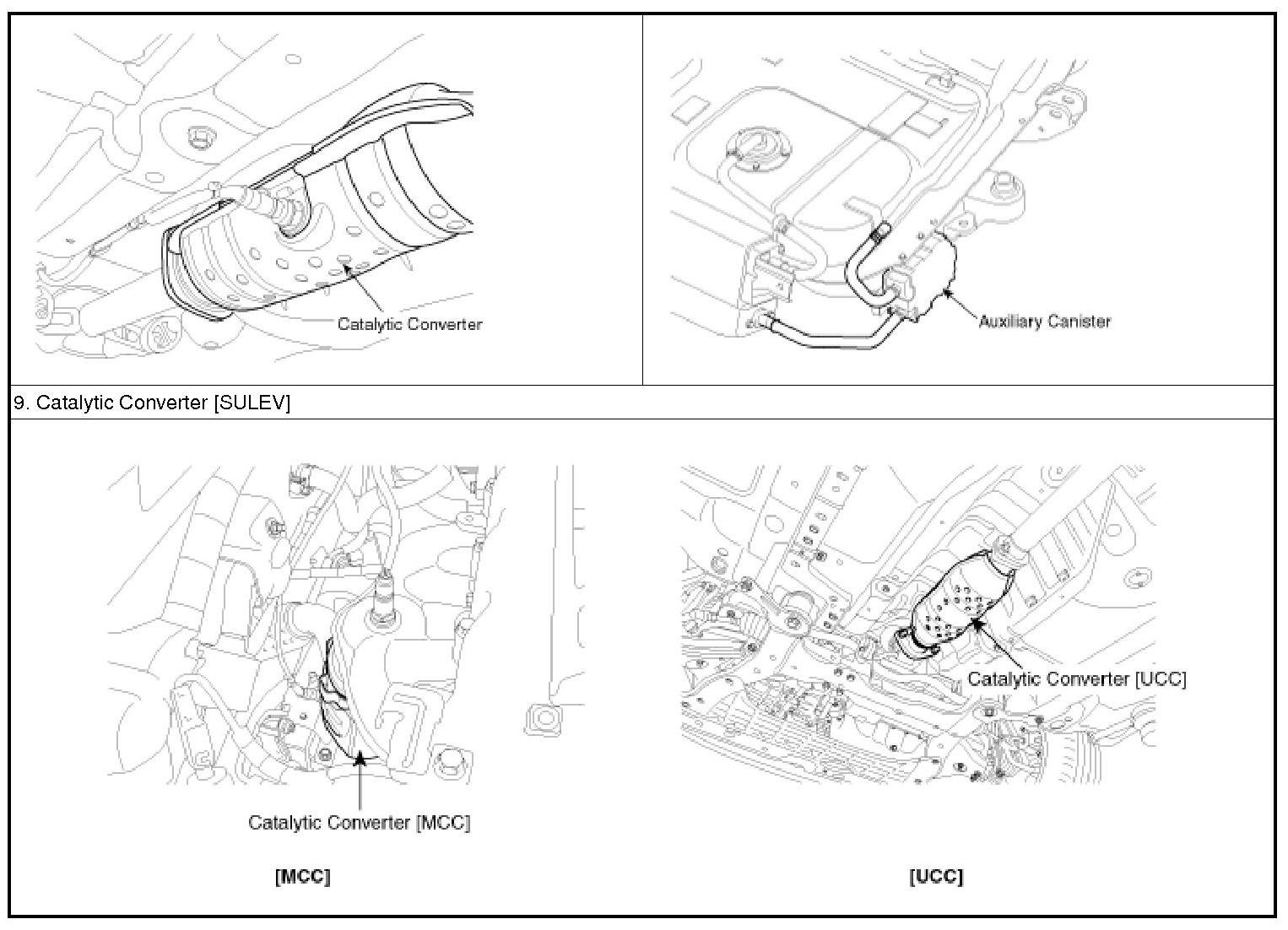

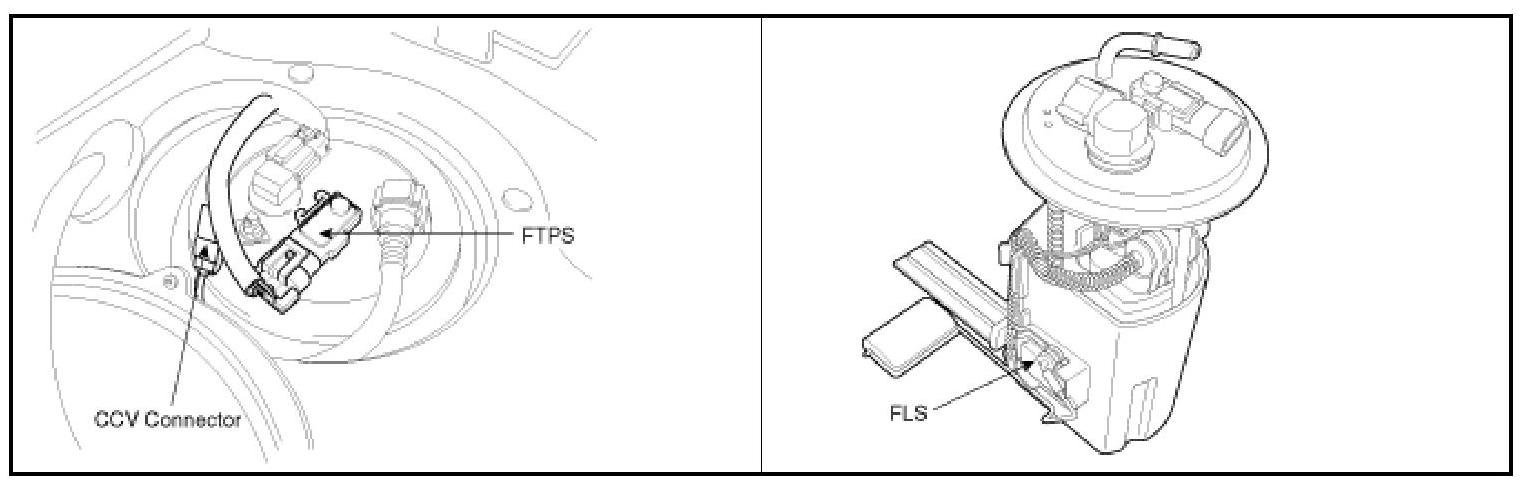

Components Location

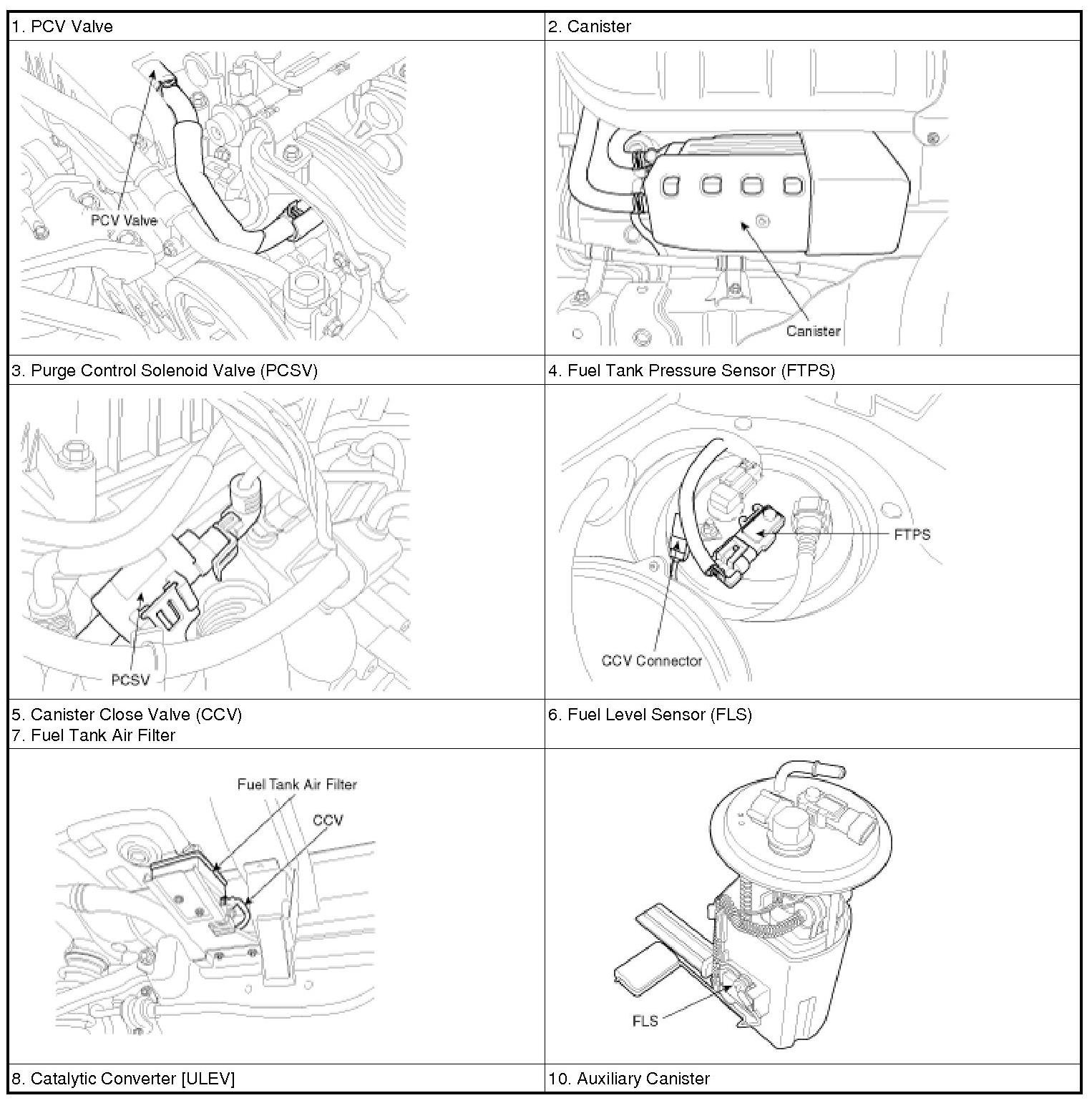

[2.4 DOHC]

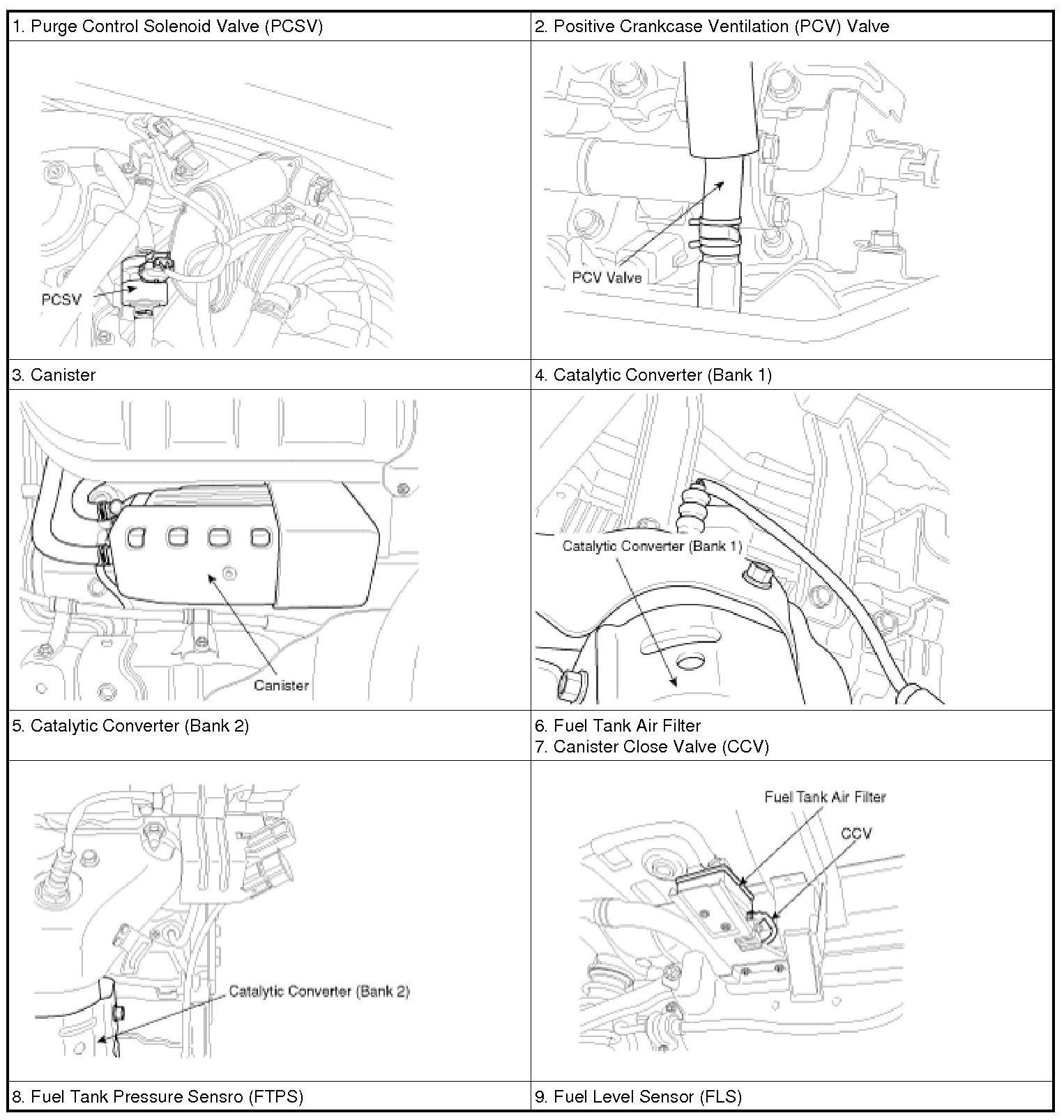

[2.7 V6]
