Crash Pad

Replacement

Heater Control Unit Replacement
1. Remove the center facia panel.

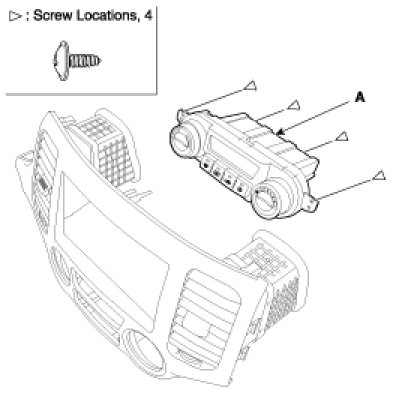

2. Loosen the heater control mounting screw, remove the heater control unit (A).




3. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
