Pinout Values and Diagnostic Parameters






POWERTRAIN CONTROL MODULE (PCM)

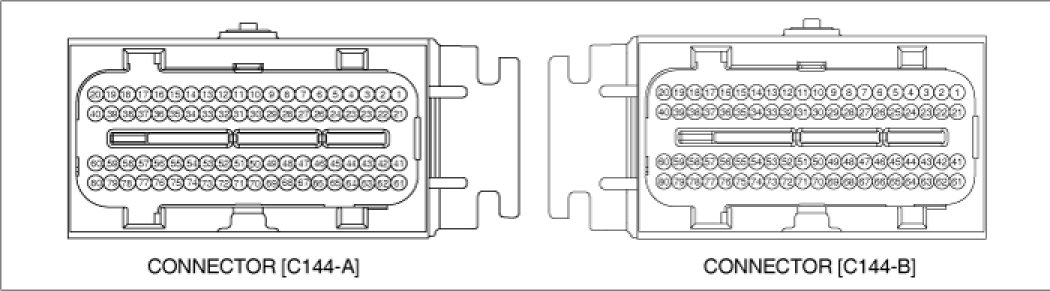

1. PCM HARNESS CONNECTOR

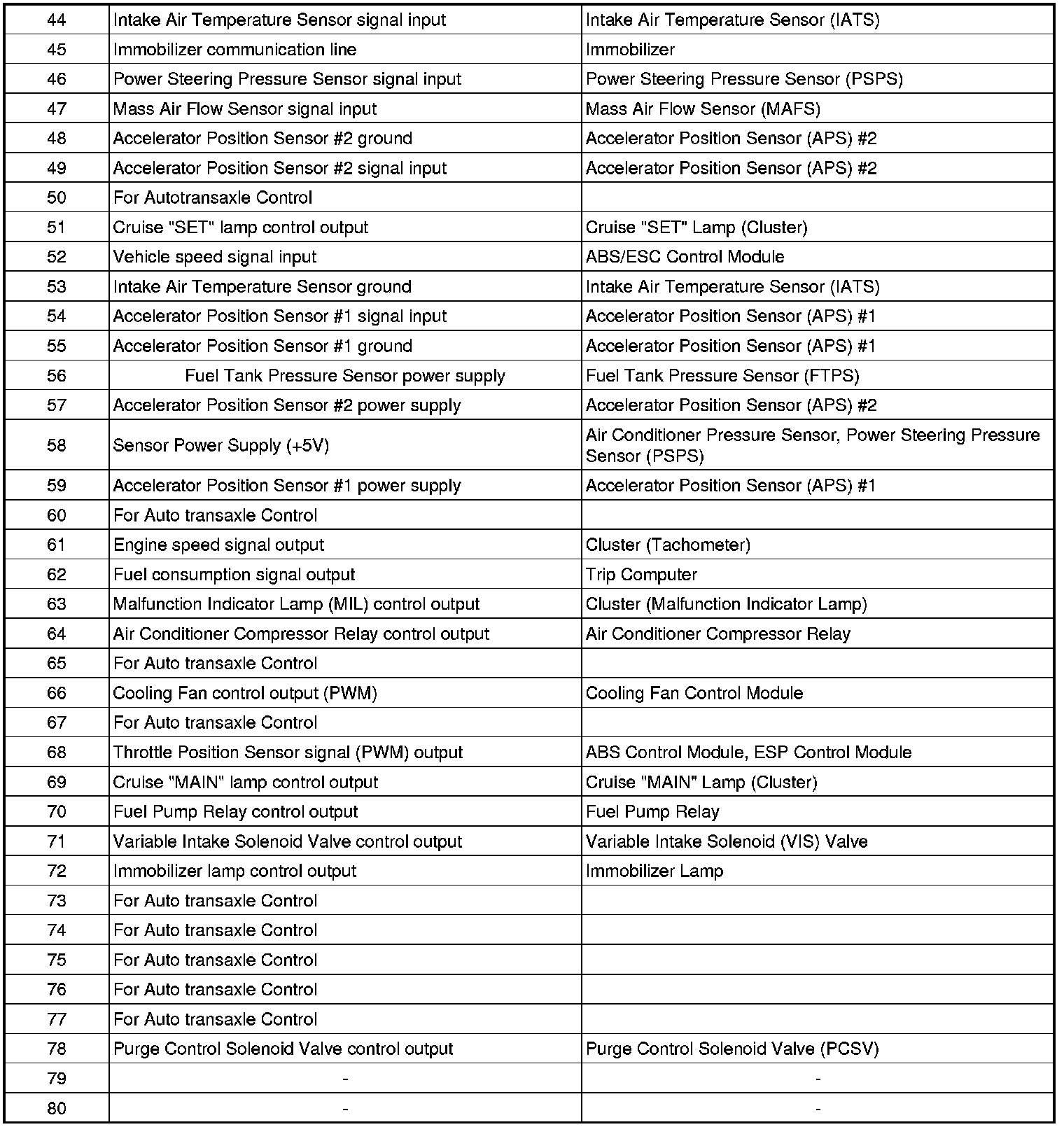

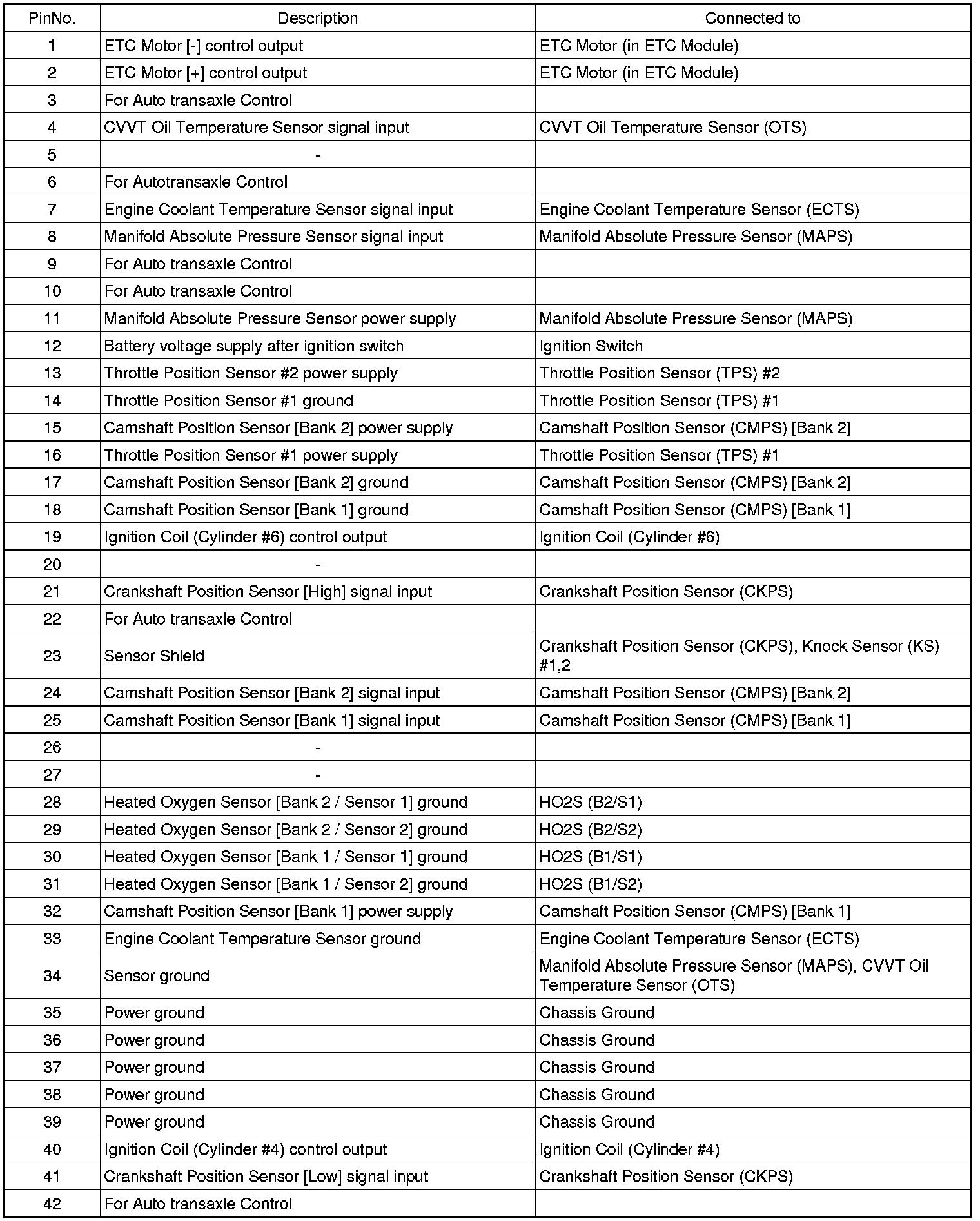

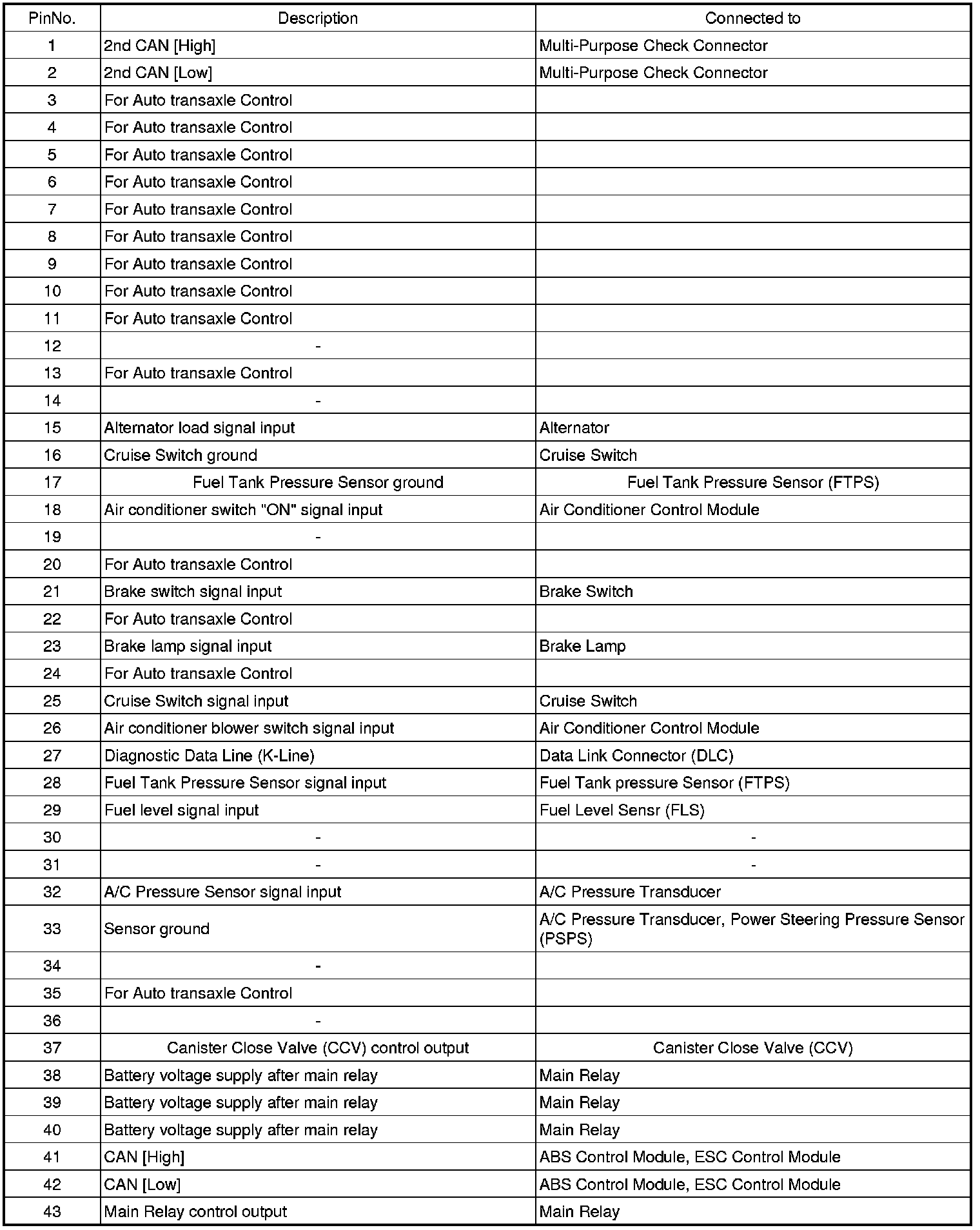

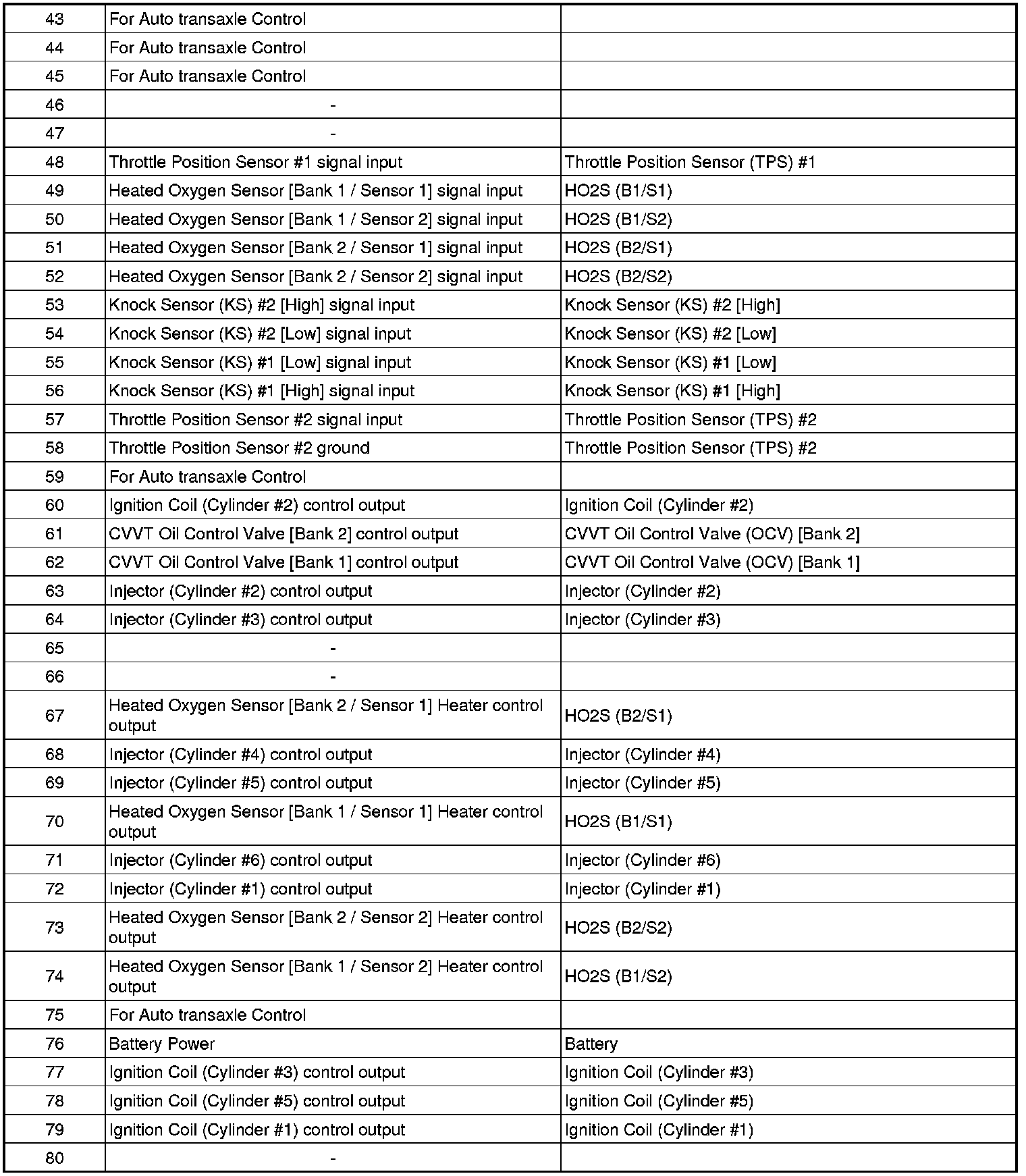

2. PCM TERMINAL FUNCTION
CONNECTOR [C144-A]








CONNECTOR [C144-B]

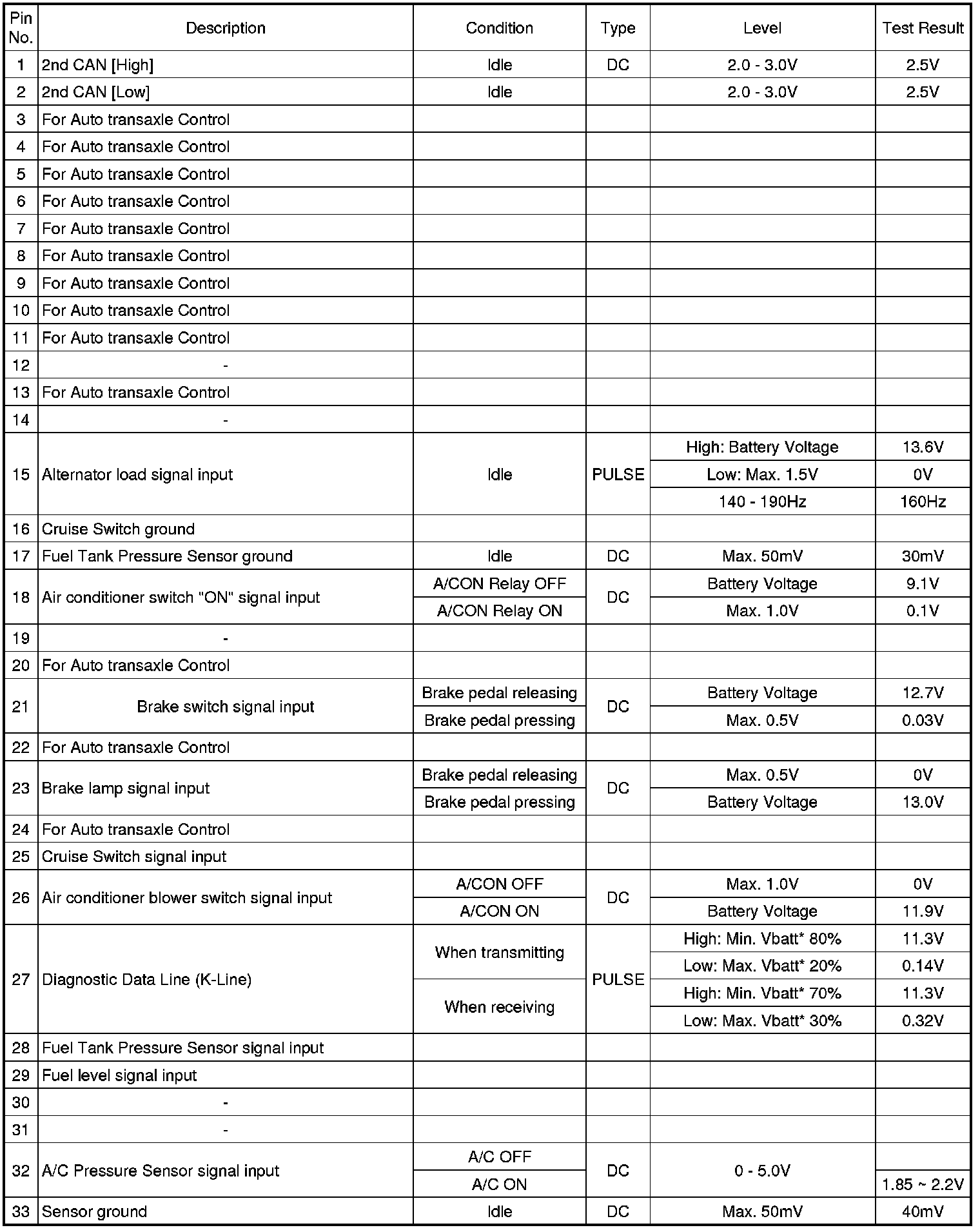

3. PCM TERMINAL INPUT/OUTPUT SIGNAL

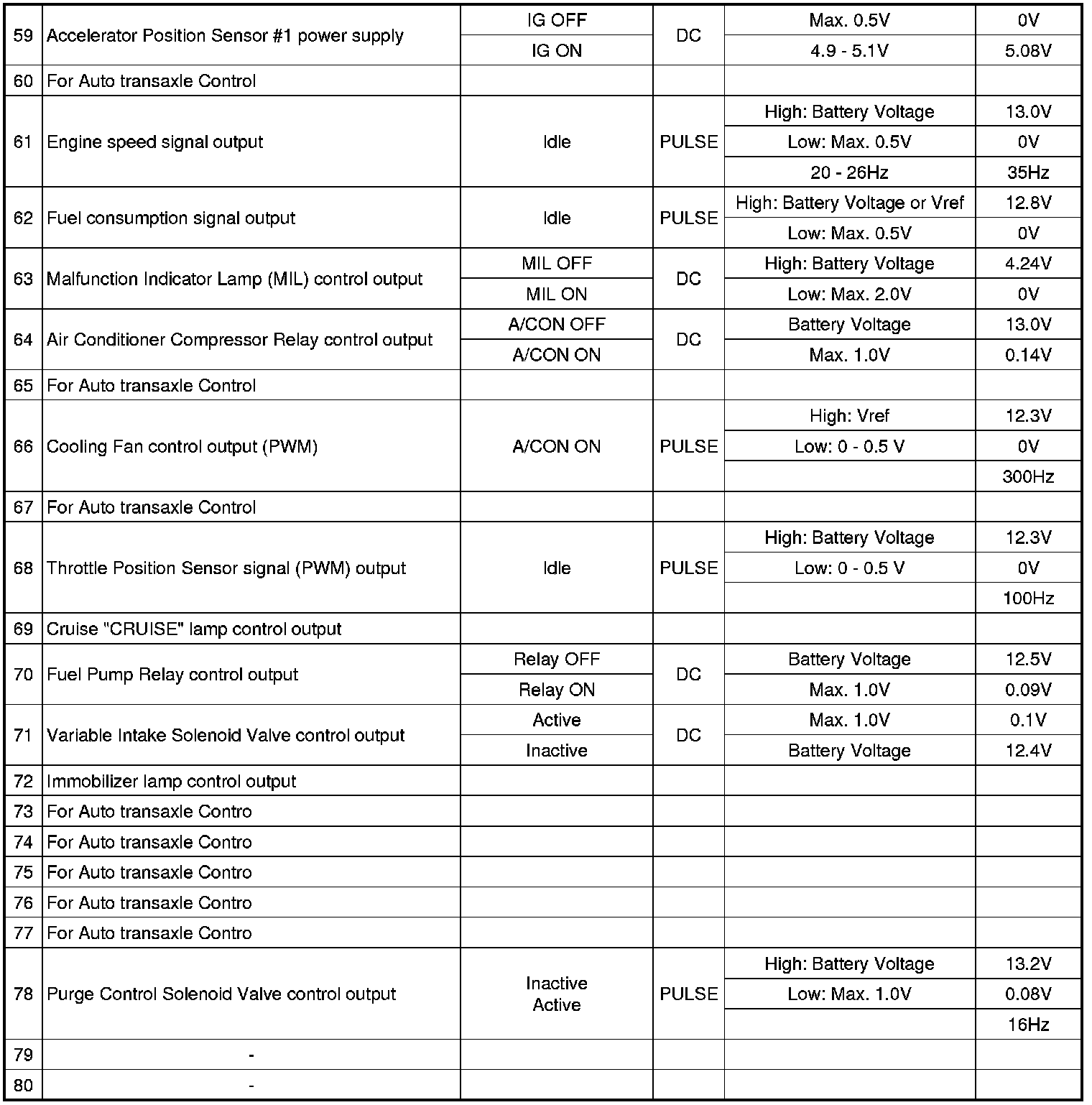

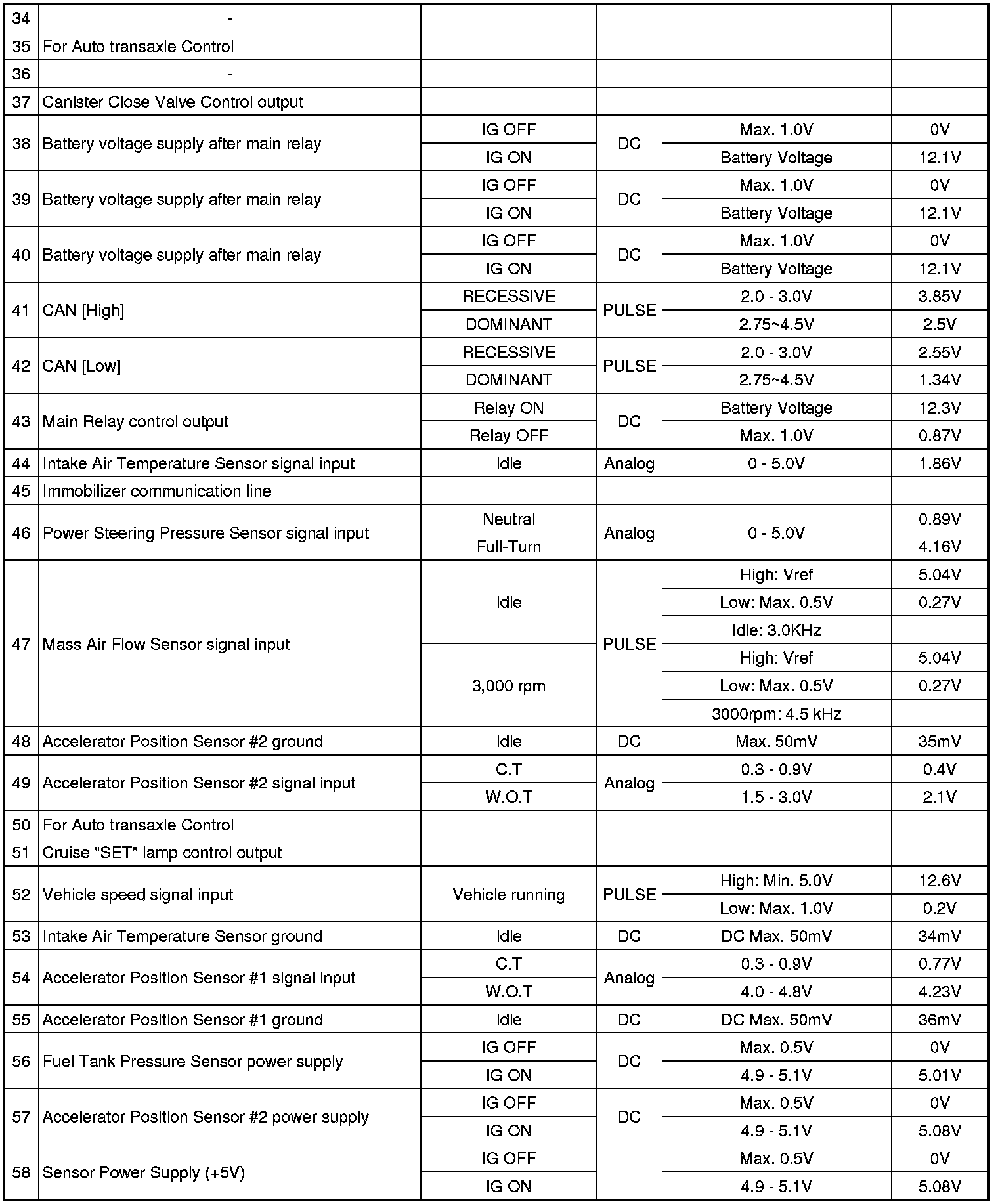

CONNECTOR [C144-A]

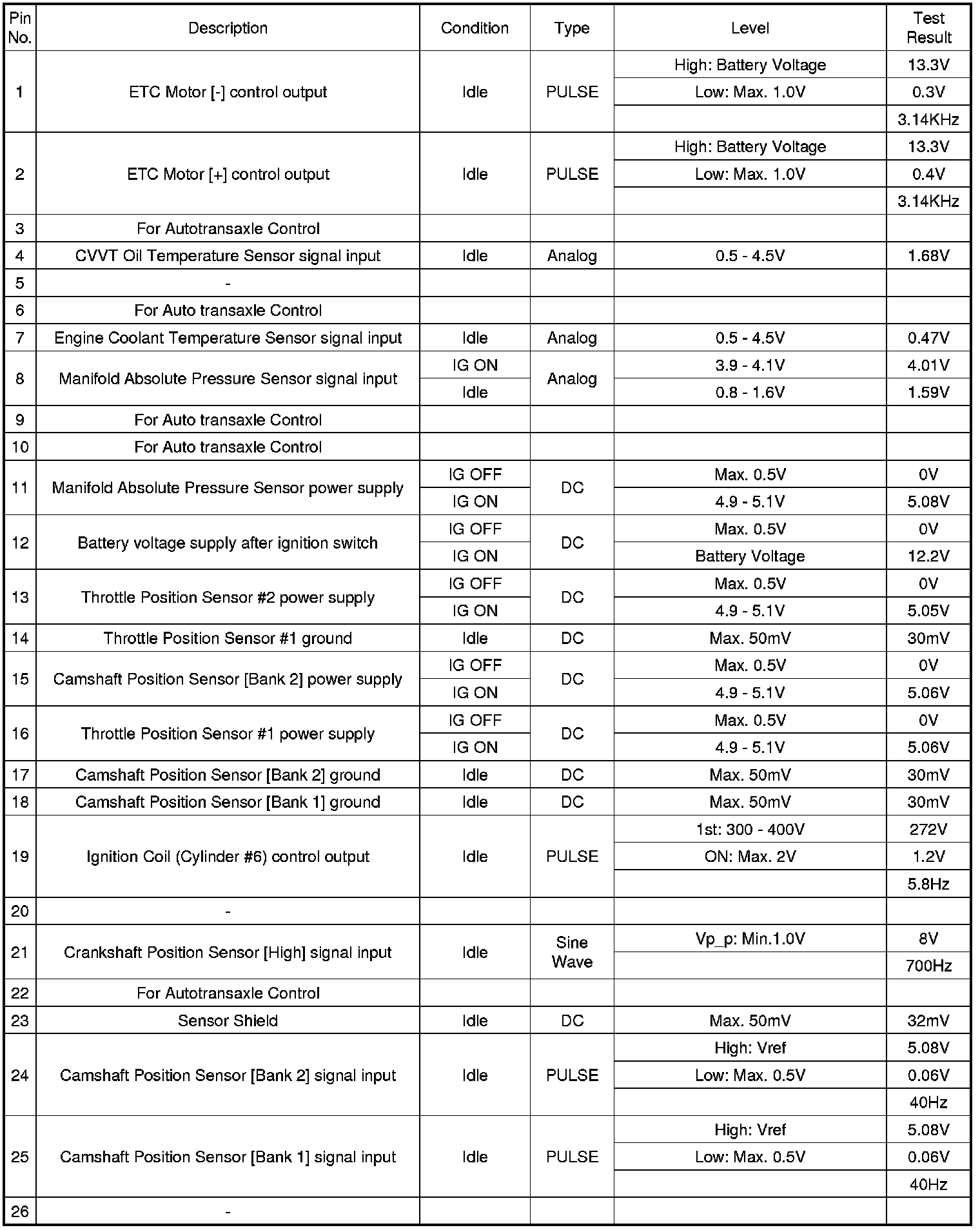

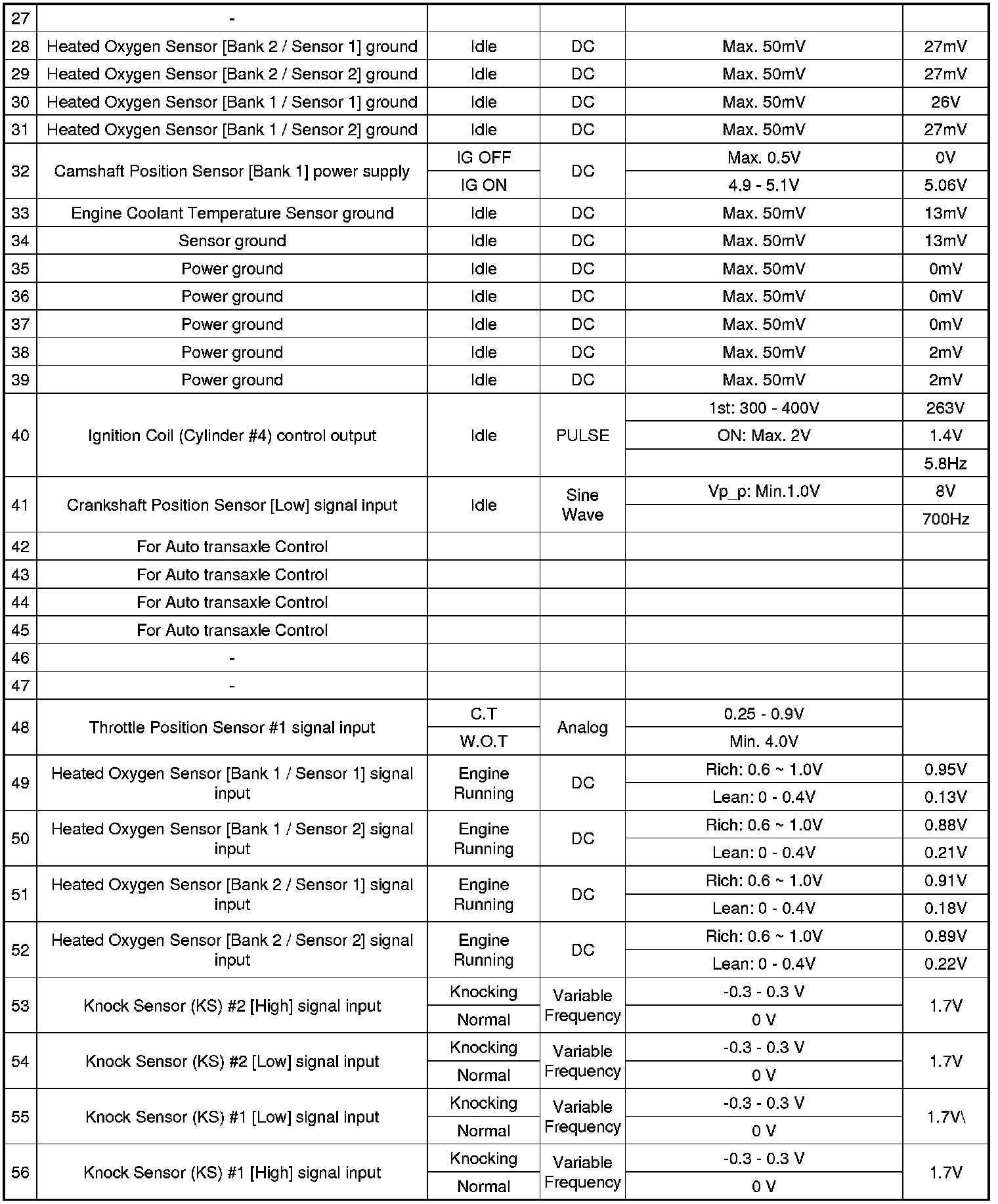

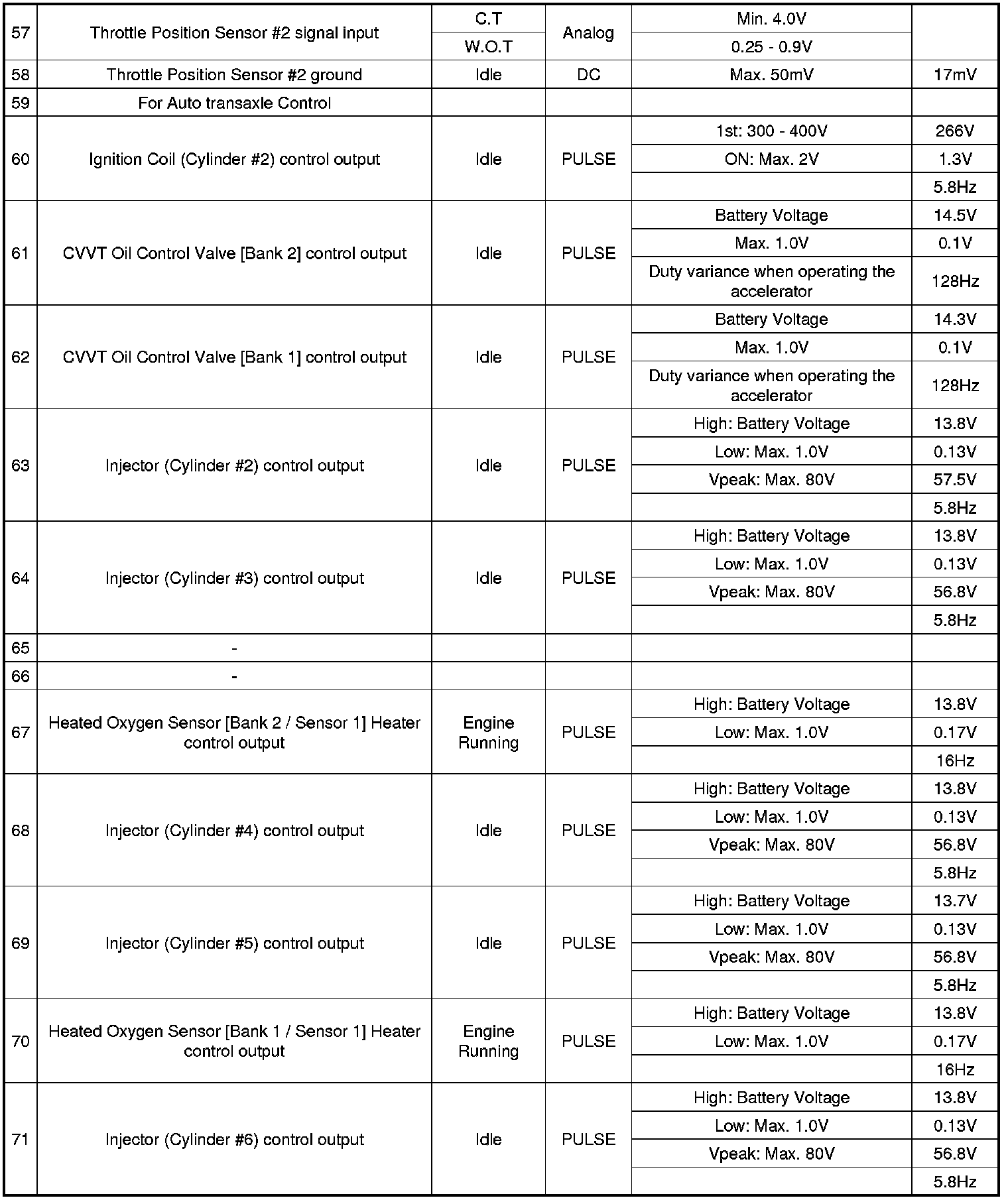

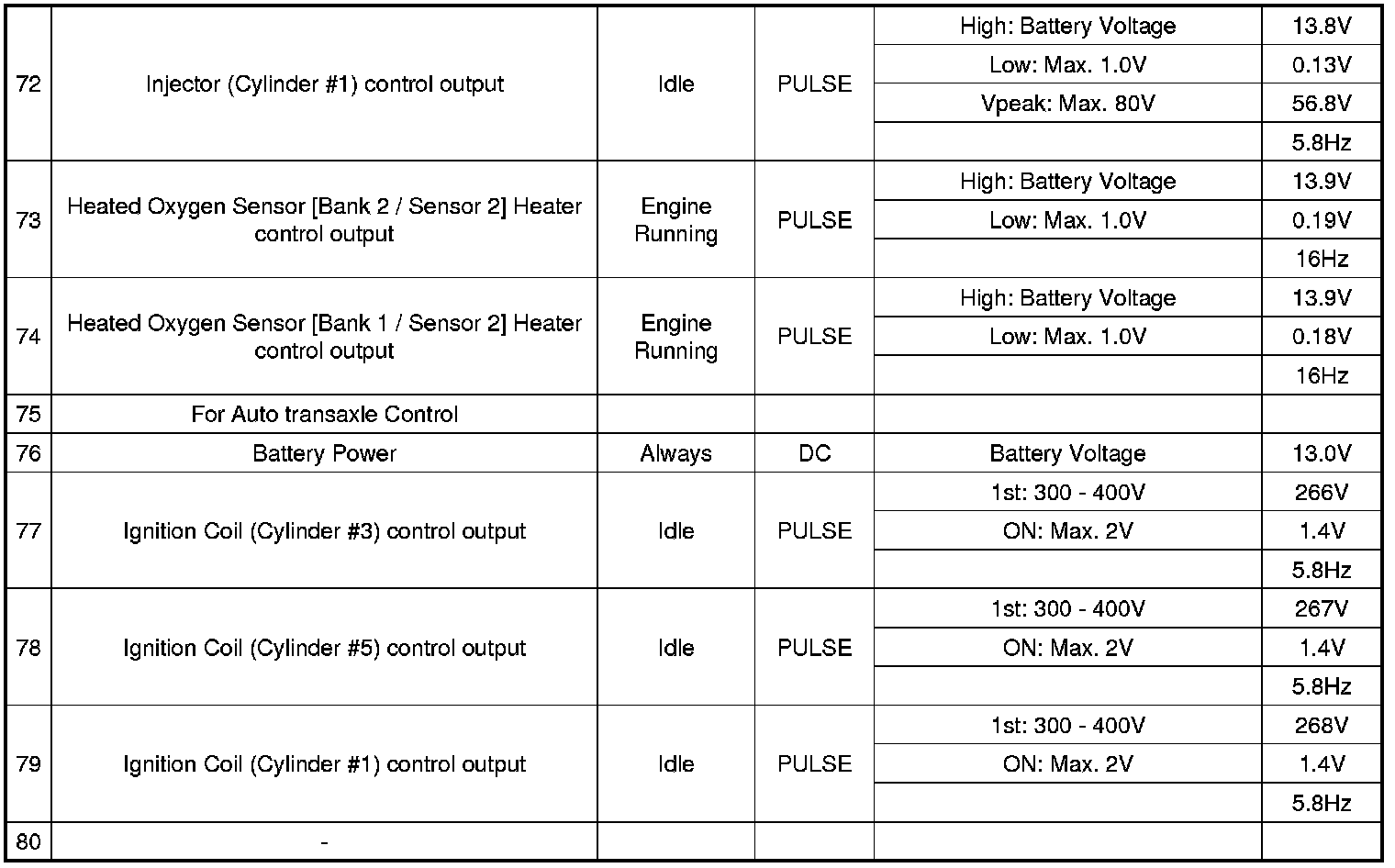

CONNECTOR [C144-B]
