Home >> Kia >> 2008 >> Sorento 2WD V6-3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Specifications

Throttle Position Sensor: Specifications

SENSORS

THROTTLE POSITION SENSOR (TPS)

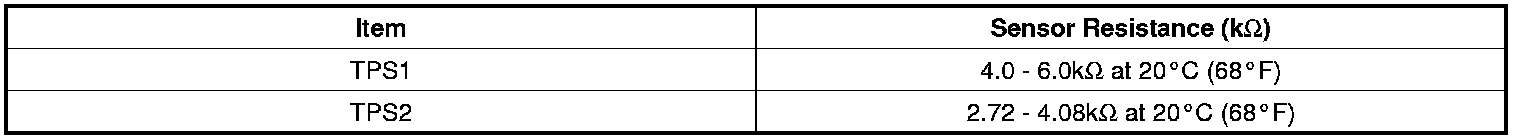

- Type: Variable resistor type

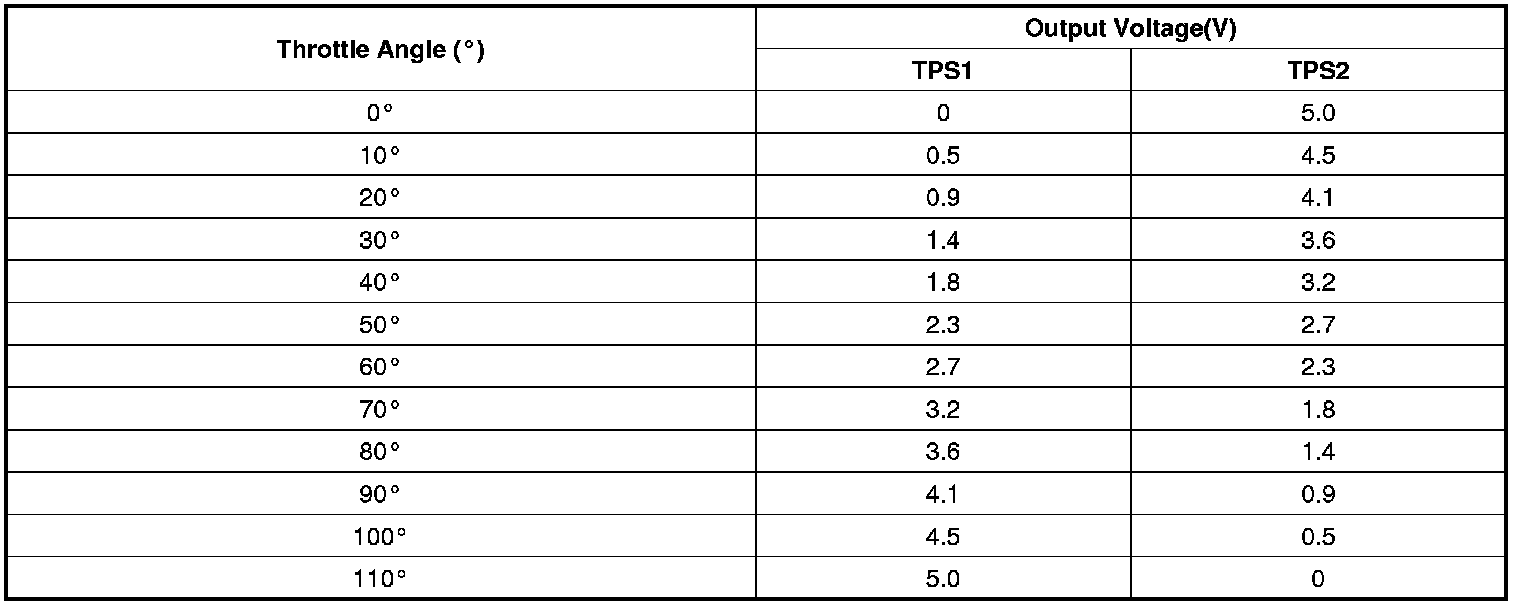

- Specification (When reference voltage = 5.0V)
