Home >> Kia >> 2008 >> Sedona V6-3.8L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Throttle Position Sensor

Throttle Position Sensor

SPECIFICATION

SENSOR

THROTTLE POSITION SENSOR (TPS)

- Type: Variable resistor type

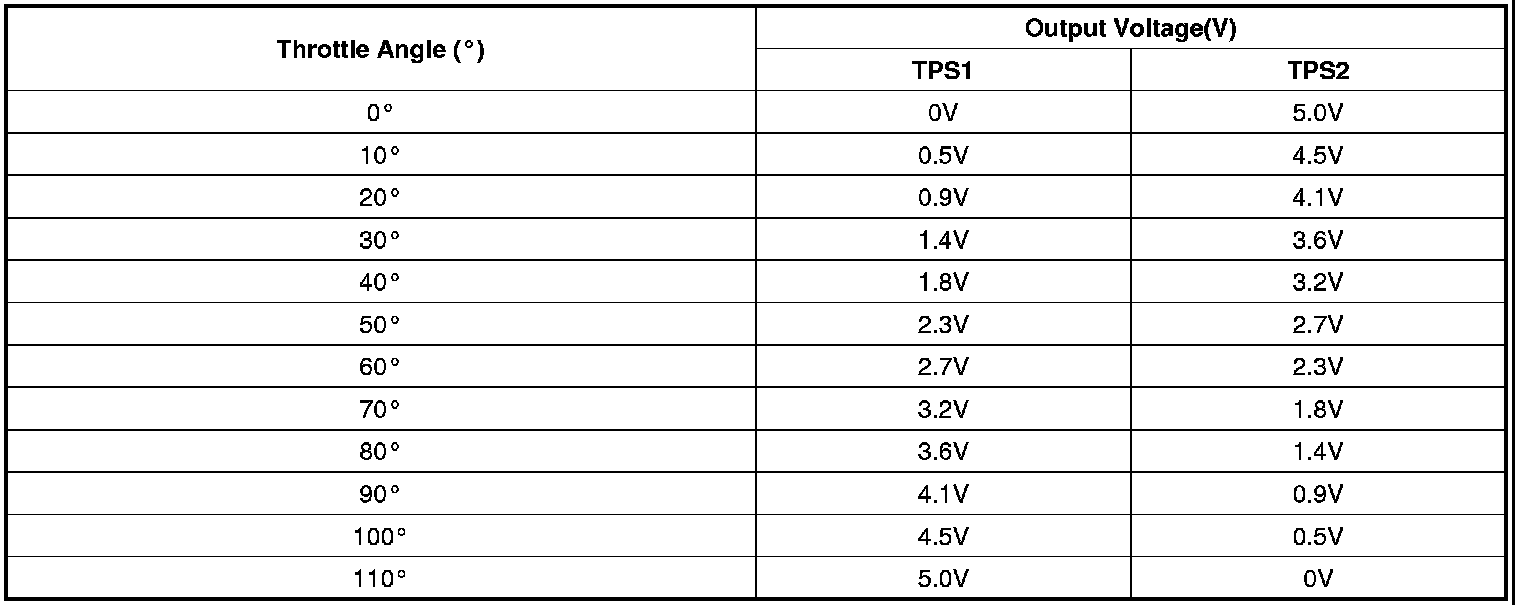

- Specification (When reference voltage = 5.0V)
