Home >> Kia >> 2008 >> Rondo L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> Timing Cover >> Timing Cover Torque

Timing Cover Torque

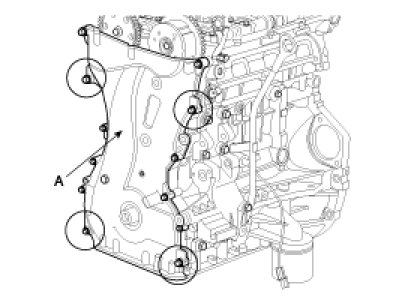

Timing Chain Cover

Tightening torque:
M6 7.84 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.78 - 7.23 lb-ft)
M8 18.62 - 22.54 N.m (1.9 - 2.3 kgf.m, 13.74 - 16.63 lb-ft)
