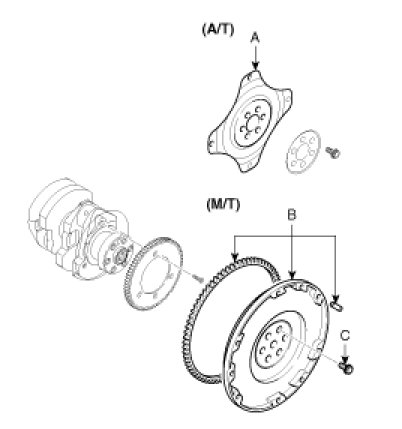

Flywheel/Flex Plate

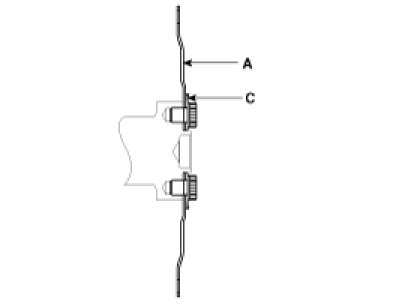

Drive Plate

Tightening torque 117.6 - 127.4 Nm (12 - 13 kgf.m, 86.75 - 93.98 lb-ft)







Flywheel

Tightening torque 117.6 - 127.4 Nm (12 - 13 kgf.m, 86.75 - 93.98 lb-ft)
