Solar Sensor: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

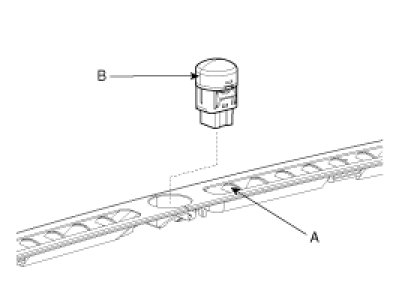

2. With the (-) driver, remove the photo sensor (B) from the center of defrost nozzle (A).




3. Install in the reverse order of removal.
