Home >> Kia >> 2008 >> Optima L4-2.4L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Service and Repair >> Rear

Rear

POWER WINDOW SWITCH REPLACEMENT
1. Remove the rear door trim.

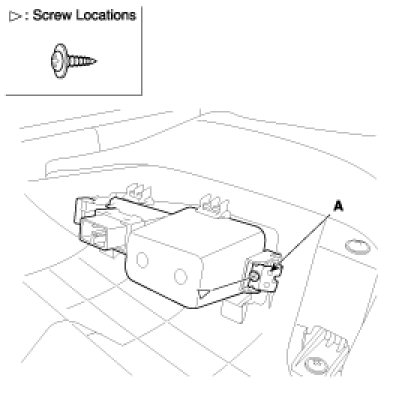

2. Loosen the mounting screw.
3. Remove the clip (A).

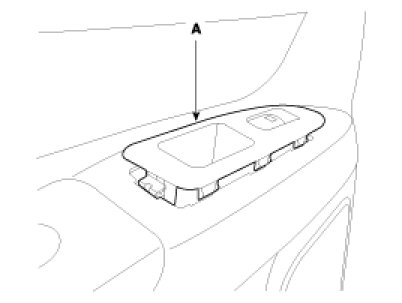

4. Remove the power window switch (A).




5. Installation is the reverse the removal.
