Fuse: Locations
FUSE & RELAY INFORMATION

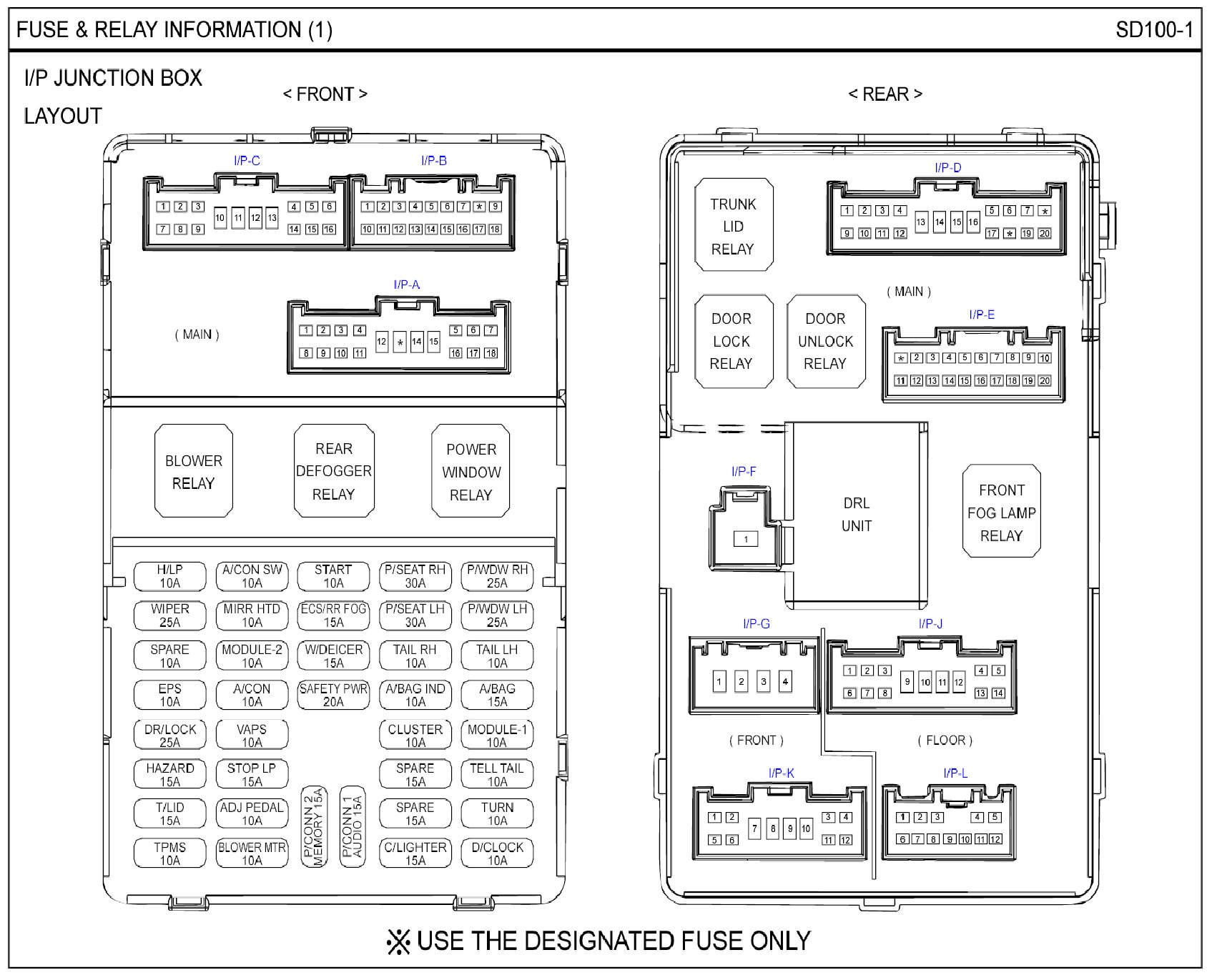

I/P Junction Box Layout View:

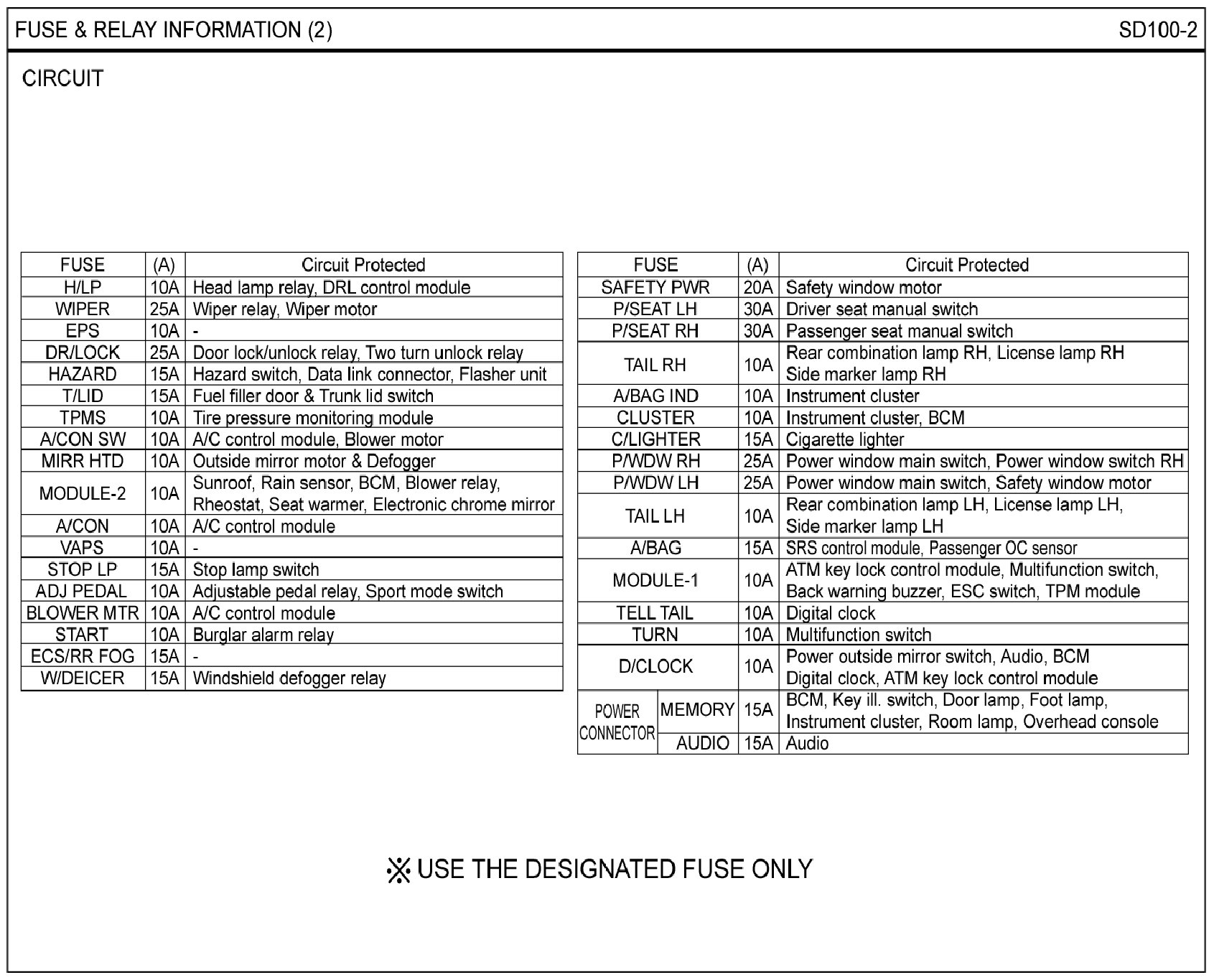

I/P Junction Box Circuit Details:

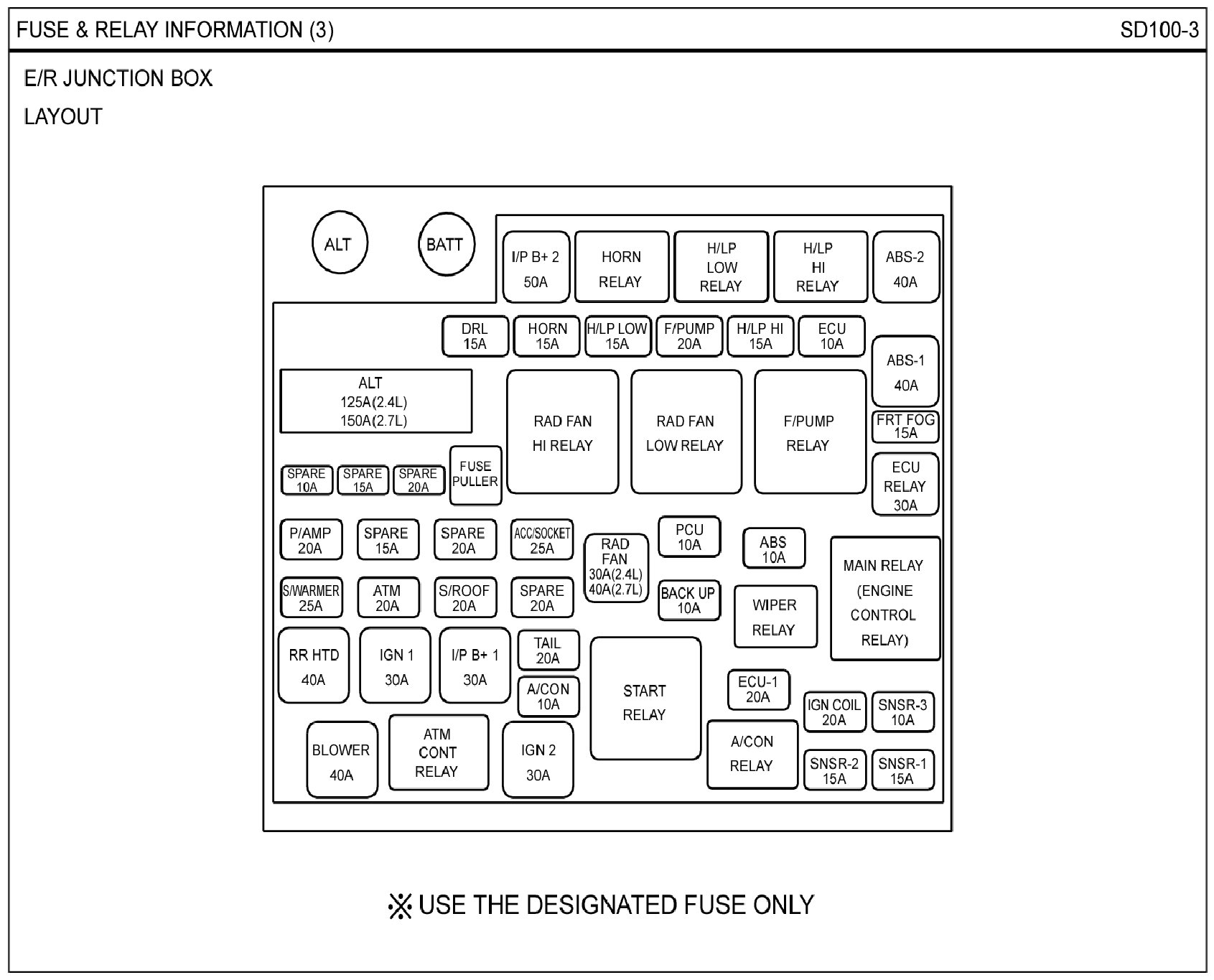

E/R Junction Box Layout View:

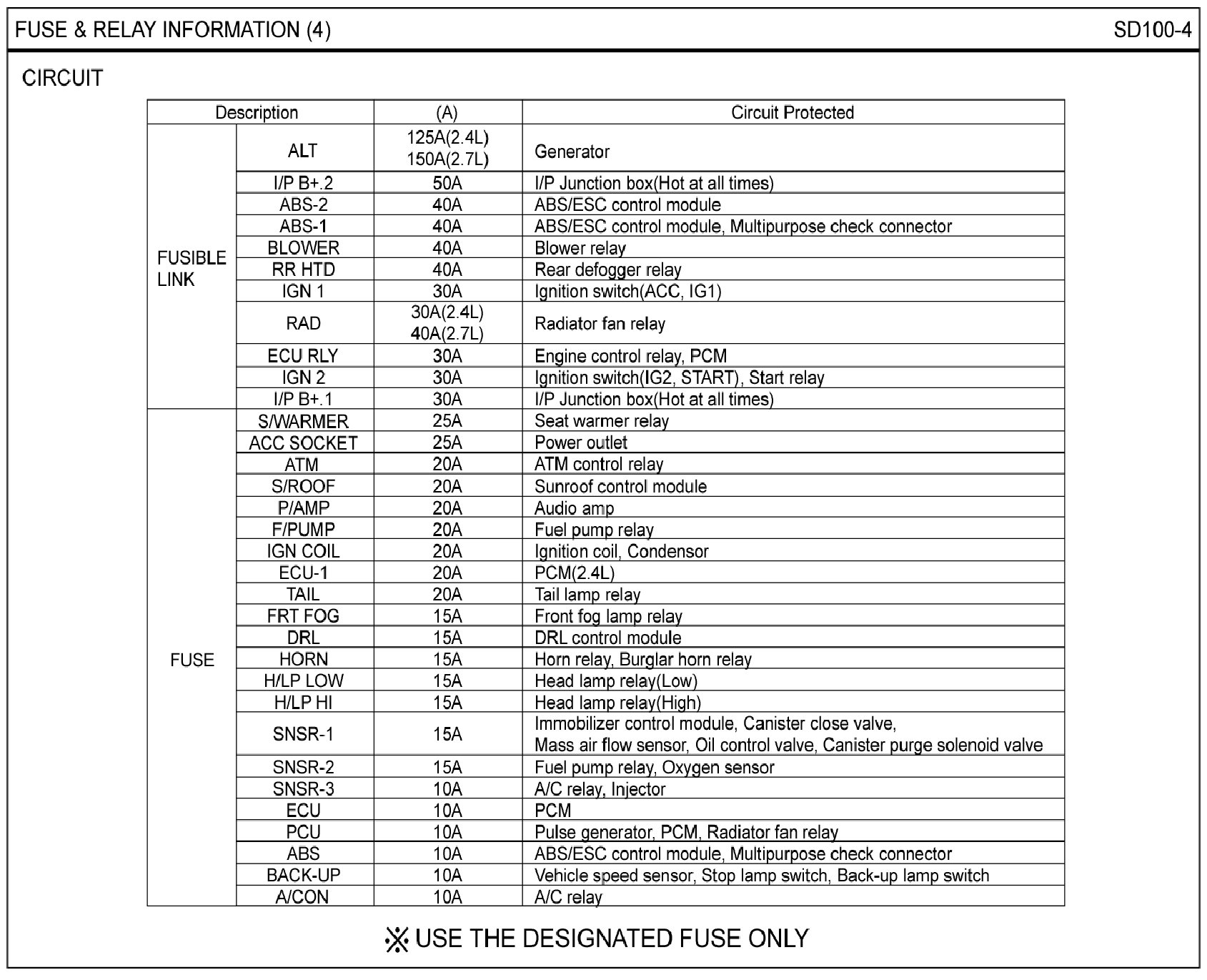

E/R Junction Box Circuit Details:

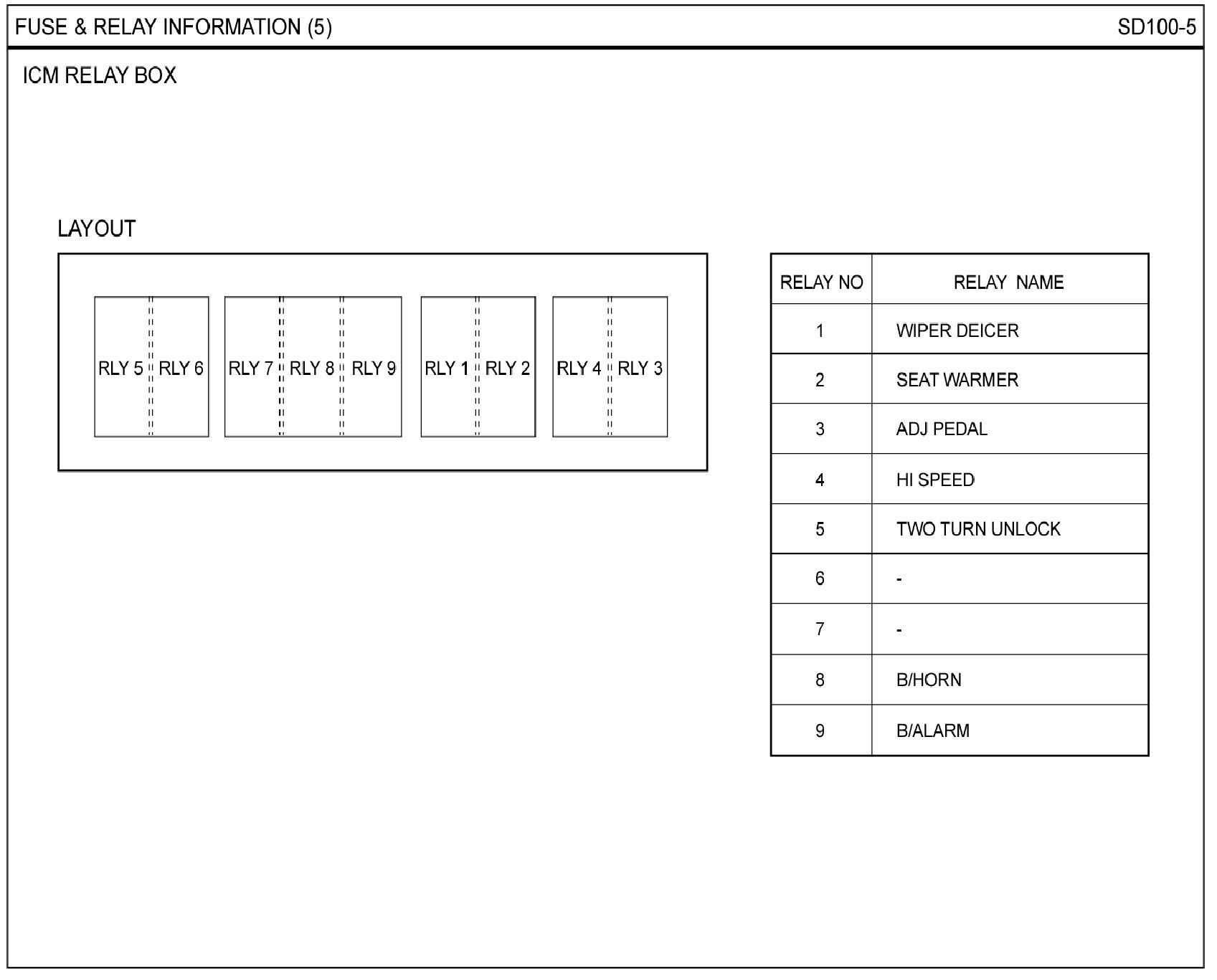

ICM Relay Box View:
