Pinout Values and Diagnostic Parameters





POWERTRAIN CONTROL MODULE (PCM)

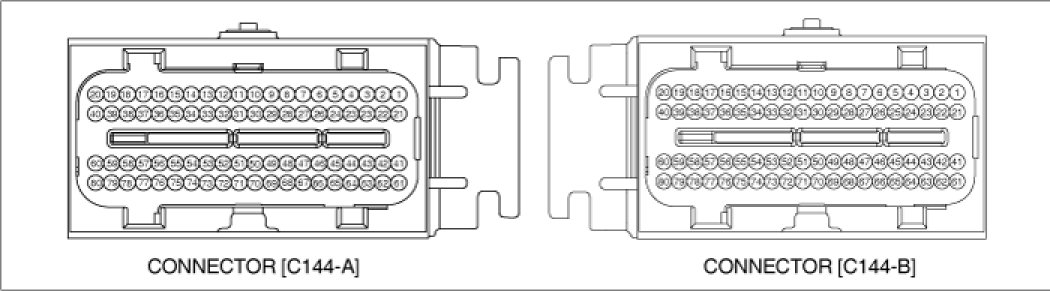

1. PCM HARNESS CONNECTOR

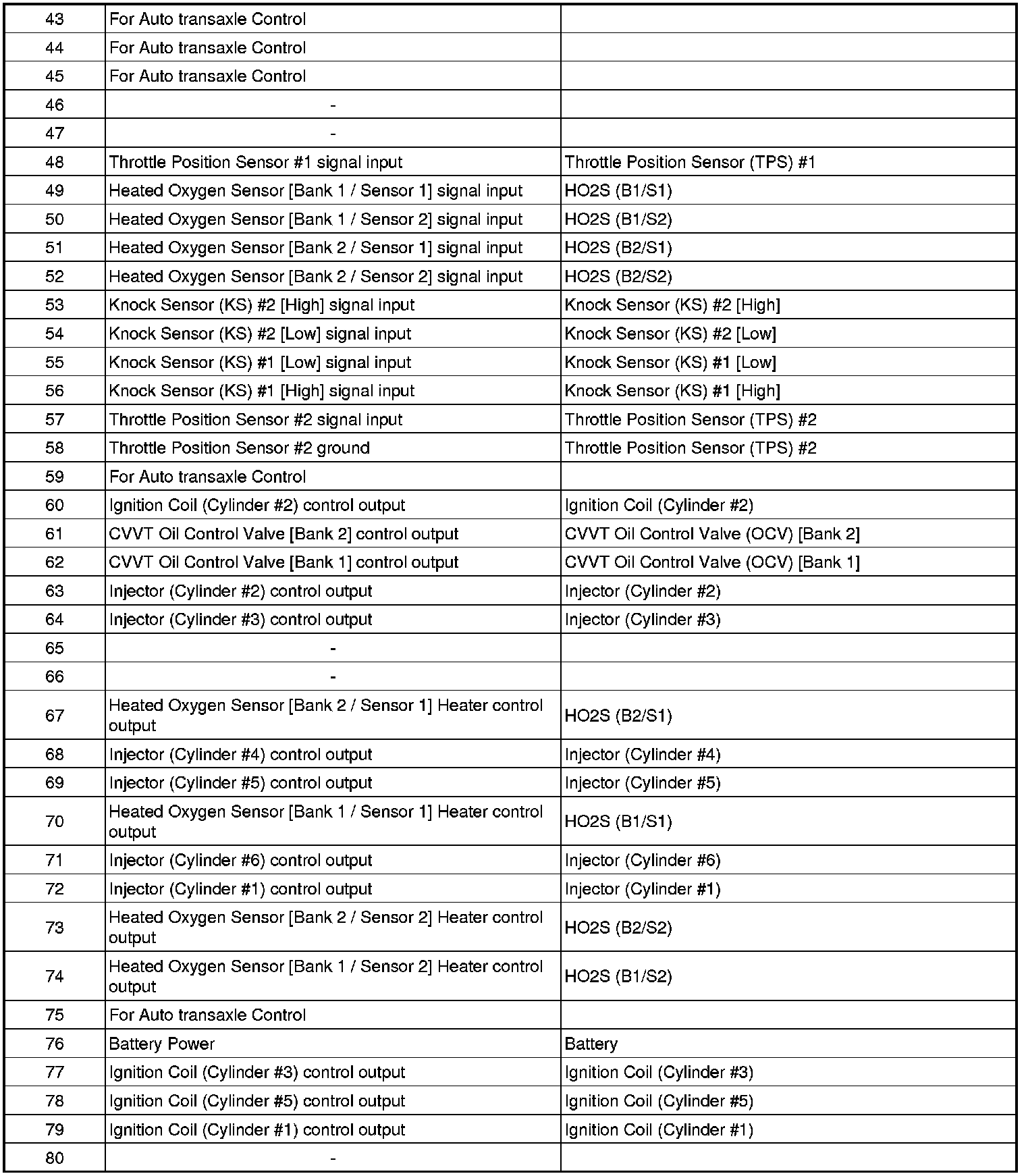

2. PCM TERMINAL FUNCTION

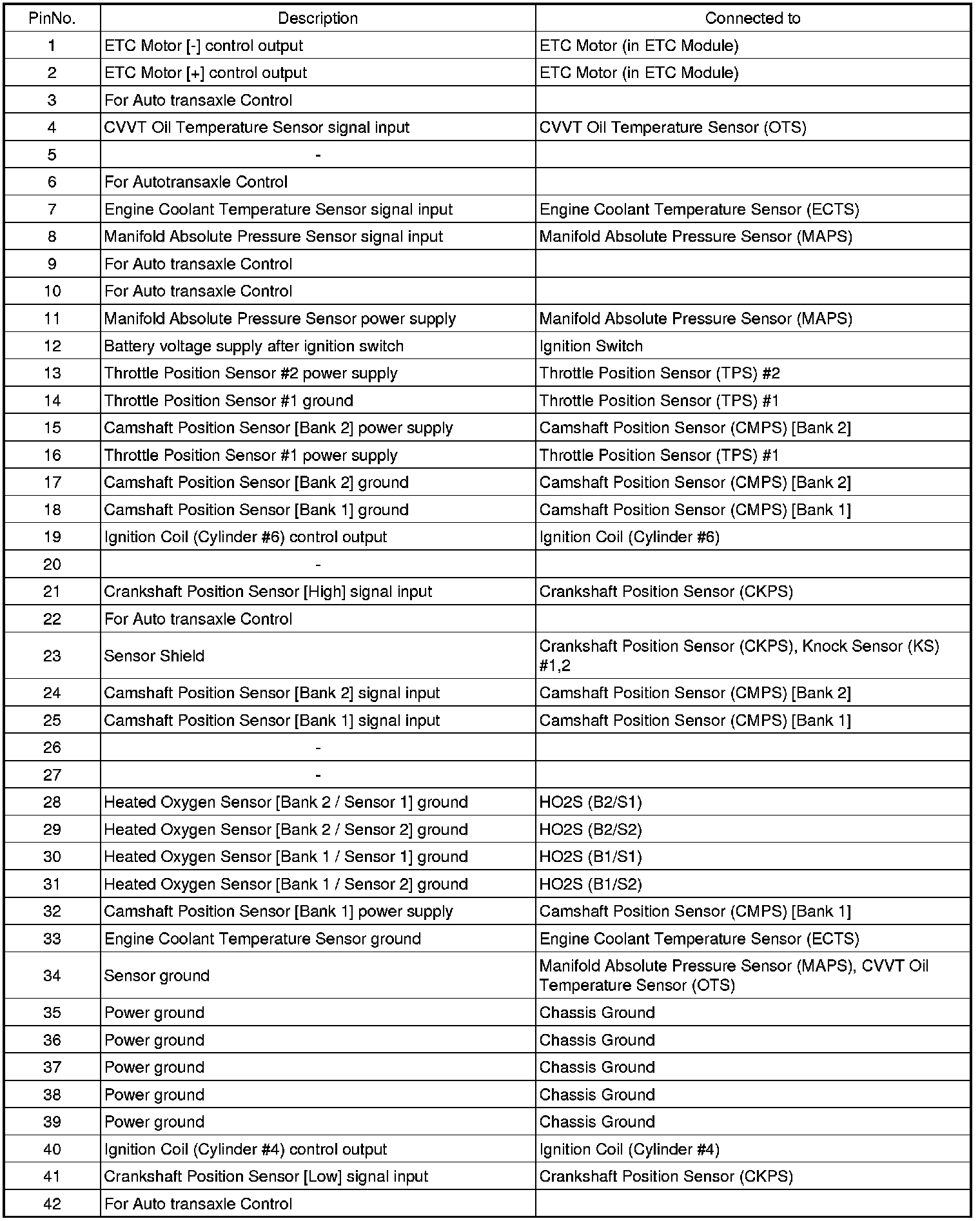

CONNECTOR [C144-A]

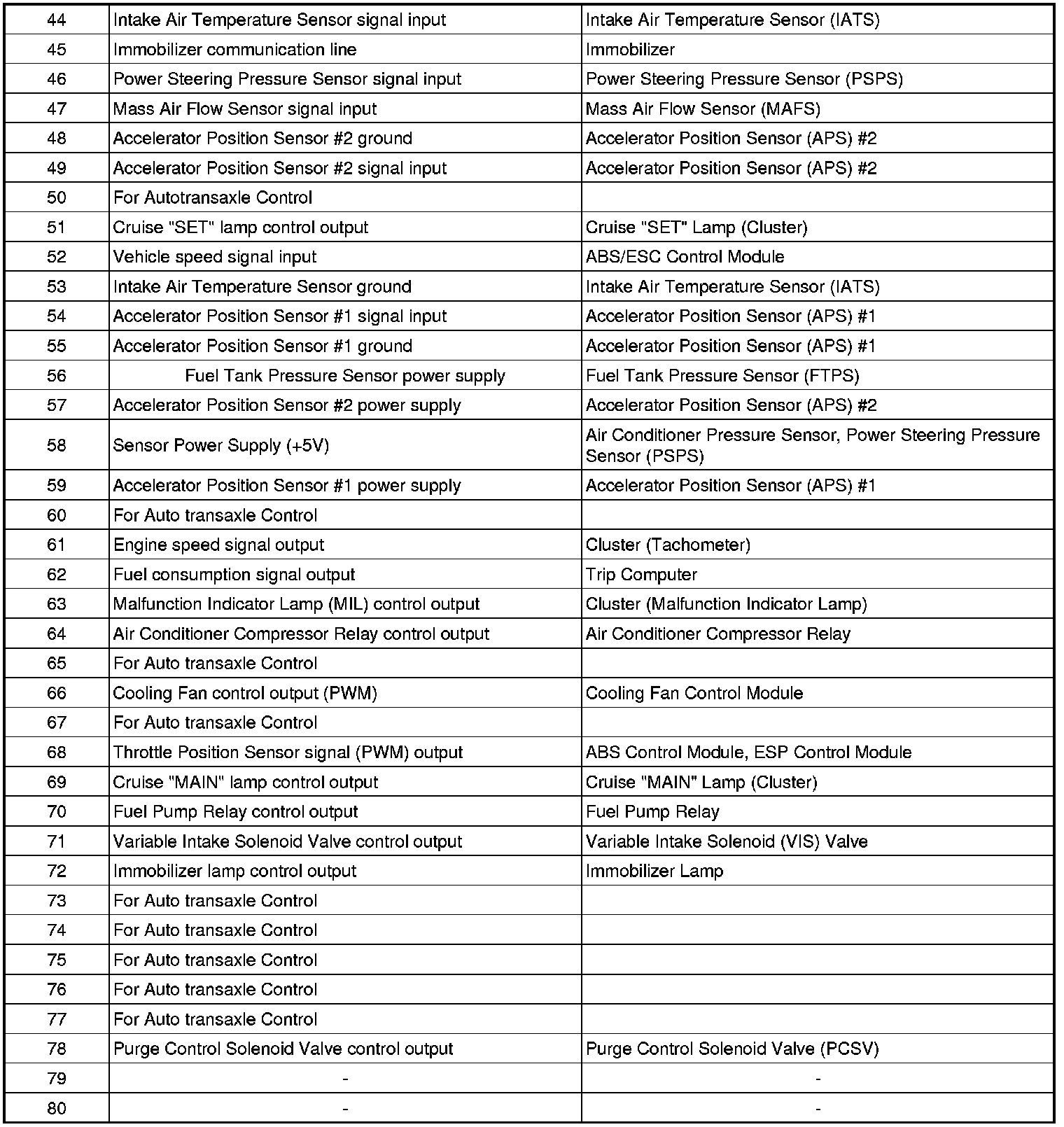

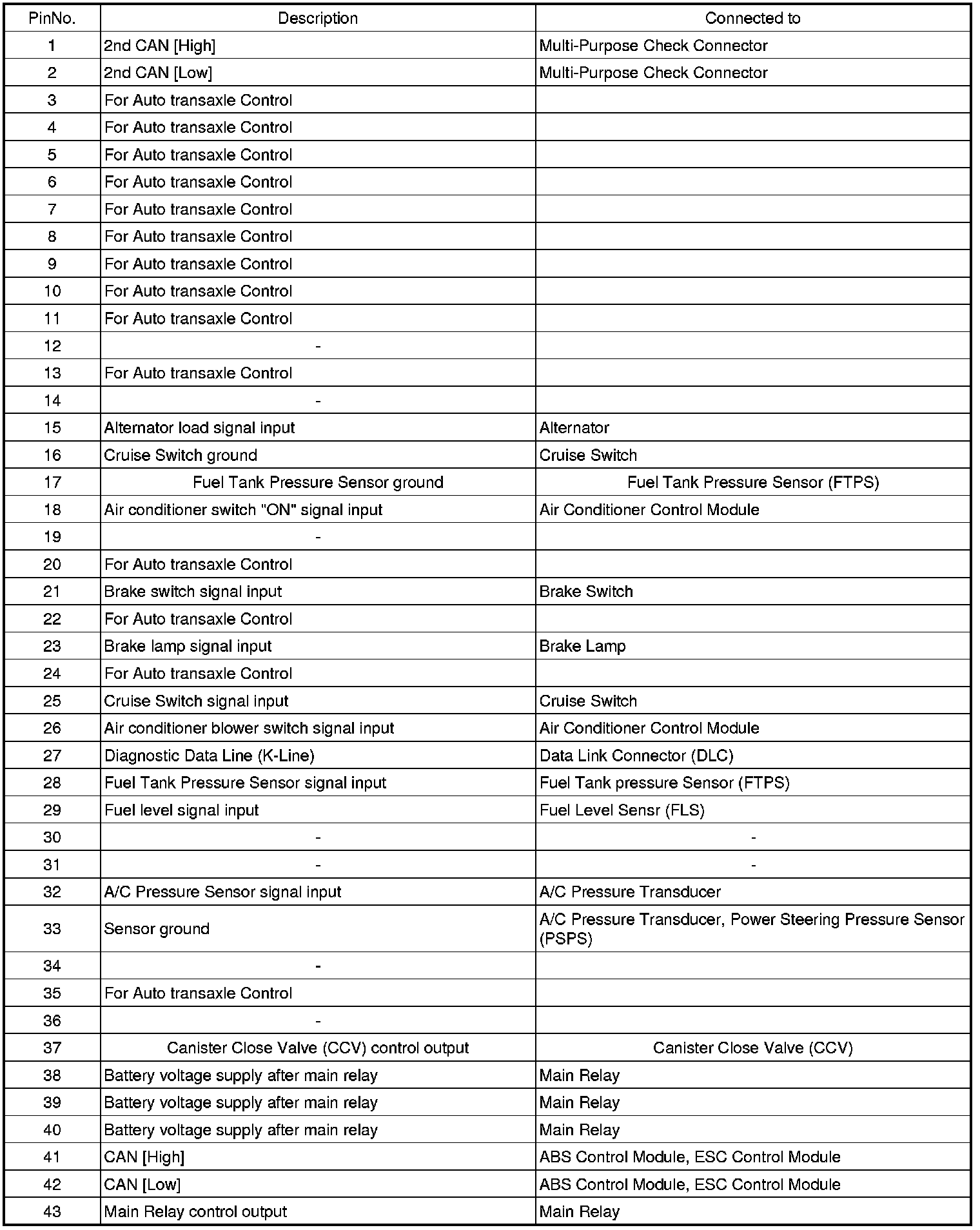

CONNECTOR [C144-B]

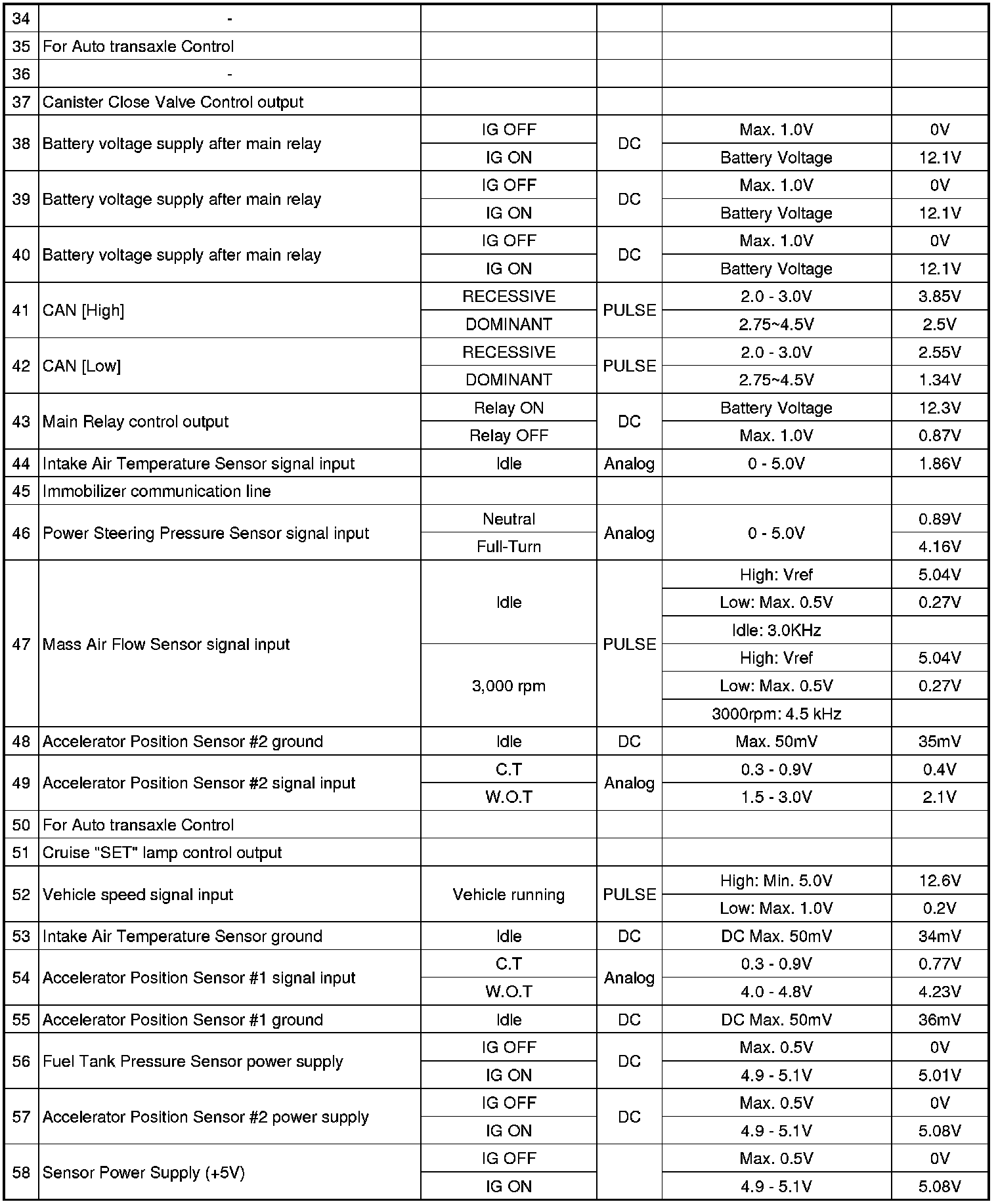

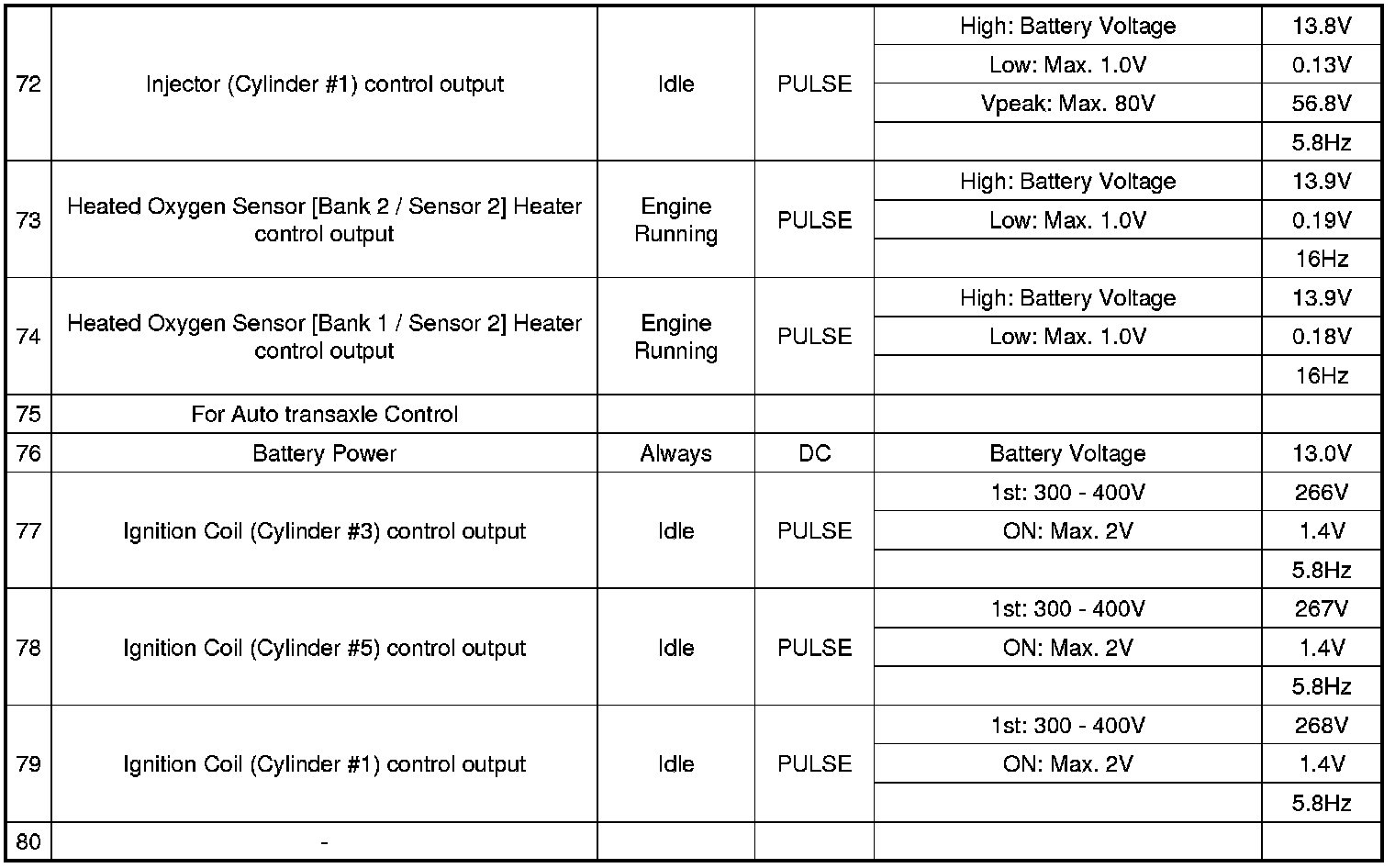

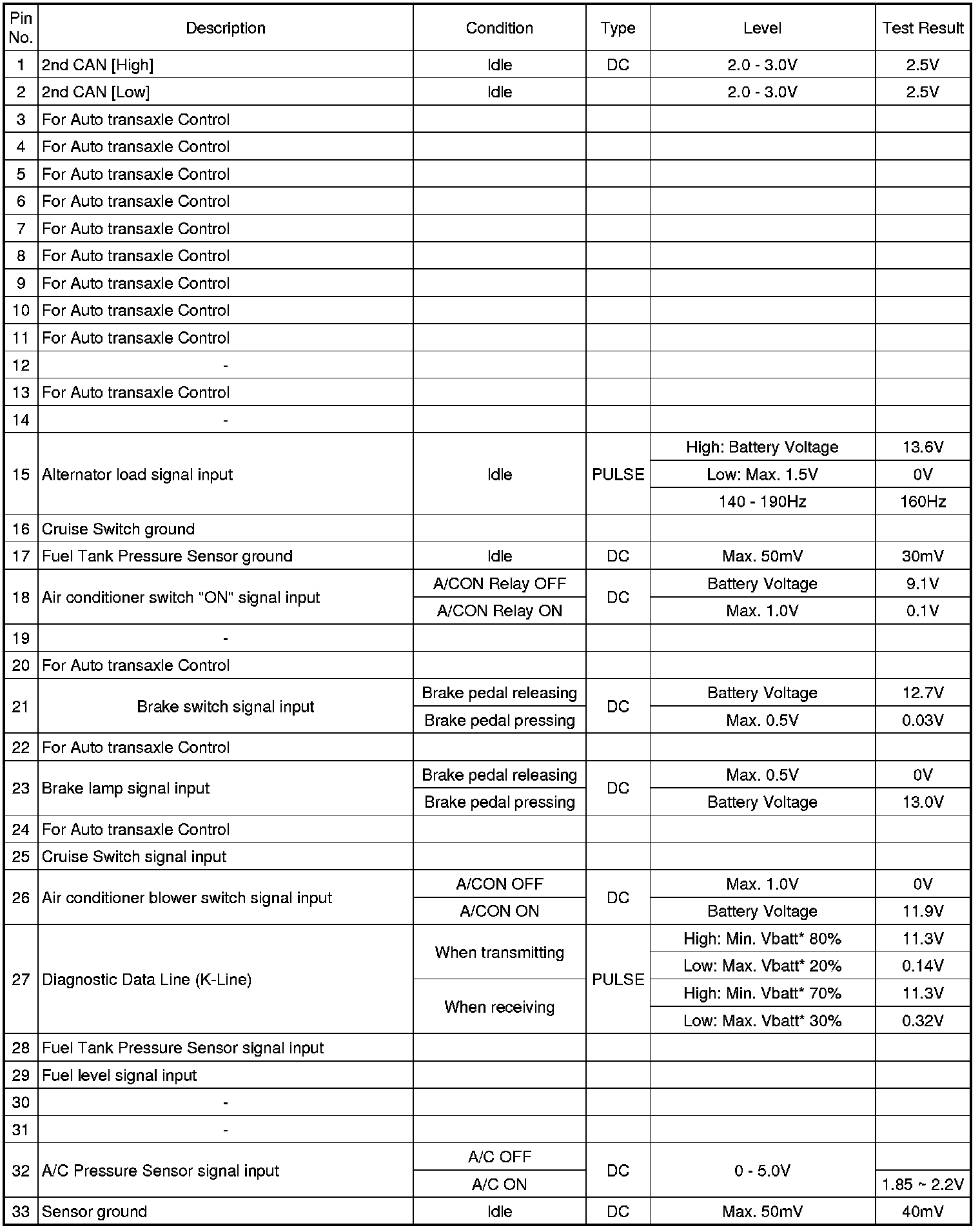

3. PCM TERMINAL INPUT/OUTPUT SIGNAL

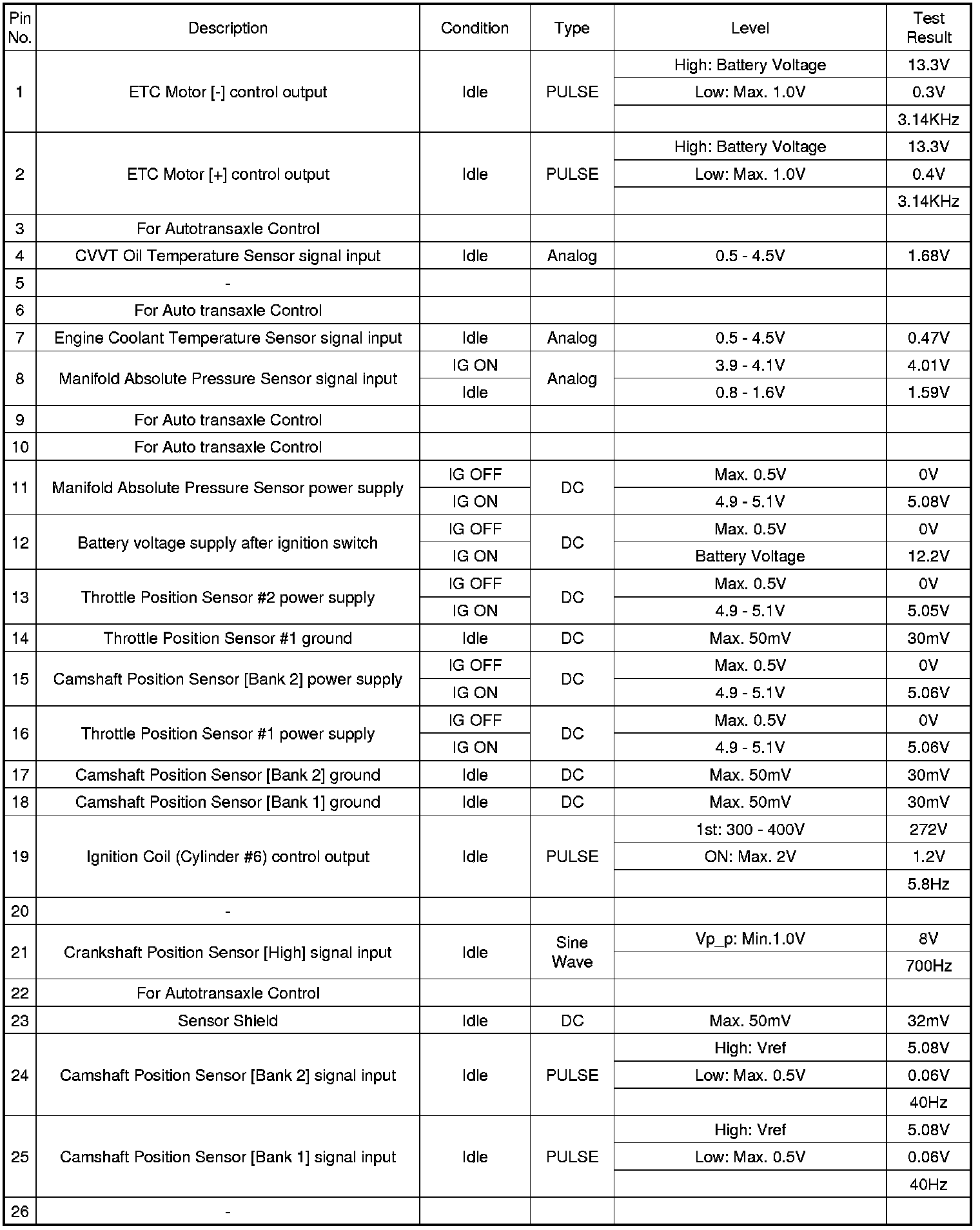

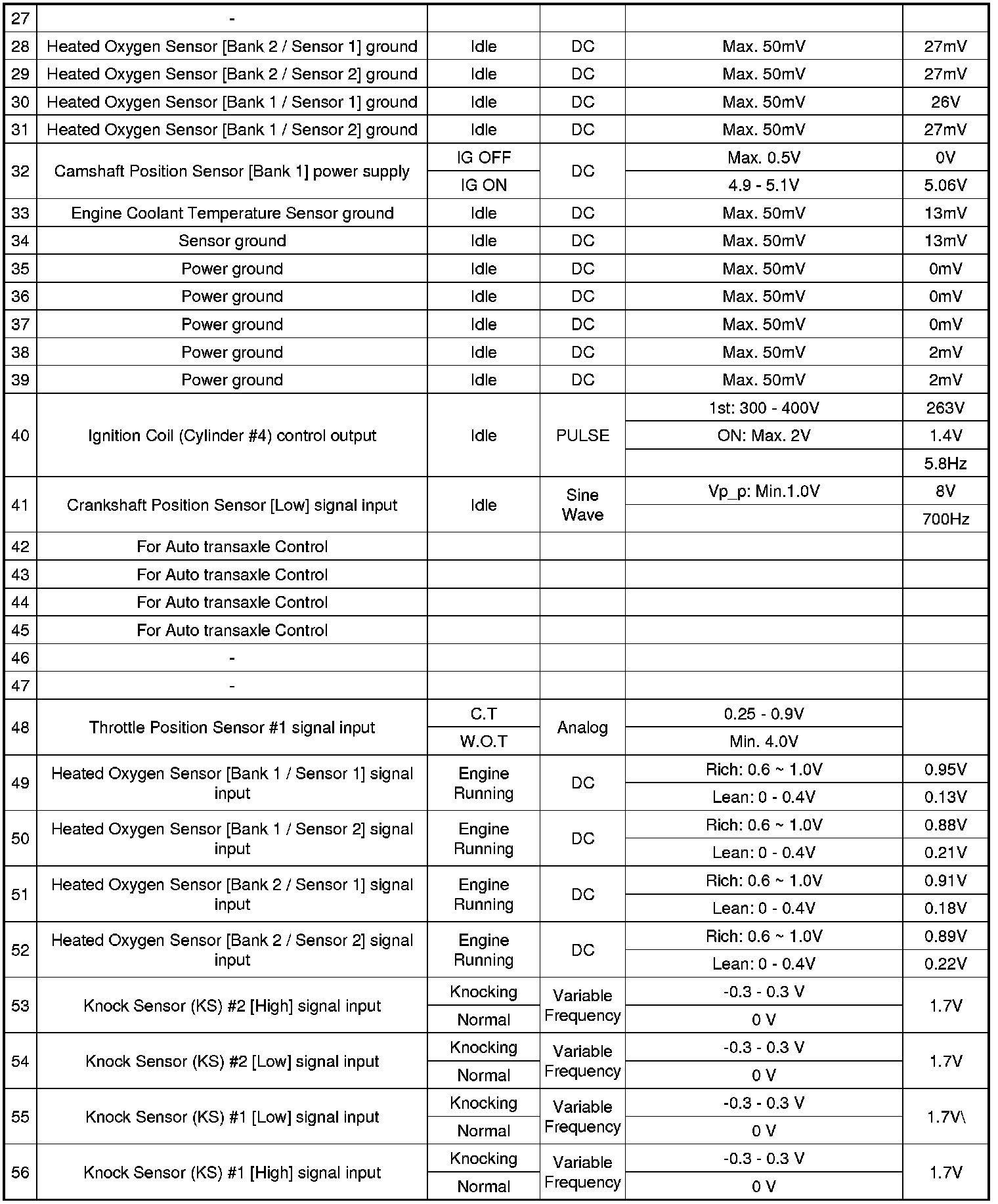

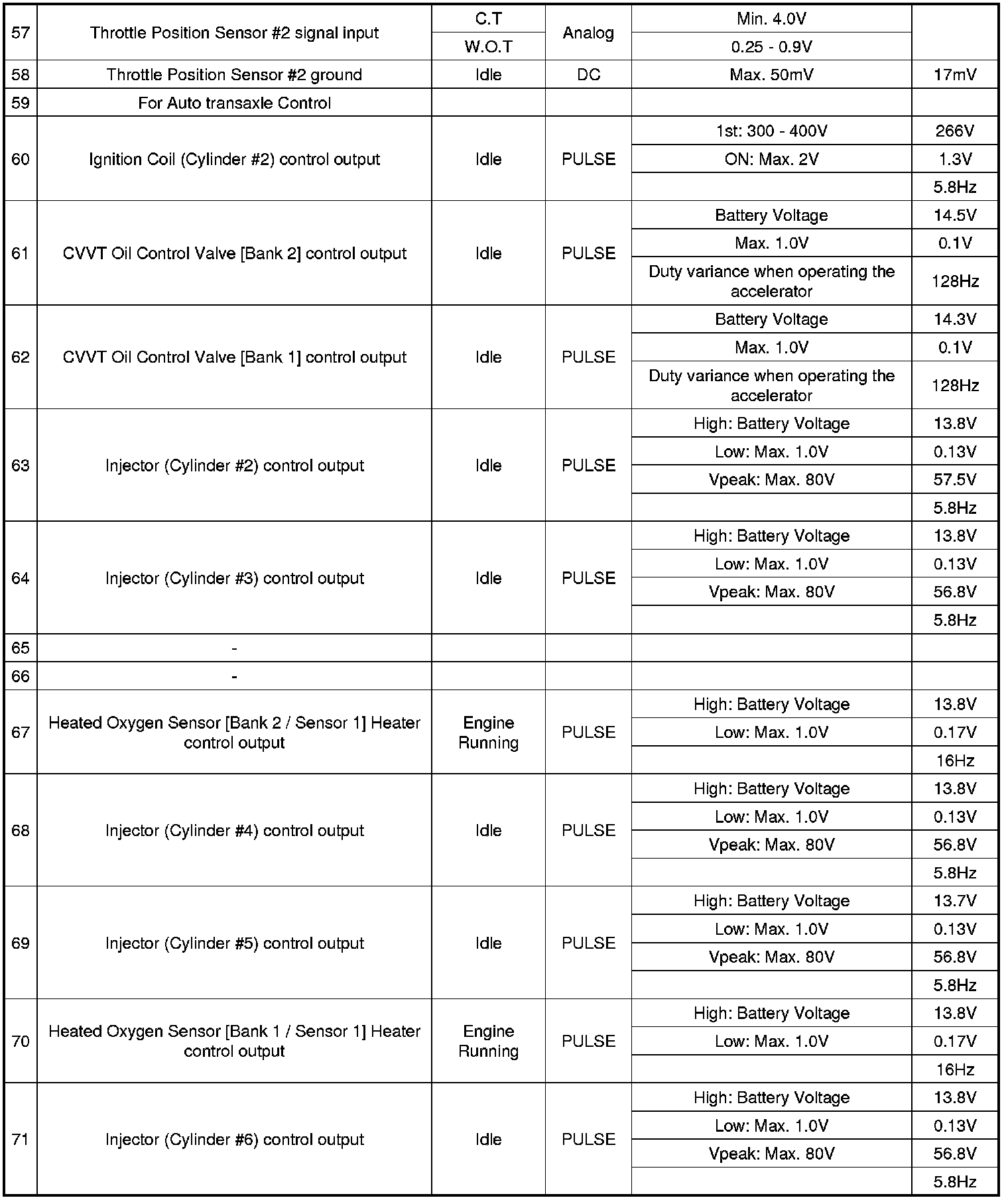

CONNECTOR [C144-A]

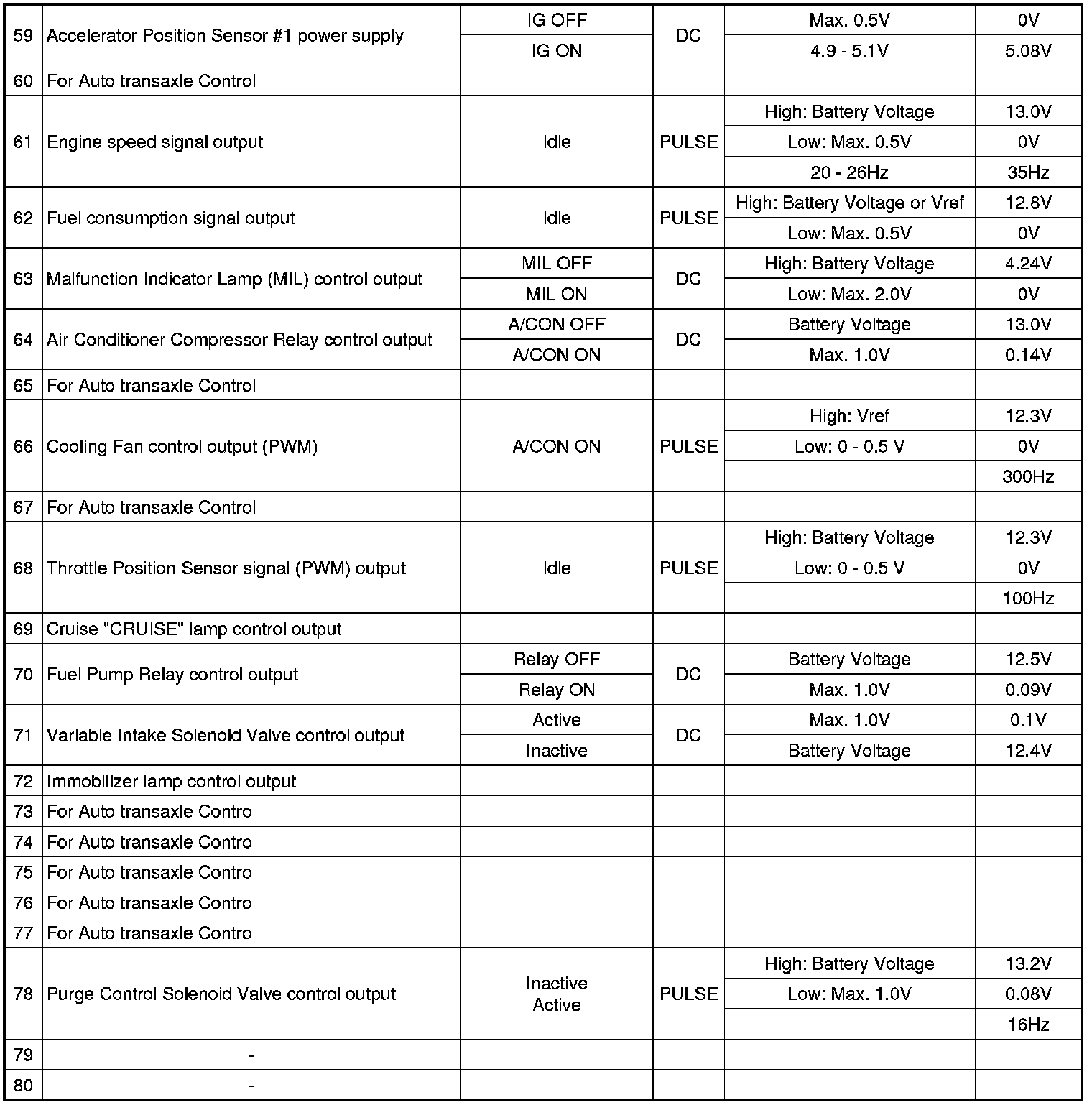

CONNECTOR [C144-B]
