Humidity Sensor: Testing and Inspection

INSPECTION

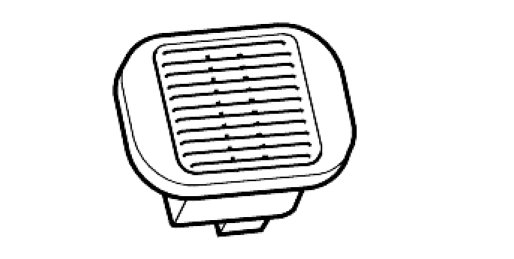

1. Humidity sensor is located at rear hat shelf and detected in-car humidity for in-car humidity control.




2. If ambient air temperature or in-car humidity is outside certain range, it will turn on A/C to control in-car humidity preventing in car fogging.
Air conditioner operation depending on ambient temperature and humidity.

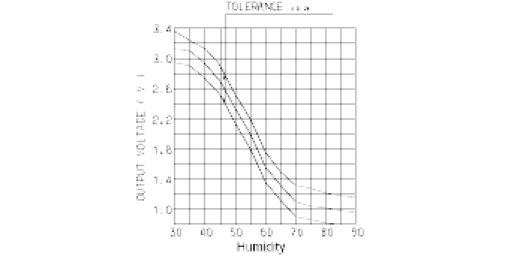

SENSOR OUTPUT
