Humidity Sensor: Service and Repair
HUMIDITY SENSORREPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad.

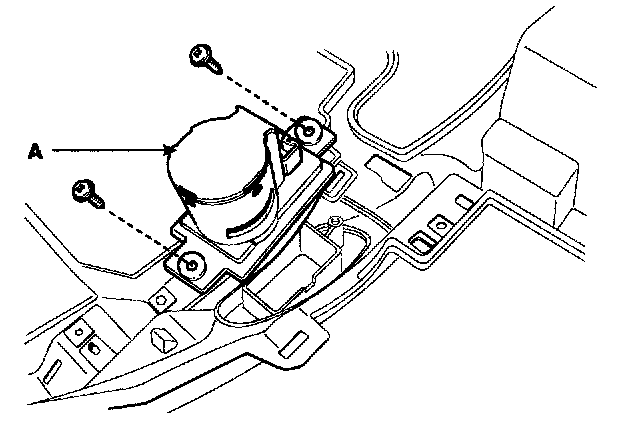

3. Loosen 2 screws and then remove the humidity sensor (A).
4. Installation is the reverse order of removal.
REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad.
3. Loosen 2 screws and then remove the humidity sensor (A).
4. Installation is the reverse order of removal.
