Engine Control Module

POWERTRAIN CONTROL MODULE (PCM)

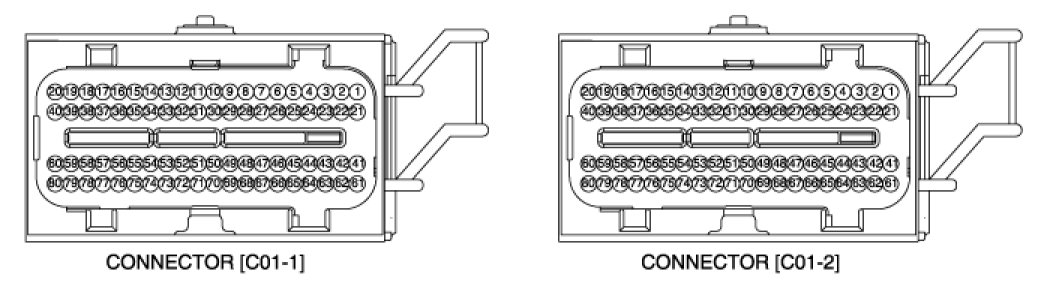

1. PCM HARNESS CONNECTOR




2. PCM TERMINAL FUNCTION

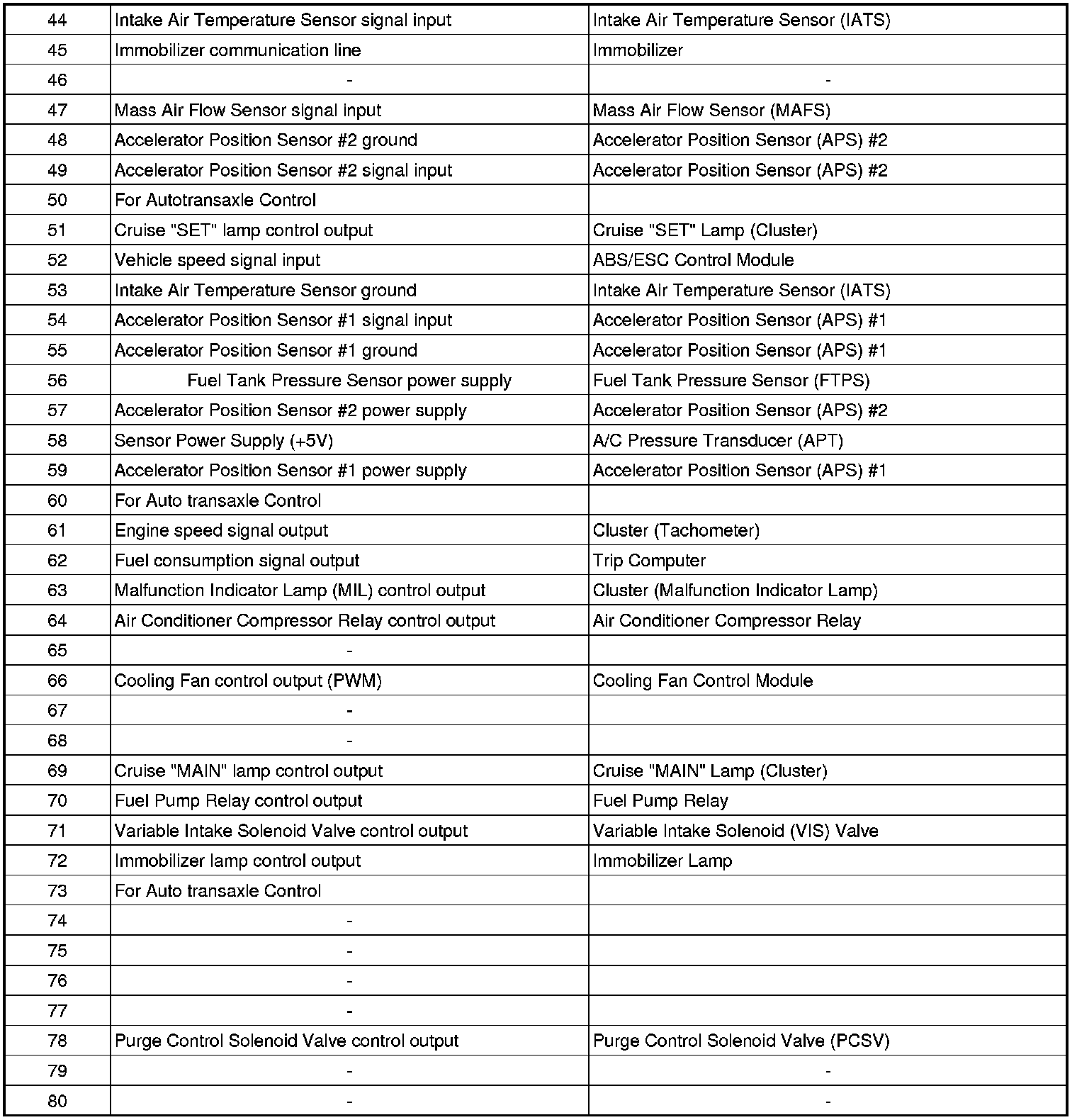

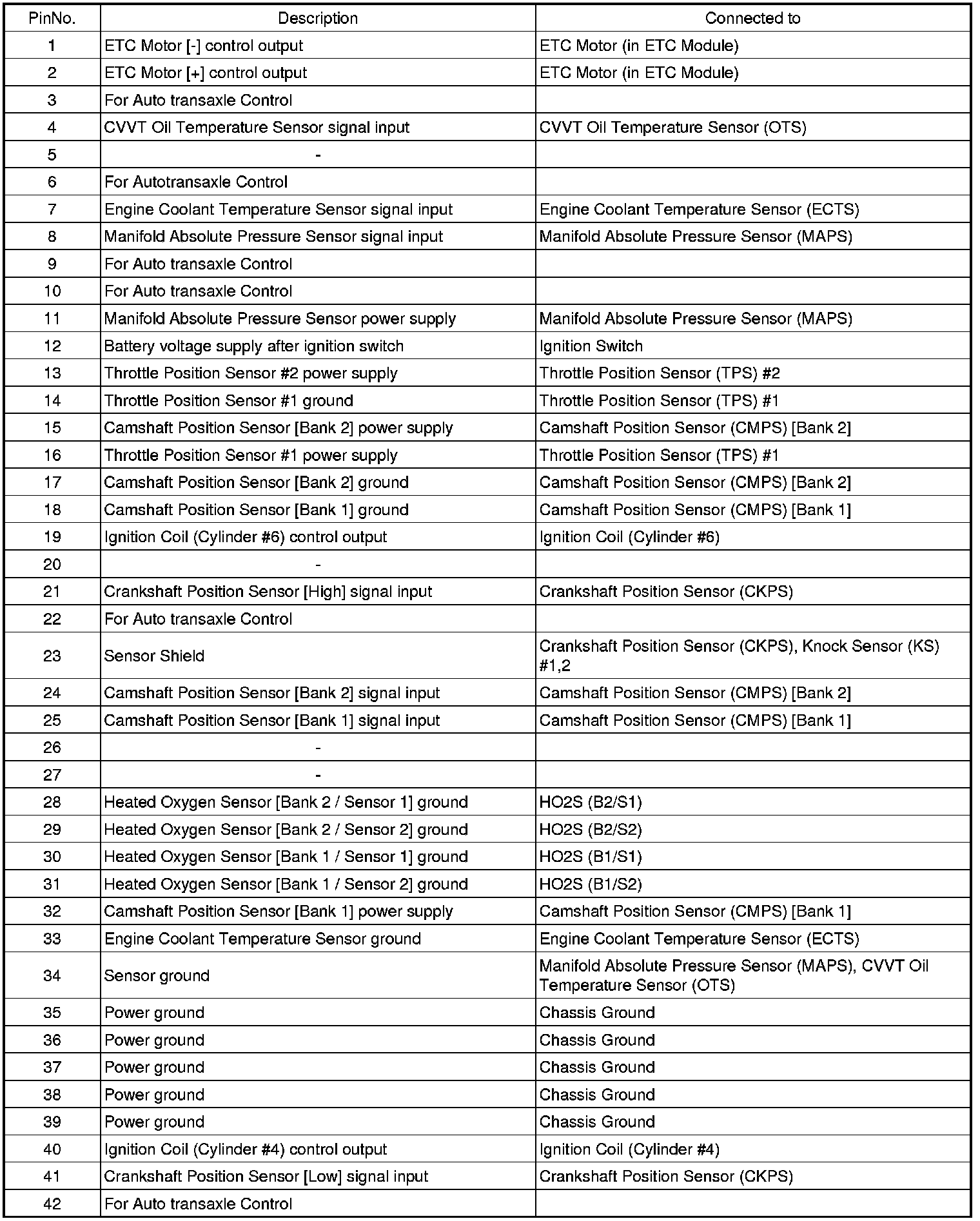

CONNECTOR [C01-1]

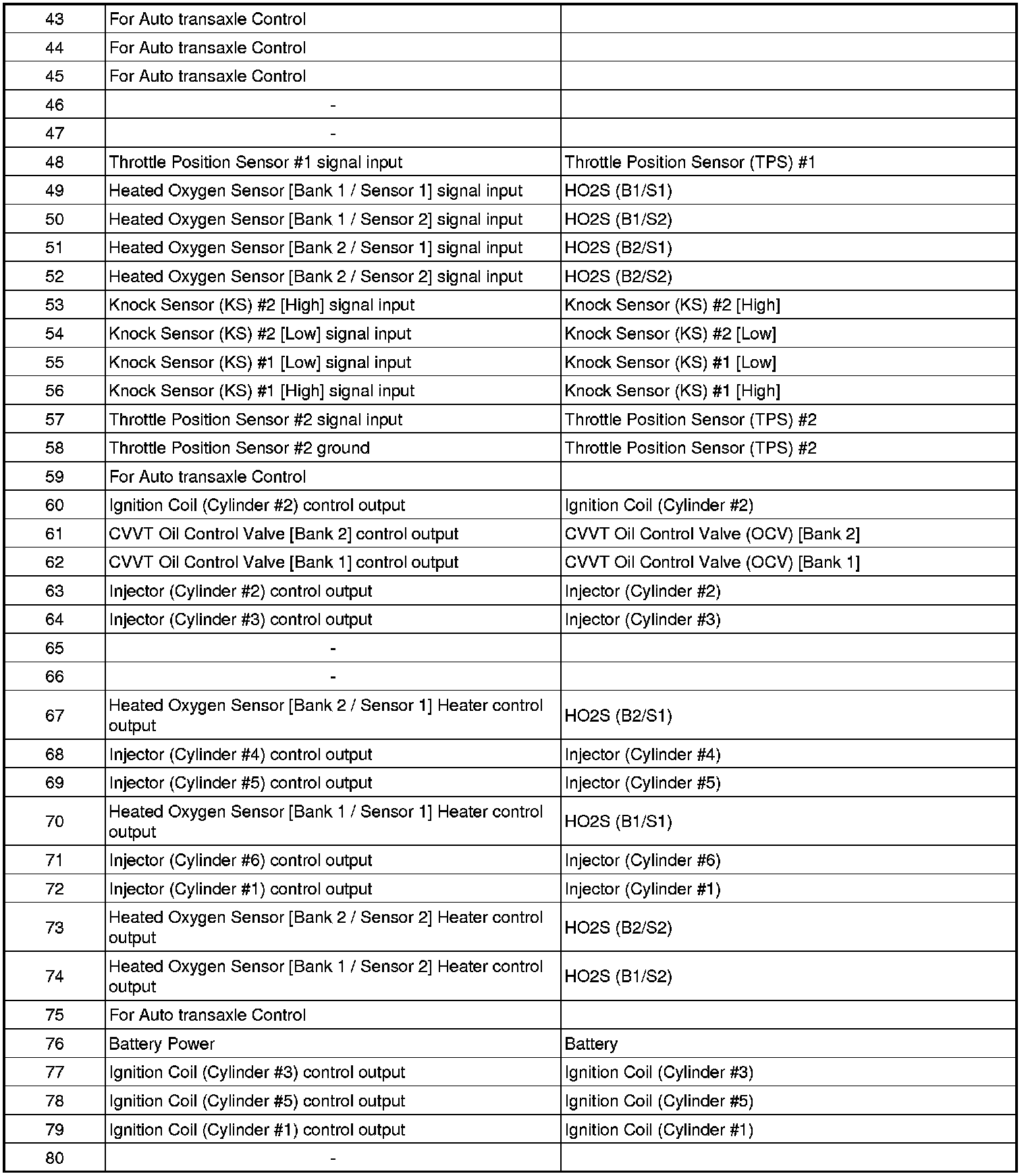

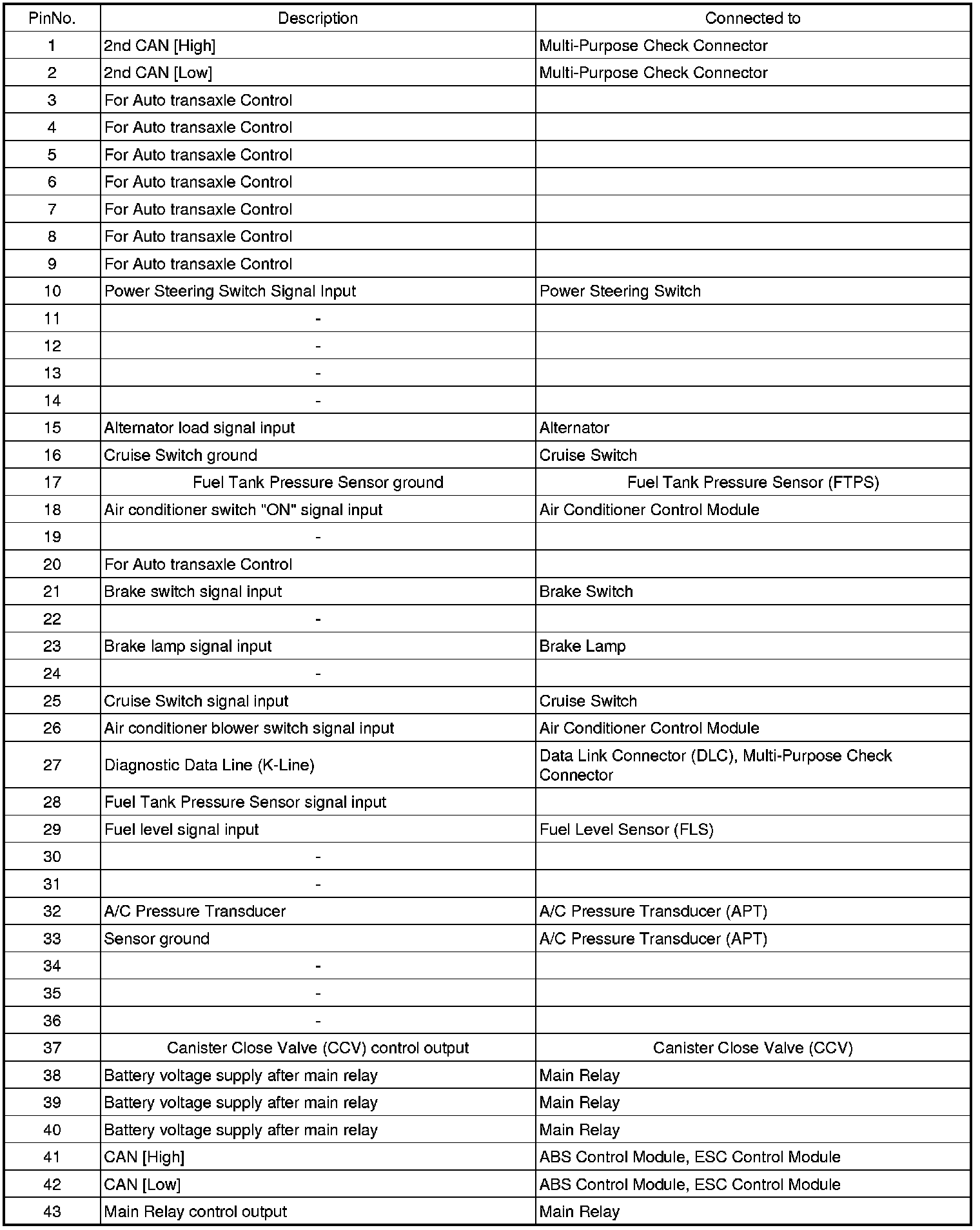

CONNECTOR [C01-2]









3. PCM TERMINAL INPUT/OUTPUT SIGNAL

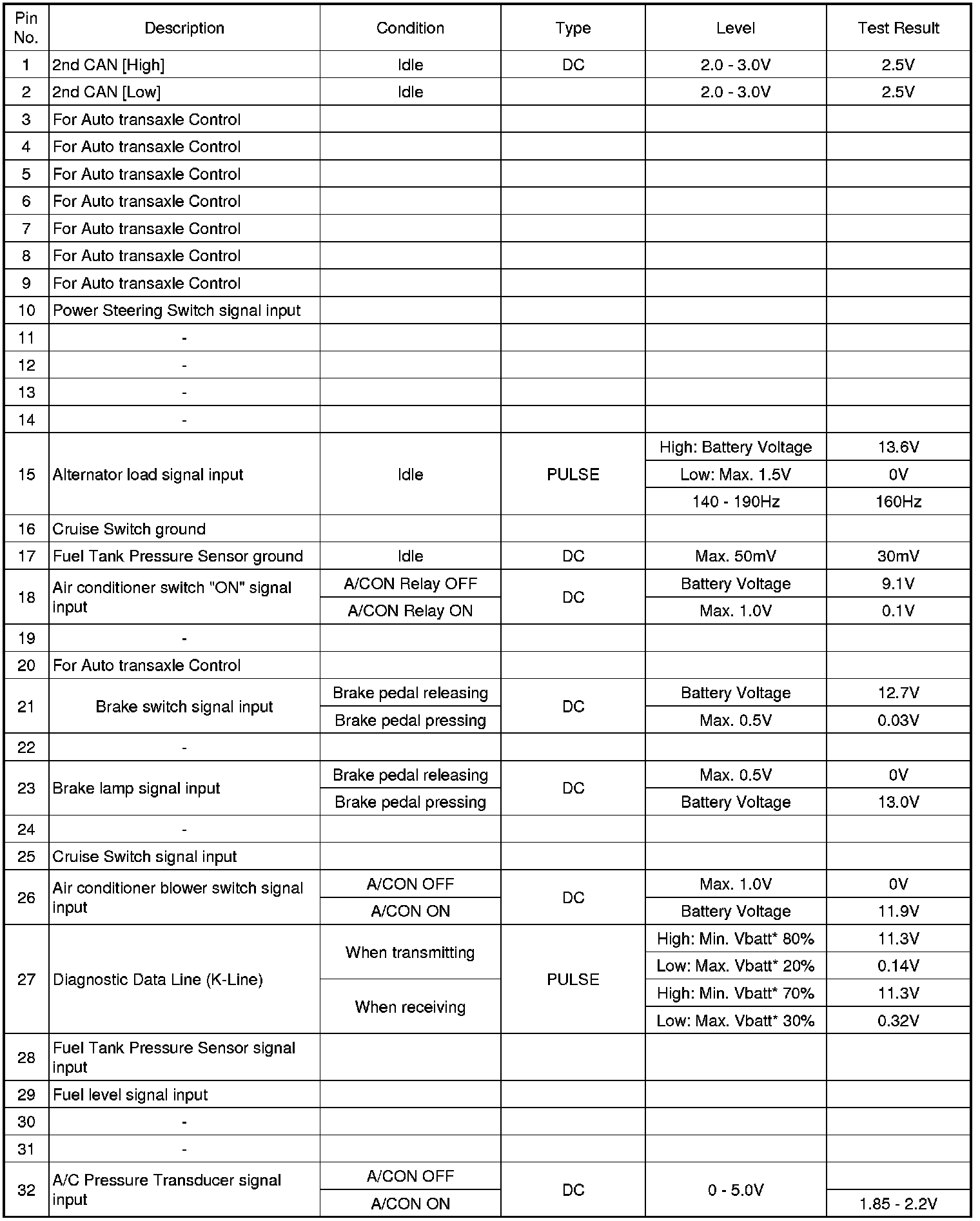

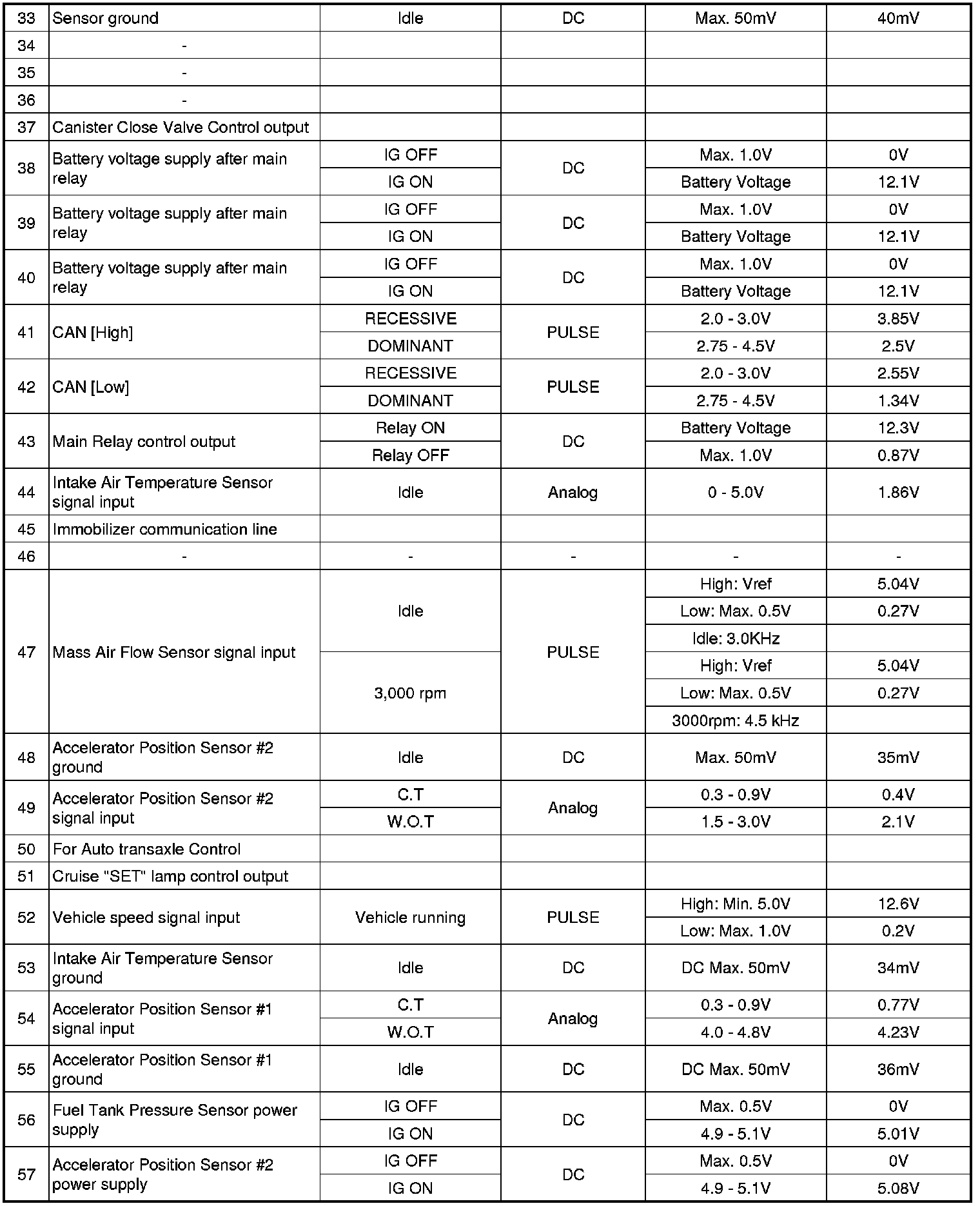

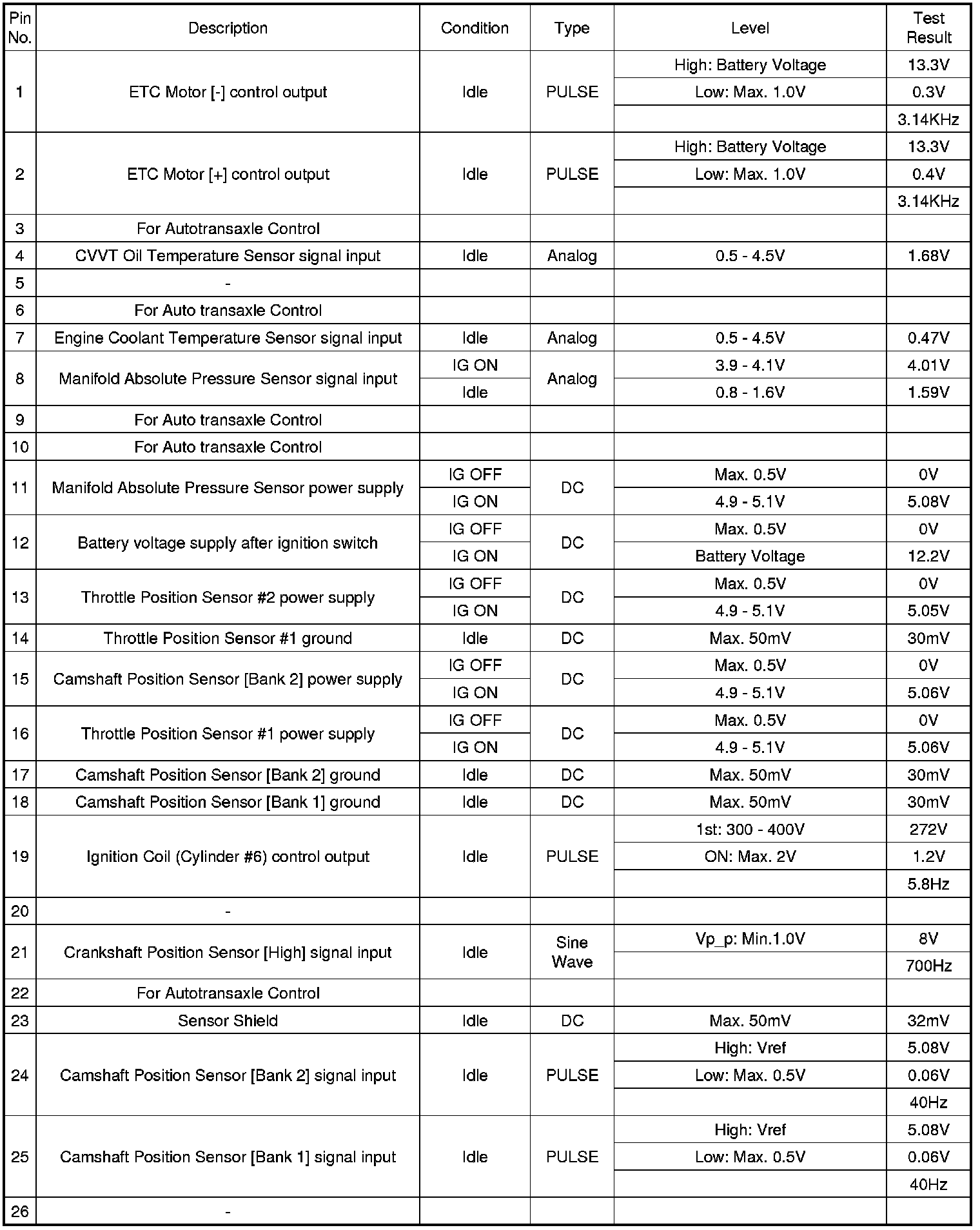

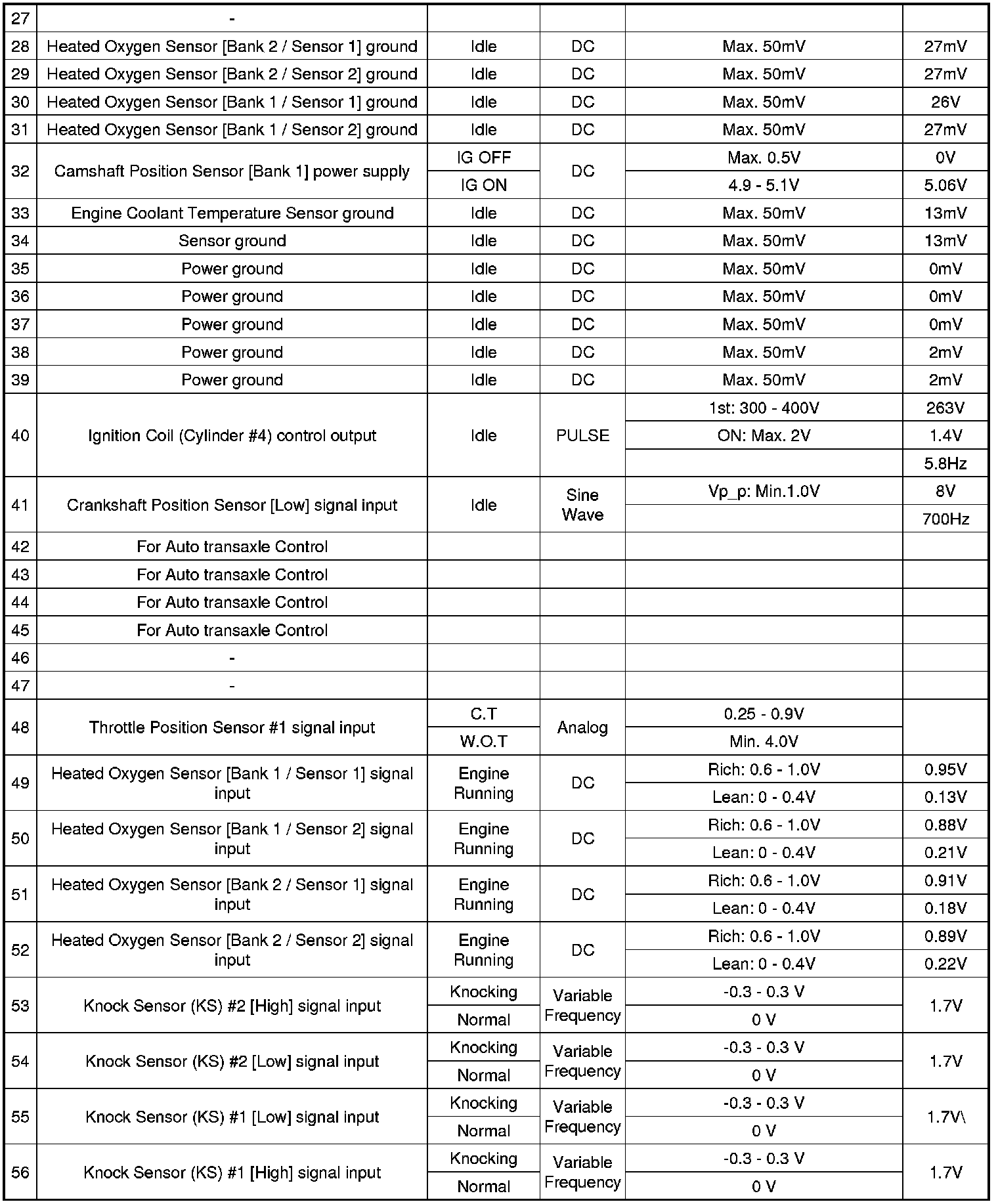

CONNECTOR [C01-1]

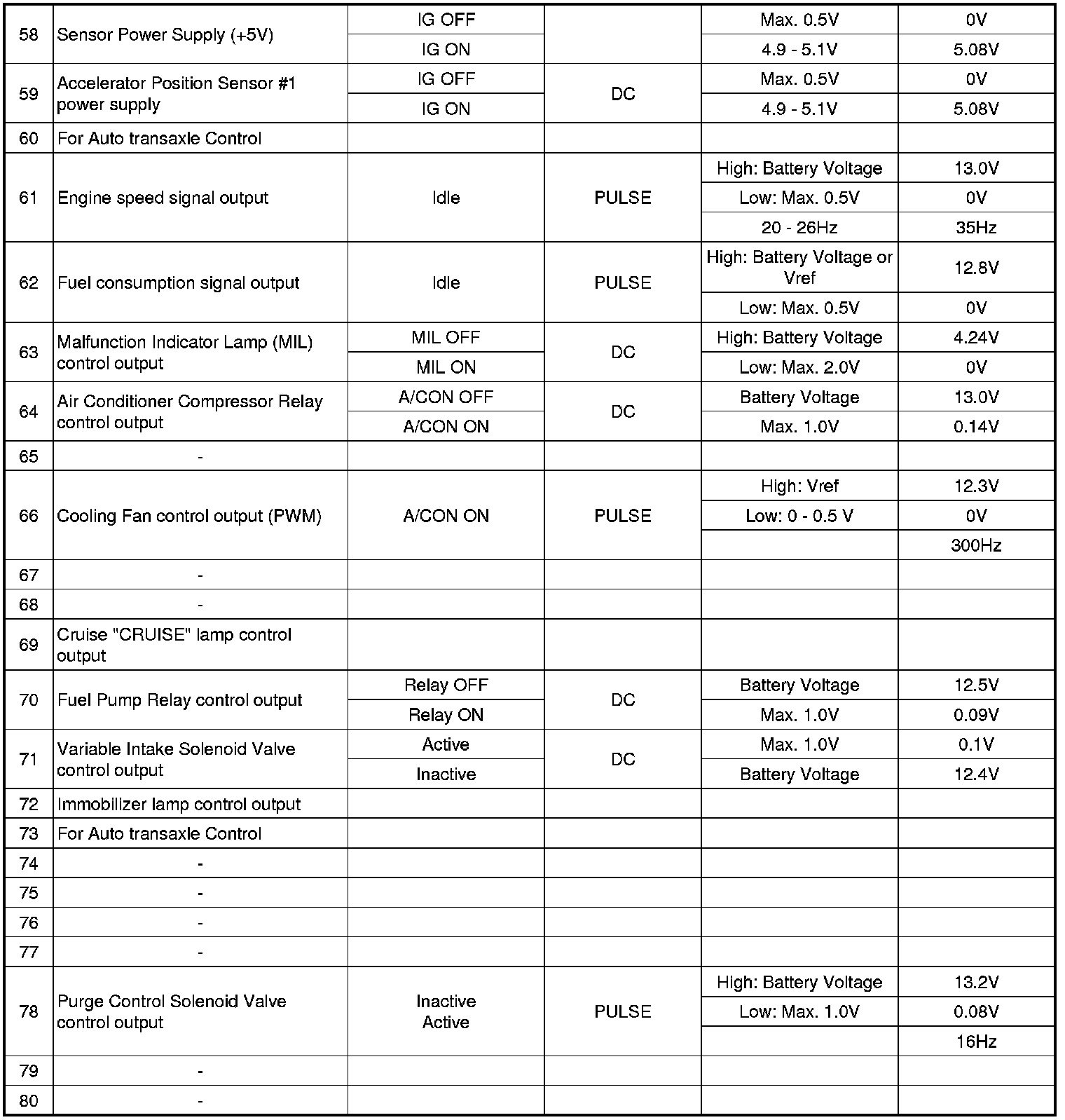

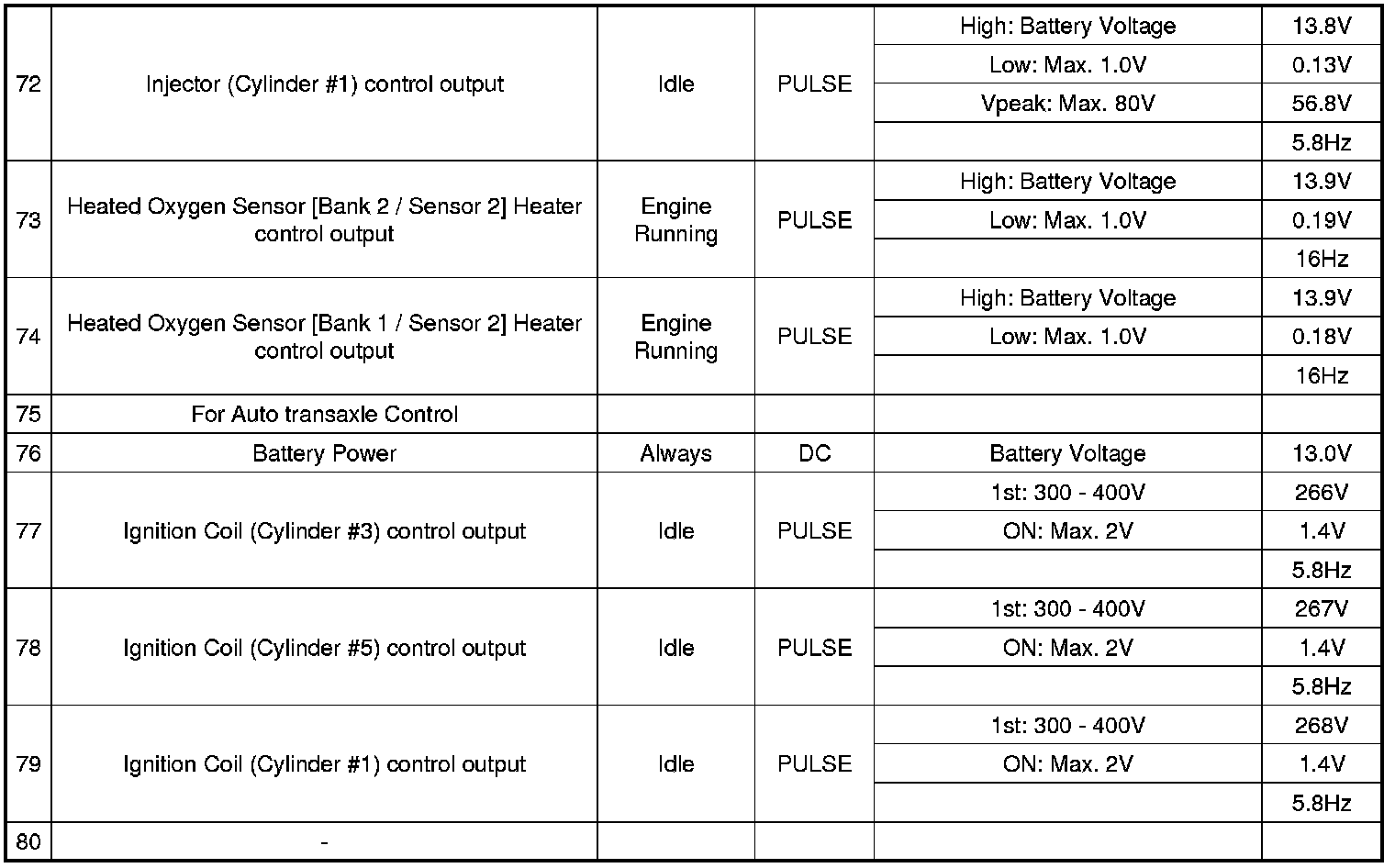

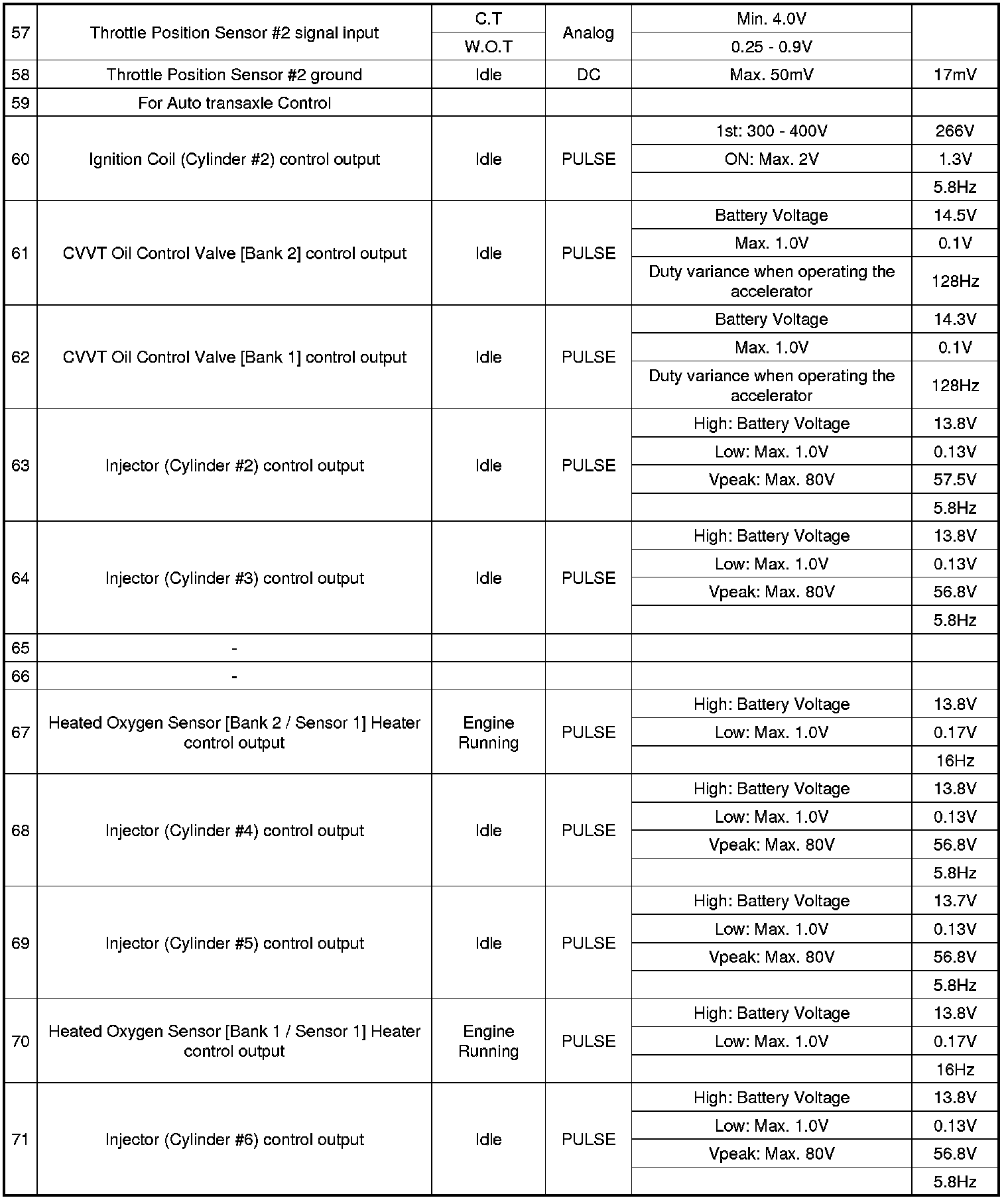

CONNECTOR [C01-2]
