Engine Control Module: Service and Repair

REPLACEMENT
1. Turn ignition switch off.
2. Disconnect the battery (-) cable from the battery.

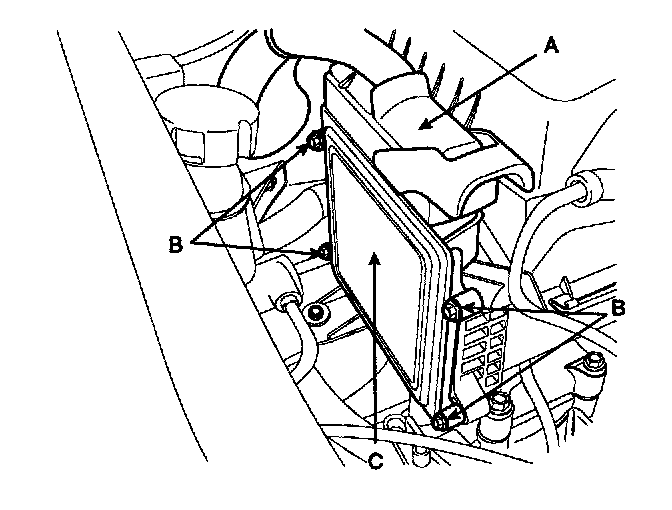

3. Remove the ECM cover and disconnect the ECM connector(s) (A).
4. Unscrew the ECM mounting bolts (B) and remove the ECM from the air cleaner assembly.
5. Install a new ECM.

ECM mounting bolts: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 8.7 lbf-ft)
