Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

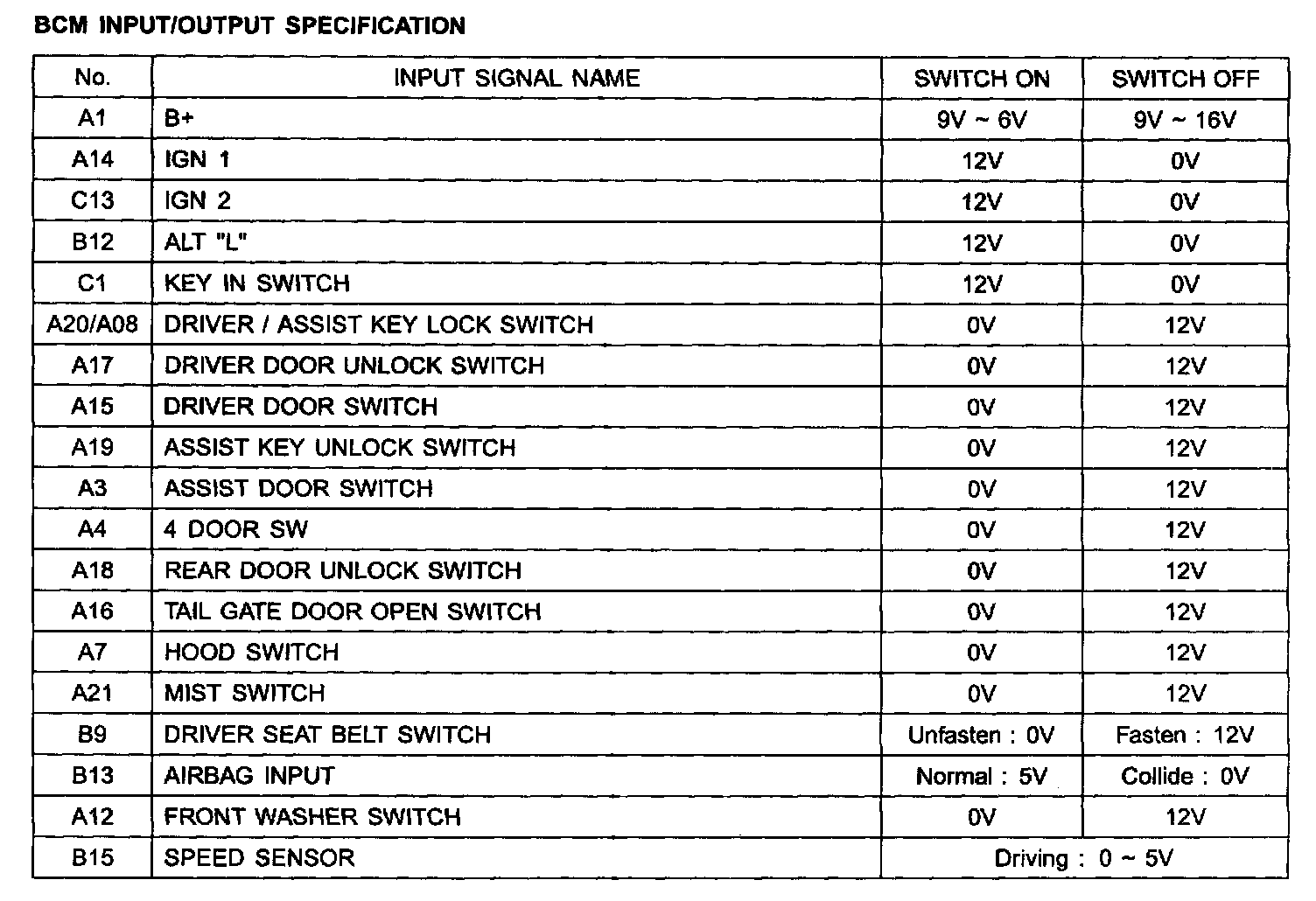

BCM Input/Output Specification:
