Automatic Transmission/Transaxle

AUTOMATIC TRANSAXLE

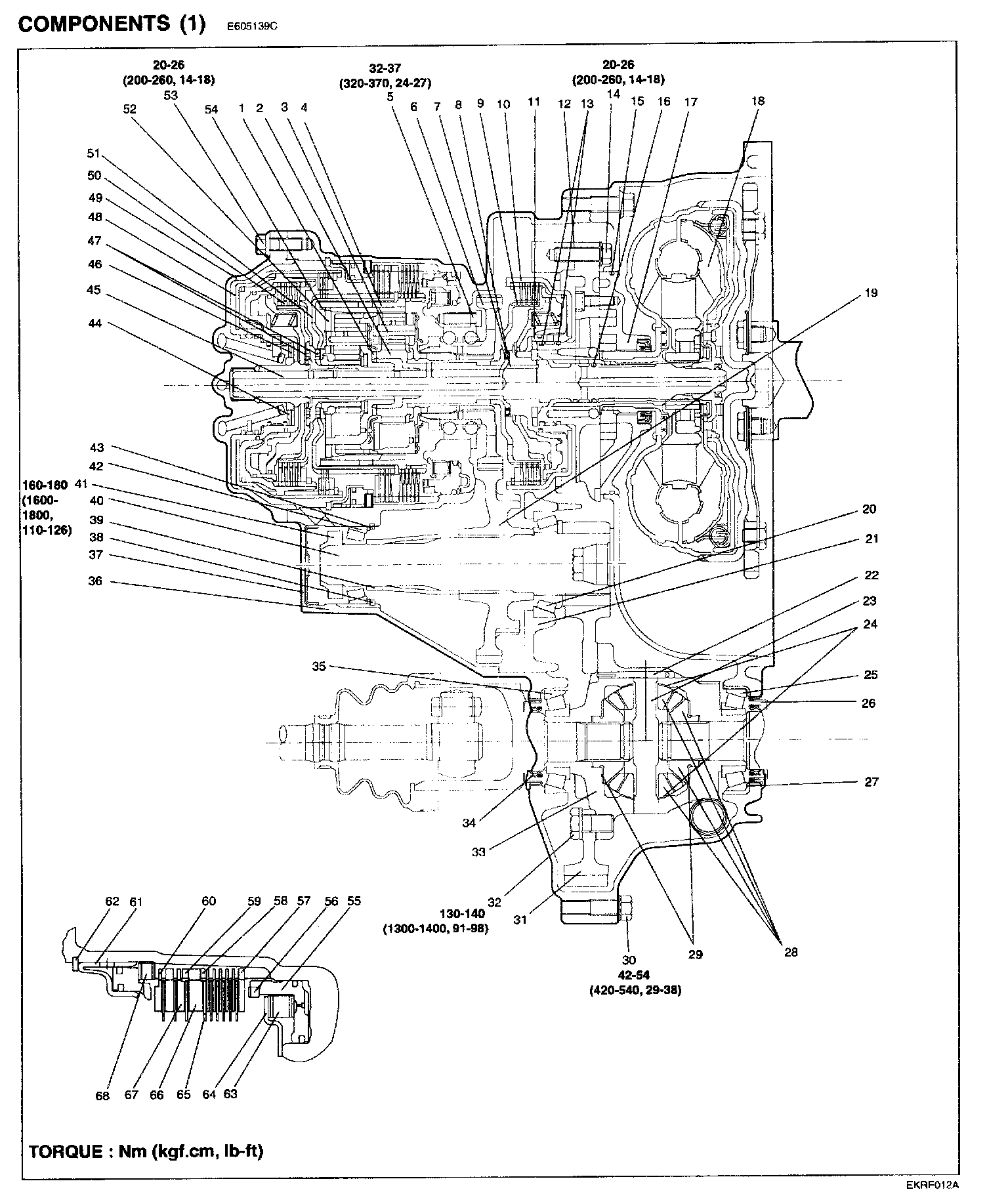

Components (1) (Part 1):

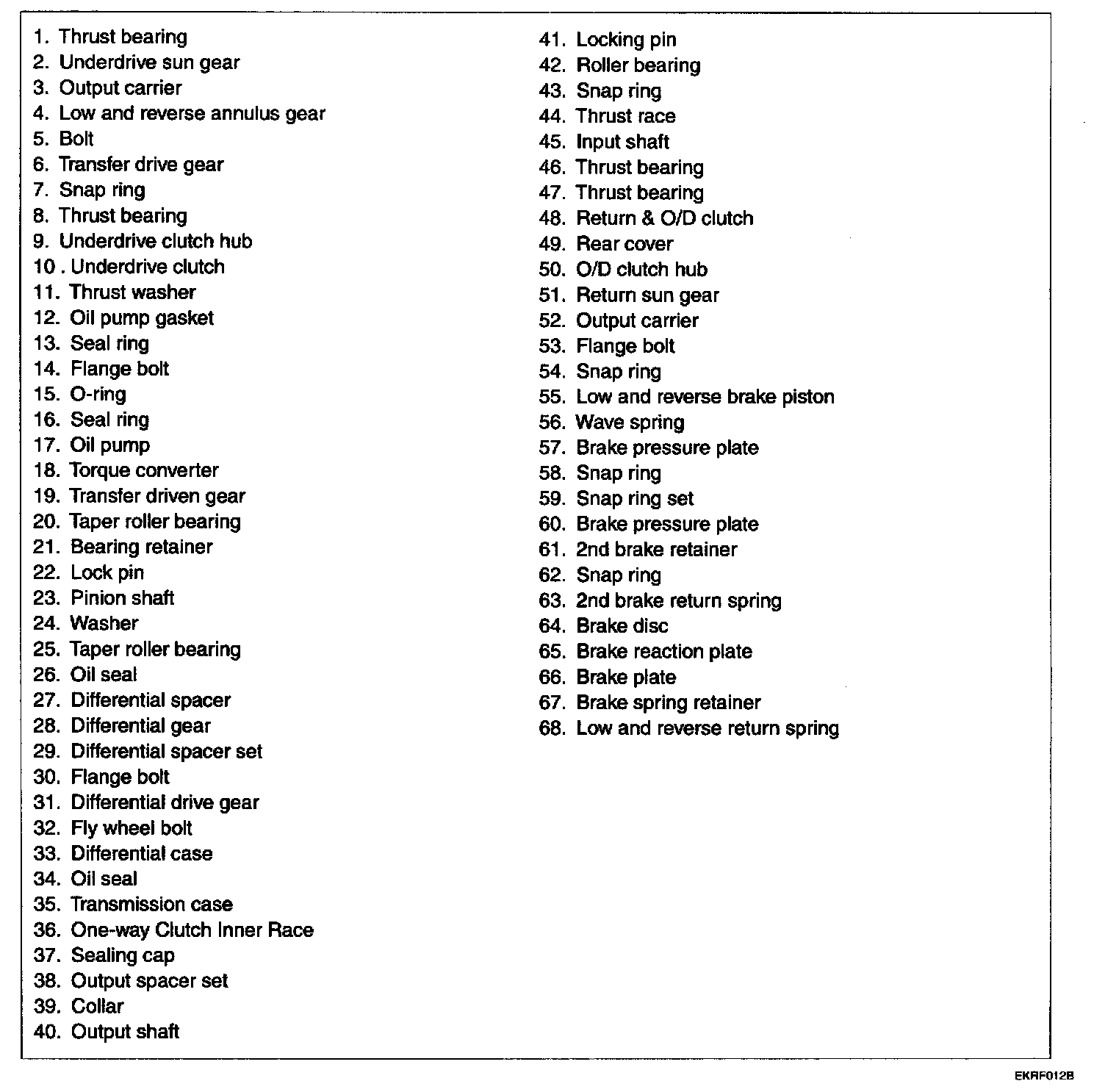

Components (1) (Part 2):

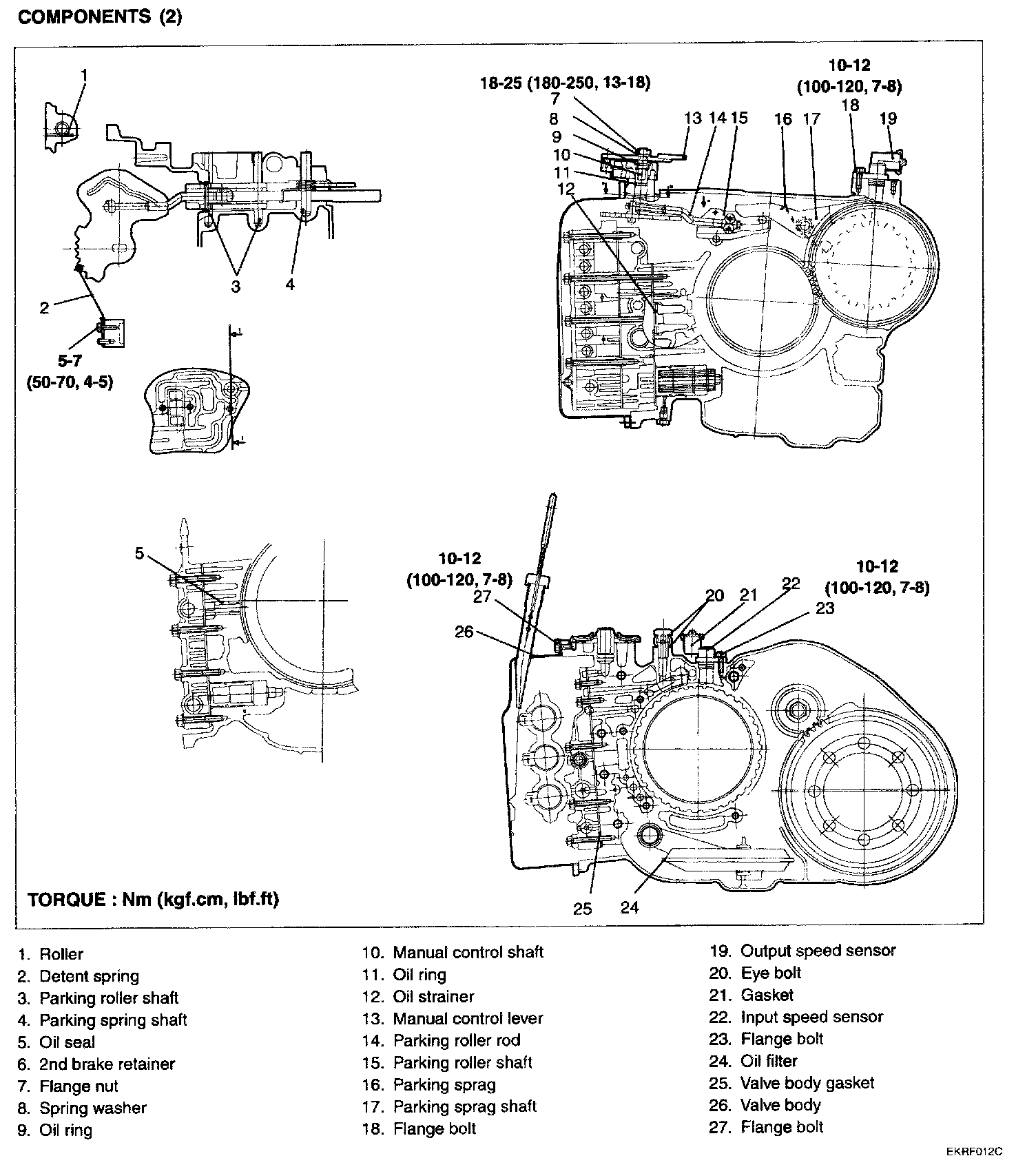

Components (2):

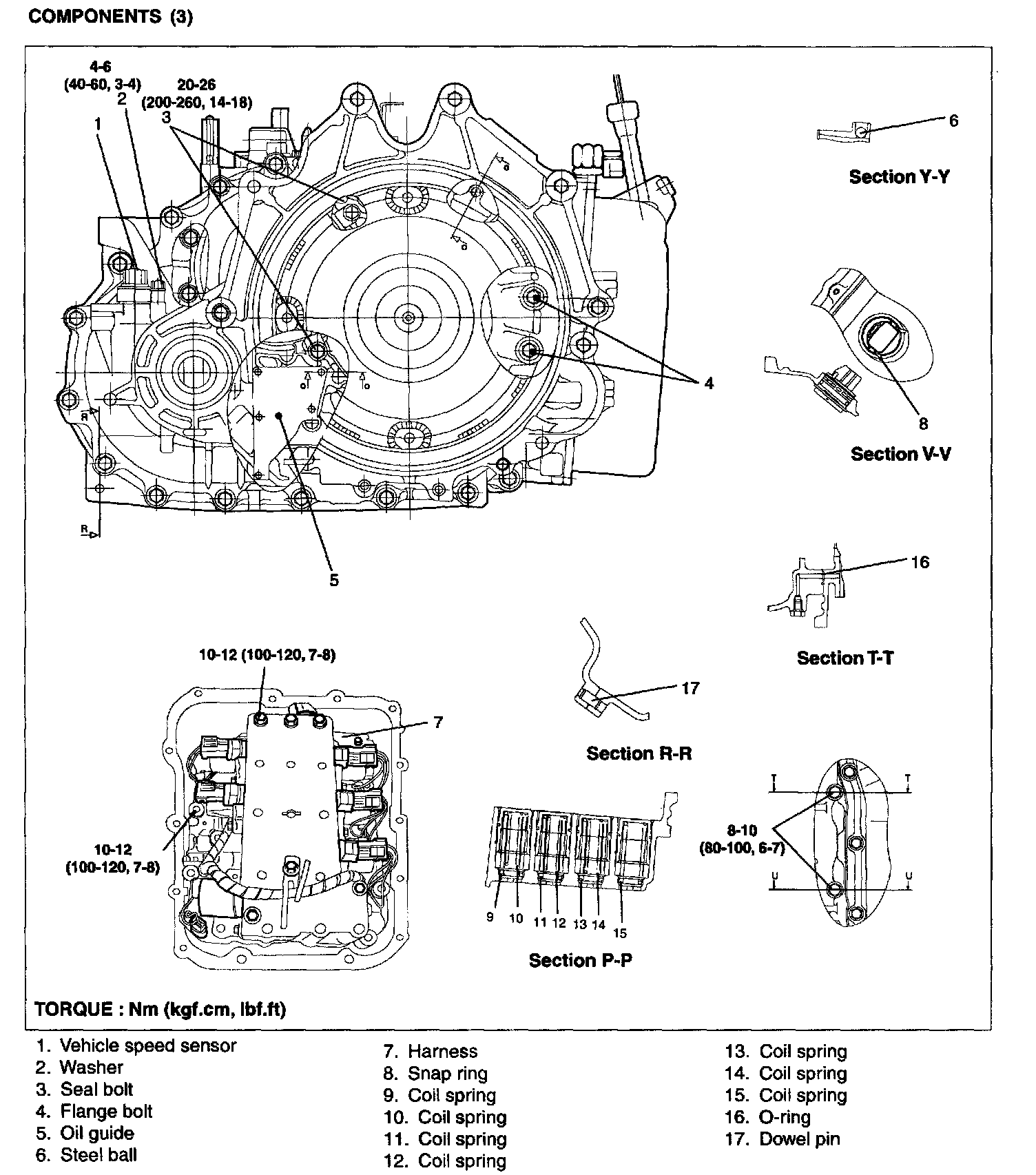

Components (3):

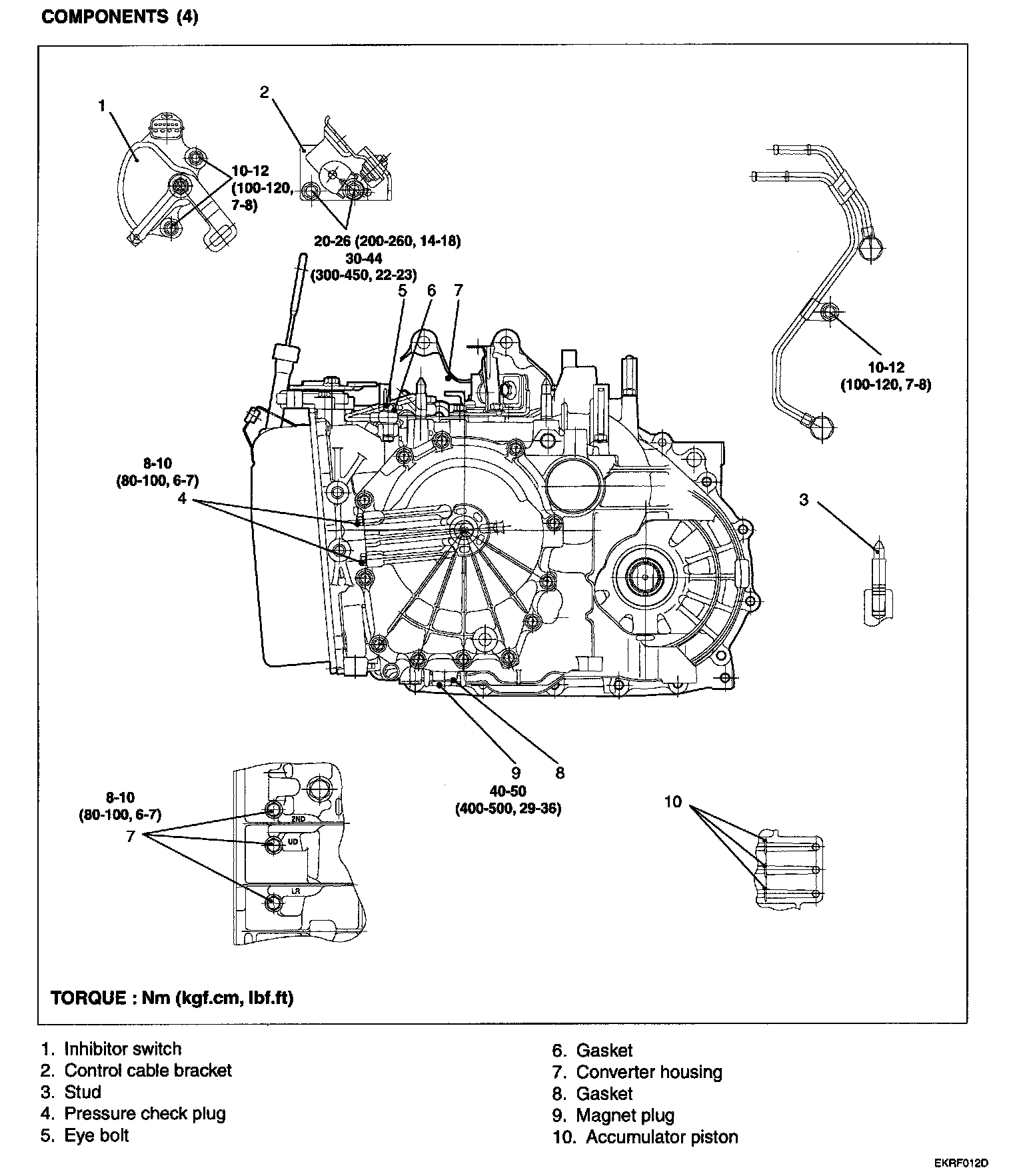

Components (4):
