Kia
>>
2007
>>
Optima L4-2.4L VIN 3
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

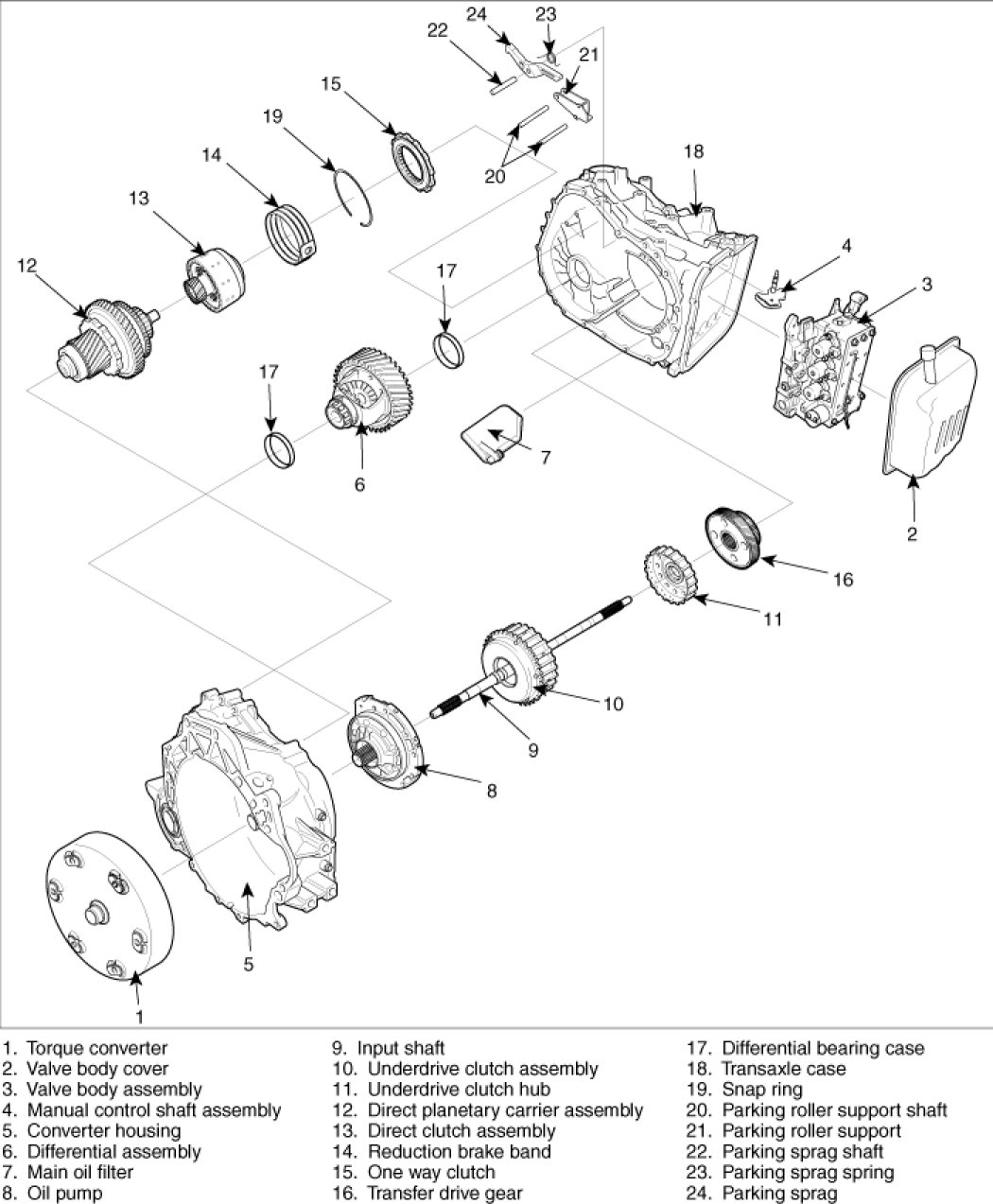

COMPONENTS (1)

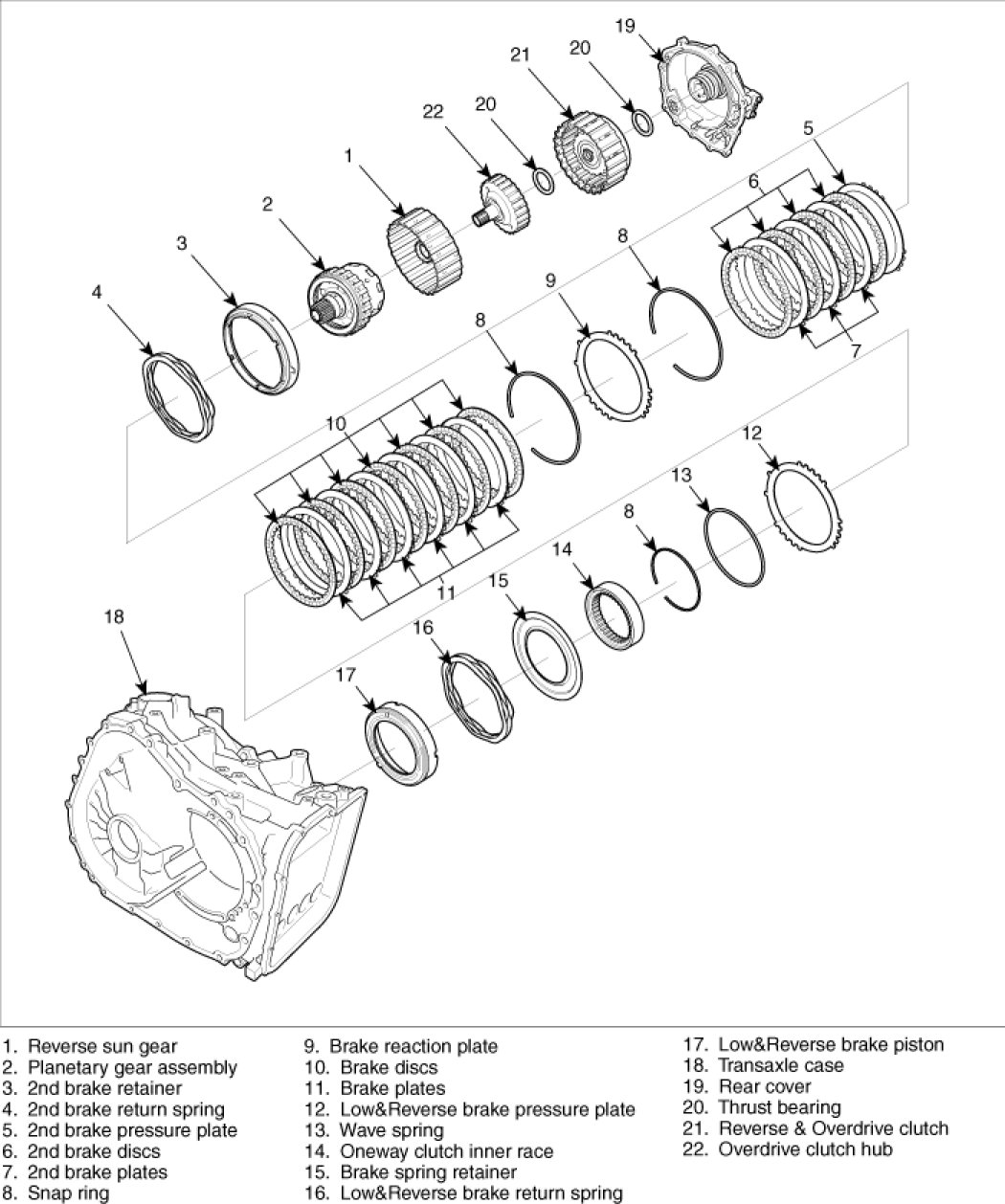

COMPONENTS (2)

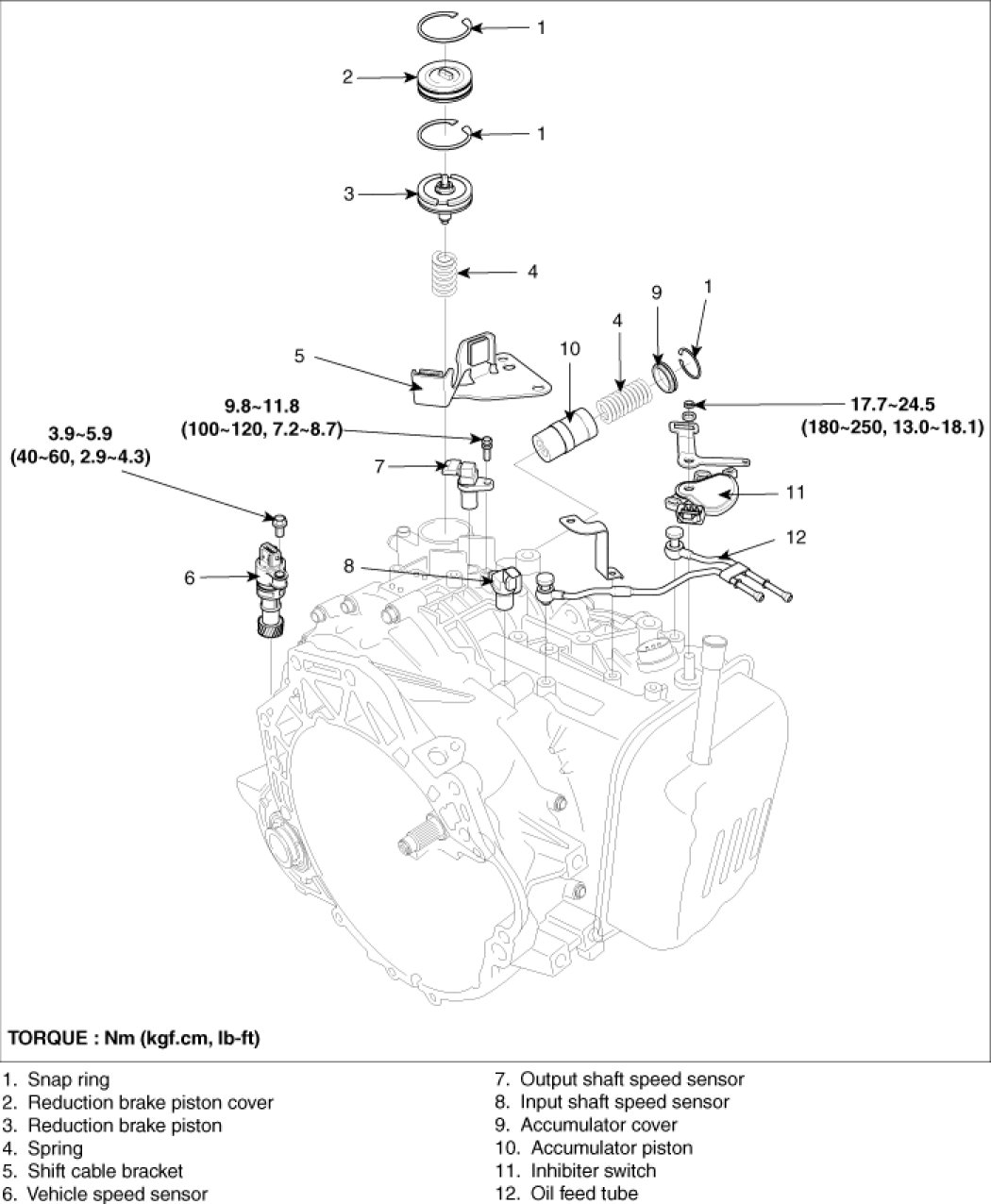

COMPONENTS (3)
