Home >> Kia >> 2006 >> Spectra L4-2.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Relay Box

Relay Box

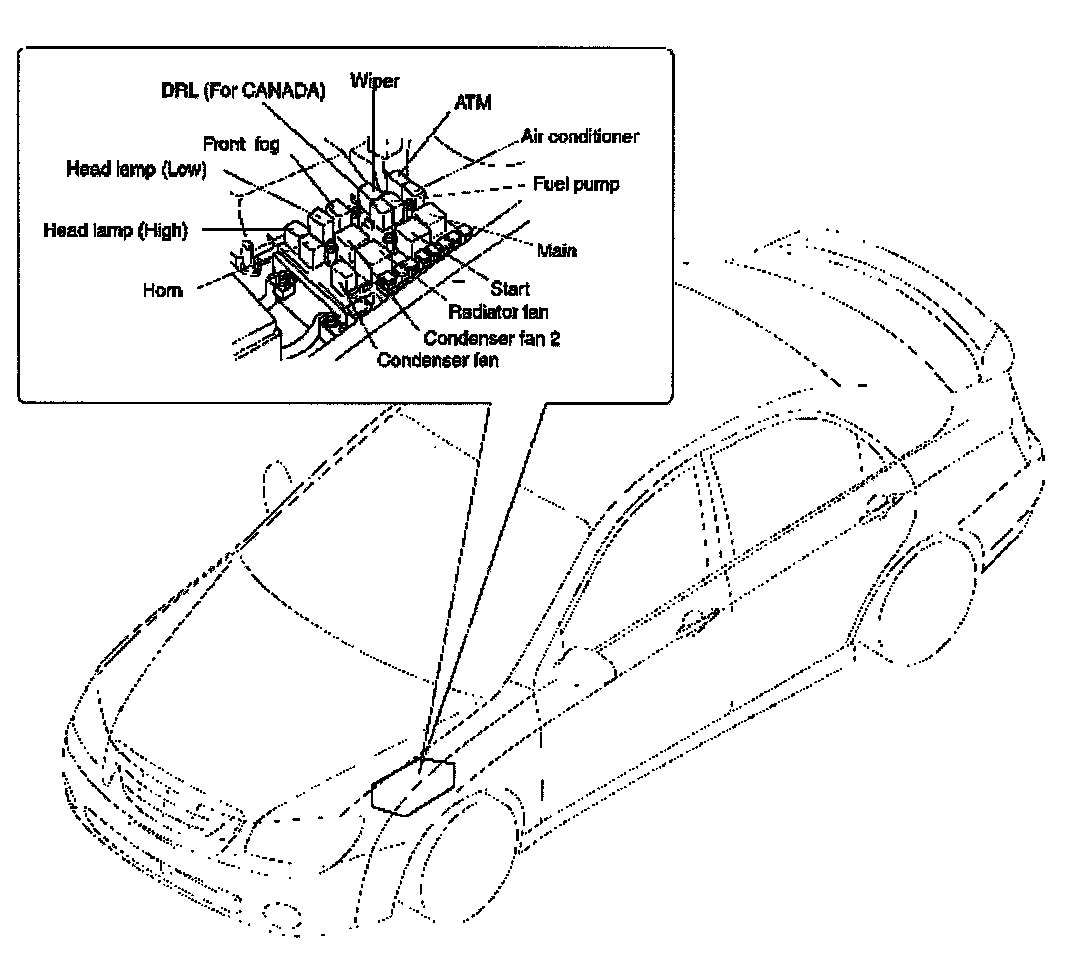

Relay Box (Engine) Components - Location:

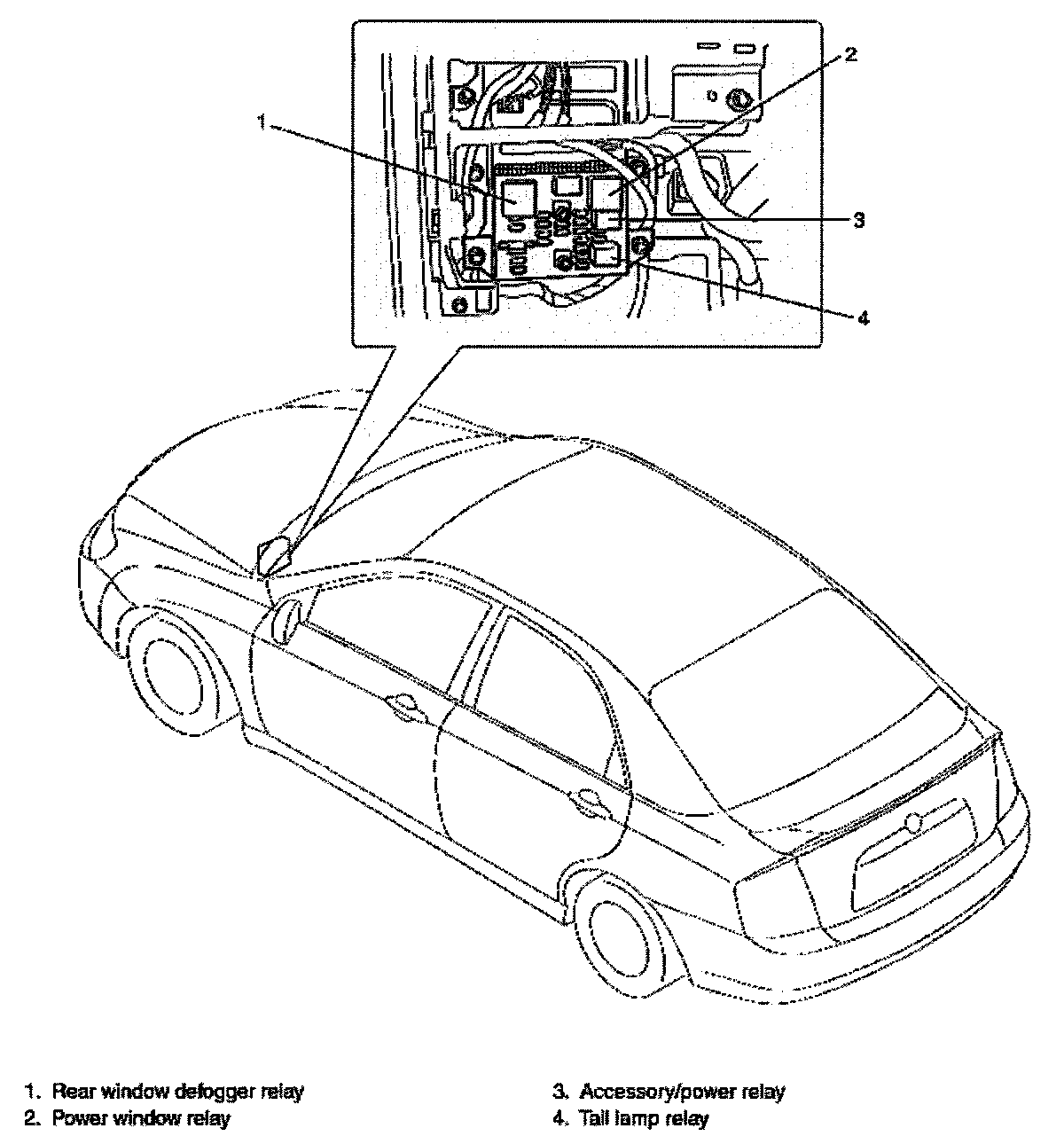

Relay Box (Passenger) Component - Location:
