Home >> Kia >> 2006 >> Spectra L4-2.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> I/P Junction Box View

I/P Junction Box View

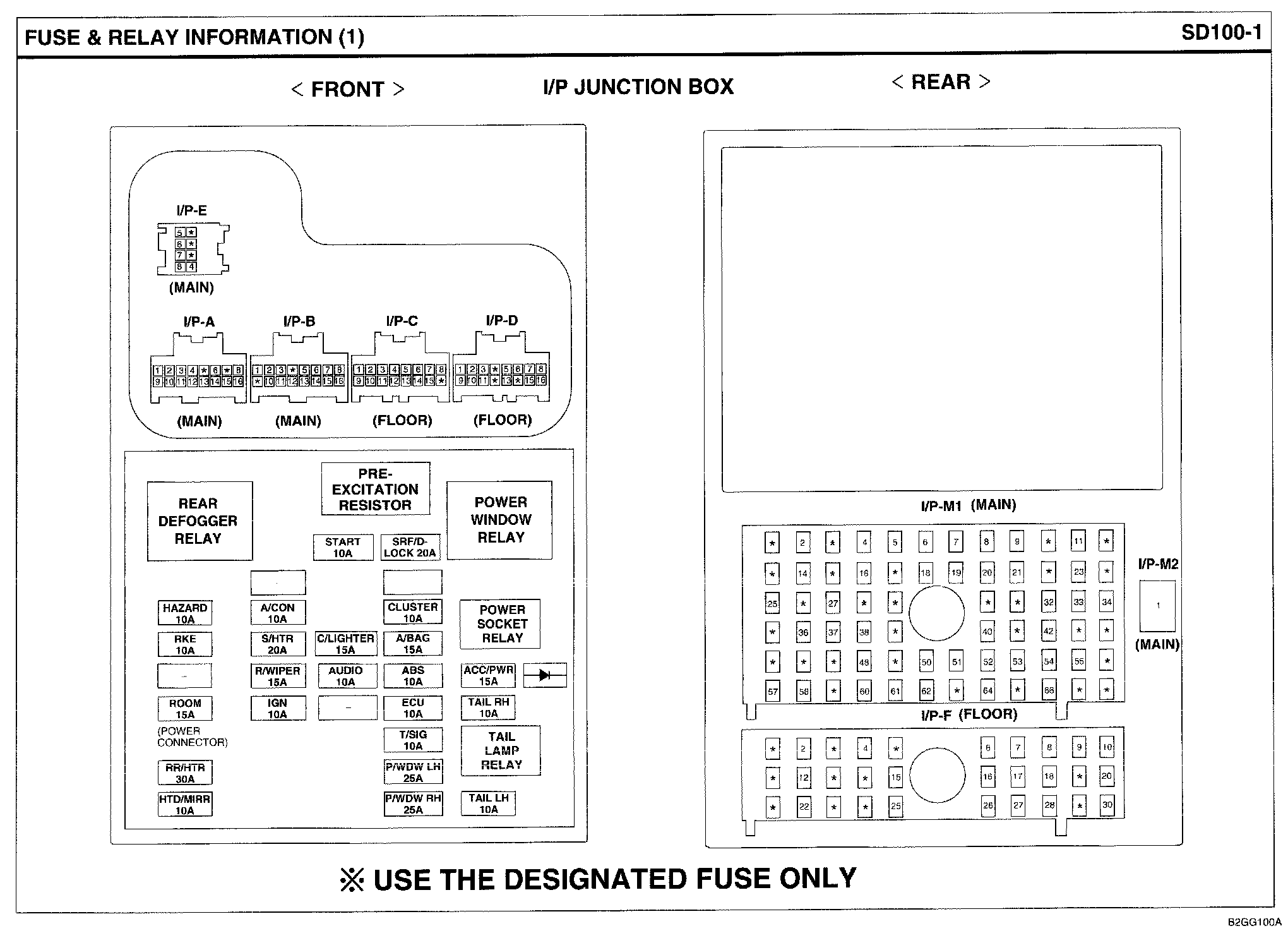

I/P Junction Box View:

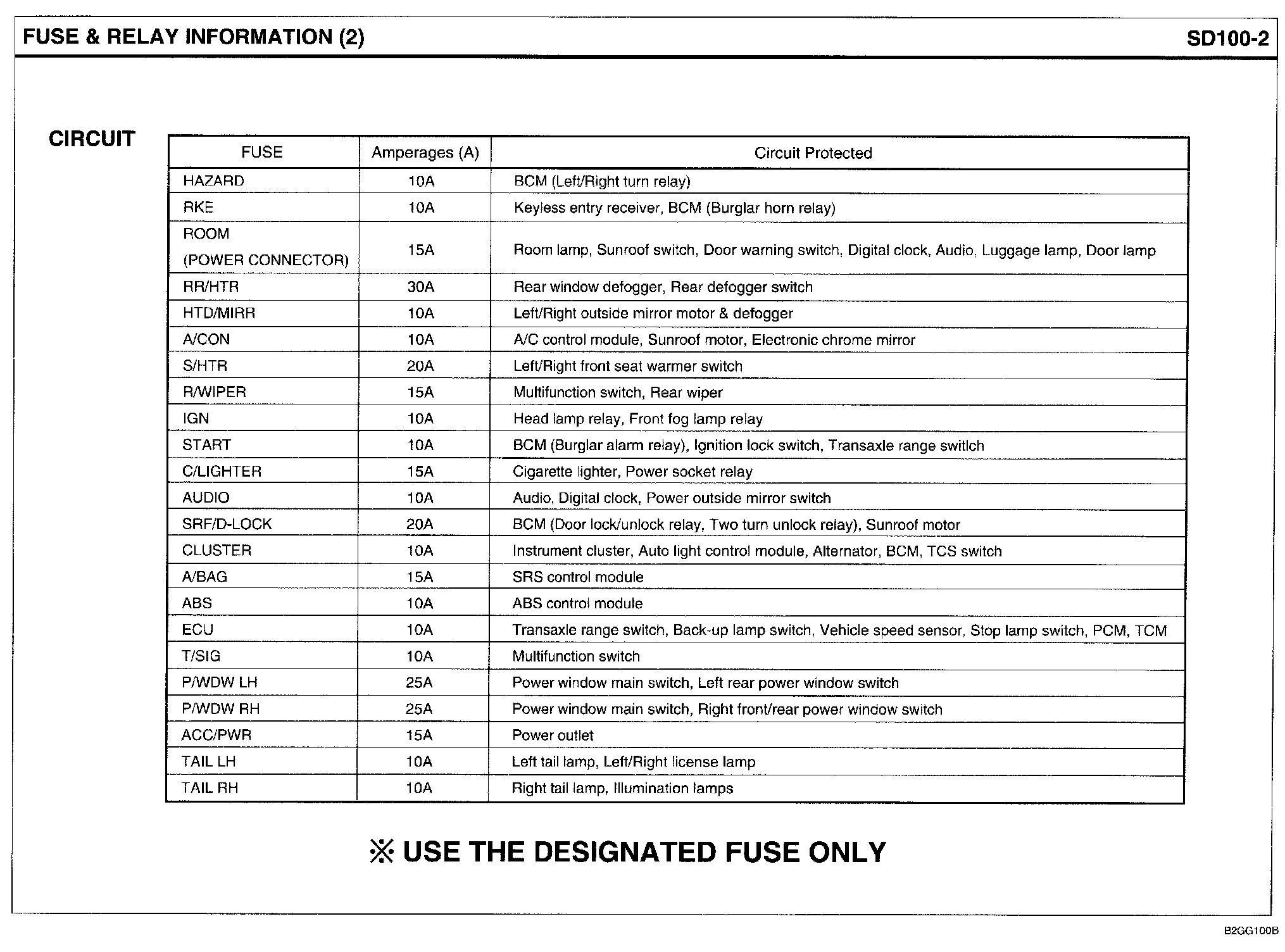

I/P Junction Box Circuit Details:

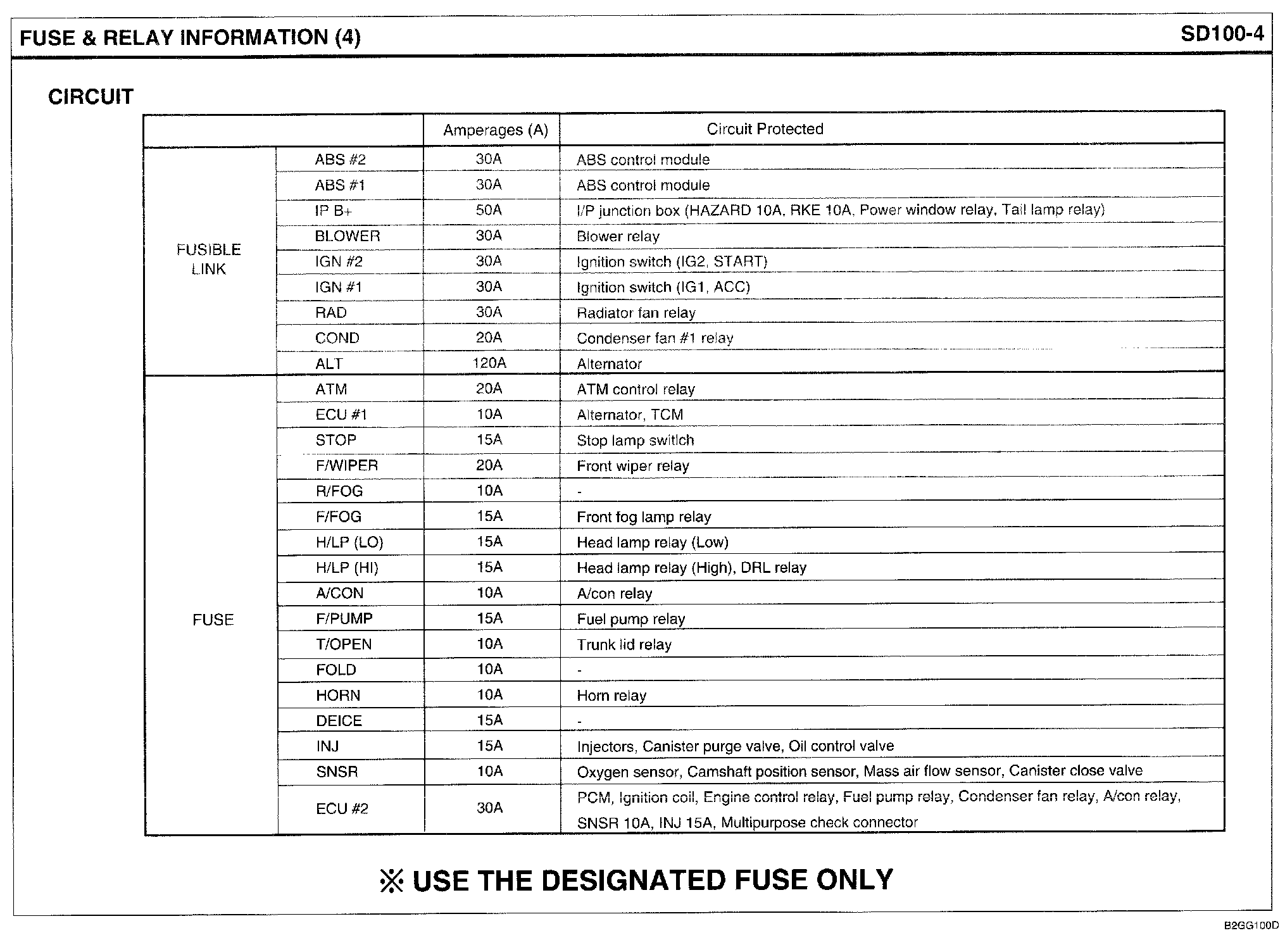

E/R Junction Box View:




E/R Junction Box Circuit Details:
