Sequences

Cylinder Head
Install the cylinder head bolts.
Apply a light coat if engine oil on the threads and under the heads of the cylinder head bolts.

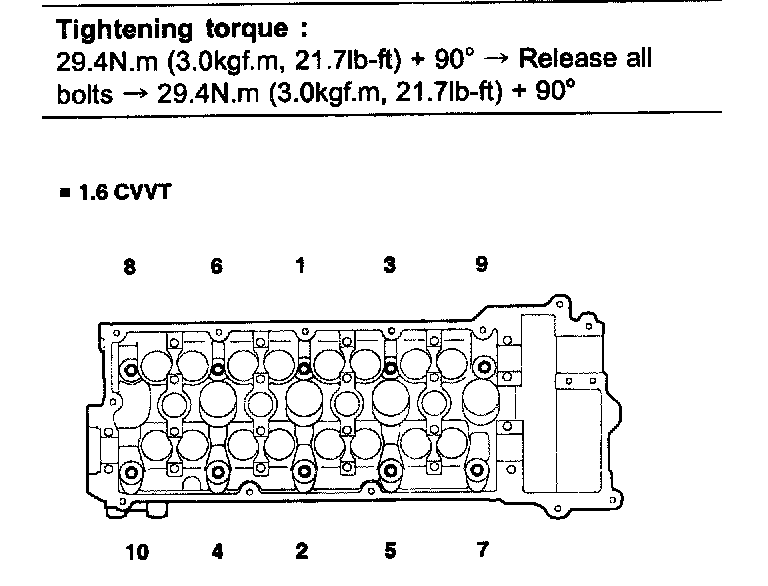

Using 8 mm and 10 mm hexagon wrench, install and tighten the 10 cylinder head bolts and plate washers, in several passes, in the sequence shown.
