lemon-mirror:
Home >> Kia >> 2006 >> Rio L4-1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Components

Components

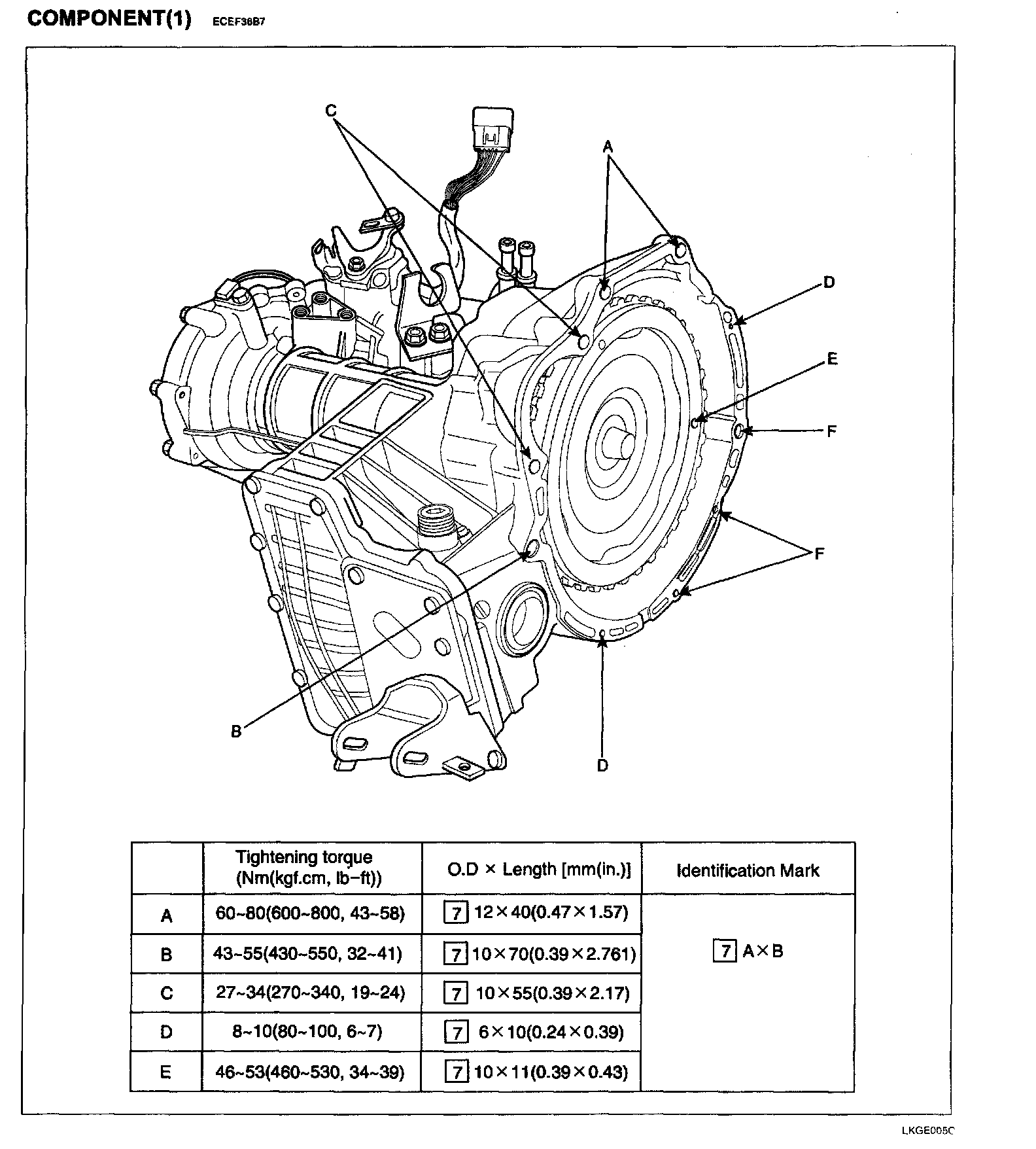

COMPONENT (1):

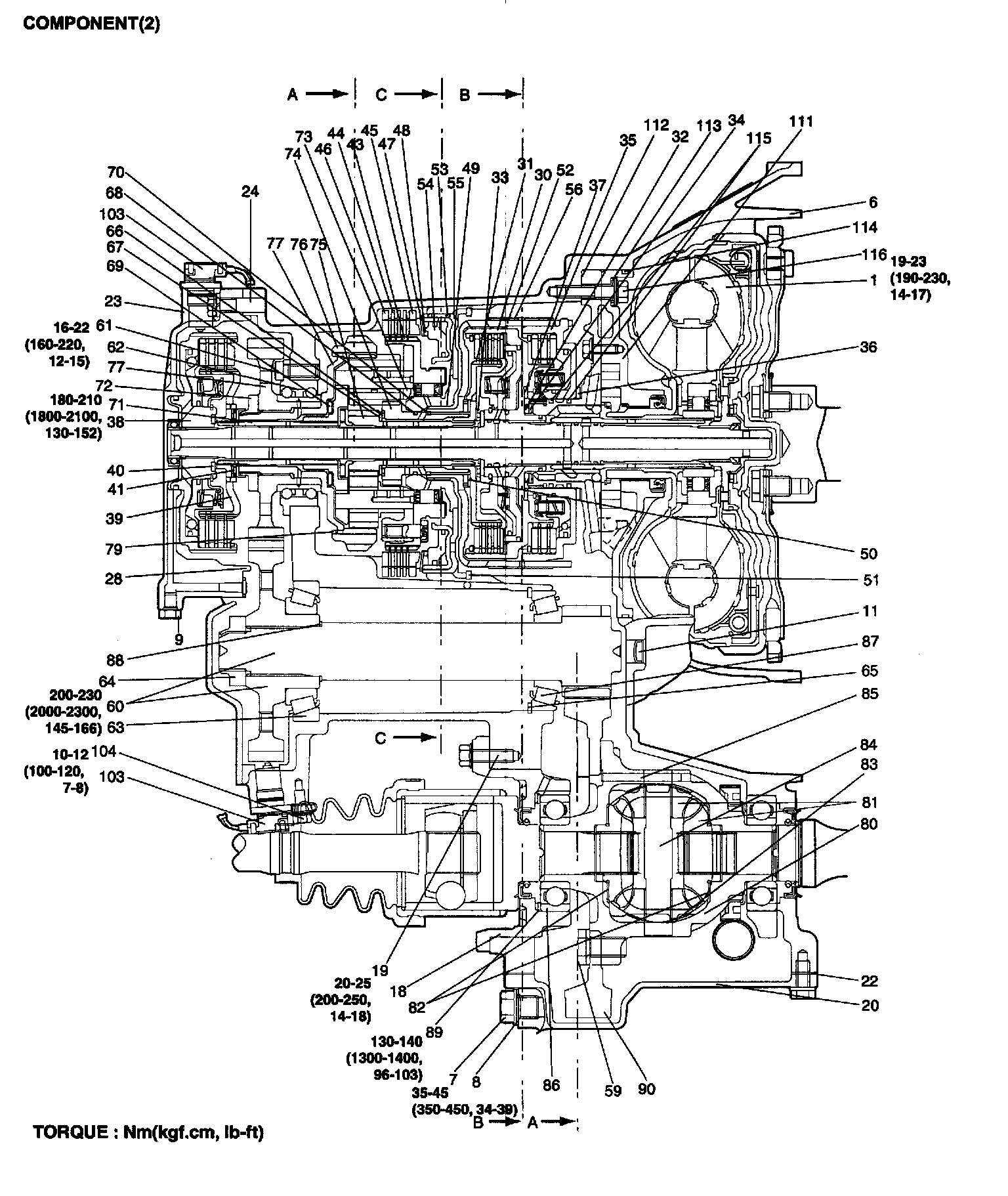

COMPONENT (2):

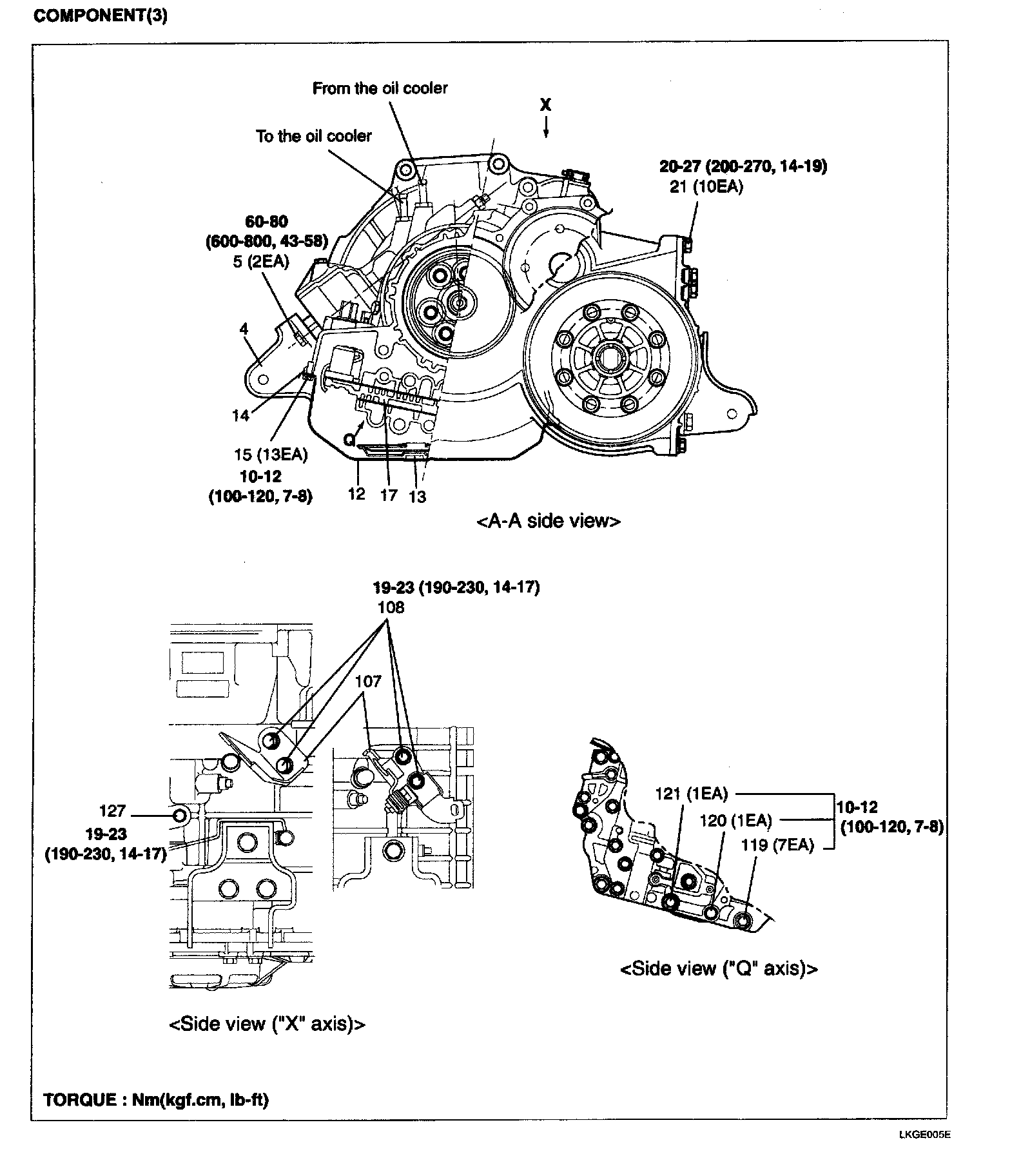

COMPONENT (3):

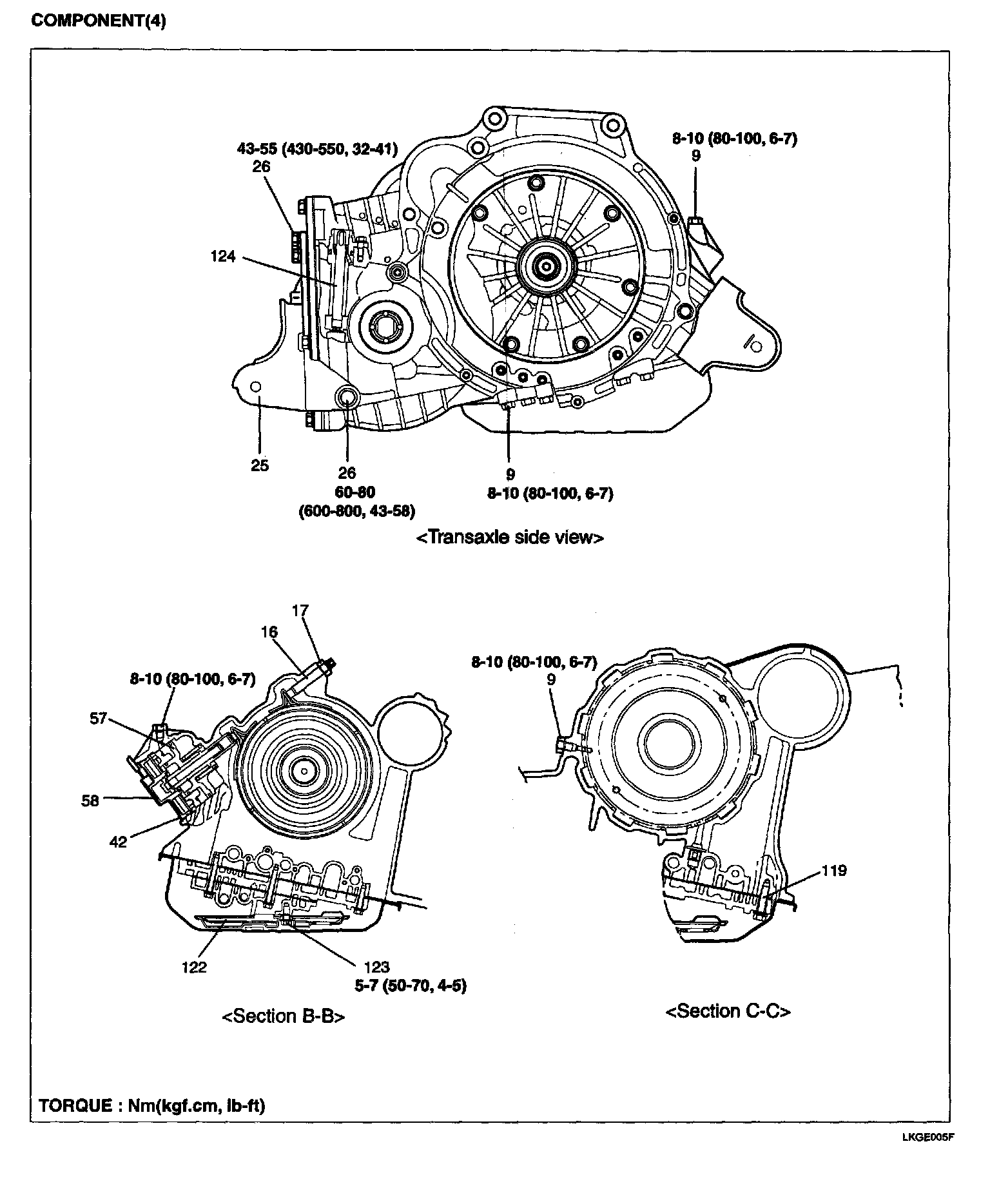

COMPONENT (4):

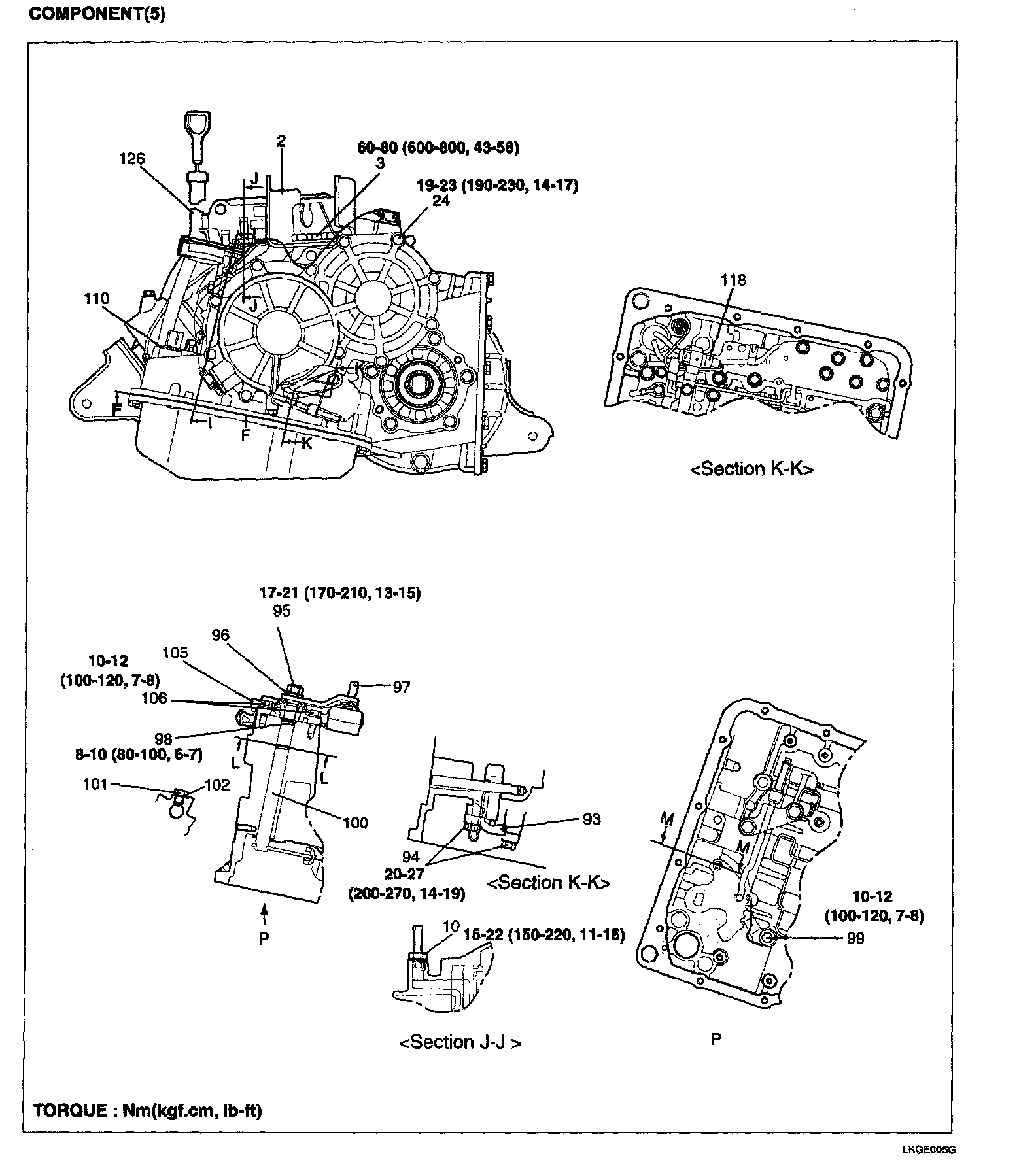

COMPONENT (5):

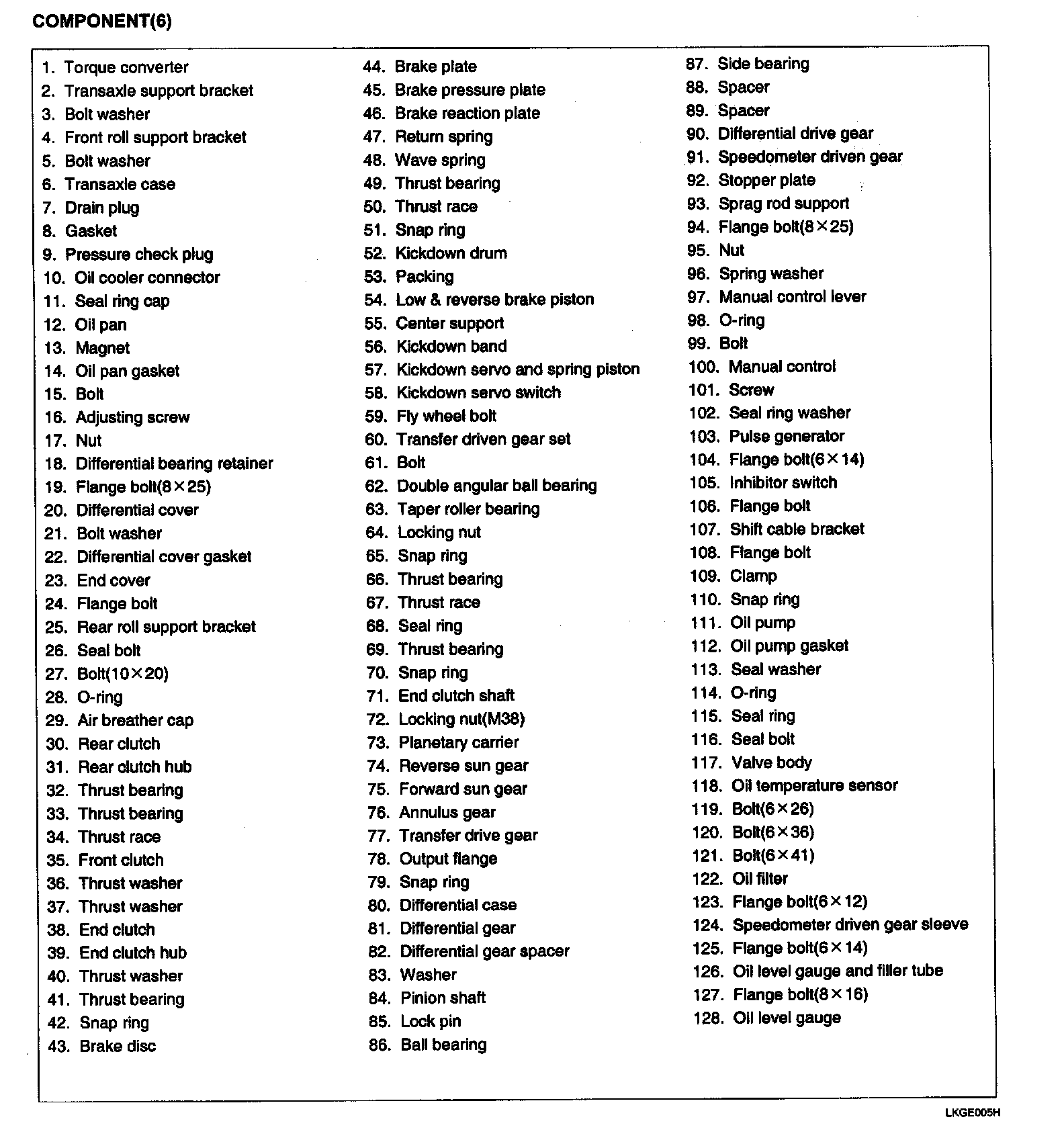

COMPONENT (6):
