Home >> Kia >> 2006 >> Optima L4-2.4L VIN 6 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Fuel Return Line

Fuel Return Line

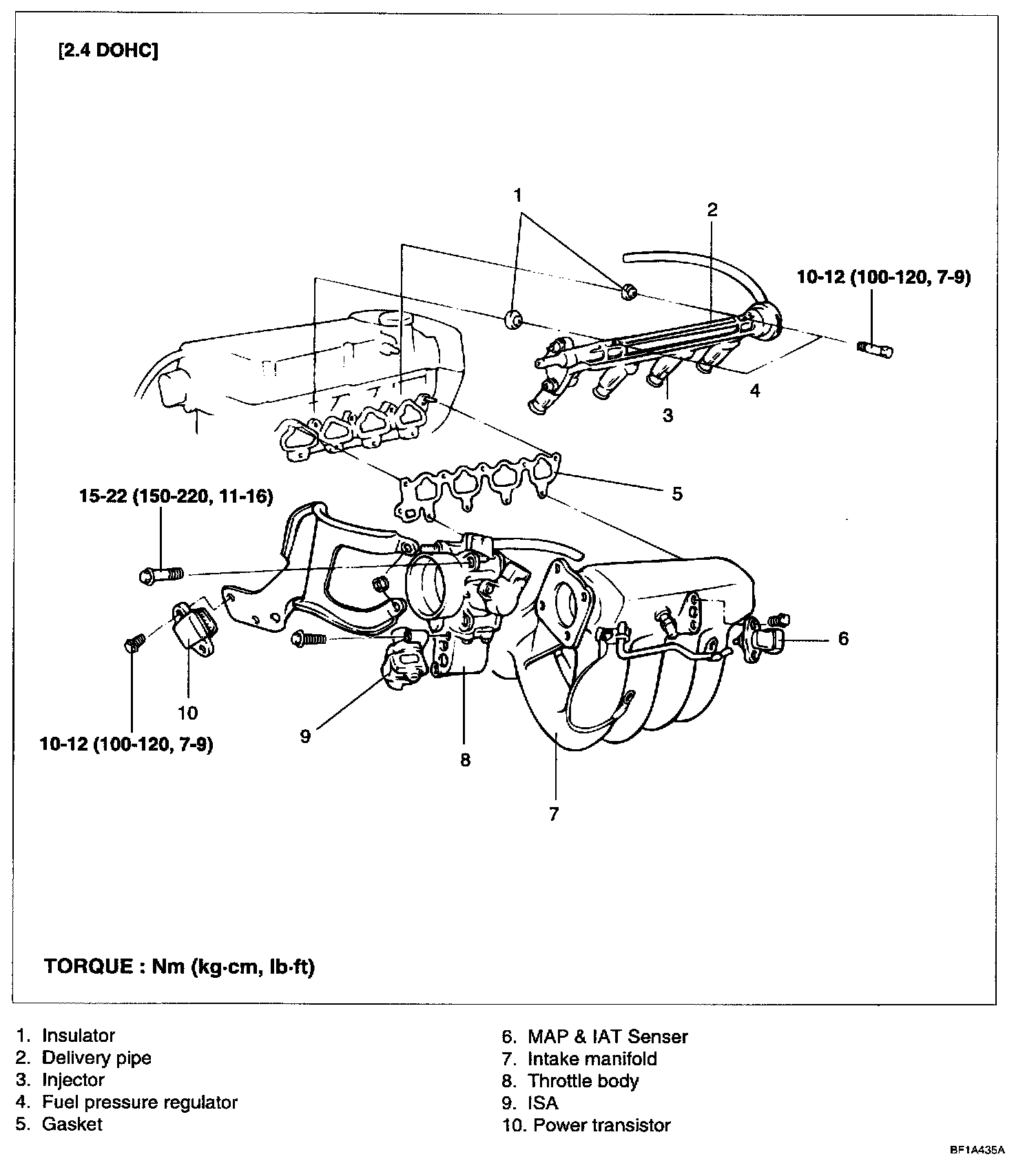

Fuel Line Components Part 1:

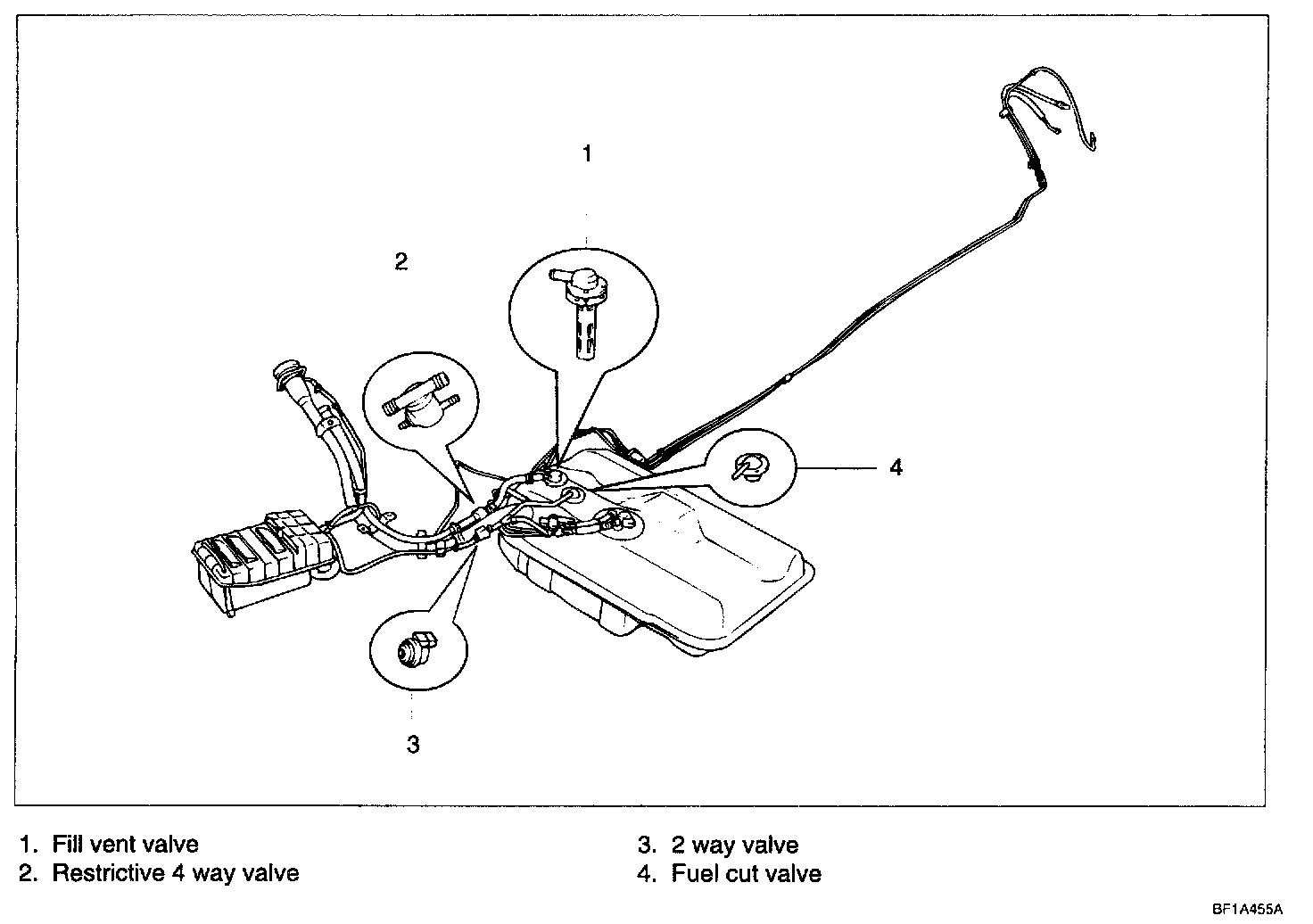

Fuel Line And Vapor Line Components:
