Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
AUTOMATIC TRANSAXLE

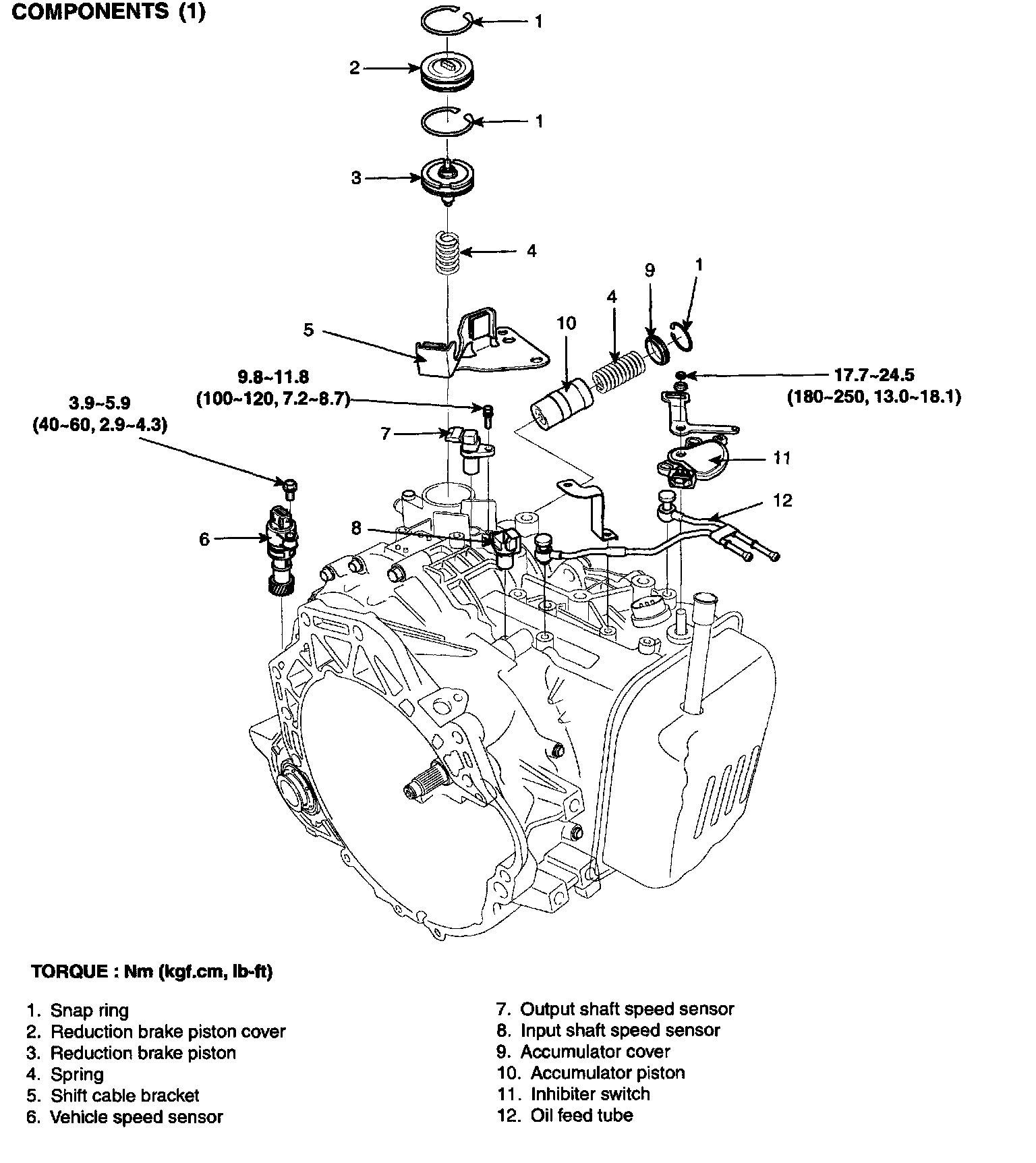

COMPONENTS (1):
COMPONENTS (1)

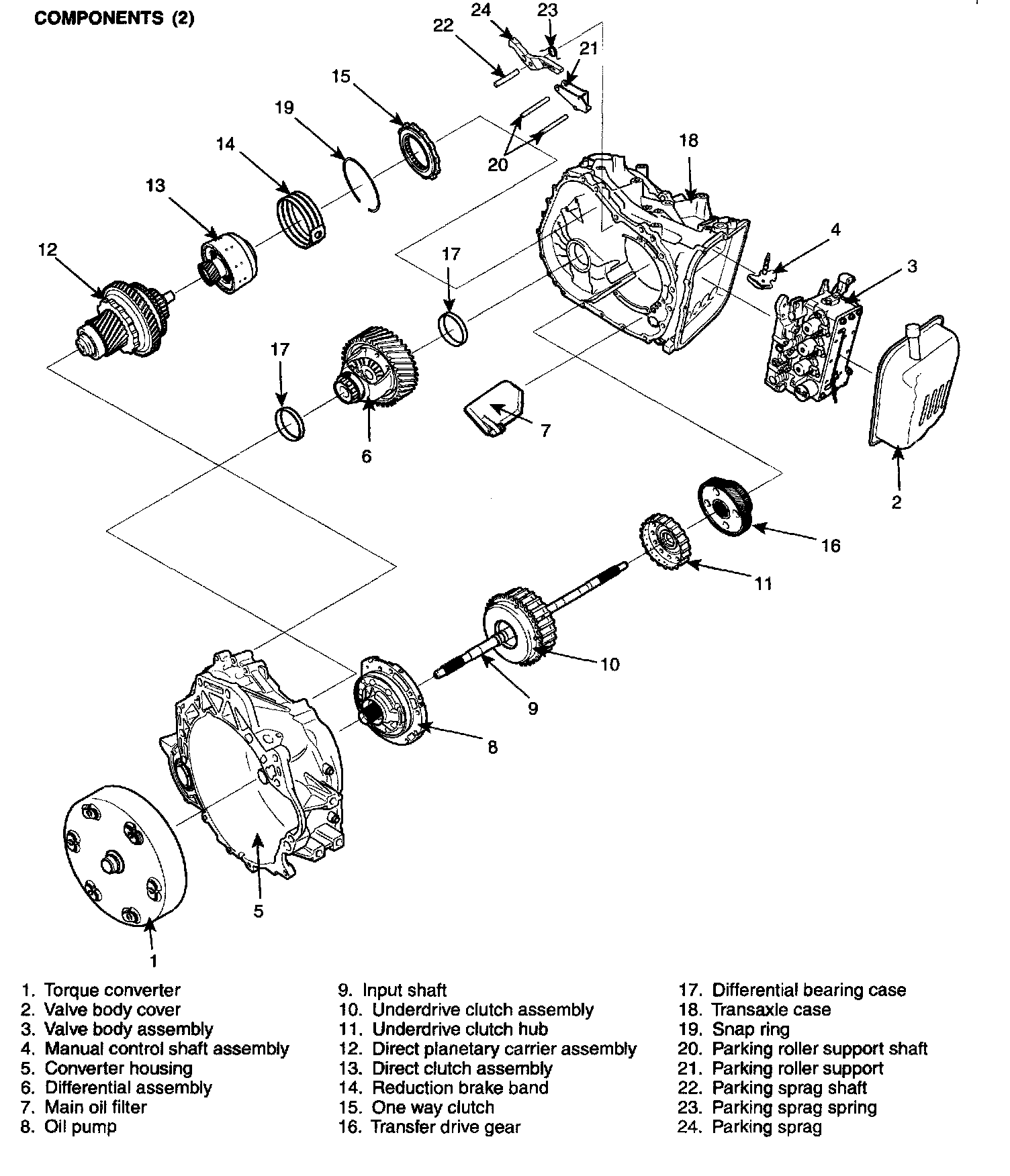

COMPONENTS (2):
COMPONENTS (2)

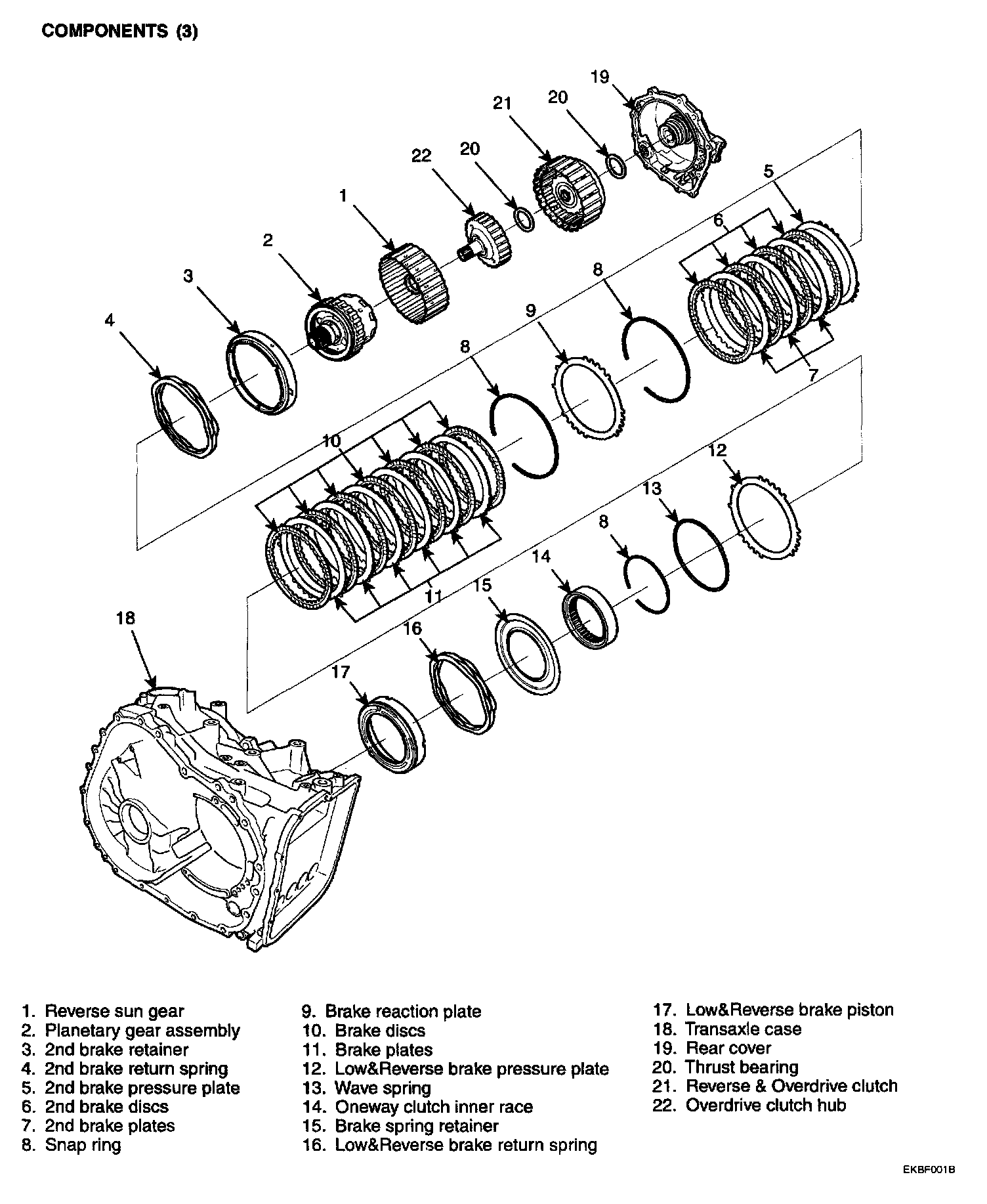

COMPONENTS (3):
COMPONENTS (3)
