Fuse: Locations

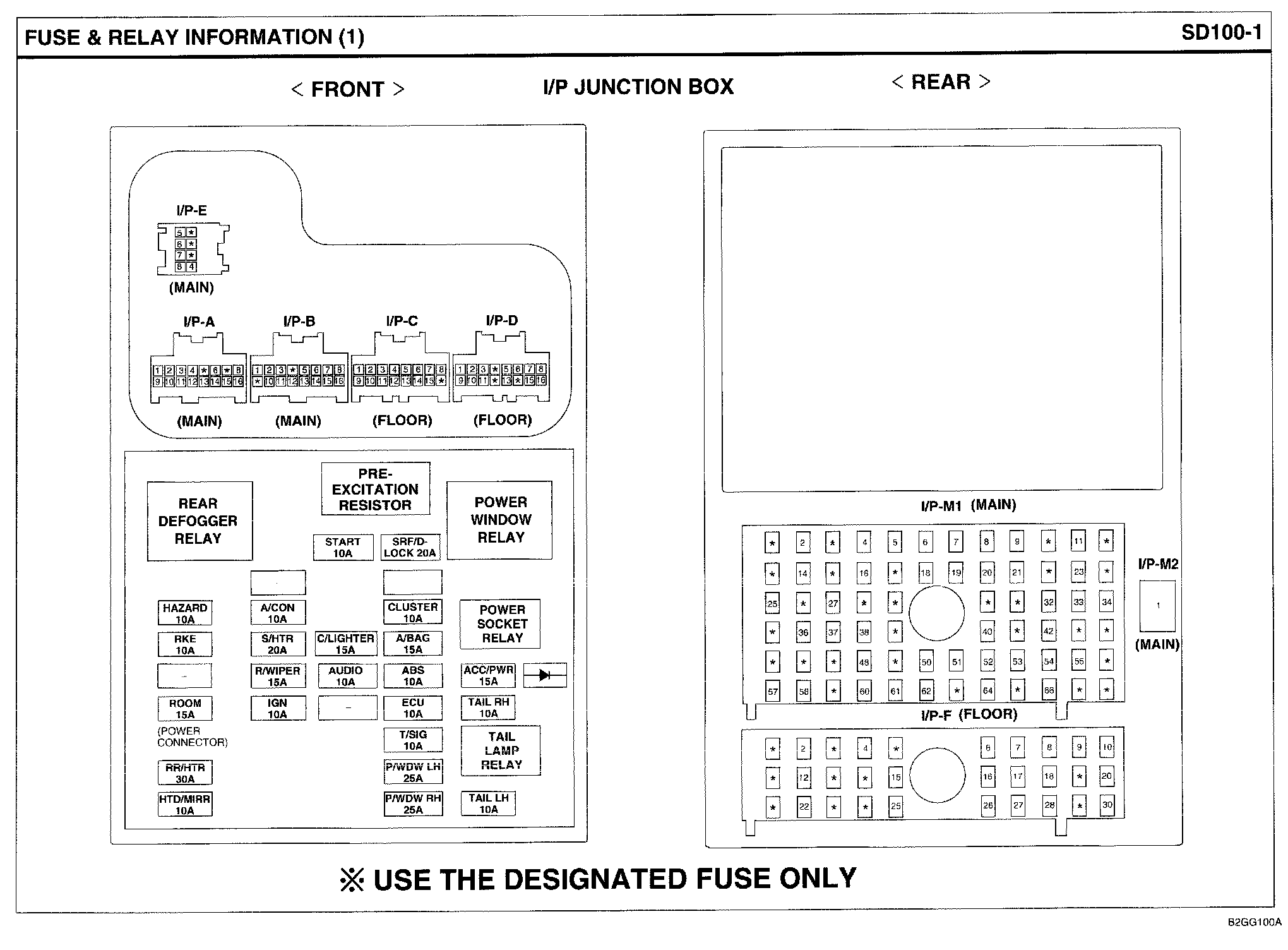

I/P Junction Box View:

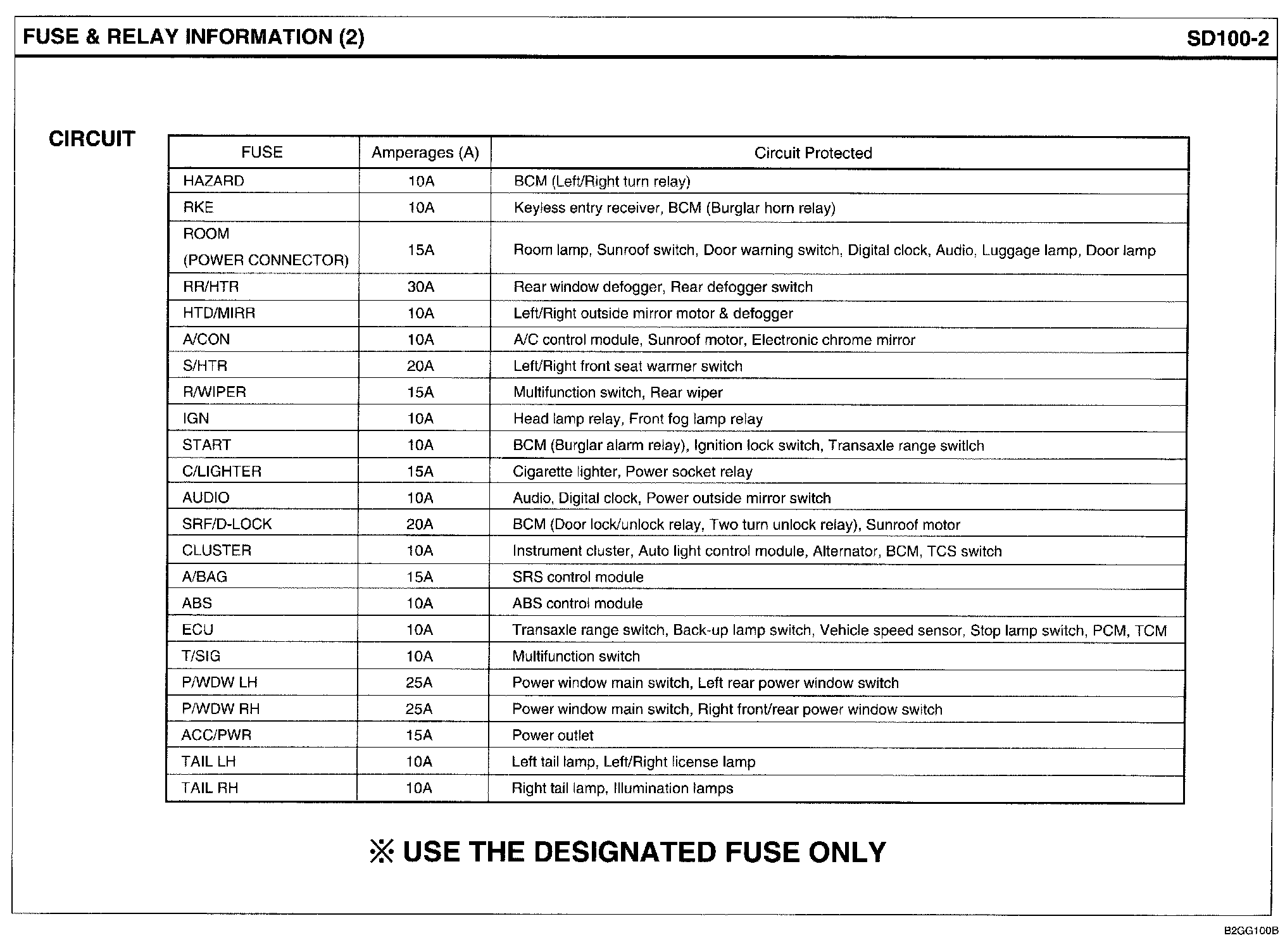

I/P Junction Box Circuit Details:

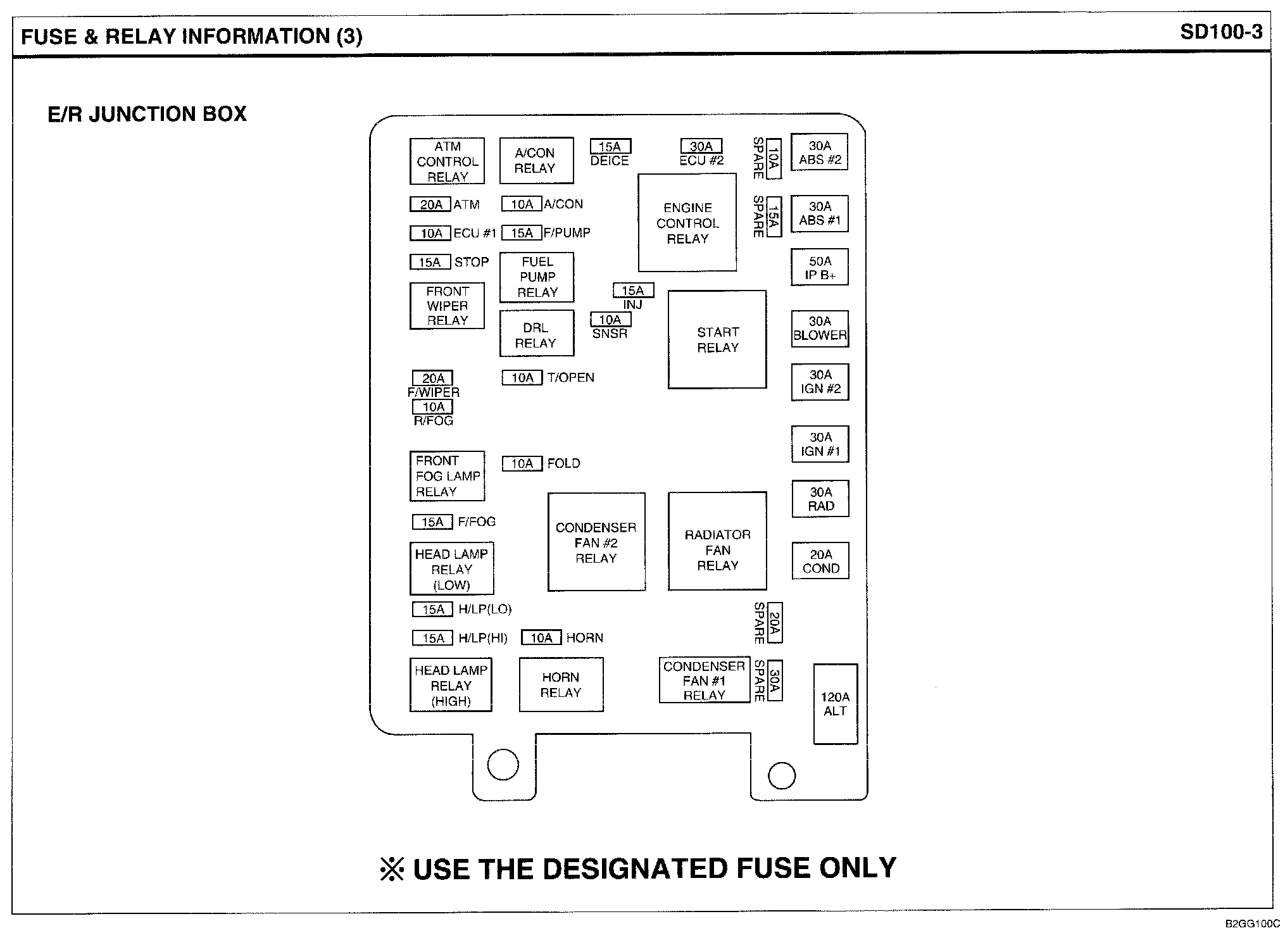

E/R Junction Box View:

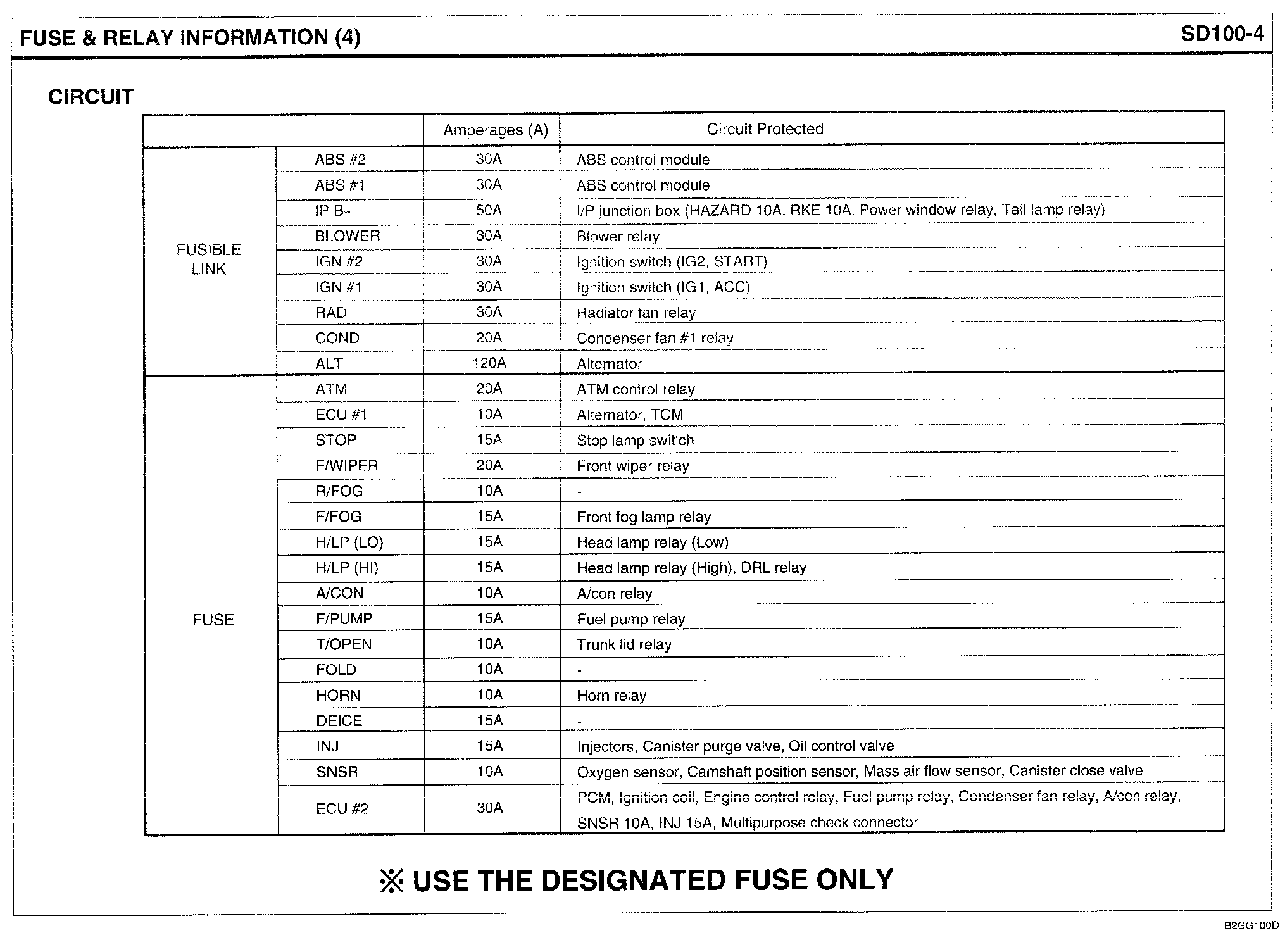

E/R Junction Box Circuit Details:
