Compressor Clutch: Testing and Inspection
MAGNETIC CLUTCHCHECKING THE CLUTCH AIR GAP

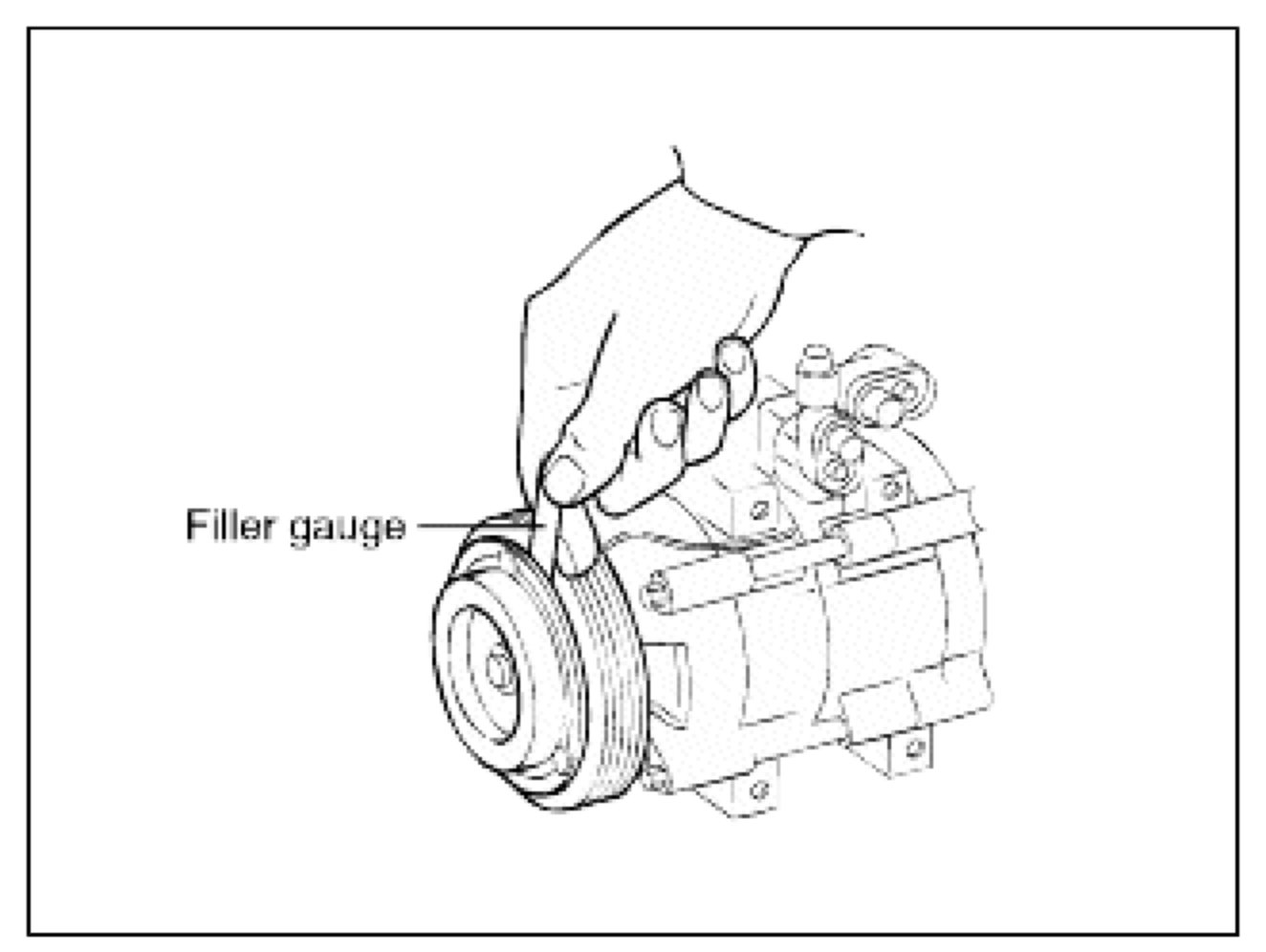

1. Check the air gap between the clutch hub and pulley contact surface using a filler gauge.
Clutch air gap: 0.35 - 0.65 mm (0.0138 - 0.0256 in)
2. Check the gap around the pulley at 3 points.
3. If the clutch air gap is outside the normal range, correct it using a shim of proper size.
