Relay Box (Engine Compartment)
Relay Box (Engine Compartment)

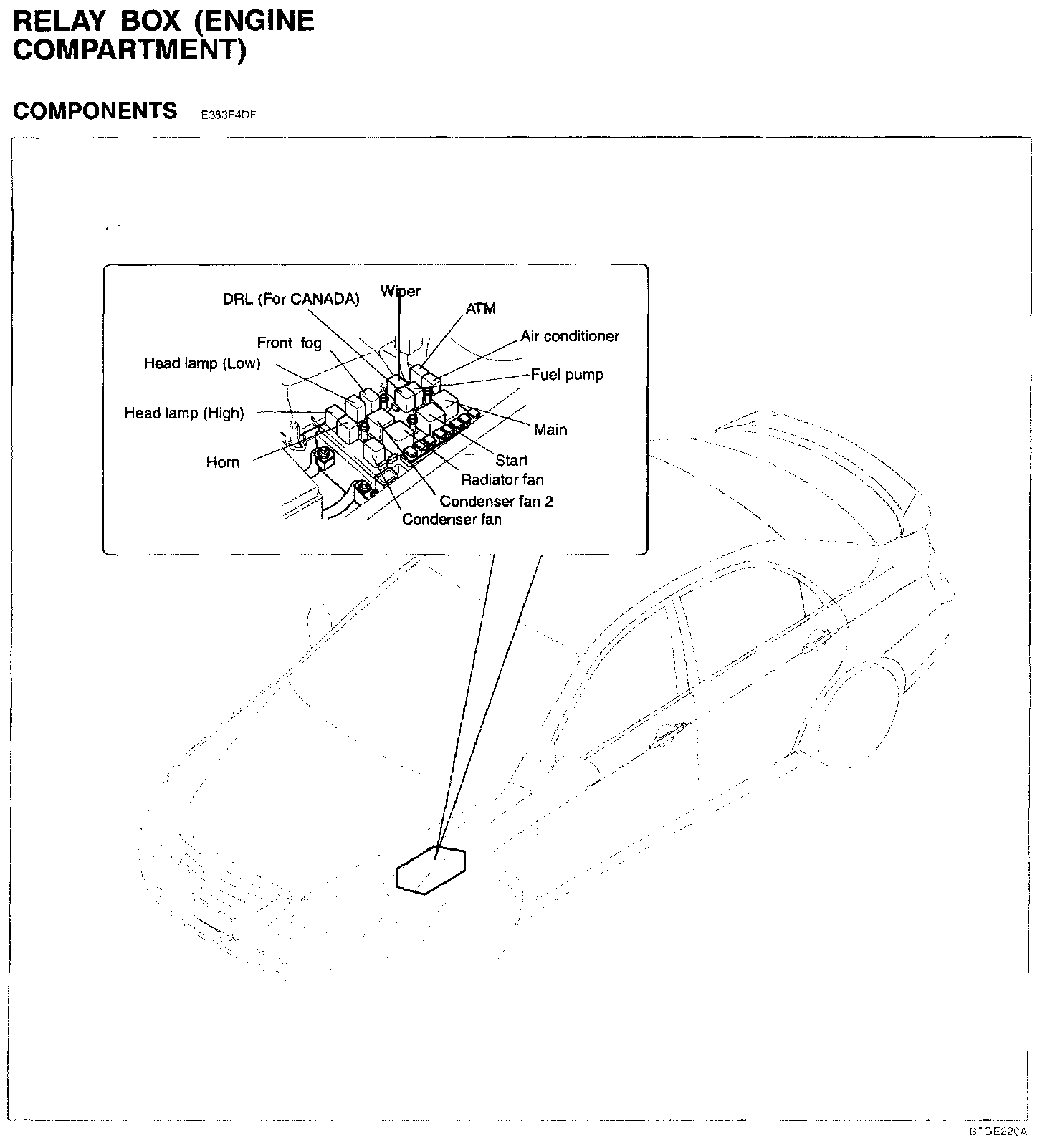

Relay Box (Engine Compartment) - Components:

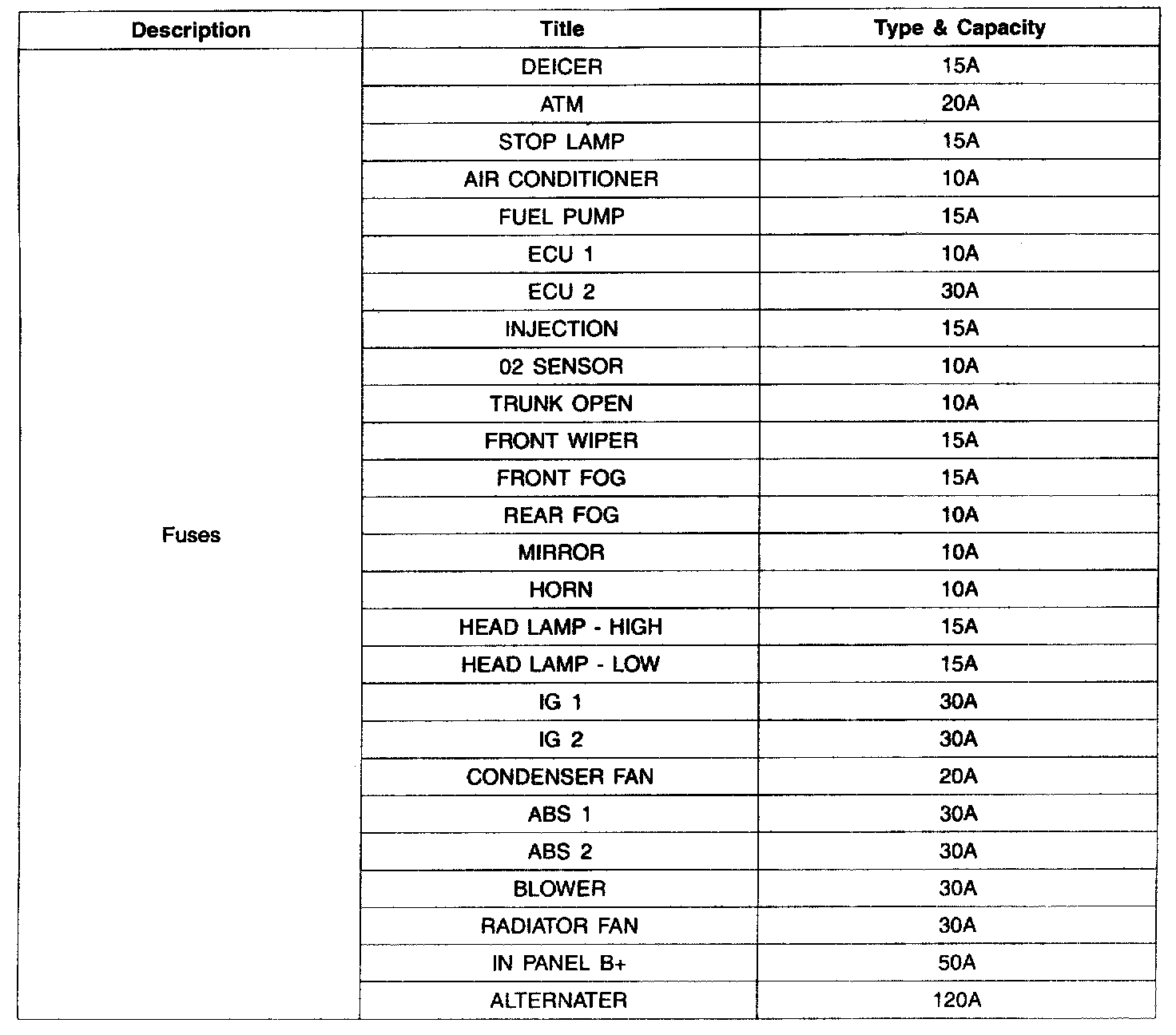

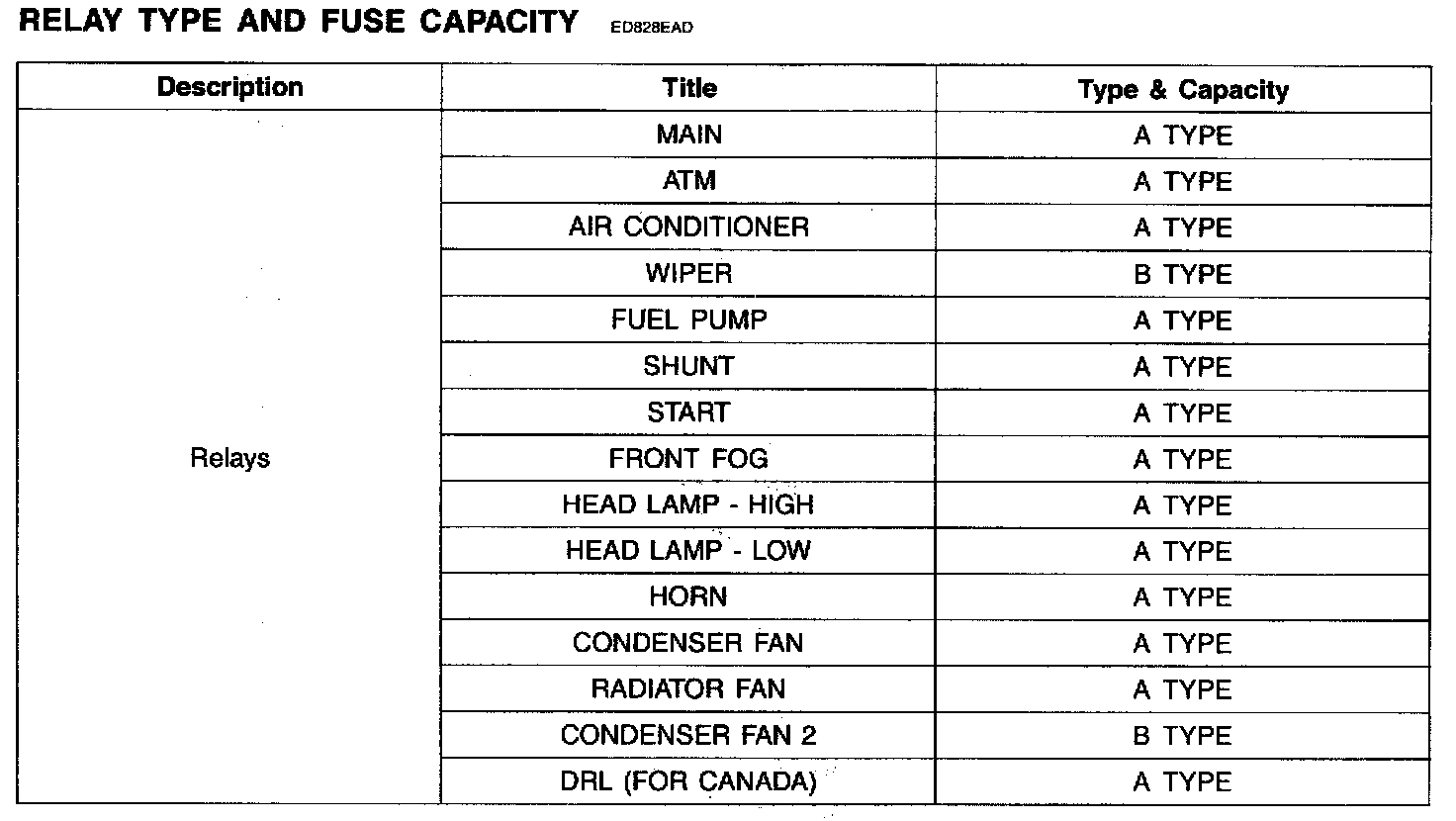

Relay Type And Fuse Capacity:
